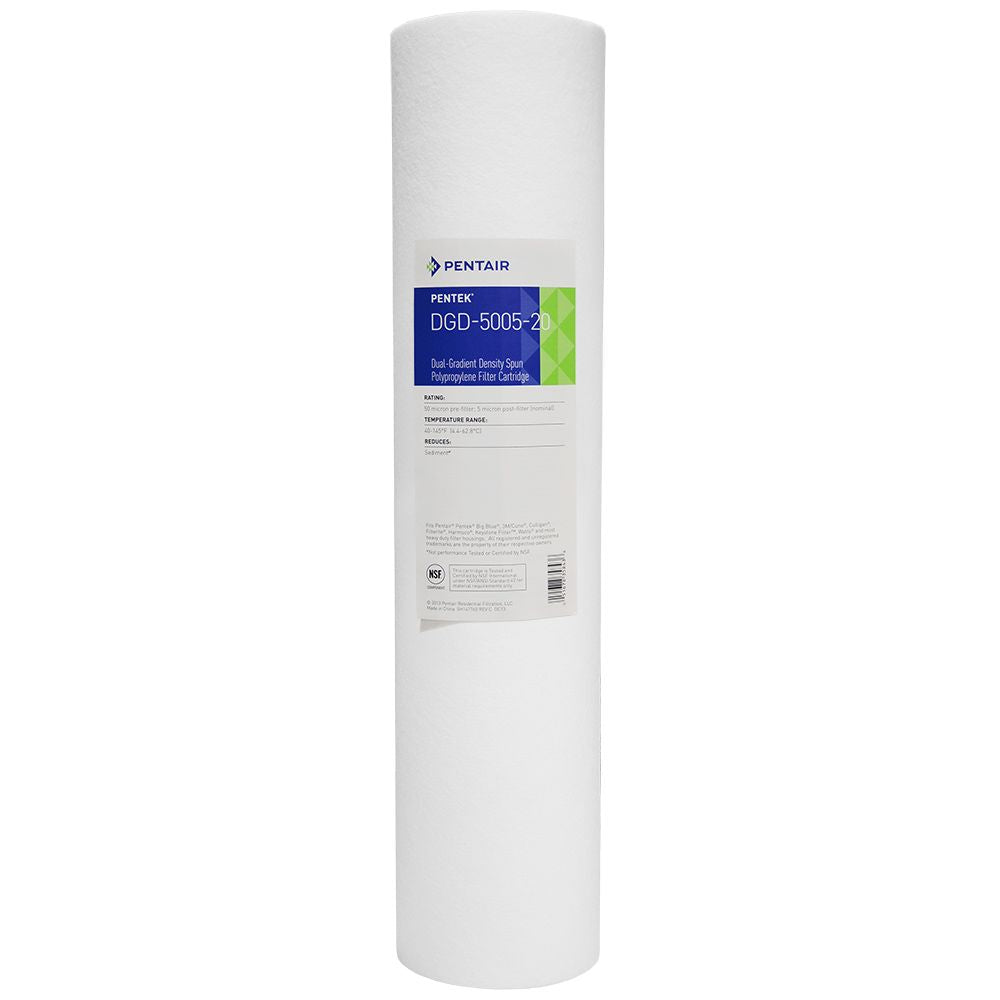

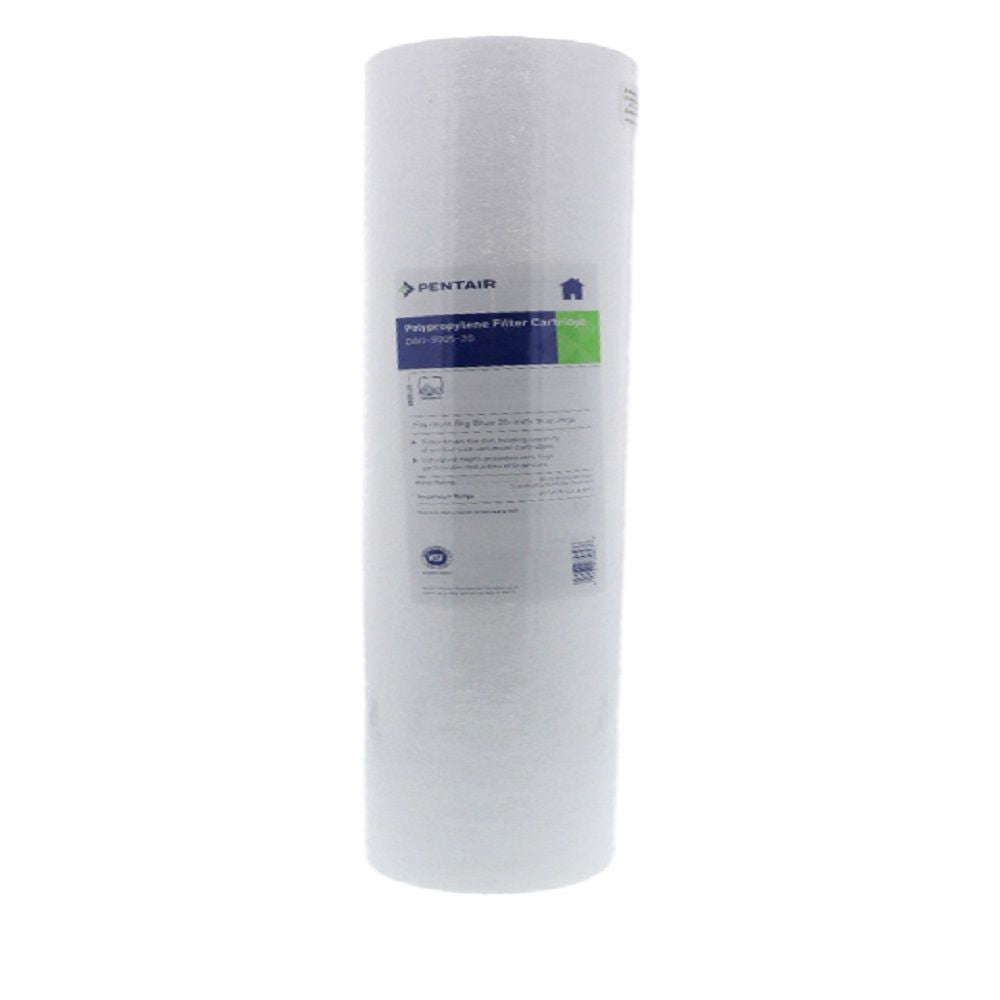

20" Pentek DGD-5005-20 Dual Gradient Density Polypropylene Sediment 5 mic Filter

Part Number: 155358-43

In Stock

out of stock

In Stock

$17.99


The 20" Pentek DGD-5005-20 Dual Gradient Density Sediment Filter is manufactured from 100% pure polypropylene, and is sized for use in the Pentair Pentek Big Blue Filter Housings. The DGD Series filter cartridges feature high capacity and dirt-holding design, and will not impart taste, color, or odor to the filtered liquid. The polypropylene construction not only offers advanced sediment filtration, but also superior chemical resistance and bacteria protection. The design and performance capabilities of these cartridges make them an ideal choice for all residential, rural, commercial, or municipal applications.
This filter will fit Pentair® Pentek® Big Blue®, 3M/Cuno®, Culligan®, Filterite®, Harmsco®, Keystone Filter™, Watts®, and most heavy duty filter housings.

Dual-Gradient Filtration. The dual-gradient is an all-in-one pre and post filter, eliminating the need for a step-down filtration system in your home. The 50 micron outer layer removes larger sediment, which reduces the load of the 5 micron inner layer. This allows the filter to operate more efficiently and consistently, and adds to the filter life.

Specifications:
  • Filter Media: Polypropylene
  • Nominal Micron Rating: 5
  • Dimensions: 4.5" x 20"
  • Reduces: Sediment, dirt, and rust
  • Initial Pressure Drop: <1 psi @ 20 gpm
  • Temperature Range: 40-145°F
Features & Benefits:
  • High dirt-holding capacity
  • Exceptional chemical resistance
  • Not prone to bacterial attack
  • Spun fibers form gradient density
  • Tested & certified to NSF/ANSI Standard 42 for material requirements


Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Details

Capacity

6-12 Months

Cartridge Style

Drop-In

Case Quantity

6

Filter Application

Sediment/Dirt/Rust, Particulates

Initial Pressure Drop

<1 psi @ 20 gpm (<0.1 bar @ 76 Lpm) PSI Differential

Media Type

Polypropylene

Micron Rating (Nominal)

5 Micron

Operating Temperature Range

40-145°F (4.4-62.8°C) Degrees Fahrenheit

Outer Diameter

4.5" (11.4 cm)

Warranty & Certifications

Certifications

NSF 42


20"





The 20" Pentek DGD-5005-20 Dual Gradient Density Sediment Filter is manufactured from 100% pure polypropylene, and is sized for use in the Pentair Pentek Big Blue Filter Housings. The DGD Series filter cartridges feature high capacity and dirt-holding design, and will not impart taste, color, or odor to the filtered liquid. The polypropylene construction not only offers advanced sediment filtration, but also superior chemical resistance and bacteria protection. The design and performance capabilities of these cartridges make them an ideal choice for all residential, rural, commercial, or municipal applications.
This filter will fit Pentair® Pentek® Big Blue®, 3M/Cuno®, Culligan®, Filterite®, Harmsco®, Keystone Filter™, Watts®, and most heavy duty filter housings.

Dual-Gradient Filtration. The dual-gradient is an all-in-one pre and post filter, eliminating the need for a step-down filtration system in your home. The 50 micron outer layer removes larger sediment, which reduces the load of the 5 micron inner layer. This allows the filter to operate more efficiently and consistently, and adds to the filter life.

Specifications:
  • Filter Media: Polypropylene
  • Nominal Micron Rating: 5
  • Dimensions: 4.5" x 20"
  • Reduces: Sediment, dirt, and rust
  • Initial Pressure Drop: <1 psi @ 20 gpm
  • Temperature Range: 40-145°F
Features & Benefits:
  • High dirt-holding capacity
  • Exceptional chemical resistance
  • Not prone to bacterial attack
  • Spun fibers form gradient density
  • Tested & certified to NSF/ANSI Standard 42 for material requirements

Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Details

Capacity

6-12 Months

Cartridge Style

Drop-In

Case Quantity

6

Filter Application

Sediment/Dirt/Rust, Particulates

Initial Pressure Drop

<1 psi @ 20 gpm (<0.1 bar @ 76 Lpm) PSI Differential

Media Type

Polypropylene

Micron Rating (Nominal)

5 Micron

Operating Temperature Range

40-145°F (4.4-62.8°C) Degrees Fahrenheit

Outer Diameter

4.5" (11.4 cm)

Warranty & Certifications

Certifications

NSF 42
