Filmtec

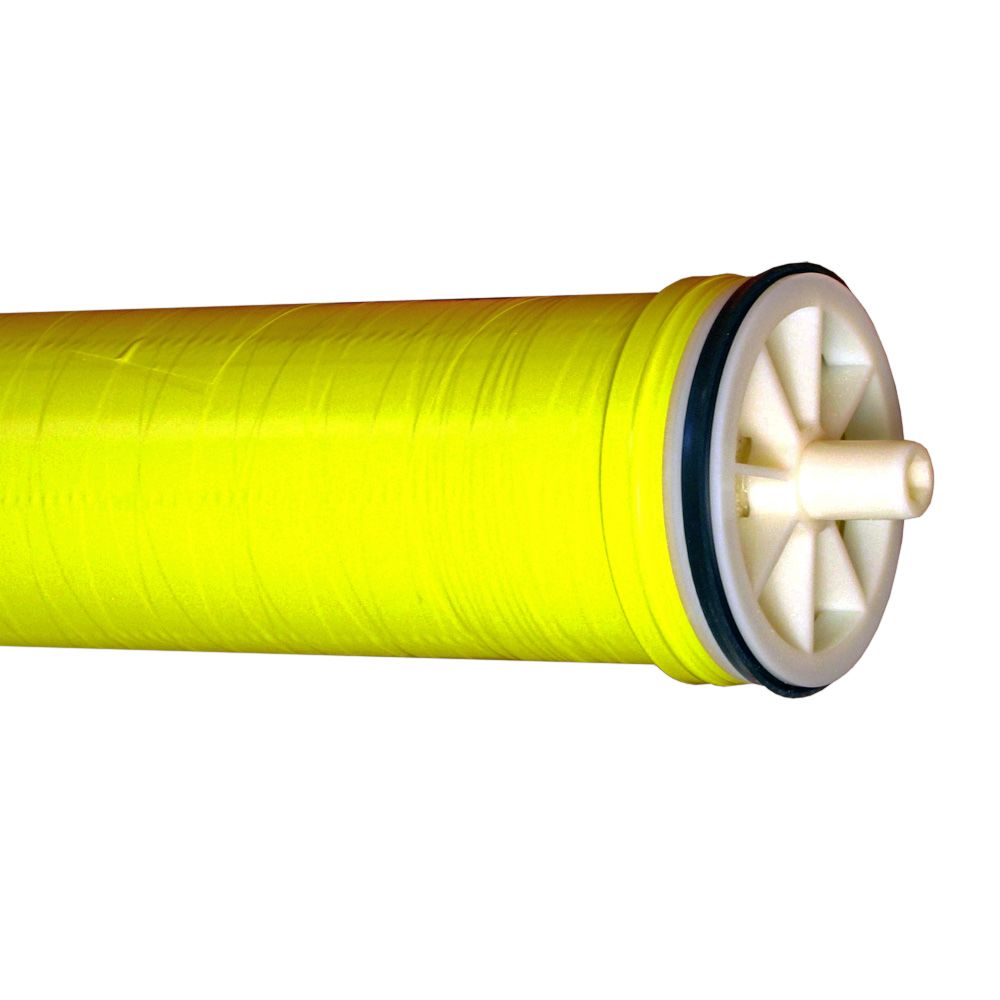

Filmtec XLE-2540 Tap Water Extra Low Energy 850 GPD RO Membrane Element

Part Number: XLE-2540

Alt. Part Number: 154543

In Stock

out of stock

In Stock

$185.00


The Dow FILMTEC XLE Membranes are engineered to optimize performance at very low applied pressure in commercial applications. The XLE (Extra Low Energy) membranes replace the older TW30LE technology, and are available in both wet and dry packaging for extended shelf-life or rapid start-up.

Features:
  • Up to 850 Gallon Per Day production
  • Up to 600 SIPG
  • Fits Standard 2.5" Housings or Pressure Vessels
  • Better system performance & economics by operating at very low applied pressure
  • Made with a patented technology
  • Provides consistent and reliable system performance
  • The new XLE series of elements replaces TW30LE elements which were made with an older membrane technology

Compatible with: Filmtec Membranes | 154543


Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Cartridge Style

Drop-in Element

Diameter

2.4 Inches

Flow Rate

850 Gallons per day

Inner/Outer Wraps

Tape

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

28 Square Feet

Average Nacl Rejection

99 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

100 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

13 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11


Filmtec





The Dow FILMTEC XLE Membranes are engineered to optimize performance at very low applied pressure in commercial applications. The XLE (Extra Low Energy) membranes replace the older TW30LE technology, and are available in both wet and dry packaging for extended shelf-life or rapid start-up.

Features:
  • Up to 850 Gallon Per Day production
  • Up to 600 SIPG
  • Fits Standard 2.5" Housings or Pressure Vessels
  • Better system performance & economics by operating at very low applied pressure
  • Made with a patented technology
  • Provides consistent and reliable system performance
  • The new XLE series of elements replaces TW30LE elements which were made with an older membrane technology

Compatible with: Filmtec Membranes | 154543

Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Cartridge Style

Drop-in Element

Diameter

2.4 Inches

Flow Rate

850 Gallons per day

Inner/Outer Wraps

Tape

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

28 Square Feet

Average Nacl Rejection

99 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

100 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

13 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11
