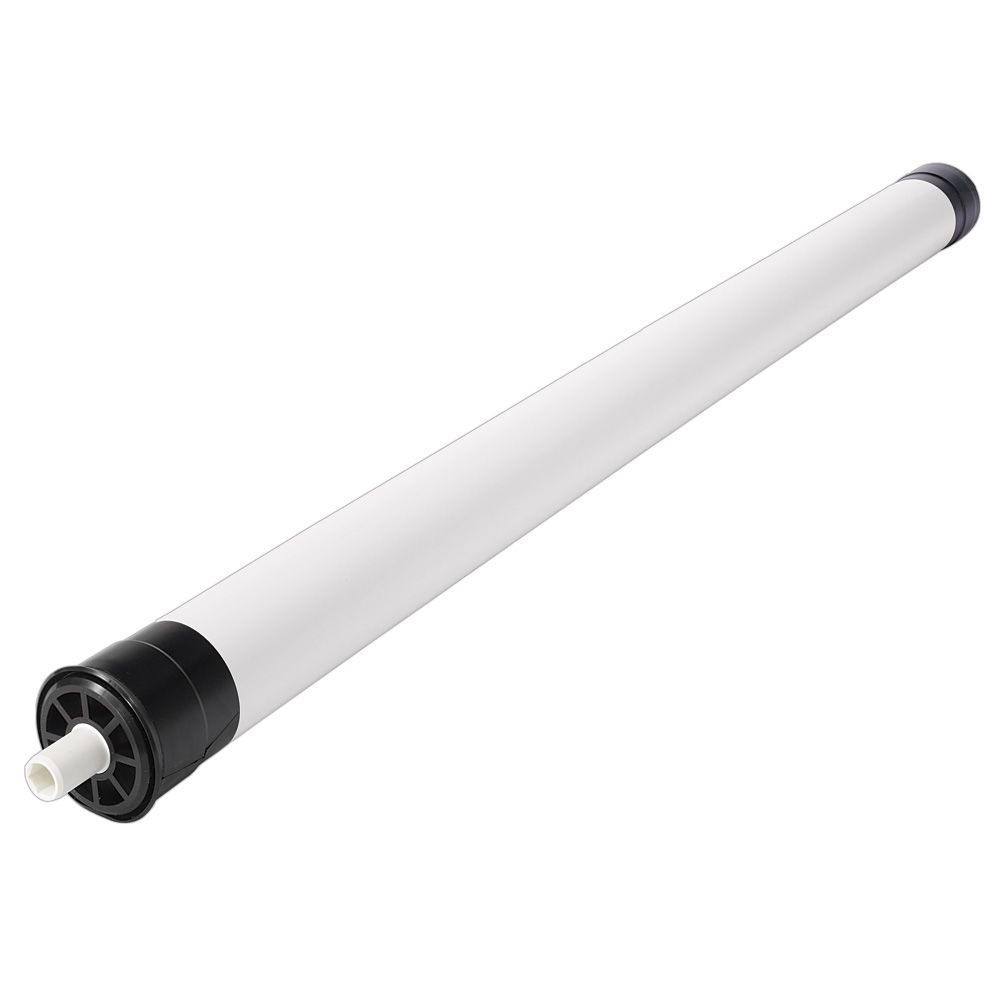

AXEON HF4-2540 850 GPD RO Membrane Element

The AXEON HF4-2540 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HF4-2540 RO membrane elements are available in all standard commercial sizes, feature a protective ABS shell, and are 100% vacuum integrity tested.The polyamide thin-film used in the AXEON HF4 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:

Permeate Flow Rate: 850 gallons per day
Membrane Type: Polyamide Thin-Film
Applied Pressure: 100 psi
Dimensions: 2.5" x 40"
Minimum Concentrate Flow Rate: 5:1
Chlorine Tolerance: 0 ppm
Maximum Operating Temperature: 113° F
Applications: Extra Low Energy, Brackish Water
Formerly known as RO UltraTec HF4-2540

AXEON RO membranes are dry packed

Compatible with:

Desal Membranes	AK2540TF, 1206802, AK2540FF, 1206800

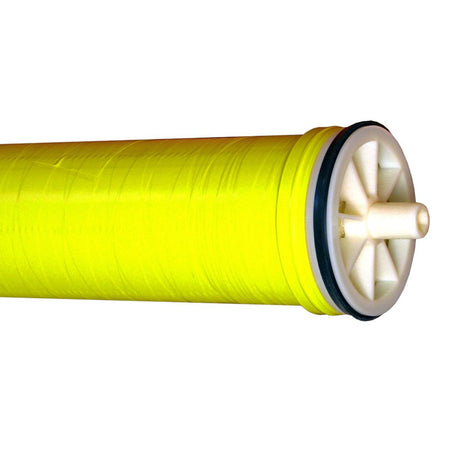

Filmtec Membranes	XLE-2540

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Brackish Water
Average Nacl Rejection	0.985
Chlorine Tolerance	0 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Feed Water Temperature	77°F
Inlet Pressure	100 PSI
Inner/Outer Wraps	ABS
Material Of Construction	Polyamide Thin-Film
Max Concentrate Flow Rate	5:1
Max Feed Silt Density Index	5 Silt Density Index
Max Feed Water Turbidity	1 Nephelometric Turbidity Units
Max Pressure Drop	10 PSI Differential
Max Pressure (Psi)	600psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	0.96
Permeate Flow Rate	850 gpd / (3.22 m³/d)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Recovery Rate	0.15
Diameter	2.4"
Shipping Dimensions
Shipping Length	41.5 in.
Shipping Width	3 in.
Shipping Height	3.25 in.
Product Weight & Dimensions
Product Height	3.25 in.
Product Length	41.5 in.
Product Width	3 in.
Product Weight (lbs)	3.45

AXEON HF4-2540 850 GPD RO Membrane Element Manual
