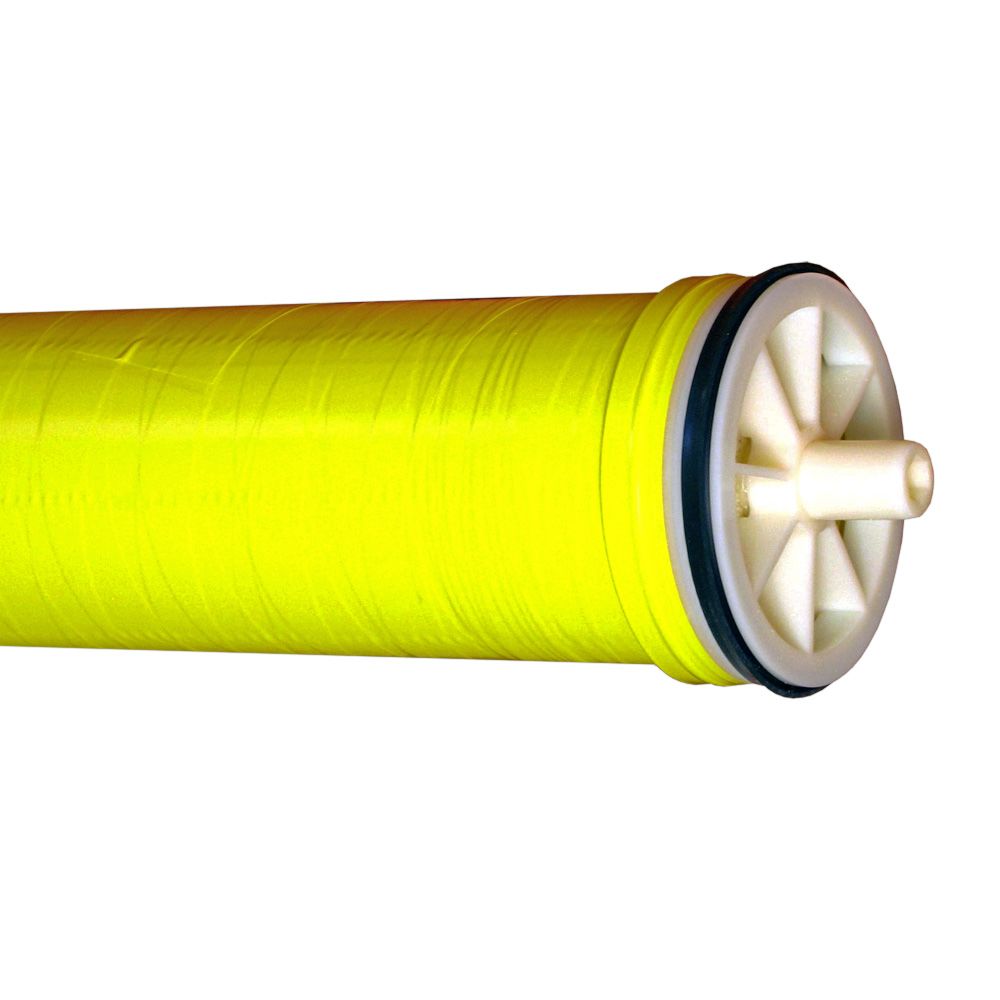

Filmtec TW30-4040 Tap Water 2400 GPD RO Membrane Element
Part Number: TW30-4040
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications:
- Up to 2400 gallons per day
- Up to 600 PSI
- Fits all standard 4" x 40" Housings
- Better system performance and economics by operating at very low applied pressure
- Made with a patented technology
- FILMTEC TW30-4040 is the most productive, lowest pressure RO membrane available, delivering the lowest total system cost
- May be cleaned over the widest pH range (pH 1-13) for the most effective cleaning
- The XLE series of elements replaces TW30LE elements which were made with an older membrane technology
Filmtec RO membranes are wet packed
Compatible with:
3M Water Filtration | 66-18424 |
Desal Membranes | 1206774 |
Filmtec Membranes | 80610 |
Product Details | |
---|---|
Active Area | 78 sq. ft. |
Application | Brackish Water Food Processing Food & Beverage Medical Equipment |
Average Nacl Rejection | 0.99 |
Chlorine Tolerance | <0.1 ppm |
Cleaning Ph Range | 1-13 |
Direction | Outside - In |
Feed Spacer Thickness | 34 mil |
Inlet Pressure | 225 PSI |
Inner/Outer Wraps | Tape |
Material Of Construction | Polyamide Thin-Film |
Max Feed Silt Density Index | 5 Silt Density Index |
Max Pressure Drop | 13 PSI Differential |
Max Pressure (Psi) | 600 psi |
Max Temp (°F) | 113°F |
Membrane Type | Spiral Wound |
Permeate Flow Rate | 2,400 gpd (9.1) |
Permeate Tube Diameter | 3/4" |
Ph Range | 2-11 |
Stabilized Salt Rejection Cl- (%) | 0.995 |
Cartridge Style | Drop-in |
Diameter | 3.9" |
Shipping Dimensions | |
Shipping Length | 41.5 in. |
Shipping Width | 4.5 in. |
Shipping Height | 4.5 in. |
Product Weight & Dimensions | |
Product Length | 40 in. |
Product Weight (lbs) | 7.3 |
Specifications:
- Up to 2400 gallons per day
- Up to 600 PSI
- Fits all standard 4" x 40" Housings
- Better system performance and economics by operating at very low applied pressure
- Made with a patented technology
- FILMTEC TW30-4040 is the most productive, lowest pressure RO membrane available, delivering the lowest total system cost
- May be cleaned over the widest pH range (pH 1-13) for the most effective cleaning
- The XLE series of elements replaces TW30LE elements which were made with an older membrane technology
Filmtec RO membranes are wet packed
Compatible with:
3M Water Filtration | 66-18424 |
Desal Membranes | 1206774 |
Filmtec Membranes | 80610 |
Product Details | |
---|---|
Active Area | 78 sq. ft. |
Application | Brackish Water Food Processing Food & Beverage Medical Equipment |
Average Nacl Rejection | 0.99 |
Chlorine Tolerance | <0.1 ppm |
Cleaning Ph Range | 1-13 |
Direction | Outside - In |
Feed Spacer Thickness | 34 mil |
Inlet Pressure | 225 PSI |
Inner/Outer Wraps | Tape |
Material Of Construction | Polyamide Thin-Film |
Max Feed Silt Density Index | 5 Silt Density Index |
Max Pressure Drop | 13 PSI Differential |
Max Pressure (Psi) | 600 psi |
Max Temp (°F) | 113°F |
Membrane Type | Spiral Wound |
Permeate Flow Rate | 2,400 gpd (9.1) |
Permeate Tube Diameter | 3/4" |
Ph Range | 2-11 |
Stabilized Salt Rejection Cl- (%) | 0.995 |
Cartridge Style | Drop-in |
Diameter | 3.9" |
Shipping Dimensions | |
Shipping Length | 41.5 in. |
Shipping Width | 4.5 in. |
Shipping Height | 4.5 in. |
Product Weight & Dimensions | |
Product Length | 40 in. |
Product Weight (lbs) | 7.3 |
