Toray

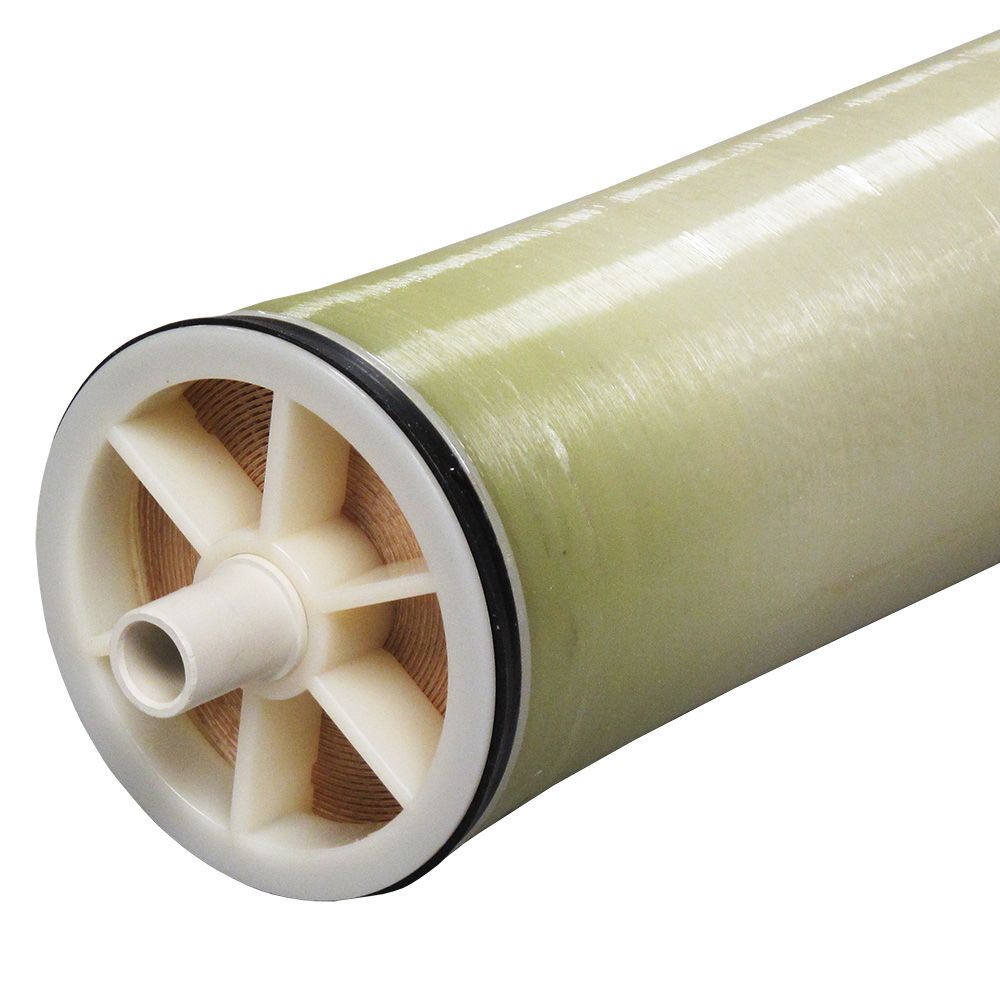

Toray TM710 2400 gpd Brackish Water Membrane 4 x 40

Part Number: TM710

Alt. Part Number: CDTM710

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Toray TM710D 2600 gpd Brackish Water Membrane 4 x 40 as a substitute.


The Toray TM710 2400 gpd Brackish Water Membrane is designed to be used on water sources with medium salinity (2,000-10,000 ppm). They can be used in multiple membrane systems to treat, municipal, industrial, commercial or process water.

Specifications:
  • Permeate Flow Rate: 2400 gallons per day
  • Membrane Type: Polyamide Composite
  • Applied Pressure: 225 psi
  • Dimensions: 4" x 40"
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water, Well Water, Surface Water




Weight & Dimensions

Weight (lbs)

9.7

Approx Length (Inches)

40"

Details

Max Pressure (Psi)

600

Diameter

4"

Flow Rate

2400 GPD

Origin

USA

Active Area

87 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

0 ppm

Cleaning Ph Range

1-12

Feed Spacer Thickness

31 mil

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

20 PSI Differential

Permeate Tube Diameter

3/4"

Ph Range

2-11


Toray

Toray





The Toray TM710 2400 gpd Brackish Water Membrane is designed to be used on water sources with medium salinity (2,000-10,000 ppm). They can be used in multiple membrane systems to treat, municipal, industrial, commercial or process water.

Specifications:
  • Permeate Flow Rate: 2400 gallons per day
  • Membrane Type: Polyamide Composite
  • Applied Pressure: 225 psi
  • Dimensions: 4" x 40"
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water, Well Water, Surface Water



NOTE: This item is discontinued. We recommend the Toray TM710D 2600 gpd Brackish Water Membrane 4 x 40 as a substitute.

Weight & Dimensions

Weight (lbs)

9.7

Approx Length (Inches)

40"

Details

Max Pressure (Psi)

600

Diameter

4"

Flow Rate

2400 GPD

Origin

USA

Active Area

87 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

0 ppm

Cleaning Ph Range

1-12

Feed Spacer Thickness

31 mil

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

20 PSI Differential

Permeate Tube Diameter

3/4"

Ph Range

2-11
