Filmtec

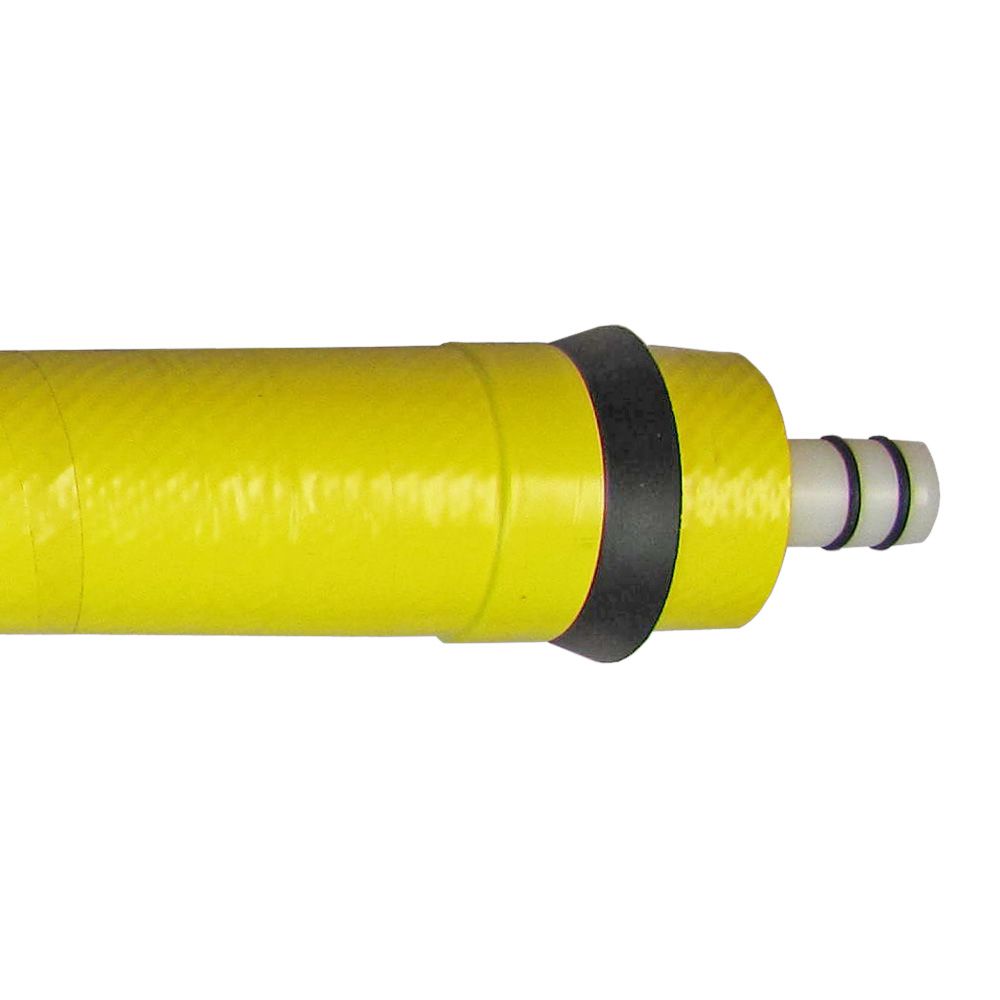

Filmtec TW30-2514 Tap Water 200 GPD RO Membrane Element

Part Number: TW30-2514

Alt. Part Number: 80639

In Stock

out of stock

In Stock

$125.70

The Dow FILMTEC Tap Water Membranes are specifically designed for small commercial grade applications. These TFC (Thin Film Composite) reverse osmosis elements are designed to withstand the high pressure of commercial applications, and can be utilized in single or multi-element housing or pressure vessel configurations.

Specifications:
  • 200 Gallon Per Day
  • 600 PSI maximum operating pressure
  • This Film Composite Membrane
  • High quality and low energy costs
  • Provides long lasting and reliable performance



Compatible with:
Filmtec Membranes80639

Weight & Dimensions

Weight (lbs)

3.5

Details

Active Area

7 sq. ft.

Application

Brackish Water, Food Processing, Food & Beverage, Medical Equipment

Average Nacl Rejection

0.99

Chlorine Tolerance

<0.1 ppm

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

225 PSI

Inner/Outer Wraps

Tape

Material Of Construction

Polyamide Thin-Film

Max Feed Silt Density Index

5 Silt Density Index

Max Flow Rate

6 gpm (1.4)

Max Pressure Drop

13 PSI Differential

Max Pressure (Psi)

600 psi

Max Temp (°F)

113°F

Membrane Type

Spiral Wound

Permeate Flow Rate

200 gpd (0.76)

Permeate Tube Diameter

3/4"

Ph Range

2-11

Stabilized Salt Rejection Ci- (%)

0.995

Cartridge Style

Drop-in

Diameter

2.4"

Product Length

14"


Filmtec




The Dow FILMTEC Tap Water Membranes are specifically designed for small commercial grade applications. These TFC (Thin Film Composite) reverse osmosis elements are designed to withstand the high pressure of commercial applications, and can be utilized in single or multi-element housing or pressure vessel configurations.

Specifications:
  • 200 Gallon Per Day
  • 600 PSI maximum operating pressure
  • This Film Composite Membrane
  • High quality and low energy costs
  • Provides long lasting and reliable performance



Compatible with:
Filmtec Membranes80639

Weight & Dimensions

Weight (lbs)

3.5

Details

Active Area

7 sq. ft.

Application

Brackish Water, Food Processing, Food & Beverage, Medical Equipment

Average Nacl Rejection

0.99

Chlorine Tolerance

<0.1 ppm

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

225 PSI

Inner/Outer Wraps

Tape

Material Of Construction

Polyamide Thin-Film

Max Feed Silt Density Index

5 Silt Density Index

Max Flow Rate

6 gpm (1.4)

Max Pressure Drop

13 PSI Differential

Max Pressure (Psi)

600 psi

Max Temp (°F)

113°F

Membrane Type

Spiral Wound

Permeate Flow Rate

200 gpd (0.76)

Permeate Tube Diameter

3/4"

Ph Range

2-11

Stabilized Salt Rejection Ci- (%)

0.995

Cartridge Style

Drop-in

Diameter

2.4"

Product Length

14"
