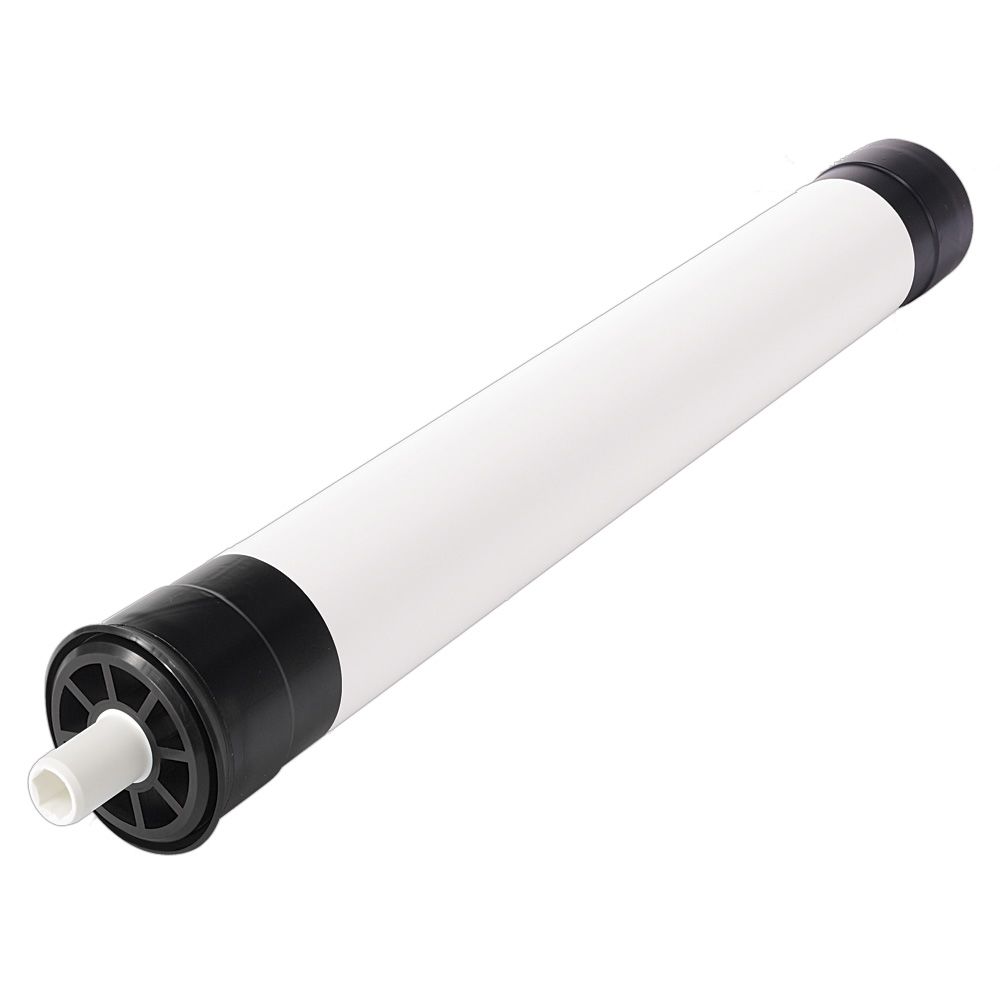

AXEON HF1-2514 225 GPD RO Membrane Element

Part Number: 200374

AXEON HF1-2514 225 GPD RO Membrane Element

Part Number: 200374
Regular price $92.63

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The AXEON HF1-2514 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HF1-2514 RO membrane elements are available in all standard commercial sizes, feature a protective ABS shell, and are 100% vacuum integrity tested.The polyamide thin-film used in the AXEON HF1 Series membranes is manufactured by a major US membrane film manufacturer.

Features:
  • Permeate Flow Rate: 225 gallons per day
  • Membrane Type: Polyamide Thin-Film
  • Applied Pressure: 150 psi
  • Dimensions: 2.5" x 14"
  • Minimum Concentrate Flow Rate: 5:1
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Low Energy, Brackish Water
  • Formerly known as RO UltraTec HF1-2514


AXEON RO membranes are dry packed

Specifications

    Product Details

    Application

    Brackish Water

    Average Nacl Rejection

    0.98

    Chlorine Tolerance

    0 ppm

    Cleaning Ph Range

    1-13

    Direction

    Outside - In

    Feed Water Temperature

    77°F

    Inlet Pressure

    150 PSI

    Inner/Outer Wraps

    ABS

    Material Of Construction

    Polyamide Thin-Film

    Max Feed Silt Density Index

    5 Silt Density Index

    Max Feed Water Turbidity

    1 Nephelometric Turbidity Units

    Max Pressure Drop

    10 PSI Differential

    Max Pressure (Psi)

    600psi

    Max Temp (°F)

    113°F

    Membrane Type

    Spiral Wound

    Permeate Flow Rate

    225 gpd / (0.85 m³/d)

    Permeate Tube Diameter

    3/4"

    Ph Range

    2-11

    Recovery Rate

    0.15

    Diameter

    2.4"

    Shipping Dimensions

    Shipping Length

    15.5 in.

    Shipping Width

    3 in.

    Shipping Height

    3 in.

    Product Weight & Dimensions

    Product Length

    14 in.

    Product Weight (lbs)

    1.256

Downloads

AXEON HF1-2514 225 GPD RO Membrane Element ManualAXEON HF1-2514 225 GPD RO Membrane Element ManualAXEON HF1-2514 225 GPD RO Membrane Element ManualAXEON HF1-2514 225 GPD RO Membrane Element ManualAXEON HF1-2514 225 GPD RO Membrane Element Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • JCB
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Compare Similar Products

A table comparing the facets of 4 products
Facet
Regular price $92.63
Very low stock

Part #: 200374

Current Product
Regular price $158.00
Low stock

Part #: TW30-2514

View details
Price
Price
Regular price $92.63
Regular price $158.00
Part #
Part # 200374 TW30-2514
Description

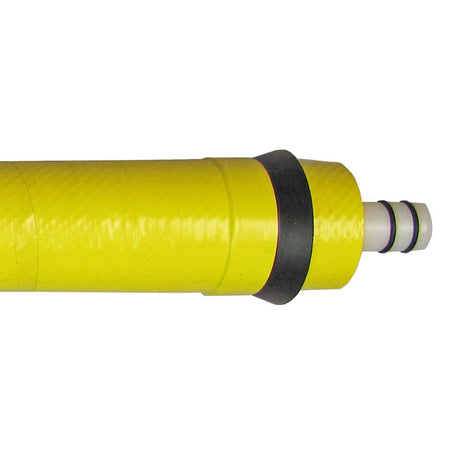

Description The AXEON HF1-2514 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HF1-2514 RO membrane elements are... The Dow FILMTEC Tap Water Membranes are specifically designed for small commercial grade applications. These TFC (Thin Film Composite) reverse osmosis elements are designed to...
