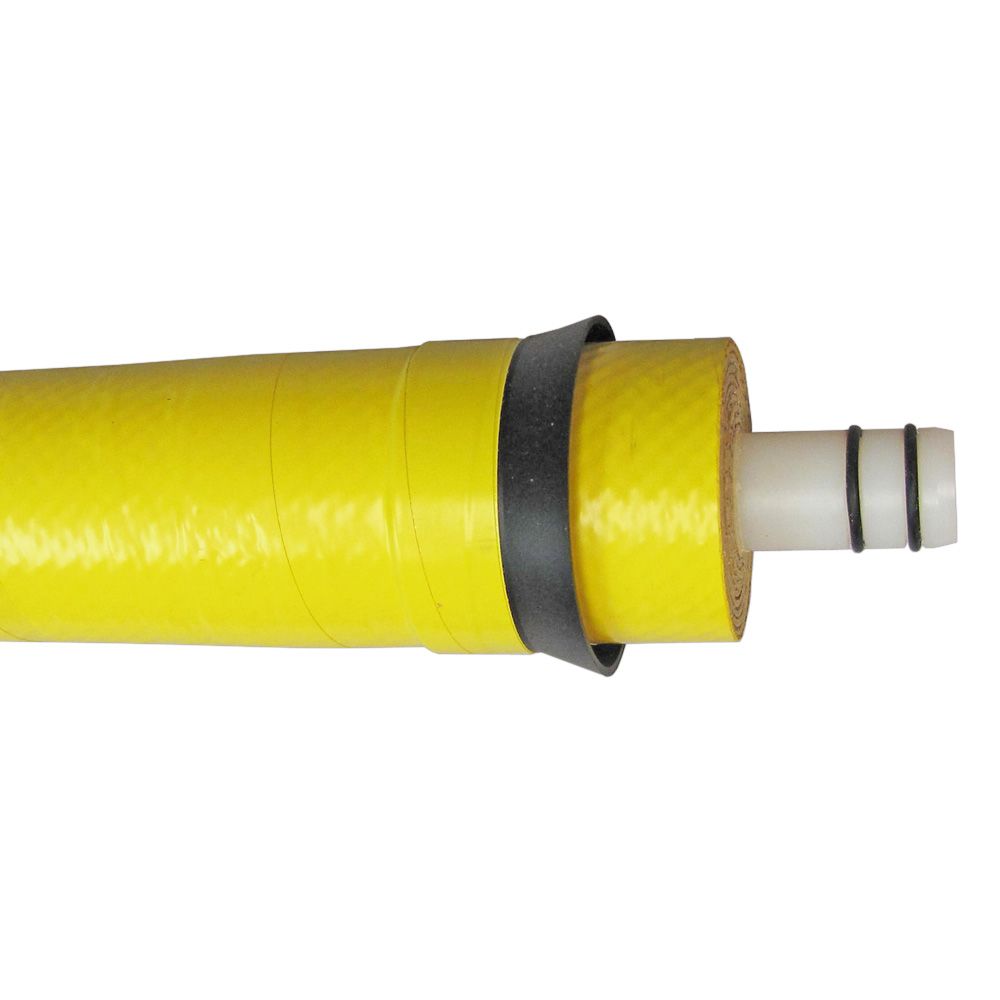

Filmtec TW30-2013 Tap Water 100 GPD RO Membrane Element

The Dow FILMTEC Tap Water Membranes are specifically designed for small commercial grade applications. These TFC (Thin Film Composite) reverse osmosis elements are designed to withstand the high pressure of commercial applications, and can be utilized in single or multi-element housing or pressure vessel configurations.

Features:

100 Gallon Per Day
300 PSI maximum operating pressure
This Film Composite Membrane
Advanced membrane technology and automated fabrication delivers consistent performance

Filmtec RO membranes are wet packed

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Brackish Water Food Processing Food & Beverage Medical Equipment
Average Nacl Rejection	0.99
Chlorine Tolerance	<0.1 ppm
Cleaning Ph Range	1-12
Direction	Outside - In
Inlet Pressure	225 PSI
Inner/Outer Wraps	Tape
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Feed Water Turbidity	1 NTU
Max Flow Rate	3 gpm (11 lpm)
Max Pressure (Psi)	300 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	0.96
Permeate Flow Rate	100 gpd
Permeate Tube Diameter	3/4"
Ph Range	2-11
Stabilized Salt Rejection Cl- (%)	0.99
Cartridge Style	Drop-in
Change Frequency	2-3 Years
Diameter	1.8"
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	4 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Length	13 in.
Product Weight (lbs)	3

Filmtec TW30-2013 Tap Water 100 GPD RO Membrane Element Manual
