Filmtec

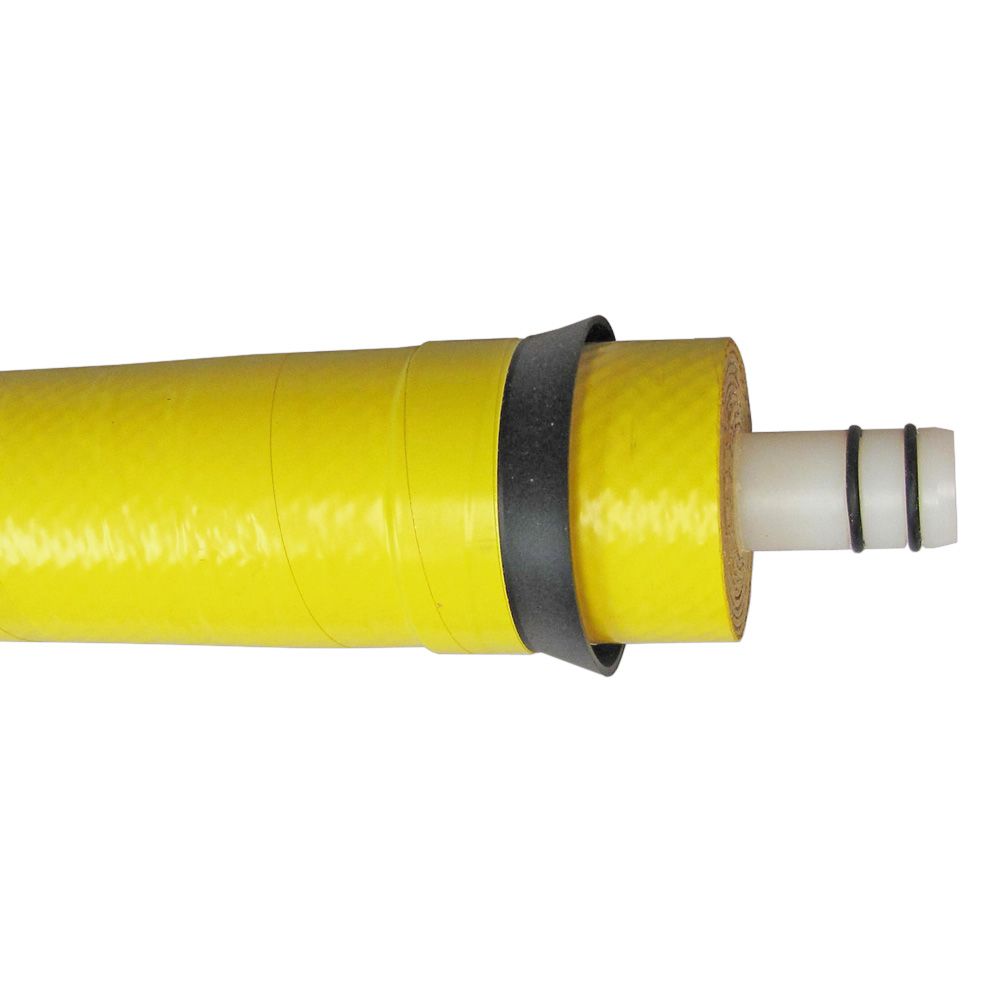

Filmtec TW30-2026 Tap Water 220 GPD RO Membrane Dry

Part Number: TW30-2026

Alt. Part Number: 01009644

In Stock

out of stock

In Stock

$156.34

The Dow FILMTEC Tap Water Membranes are specifically designed for small commercial grade applications. These TFC (Thin Film Composite) reverse osmosis elements are designed to withstand the high pressure of commercial applications, and can be utilized in single or multi-element housing or pressure vessel configurations.

Specifications:
  • Culligan® Compatible TFC Membrane
  • 200 Gallon Per Day
  • 300 PSI maximum operating pressure
  • This Film Composite Membrane
  • Provides long lasting and reliable performance



Compatible with:
Culligan Water FiltersB-1L, B-1L Plus, B-2L, B-2L Plus, B-3L, B-3L Plus, B-4L, B-4L Plus
Filmtec Membranes80635

Weight & Dimensions

Approx Length (Inches)

26"

Weight (lbs)

3

Details

Active Area

7 sq. ft.

Average Nacl Rejection

0.99

Capacity

2-3 Years

Chlorine Tolerance

<0.1 ppm

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

225 PSI

Inner/Outer Wraps

Tape

Material Of Construction

Polyamide Thin-Film

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

13 PSI Differential

Max Pressure (Psi)

600

Max Temp (°F)

113

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.68"

Ph Range

2-11

Cartridge Style

Drop-in

Change Frequency

2-3 Years

Diameter

2"

Flow Rate

220 GPD


Filmtec
