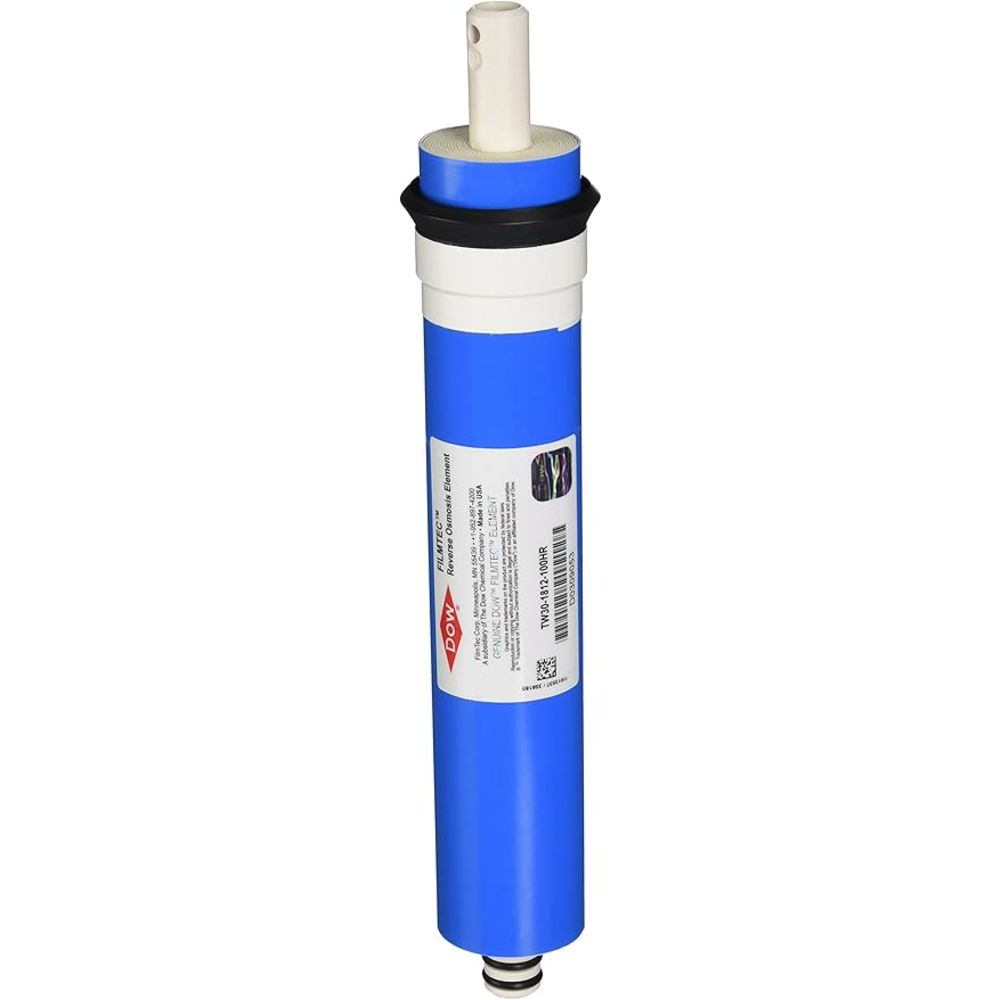

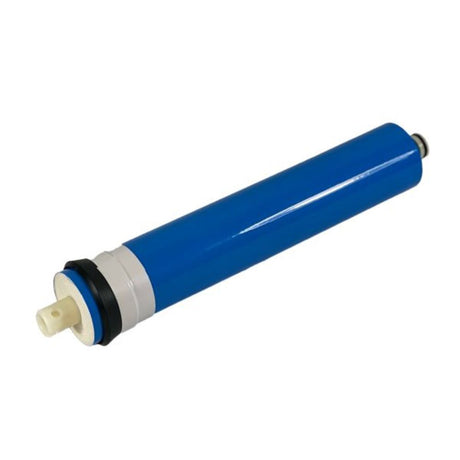

The Dow FILMTEC Residential Membrane elements are specifically designed to provide your home with safe, clean cooking water and drinking water. These Polyamide (TFC) Thin Film Composite, standard 2" diameter elements that have been tested and Certified by NSF International against NSF/ANSI Standard 58 for material requirements only.
Features:
- 100 Gallon Per Day
- Advanced Membrane Technology w/ Automated Fabrication
- Consistent Performance
- NSF/ANSI Standard 58 listed
- Fits most standard 2" housings
- Membrane Life: 2-5 years
Compatible with: Filmtec Membranes | 170102
Weight & Dimensions
Approx Length (Inches) | 11.75 Inches |
Details
Cartridge Style | Drop-in Element |
Diameter | 1.75 Inches |
Flow Rate | 100 Gallons per day |
Material Of Construction | Polyamide Thin-Film |
Max Operating Pressure | 300 PSI |
Max Operating Temperature | 113 Degrees Fahrenheit |
Average Nacl Rejection | 96 - 98 Percent |
Chlorine Tolerance | <0.1 Parts per Million |
Direction | Outside - In |
Inlet Pressure | 50 PSI |
Max Feed Silt Density Index | 5 Silt Density Index |
Membrane Type | Spiral Wound |
Permeate Tube Diameter | 0.68 Inches |
Warranty & Certifications
Certifications | ANSI/NSF 58 |
