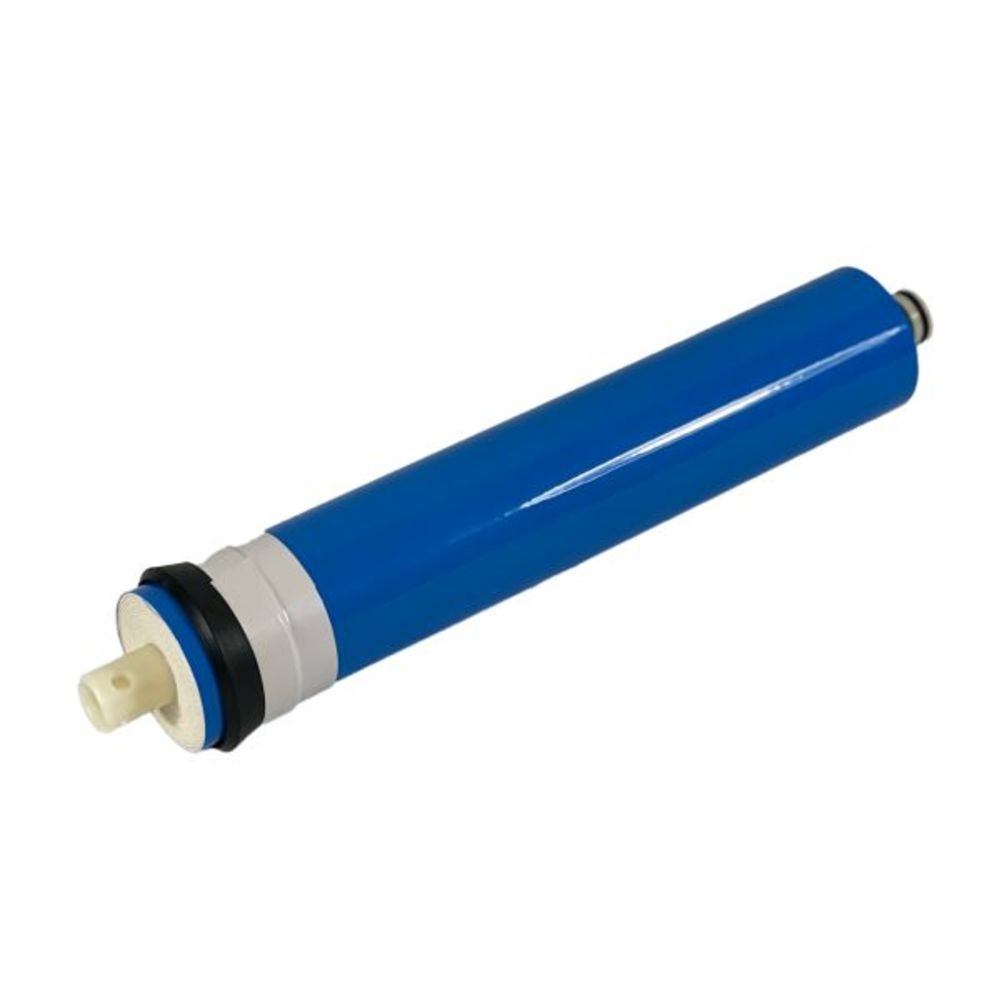

Neo-Pure 100 GPD Filmtech Membrane

The Neo-Pure 100 GPD Filmtech Membrane (compatible with AXEON Residential Polyamide Thin Film Composite Membrane) offer high performance and reliability and consistent quality. Residential membranes operate as low as 50 psi and can yield up to 20% more safe, healthy drinking water than other membranes that operate at 65 psi.
Features:

100 Gallons Per Day
Operates as low as 50 psi
TFC (Thin Film Composite) Membrane is for use with non-chlorinated water
Individually tested and sanitized

Certified by NSF International against NSF/ANSI Standard 58 for material requirements

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Chlorine Tolerance	0 ppm
Direction	Outside - In
Inlet Pressure	60 psi
Inner/Outer Wraps	Tape
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Pressure (Psi)	125 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Nominal Rejection (%)	96%
Permeate Flow Rate	100 GPD
Ph Range	2-11
Cartridge Style	Drop-in
Diameter	1.77"
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Product Weight & Dimensions
Product Weight (lbs)	0.85

Product Details
Chlorine Tolerance	0 ppm
Direction	Outside - In
Inlet Pressure	60 psi
Inner/Outer Wraps	Tape
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Pressure (Psi)	125 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Nominal Rejection (%)	96%
Permeate Flow Rate	100 GPD
Ph Range	2-11
Cartridge Style	Drop-in
Diameter	1.77"
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Product Weight & Dimensions
Product Weight (lbs)	3.4

Product Details
Chlorine Tolerance	0 ppm
Direction	Outside - In
Inlet Pressure	60 psi
Inner/Outer Wraps	Tape
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Pressure (Psi)	125 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Nominal Rejection (%)	96%
Permeate Flow Rate	100 GPD
Ph Range	2-11
Cartridge Style	Drop-in
Diameter	1.77"
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Product Weight & Dimensions
Product Weight (lbs)	21.25

Neo-Pure 100 GPD Filmtech Membrane Manual

optional parts
