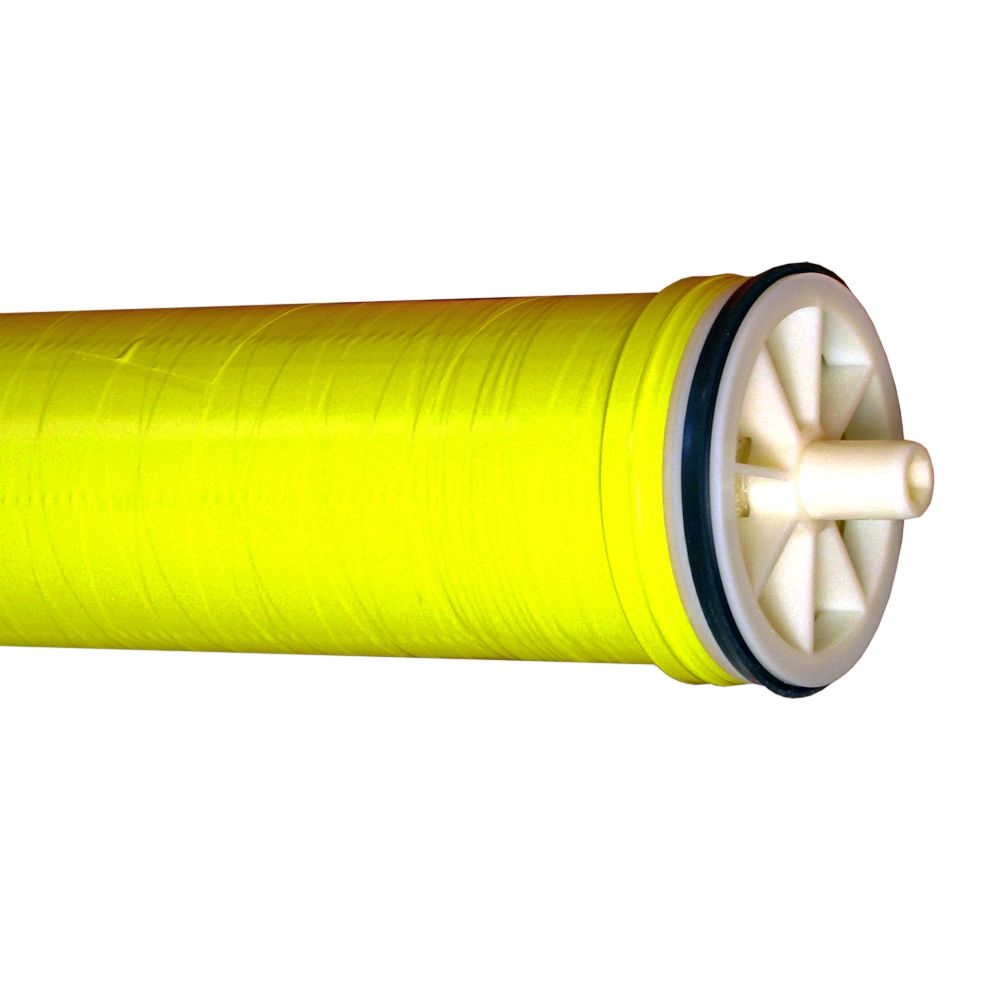

A complete range of FILMTEC™ 4040-size elements is available to meet a wide variety of customer needs for commercial applications, from the highest purity water to the lowest total system costs.
Specifications:
- Better system performance and economics by operating at very low applied pressure
- Made with a patented technology
- Provides consistent and reliable system performance
- FILMTEC LP-4040 offers a high production, low pressure RO membrane for commercial application for high purity water.
- May be cleaned over the widest pH range (pH 1-13) for the most effective cleaning
Weight & Dimensions
Approx Length (Inches) | 40 Inches |
Details
Cartridge Style | Drop-in Element |
Diameter | 3.9 Inches |
Flow Rate | 2900 Gallons per day |
Inner/Outer Wraps | Tape |
Material Of Construction | Polyamide Thin-Film |
Max Operating Pressure | 600 PSI |
Max Operating Temperature | 113 Degrees Fahrenheit |
Active Area | 78 Square Feet |
Average Nacl Rejection | 99.2 Percent |
Chlorine Tolerance | <0.1 Parts per Million |
Cleaning Ph Range | 1-13 |
Direction | Outside - In |
Inlet Pressure | 145 PSI |
Max Feed Silt Density Index | 5 Silt Density Index |
Max Pressure Drop | 13 PSI Differential |
Membrane Type | Spiral Wound |
Permeate Tube Diameter | 0.75 Inches |
Ph Range | 2-11 |
