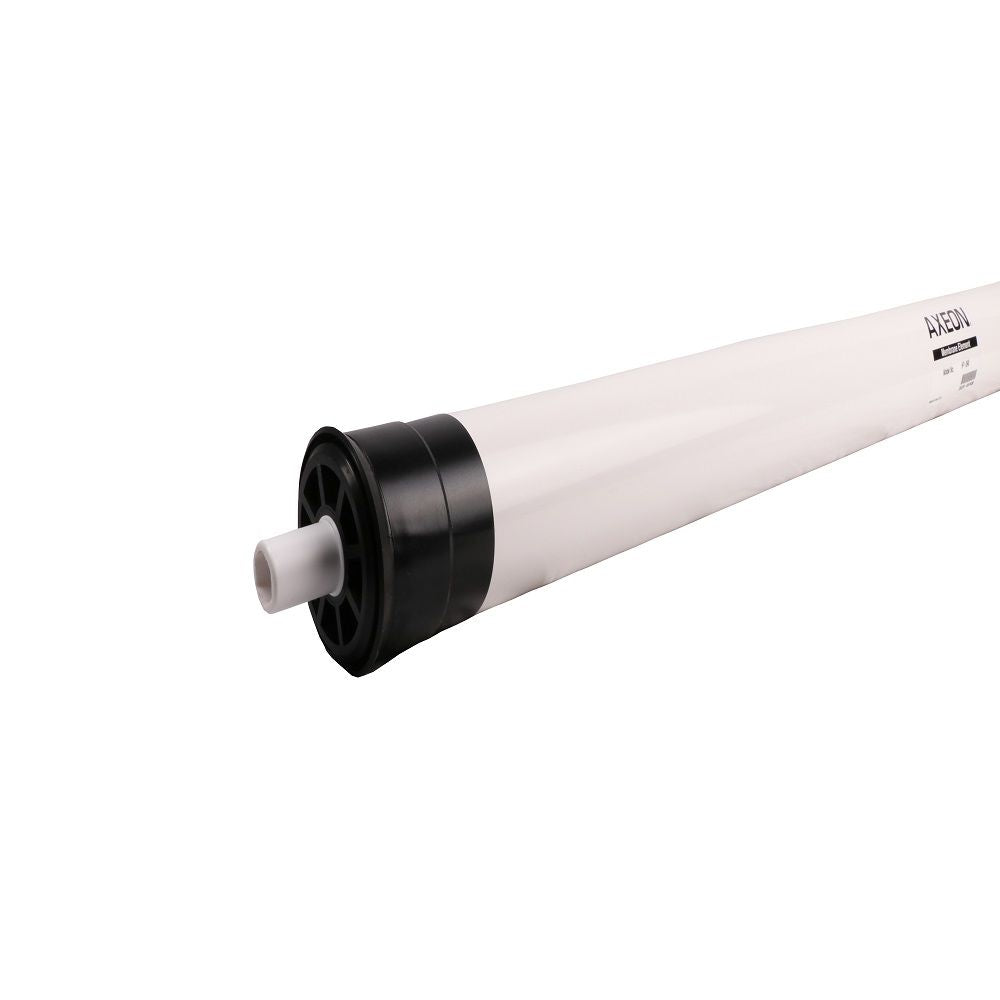

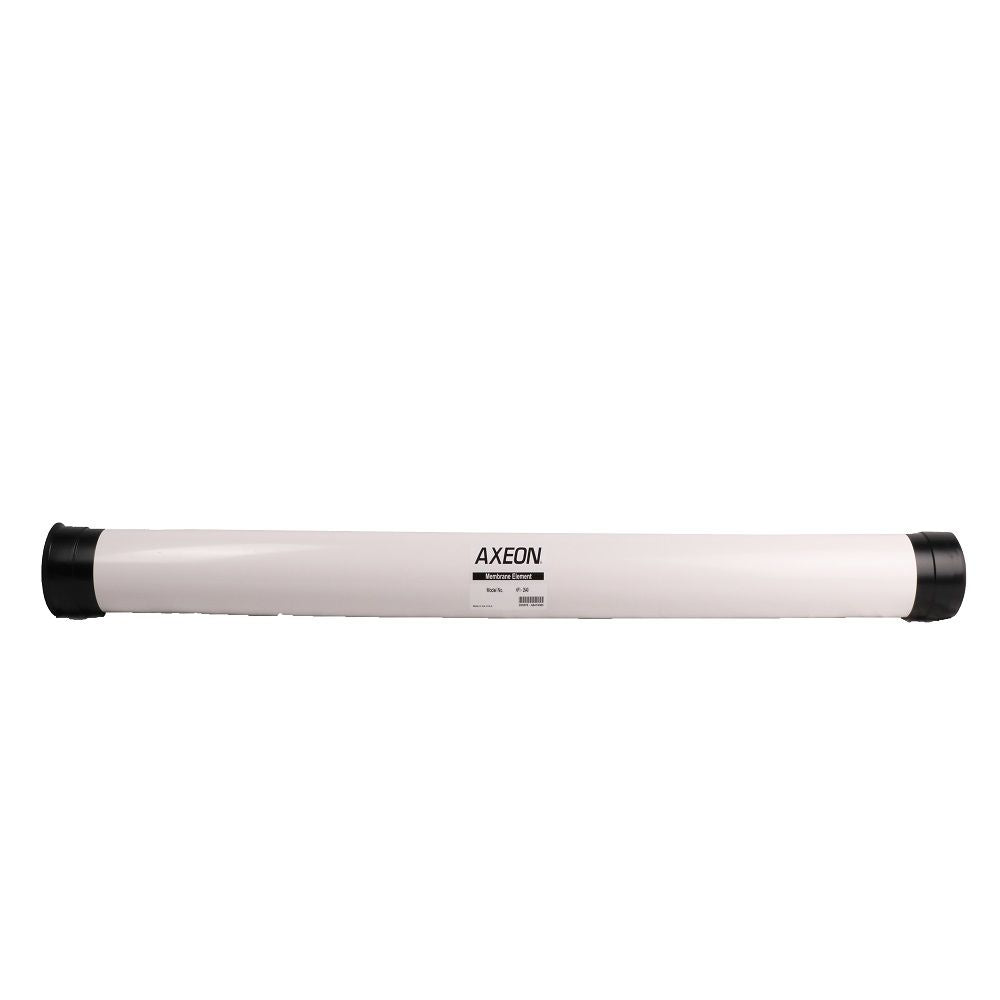

AXEON HF1-4040 2500 GPD RO Membrane Element

The AXEON HF1-4040 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HF1-4040 RO membrane elements are available in all standard commercial sizes, feature a protective ABS shell, and are 100% vacuum integrity tested. The polyamide thin-film used in the AXEON HF1 Series membranes is manufactured by a major US membrane film manufacturer.

Features:

Permeate Flow Rate: 2500 gallons per day
Membrane Type: Polyamide Thin-Film
Applied Pressure: 150 psi
Dimensions: 4" x 40"
Minimum Concentrate Flow Rate: 5:1
Chlorine Tolerance: 0 ppm
Maximum Operating Temperature: 113° F
Applications: Low Energy, Brackish Water
Formerly known as RO UltraTec HF1-4040

AXEON RO membranes are dry packed

Compatible with:

Filmtec Membranes	BW30LE-4040, LE-4040, LP-4040
TriSep Membranes	4040-ACM3-TSF, 4040-ACM3-TSA, 4040-ACM4-TSF, 4040-ACM4-TSA, 4040-ACM5-TWF
Watts	R9622-WLE

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Brackish Water
Average Nacl Rejection	0.985
Chlorine Tolerance	0 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Feed Water Temperature	77°F
Inlet Pressure	150 PSI
Inner/Outer Wraps	ABS
Material Of Construction	Polyamide Thin-Film
Max Concentrate Flow Rate	5:1
Max Feed Silt Density Index	5 Silt Density Index
Max Feed Water Turbidity	1 Nephelometric Turbidity Units
Max Pressure Drop	10 PSI Differential
Max Pressure (Psi)	600psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	0.96
Permeate Flow Rate	2500 gpd / (9.46 m³/d)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Recovery Rate	0.15
Diameter	3.95"
Shipping Dimensions
Shipping Length	41.5 in.
Shipping Width	4.5 in.
Shipping Height	4.5 in.
Product Weight & Dimensions
Product Height	4.5 in.
Product Length	41.5 in.
Product Width	4.5 in.
Product Weight (lbs)	7.3

AXEON HF1-4040 2500 GPD RO Membrane Element Manual
