Filmtec

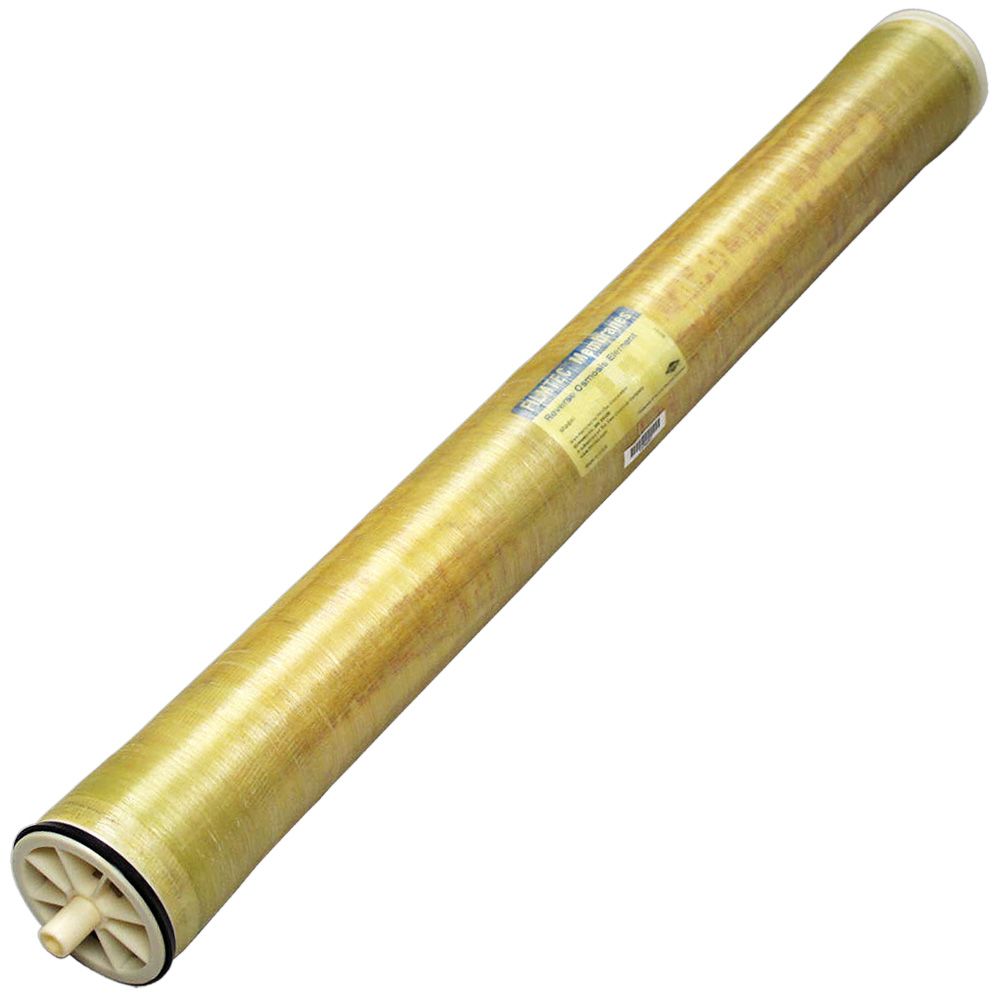

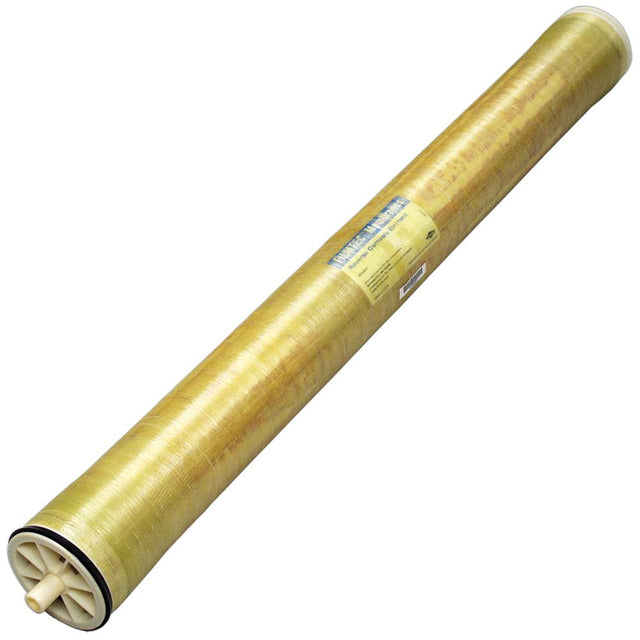

Filmtec SW30-8040 Sea Water 6000 GPD RO Membrane Element

Part Number: SW30-8040

In Stock

out of stock

In Stock

$1,199.99


The Dow FILMTEC SW30-8040 Sea Water Membrane is specifically designed for applications where the higher TDS (total dissolved solids) of marine water is addressed by the a thin film composite which sustains the higher pressures typically utilized in sea water reverse osmosis applications while maintaining a 99.1 percent stabilized salt rejection.

Specifications:
  • Up to 6000 gallon per day production
  • Up to 1015 psig
  • Fits standard 8" housings or pressure vessels
  • Highest flow rates available to meet the water demands of both sea-based and land-based desalinators
  • May also be operated at lower pressure to reduce pump size, cost and operating expenses
  • Improved FILMTEC seawater membrane combined with automated, precision element fabrication result in the most consistent product performance available


Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Capacity

5 years months

Diameter

7.9 Inches

Flow Rate

6000 Gallons per day

Inner/Outer Wraps

Fiberglass

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

1015 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Origin

USA

Active Area

300 Square Feet

Average Nacl Rejection

99.1 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1 - 13

Direction

Outside - In

Inlet Pressure

800 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

50 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

1.125 Inches

Ph Range

2 - 11

Max Feed Water Turbidity

1 Nephelometric Turbidity Units


Filmtec





The Dow FILMTEC SW30-8040 Sea Water Membrane is specifically designed for applications where the higher TDS (total dissolved solids) of marine water is addressed by the a thin film composite which sustains the higher pressures typically utilized in sea water reverse osmosis applications while maintaining a 99.1 percent stabilized salt rejection.

Specifications:
  • Up to 6000 gallon per day production
  • Up to 1015 psig
  • Fits standard 8" housings or pressure vessels
  • Highest flow rates available to meet the water demands of both sea-based and land-based desalinators
  • May also be operated at lower pressure to reduce pump size, cost and operating expenses
  • Improved FILMTEC seawater membrane combined with automated, precision element fabrication result in the most consistent product performance available

Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Capacity

5 years months

Diameter

7.9 Inches

Flow Rate

6000 Gallons per day

Inner/Outer Wraps

Fiberglass

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

1015 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Origin

USA

Active Area

300 Square Feet

Average Nacl Rejection

99.1 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1 - 13

Direction

Outside - In

Inlet Pressure

800 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

50 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

1.125 Inches

Ph Range

2 - 11

Max Feed Water Turbidity

1 Nephelometric Turbidity Units
