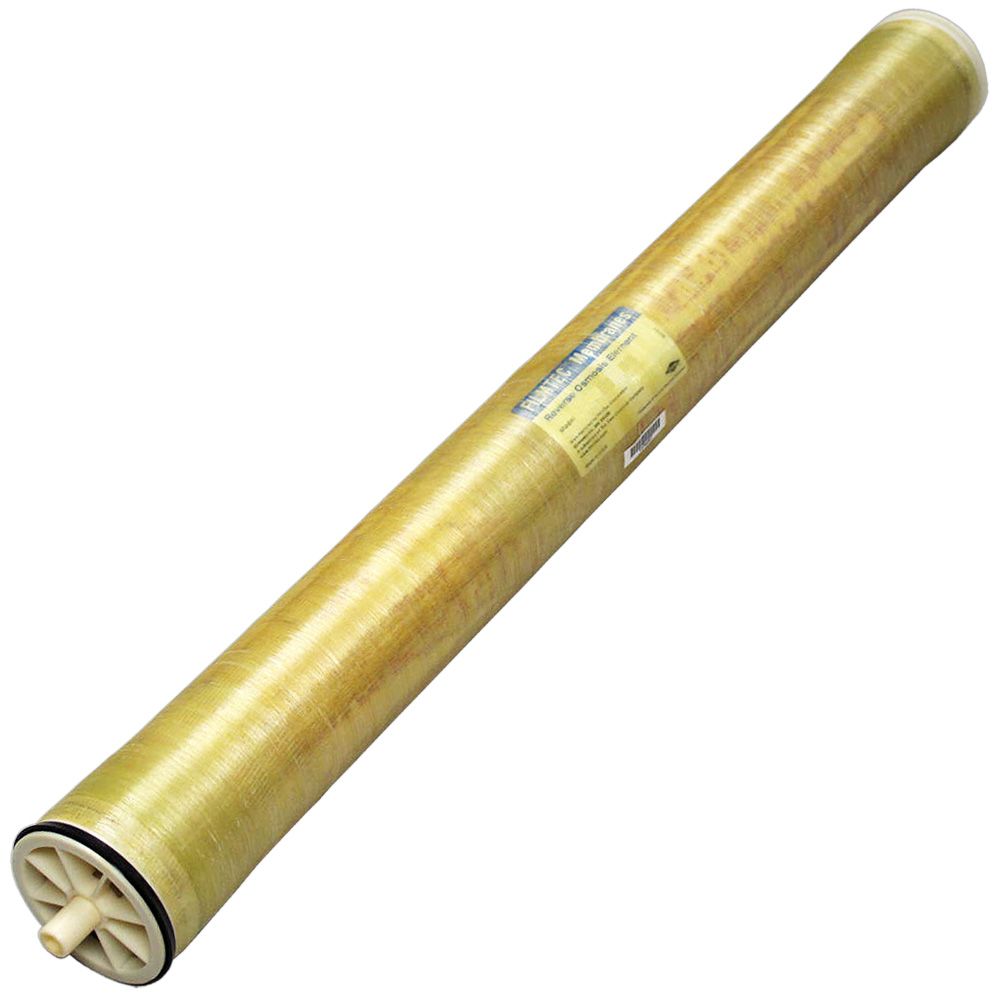

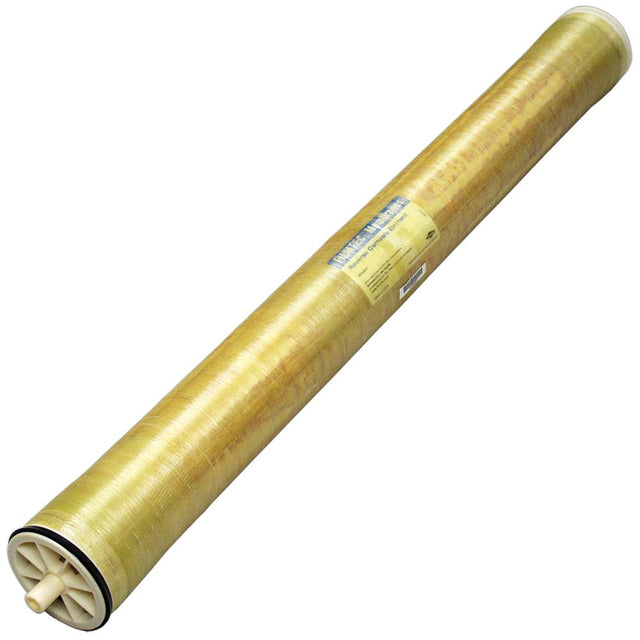

Filmtec SW30HR-380 Sea Water 6000 GPD RO Membrane Element

Part Number: SW30HR-380

In Stock

out of stock

In Stock

$1,019.75


The Dow FILMTEC SW30HR-380 Sea Water Membrane is specifically designed for applications where the higher TDS (total dissolved solids) of marine water is addressed by the a thin film composite which sustains the higher pressures typically utilized in sea water reverse osmosis applications while maintaining the high rejection (HR) performance of 99.7 percent stabilized salt rejection.


Specifications:
  • Up to 6000 gallon per day production
  • Stabilized salt rejection: 99.7%
  • Up to 800 psig
  • Fits standard 8" housings or pressure vessels
  • Effectively used in permeate staged seawater desalination systems without impairing the performance of the downstream stage
  • Features a 34 mil feed spacer, alleviating the impact of fouling on pressure drop across a vessel and enhances cleaning capability
  • Delivers high performance over the operating lifetime without the use of oxidative post-treatments like many competitive products
  • More durable and may be cleaned more effectively over a wider pH range (1-12) than other RO elements
  • Automated, precision fabrication reduces element variability, increases reliability and maixmizes element efficiency, lowering your cost of operation

Compatible with: Filmtec Membranes | SW30HR-320, 231995, 135137


Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Capacity

5 years months

Cartridge Style

Drop-in Element

Diameter

7.9 Inches

Flow Rate

6000 Gallons per day

Inner/Outer Wraps

Fiberglass

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

1000 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

380 Square Feet

Average Nacl Rejection

99.7 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

800 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

1.125 Inches

Ph Range

2-11


Filmtec





The Dow FILMTEC SW30HR-380 Sea Water Membrane is specifically designed for applications where the higher TDS (total dissolved solids) of marine water is addressed by the a thin film composite which sustains the higher pressures typically utilized in sea water reverse osmosis applications while maintaining the high rejection (HR) performance of 99.7 percent stabilized salt rejection.


Specifications:
  • Up to 6000 gallon per day production
  • Stabilized salt rejection: 99.7%
  • Up to 800 psig
  • Fits standard 8" housings or pressure vessels
  • Effectively used in permeate staged seawater desalination systems without impairing the performance of the downstream stage
  • Features a 34 mil feed spacer, alleviating the impact of fouling on pressure drop across a vessel and enhances cleaning capability
  • Delivers high performance over the operating lifetime without the use of oxidative post-treatments like many competitive products
  • More durable and may be cleaned more effectively over a wider pH range (1-12) than other RO elements
  • Automated, precision fabrication reduces element variability, increases reliability and maixmizes element efficiency, lowering your cost of operation

Compatible with: Filmtec Membranes | SW30HR-320, 231995, 135137

Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Capacity

5 years months

Cartridge Style

Drop-in Element

Diameter

7.9 Inches

Flow Rate

6000 Gallons per day

Inner/Outer Wraps

Fiberglass

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

1000 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

380 Square Feet

Average Nacl Rejection

99.7 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

800 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

1.125 Inches

Ph Range

2-11
