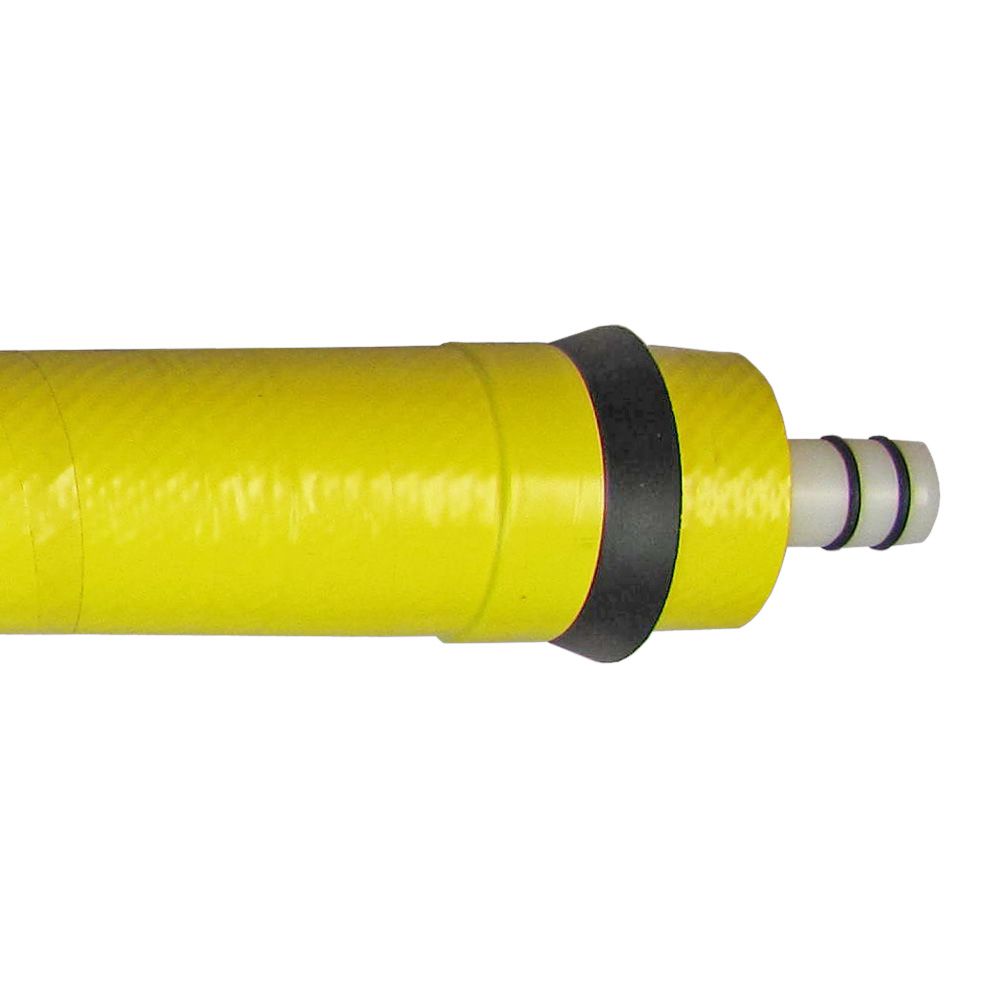

Filmtec NF90-2540 680 GPD Nano Membrane Element

Part Number: NF90-2540

In Stock

out of stock

In Stock

$305.71


The Dow FILMTEC NF90-2540 Nanofiltration Membrane is specifically designed for applications with high concentrations of silt, nitrates, iron and organic compounds such as pesticides, herbicides and THM (Trihalomethane gas) precursors, while offering effectiveness even at low operating pressures.

Specifications:
  • Up to 680 Gallon Per Day production
  • Up to 600 psi
  • Fits Standard 2.5" Housings or Pressure Vessels
  • The Filmtec NF90-2540 Nano Membrane 2.4" x 40" 680 GPD Nanofiltration Element for Commercial Systems
  • Provides high productivity performance while removing a high percentage of salts, nitrate, iron and organic compounds such as pesticides, herbicides and THM precursors
  • Low net driving pressure allows the removal of compounds at low operating pressure

Compatible with: Filmtec Membranes | 149982


Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Magnesium Sulfate Reduction

>97 Percent

Cartridge Style

Drop-in Element

Diameter

2.4 Inches

Flow Rate

680 Gallons per day

Inner/Outer Wraps

Tape

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

28 Square Feet

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-12

Direction

Outside - In

Inlet Pressure

70 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

13 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11


Filmtec





The Dow FILMTEC NF90-2540 Nanofiltration Membrane is specifically designed for applications with high concentrations of silt, nitrates, iron and organic compounds such as pesticides, herbicides and THM (Trihalomethane gas) precursors, while offering effectiveness even at low operating pressures.

Specifications:
  • Up to 680 Gallon Per Day production
  • Up to 600 psi
  • Fits Standard 2.5" Housings or Pressure Vessels
  • The Filmtec NF90-2540 Nano Membrane 2.4" x 40" 680 GPD Nanofiltration Element for Commercial Systems
  • Provides high productivity performance while removing a high percentage of salts, nitrate, iron and organic compounds such as pesticides, herbicides and THM precursors
  • Low net driving pressure allows the removal of compounds at low operating pressure

Compatible with: Filmtec Membranes | 149982

Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Magnesium Sulfate Reduction

>97 Percent

Cartridge Style

Drop-in Element

Diameter

2.4 Inches

Flow Rate

680 Gallons per day

Inner/Outer Wraps

Tape

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Active Area

28 Square Feet

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-12

Direction

Outside - In

Inlet Pressure

70 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

13 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11
