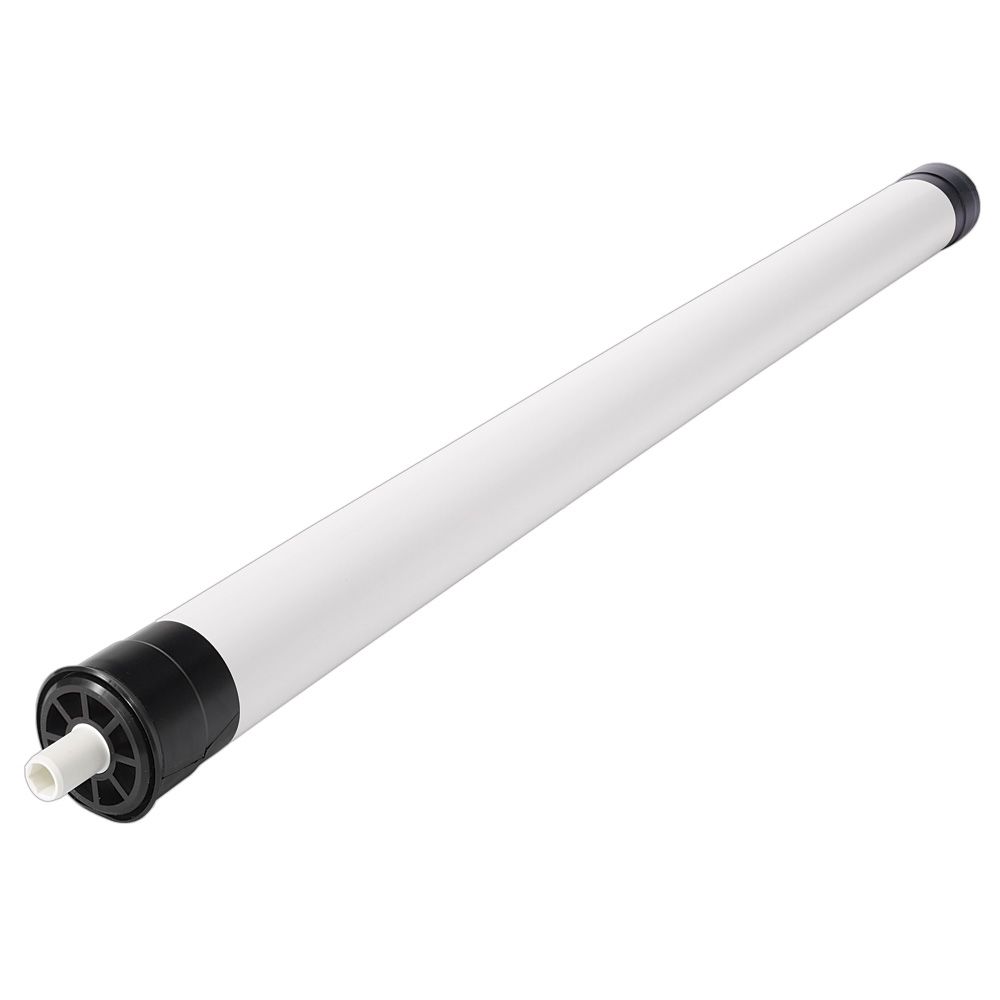

AXEON NF3-2540 850 GPD Nanofiltration Membrane Element

Part Number: 200403

In Stock

out of stock

In Stock

$174.69

AXEON NF3-2540 Series Nanofiltration Membranes operate at pressures as low as 70 psi and reject 40-50% of dissolved solids. AXEON NF3-2540 elements are available in all standard commercial sizes, feature a protective ABS shell and are 100% vacuum integrity tested. The polyamide thin-film used in the AXEON NF3 Series membranes is manufactured by a major US membrane film manufacturer.

Specification:
  • Permeate Flow Rate: 850 gallons per day
  • Membrane Type: Polyamide Thin-Film
  • Applied Pressure: 70 psi
  • Dimensions: 2.5" x 40"
  • Minimum Concentrate Flow Rate: 5:1
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Nanofiltration
  • MgSO4 Reduction: 98%
  • Formerly known as RO UltraTec NF3-2540

Compatible with: Filmtec Membranes | NF270-2540, 149986


Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Magnesium Sulfate Reduction

98 Percent

Diameter

2.4 Inches

Flow Rate

850 Gallons per day

Inner/Outer Wraps

ABS

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Average Nacl Rejection

40-50 Percent

Chlorine Tolerance

0 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

70 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

10 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11

Min Flow Rate

5:1

Max Feed Water Turbidity

1 Nephelometric Turbidity Units


AXEON




AXEON NF3-2540 Series Nanofiltration Membranes operate at pressures as low as 70 psi and reject 40-50% of dissolved solids. AXEON NF3-2540 elements are available in all standard commercial sizes, feature a protective ABS shell and are 100% vacuum integrity tested. The polyamide thin-film used in the AXEON NF3 Series membranes is manufactured by a major US membrane film manufacturer.

Specification:
  • Permeate Flow Rate: 850 gallons per day
  • Membrane Type: Polyamide Thin-Film
  • Applied Pressure: 70 psi
  • Dimensions: 2.5" x 40"
  • Minimum Concentrate Flow Rate: 5:1
  • Chlorine Tolerance: 0 ppm
  • Maximum Operating Temperature: 113° F
  • Applications: Nanofiltration
  • MgSO4 Reduction: 98%
  • Formerly known as RO UltraTec NF3-2540

Compatible with: Filmtec Membranes | NF270-2540, 149986

Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Magnesium Sulfate Reduction

98 Percent

Diameter

2.4 Inches

Flow Rate

850 Gallons per day

Inner/Outer Wraps

ABS

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Average Nacl Rejection

40-50 Percent

Chlorine Tolerance

0 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Inlet Pressure

70 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

10 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

0.75 Inches

Ph Range

2-11

Min Flow Rate

5:1

Max Feed Water Turbidity

1 Nephelometric Turbidity Units
