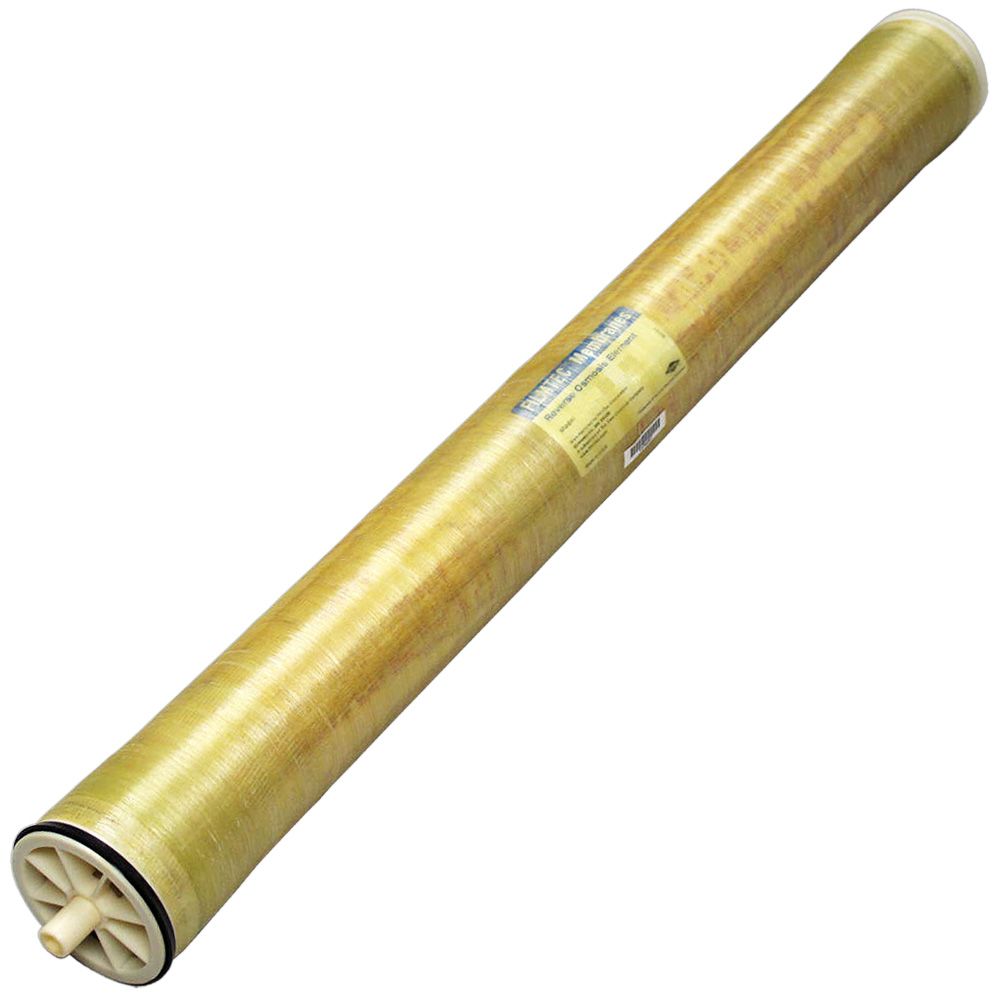

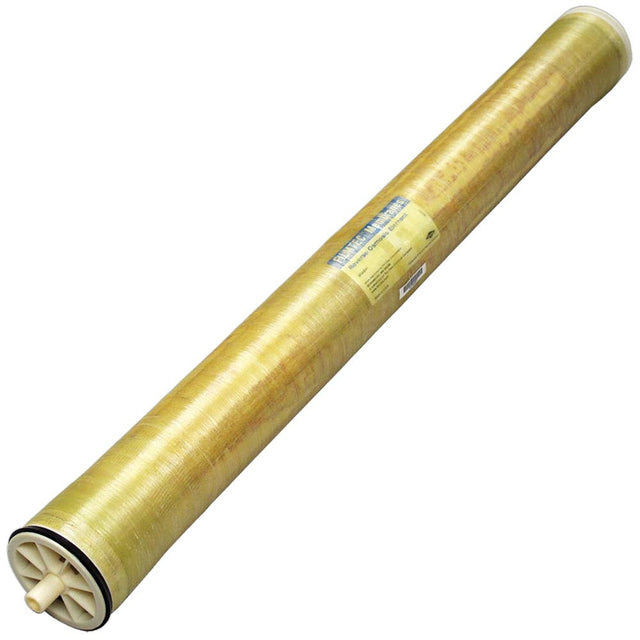

Filmtec LE-4040 Low Energy Brackish Water 2500 GPD RO Membrane Element

The Dow FILMTEC LE Brackish Water Membranes are specifically designed for light industrial applications with higher than normal silt density. Due to the fiberglass outer wrap, these brackish water, Low Energy (LE) membranes can consistently sustain the higher pressures required in these applications.

Specifications:

Up to 2500 gallon per day production
Up to 600 SIPG
Fits standard 4" housings or pressure vessels
Delivers highest performance at lowest pressure resulting in less energy usage and lower costs

NOTE: The BW30LE-4040 has been discontinued and has been replaced by the LE-4040.

Filmtec RO membranes are wet packed

Compatible with:

Filmtec Membranes

275173

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	78 sq. ft.
Average Nacl Rejection	0.99
Chlorine Tolerance	<0.1 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Inlet Pressure	150 PSI
Inner/Outer Wraps	Fiberglass
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Flow Rate	16 gpm (3.6 m3/h)
Max Pressure Drop	15 PSI Differential
Max Pressure (Psi)	600 psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Permeate Flow Rate	2,500 gpd (9.5)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Cartridge Style	Drop-in
Diameter	3.9"
Shipping Dimensions
Shipping Length	40 in.
Product Weight & Dimensions
Product Length	40 in.
Product Weight (lbs)	5.65

Filmtec LE-4040 Low Energy Brackish Water 2500 GPD RO Membrane Element Manual
