Filmtec

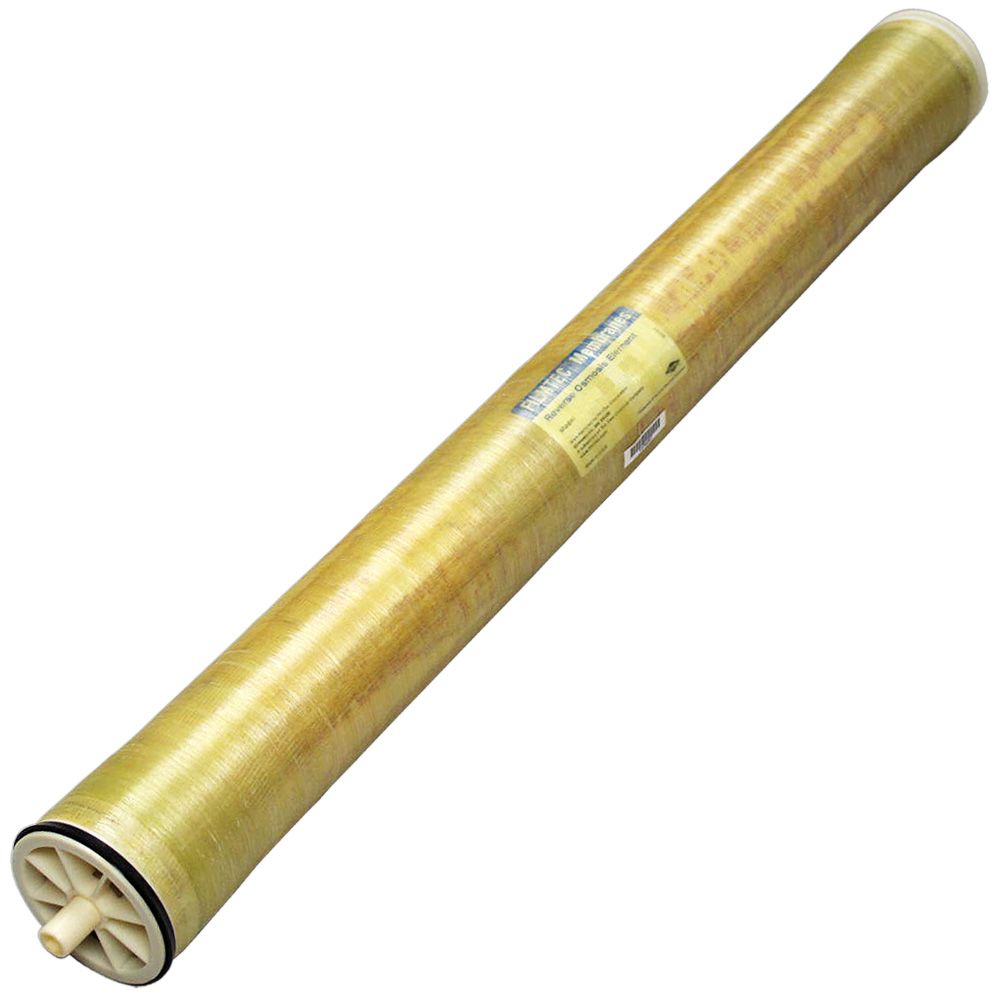

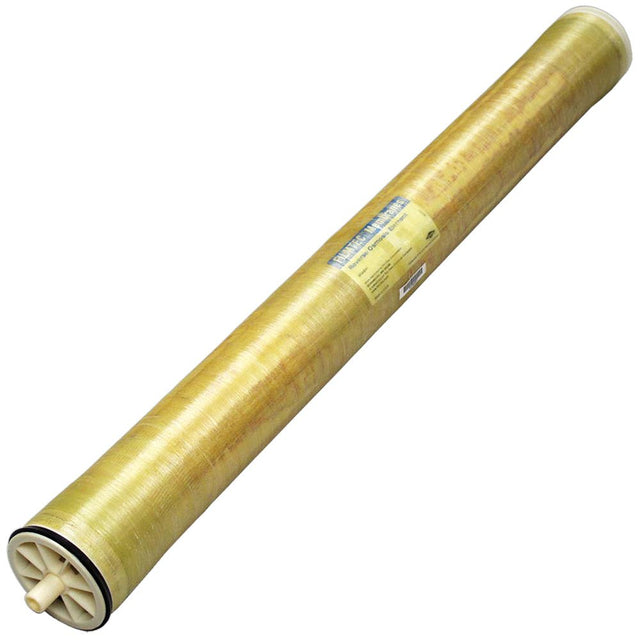

Filmtec BW30-400 High Rejection Brackish Water RO Membrane Element 10500 GPD

Part Number: BW30-400

Alt. Part Number: 98650

In Stock

out of stock

In Stock

$775.71


The Filmtec BW30-400 High Rejection Brackish Water RO Membrane Element was the first 400 square foot membrane element on the market. The BW30-400 continues to be the product of choice when the highest quality permeate is required.

Features:
  • Up to 10,500 gallon per day production
  • Up to 600 psig
  • Fits 8" membrane housings or pressure vessels
  • Features the thickest feed spacer to lessen impact of fouling
  • Feed spacer thickness: 28 mil
  • Salt rejection: 99.5%

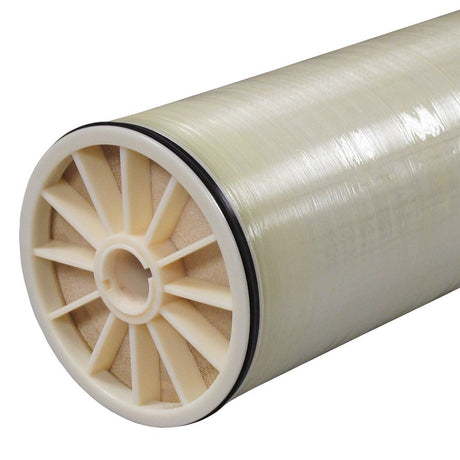

Compatible with: GE Water | AG8040F-400, 1206784, Toray Membranes | TM720-400, TriSep Membranes | 8040-ACM2-UWA, 8040-ACM3-TSA


Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Diameter

7.9 Inches

Flow Rate

10,500 Gallons per day

Inner/Outer Wraps

Fiberglass

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Origin

USA

Active Area

400 Square Feet

Average Nacl Rejection

99-5 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Feed Spacer Thickness

28 mil

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

1.125 Inches

Ph Range

2-11


Filmtec





The Filmtec BW30-400 High Rejection Brackish Water RO Membrane Element was the first 400 square foot membrane element on the market. The BW30-400 continues to be the product of choice when the highest quality permeate is required.

Features:
  • Up to 10,500 gallon per day production
  • Up to 600 psig
  • Fits 8" membrane housings or pressure vessels
  • Features the thickest feed spacer to lessen impact of fouling
  • Feed spacer thickness: 28 mil
  • Salt rejection: 99.5%

Compatible with: GE Water | AG8040F-400, 1206784, Toray Membranes | TM720-400, TriSep Membranes | 8040-ACM2-UWA, 8040-ACM3-TSA

Weight & Dimensions

Approx Length (Inches)

40 Inches

Details

Diameter

7.9 Inches

Flow Rate

10,500 Gallons per day

Inner/Outer Wraps

Fiberglass

Material Of Construction

Polyamide Thin-Film

Max Operating Pressure

600 PSI

Max Operating Temperature

113 Degrees Fahrenheit

Origin

USA

Active Area

400 Square Feet

Average Nacl Rejection

99-5 Percent

Chlorine Tolerance

<0.1 Parts per Million

Cleaning Ph Range

1-13

Direction

Outside - In

Feed Spacer Thickness

28 mil

Inlet Pressure

225 PSI

Max Feed Silt Density Index

5 Silt Density Index

Max Pressure Drop

15 PSI Differential

Membrane Type

Spiral Wound

Permeate Tube Diameter

1.125 Inches

Ph Range

2-11
