Filmtec

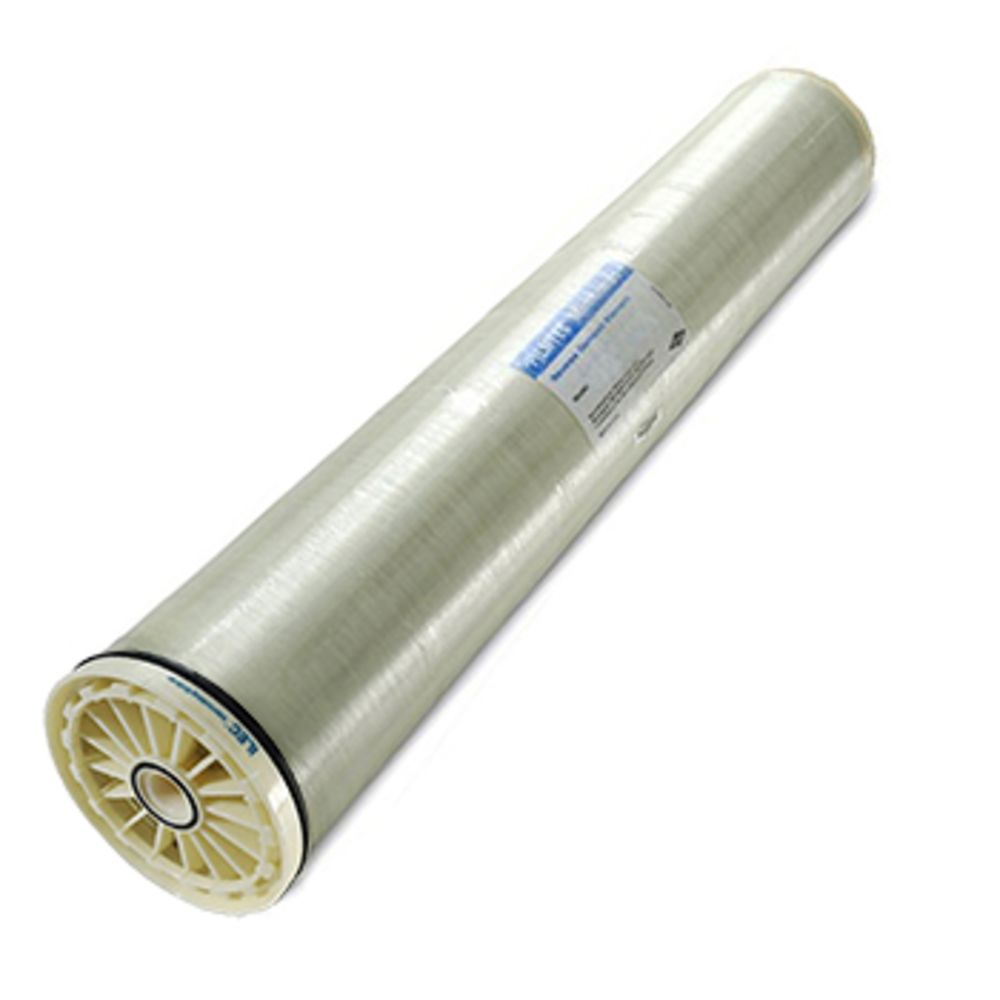

Filmtec BW30-400/34i High Rejection Brackish Water RO Membrane Element With Interlocking End Caps, 10500 GPD

Part Number: BW30-400/34I

In Stock

out of stock

In Stock

$779.99

The Filmtec BW30-400/34i Commercial RO Membrane is a 8" x 40" Brackish Water Membrane. The BW30-400/34i features the iLEC™ Interlocking Endcaps. This will allow for connection of as many are needed for your application. This Membrane has a flow rate of 10,500 GPD with a 15% recovery rate. The element has a 99.5% salt rejection rate with a feed pressure rate from 225-600 PSI. Filmtec designed this RO Membrane to support Large Industrial Applications and Municipal Water Treatment Facilities.

This Brackish Water RO Membrane separates salts from water with a high rejection of dissolved solids and organic materials. The activated surface area of this membrane is 400 ft² which gives the user significant design options for their systems.

Features:
  • High Salt Rejection at 99.5%
  • Removes Chemical Contaminants
  • Low Waste-water volumes
  • Hard Fiberglass Shell
  • iLEC™ Interlocking End Caps
Specifications:
  • Flow Rate: 10,500 GPD
  • Recovery Rate: 15%
  • Pressure Range: 225 - 600 PSI
  • Active Area: 400 ft²




Weight & Dimensions

Weight (lbs)

28

Dimensions

8" x 40" (actual 7.9 x 40 )

Details

Max Temp (°F)

113

Max Pressure (Psi)

600

Min Pressure (Psi)

225

Body Material

Fiberglass

Cartridge Style

Drop-In

Flow Rate

10,500 GPD

Active Area

400 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

<0.1 ppm

Feed Spacer Thickness

34 MIL

Max Feed Silt Density Index

SDI 5

Max Pressure Drop

15 PSI


Filmtec




The Filmtec BW30-400/34i Commercial RO Membrane is a 8" x 40" Brackish Water Membrane. The BW30-400/34i features the iLEC™ Interlocking Endcaps. This will allow for connection of as many are needed for your application. This Membrane has a flow rate of 10,500 GPD with a 15% recovery rate. The element has a 99.5% salt rejection rate with a feed pressure rate from 225-600 PSI. Filmtec designed this RO Membrane to support Large Industrial Applications and Municipal Water Treatment Facilities.

This Brackish Water RO Membrane separates salts from water with a high rejection of dissolved solids and organic materials. The activated surface area of this membrane is 400 ft² which gives the user significant design options for their systems.

Features:
  • High Salt Rejection at 99.5%
  • Removes Chemical Contaminants
  • Low Waste-water volumes
  • Hard Fiberglass Shell
  • iLEC™ Interlocking End Caps
Specifications:
  • Flow Rate: 10,500 GPD
  • Recovery Rate: 15%
  • Pressure Range: 225 - 600 PSI
  • Active Area: 400 ft²



Weight & Dimensions

Weight (lbs)

28

Dimensions

8" x 40" (actual 7.9 x 40 )

Details

Max Temp (°F)

113

Max Pressure (Psi)

600

Min Pressure (Psi)

225

Body Material

Fiberglass

Cartridge Style

Drop-In

Flow Rate

10,500 GPD

Active Area

400 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

<0.1 ppm

Feed Spacer Thickness

34 MIL

Max Feed Silt Density Index

SDI 5

Max Pressure Drop

15 PSI
