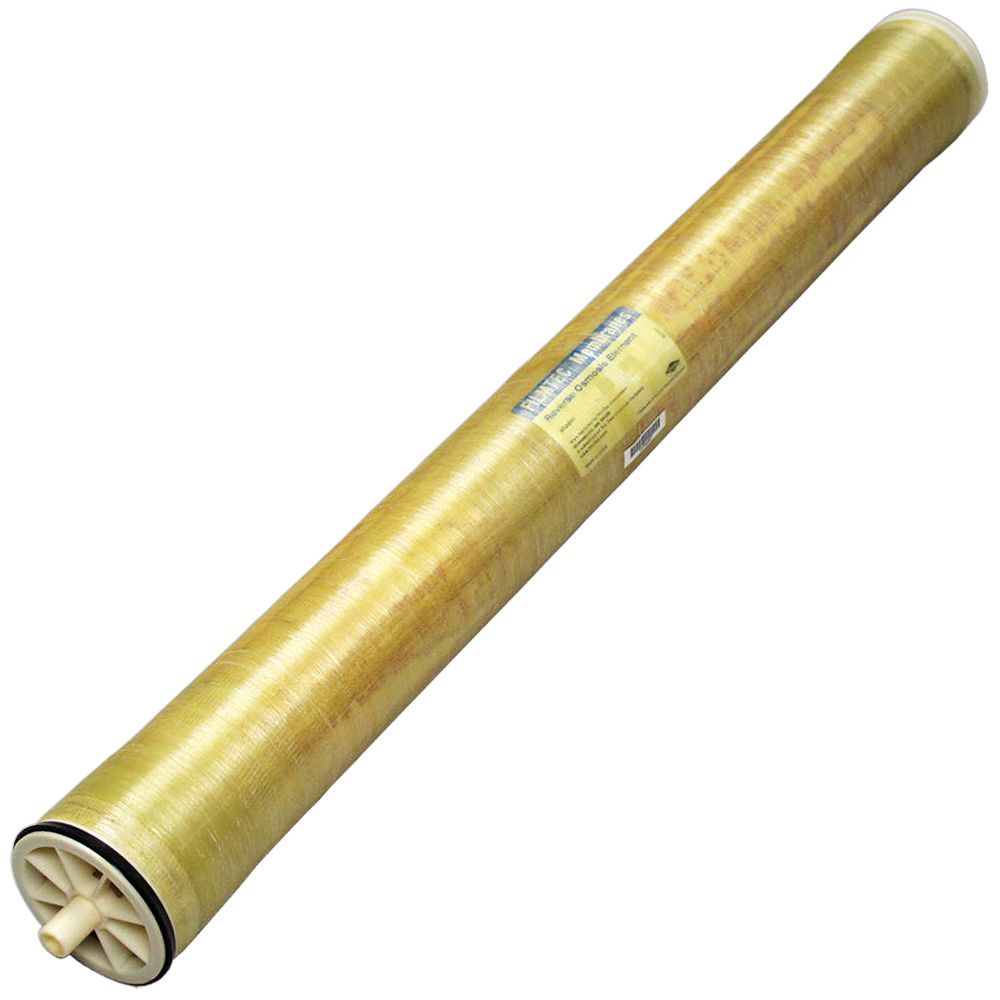

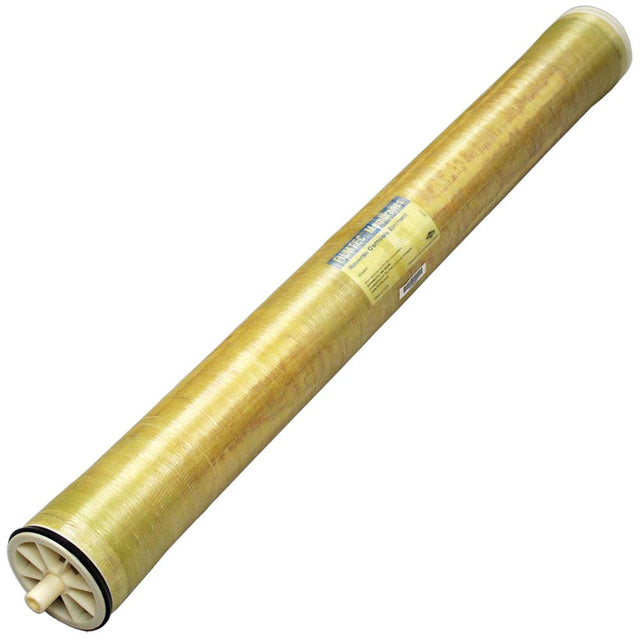

Filmtec BW30-365PRO High Rejection Brackish Water RO Membrane Element 10,000 GPD

The Filmtec BW30-365 High Rejection Brackish Water RO Membrane Element features the thickest feed spacer available in the industry to decrease the fouling effect of difficult feed water sources. The BW30-365 is best suited for systems treating challenging feed streams, where reliable pre-treatment is not an option or where maximum cleanability of the element is desired.

Specifications:

Up to 9500 gallon per day production
Up to 600 psig
Fits 8" membrane housings or pressure vessels
Features the thickest feed spacer to lessen impact of fouling
Feed spacer thickness: 34 mil
Salt rejection: 99.5%

Filmtec RO membranes are wet packed

Compatible with:

GE Water	1706779, AG8040F
Toray Membranes	TM720-370
TriSep Membranes	8040-ACM1-TSA, 8040-ACM2-TSA

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	365 sq. ft.
Average Nacl Rejection	0.99
Chlorine Tolerance	<0.1 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Inlet Pressure	225 PSI
Inner/Outer Wraps	Fiberglass
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5 Silt Density Index
Max Pressure Drop	15 PSI Differential
Max Pressure (Psi)	600psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	0.99
Permeate Flow Rate	10,000 gpd (36)
Permeate Tube Diameter	1-1/8"
Ph Range	2-11
Diameter	7.9"
Origin	U.S.A.
Shipping Dimensions
Shipping Length	40 in.
Shipping Width	8 in.
Shipping Height	8 in.
Product Weight & Dimensions
Product Length	40 in.
Product Weight (lbs)	34

Filmtec BW30-365PRO High Rejection Brackish Water RO Membrane Element 10,000 GPD Manual
