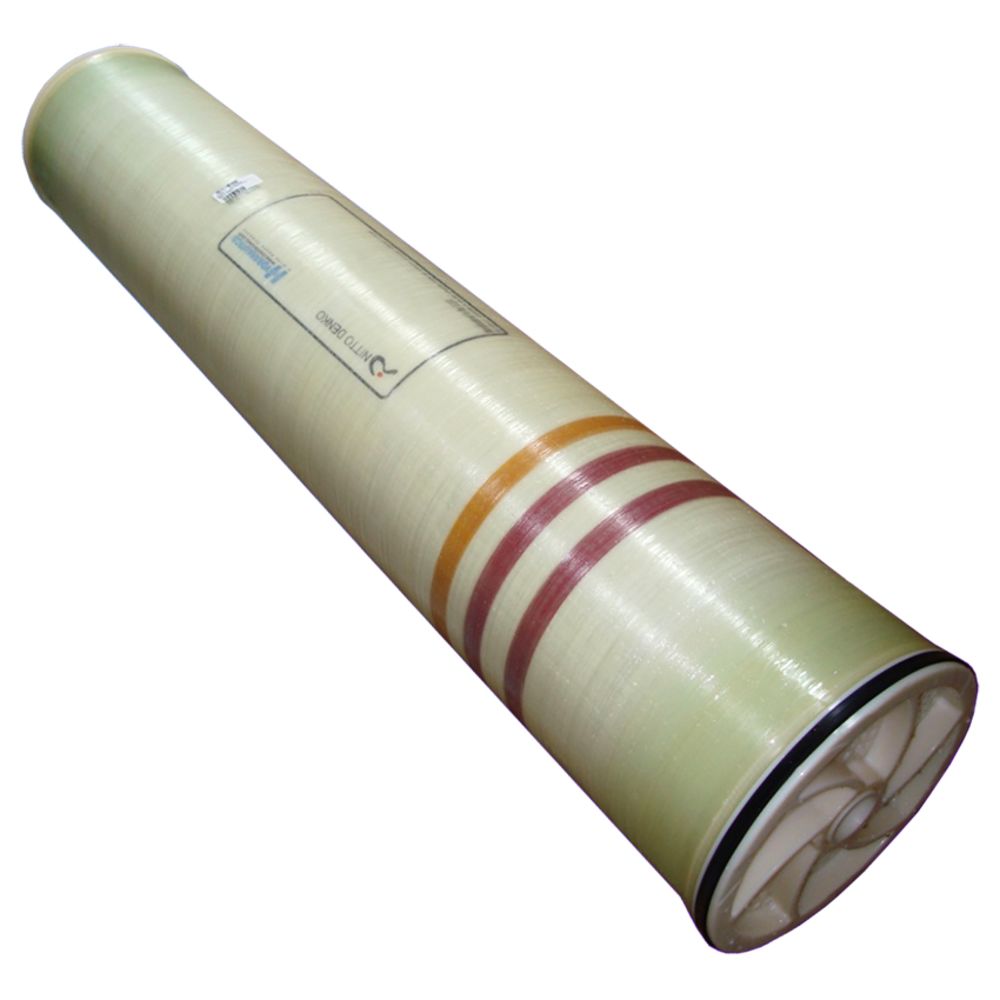

Hydranautics CPA5-LD 8 x 40 Brackish Water RO Membrane 11,000 gpd

The Hydranautics CPA5-LD Brackish Water RO Membrane is designed to operate with difficult feedwater conditions and still produce a desirable combination of both high rejection and high flow. Where ultrahigh purity water is required under difficult feedwater conditions, the CPA5-LD gives the most desirable combination of high rejection and high flow. For industries such as power, semi- conductor, food and beverage, where high purity water is critical to operations, CPA5-LD gives you the most desirable combination of performance and efficiency. CPA5-LD helps reduce RO system power consumption and the membrane resistance to biological and colloidal fouling helps reduce the number of cleanings required, lowering the overall cost of your operation.

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Active Area	400 sq. ft.
Average Nacl Rejection	0.99
Boron Rejection	0.92
Chlorine Tolerance	<0.1 ppm
Cleaning Ph Range	1-13
Feed Spacer Thickness	34 mil
Feed Water Temperature	77°F
Inlet Pressure	225 PSI
Material Of Construction	Polyamide Thin-Film
Max Feed Silt Density Index	5.0 Silt Density Index
Max Feed Water Turbidity	1.0 Nephelometric Turbidity Units
Max Flow Rate	75 gpm
Max Pressure Drop	10 PSI PSI Differential
Max Pressure (Psi)	600psi
Max Temp (°F)	113°F
Minimum Salt Rejection Cl- (%)	(99.6 %
Permeate Flow Rate	11,000 gpd (41.6 m3 /d)
Permeate Tube Diameter	1.125"
Ph Range	2-11
Recovery Rate	0.15
Stabilized Salt Rejection Cl- (%)	0.997
Diameter	7.89"
Shipping Dimensions
Shipping Length	43 in.
Shipping Width	9 in.
Shipping Height	9 in.
Product Weight & Dimensions
Product Height	9 in.
Product Length	43 in.
Product Width	9 in.
Product Weight (lbs)	35
