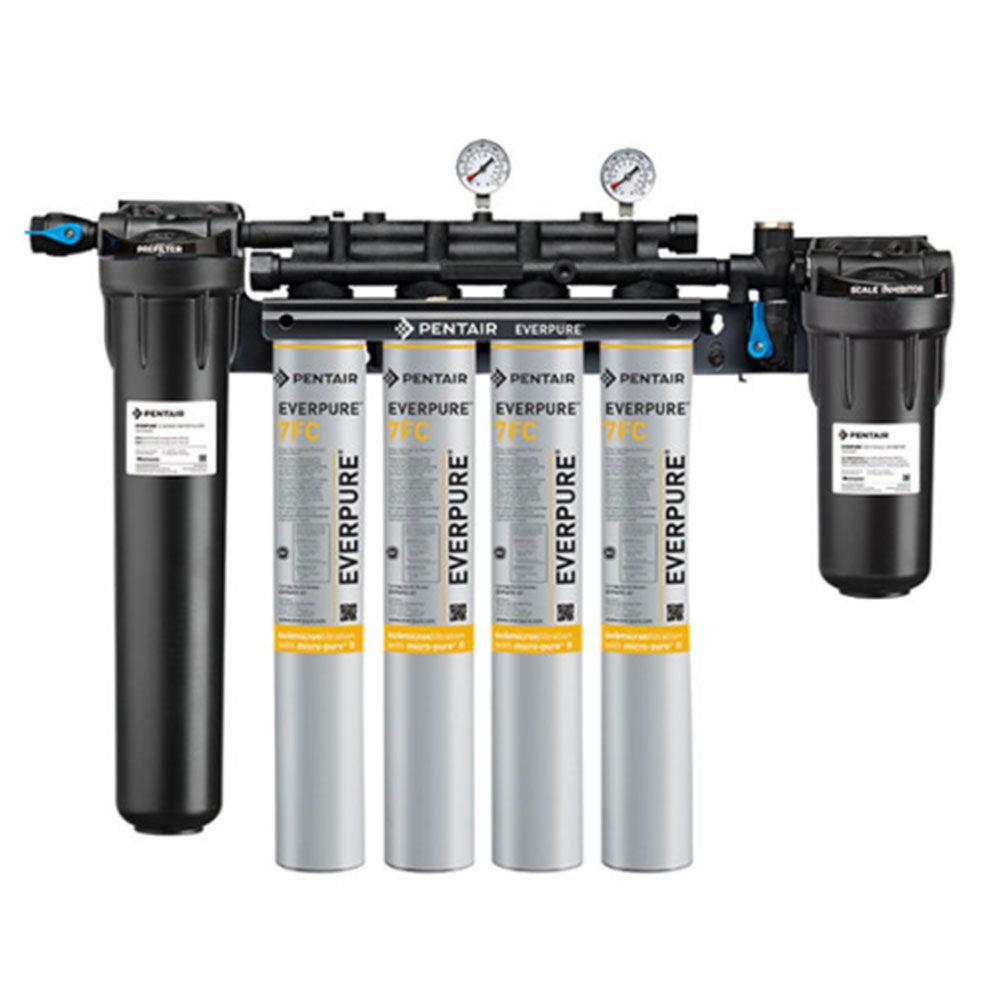

Everpure EV9329-74 High Flow CSR Quad 7FC Filter System

Part Number: EV9329-74

In Stock

out of stock

In Stock

$1,258.53

The Everpure EV9329-74 combination system is a single system solution to provide premium quality water for multiple forms of commercial equipment such as coffee brewers, espresso machines, hot chocolate dispensers, fountain and ice machines.
Features:
  • System features four quick-change 7FC filter cartridges, a 20" coarse prefilter, and an SR-X Scale Reduction Feeder
  • New Fibredyne II meda with AgION antimicrobial protection inhibits any potential bacterial growth
  • 20" prefilter captures larger dirt particles and extends the life of the 7FC cartridges
  • SR-X feeder with SS-XL cartridge inhibits scale buildup in ice machines and coffee brewers
  • Manifold features water shut-off, flushing valve, inlet and outlet pressure gauges
  • Micro-Pure II filter media effectively kills many types of bacteria
  • Fibredyne II submicron technology reduces dirt and particles as small as 1/2 micron in size and reduces health contaminants such as cysts
  • Increases the overall efficiency of equipment
  • Sanitary cartridge replacement is simple, quick and clean
  • NSF certified to NSF/ANSI Standards 42 and 53
Everpure Combination System Sizing Guidelines:
These guidelines are designed to give you approximately 6 months of use between filter cartridge changes. Variations in equipment usage and/or incoming water conditions can produce different results.

Everpure Filtration Systems
Application
Fountain Ice Coffee and Tea
Description # of Carbonators lbs per day Pot Brewers Urns
High Flow CSR Triple MC2 1 <650 Up to 2 N/A
High Flow CSR Quad MC2 2 <650 Up to 2 1
High Flow CSR Plus XC2 3 651-1200 Up to 4 1
High Flow CSR Quad 4FC 3 1201-1500 Up to 4 2
High Flow CSR Triple 7FC 2 1201-1500 Up to 4 2
High Flow CSR Quad 7FC 4+ 1501+ Multi Multi

Compatible with:
CunoDP290 56138-02

Weight & Dimensions

Approx Height (Inches)

25.59 Inches

Approx Width (Inches)

34 Inches

Approx Depth

6.75 Inches

Details

Application

Coffee System, Fountain Beverage System, Ice System

Capacity

100,000 Gallons

Flow Rate

Max 10 GPM

Micron Rating (Nominal)

0.5 µm

Operating Pressure Range

10-125 PSI

Operating Temperature Range

35-100 °F

Size

3/4"

Contaminants Reduced

Chlorine/Taste/Odor, Cysts, Scale, Sediment/Dirt/Rust

Inlet/Outlet Connection

3/4" FPT

Warranty & Certifications

Certifications

NSF/ANSI 42; NSF/ANSI 53
