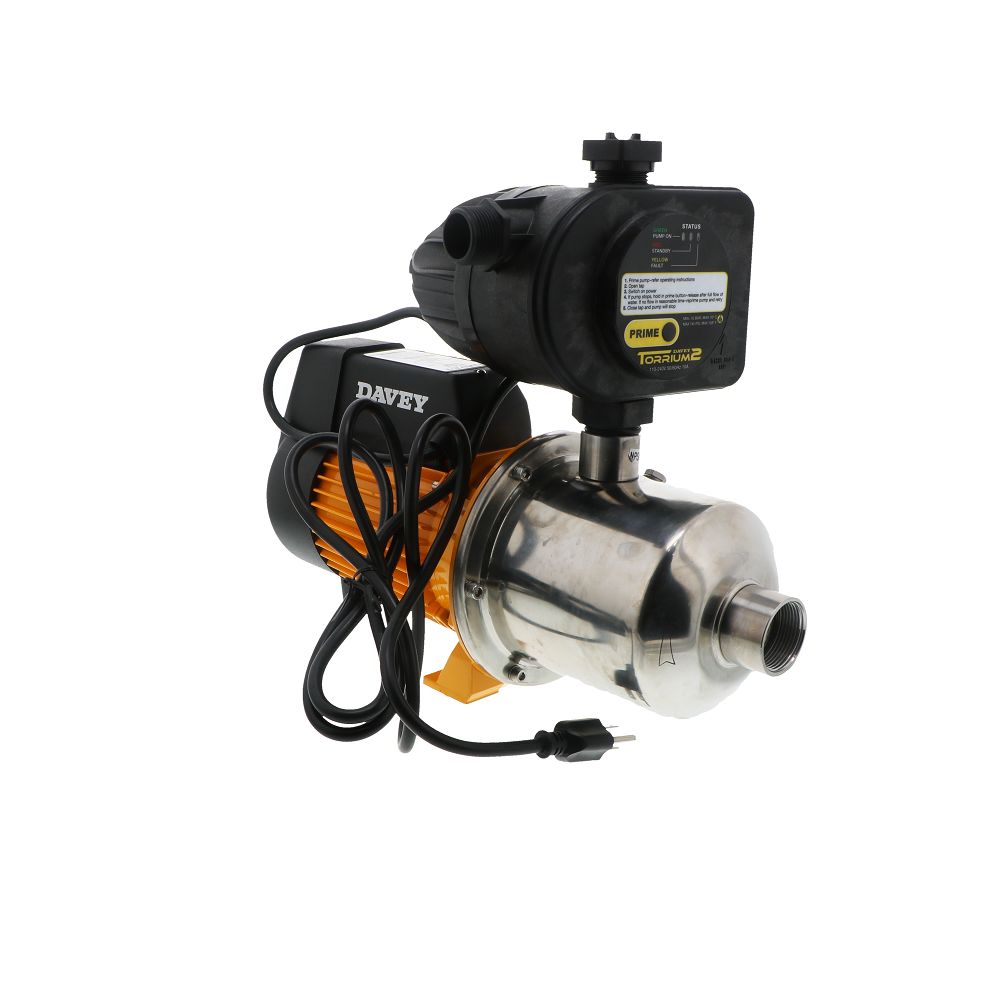

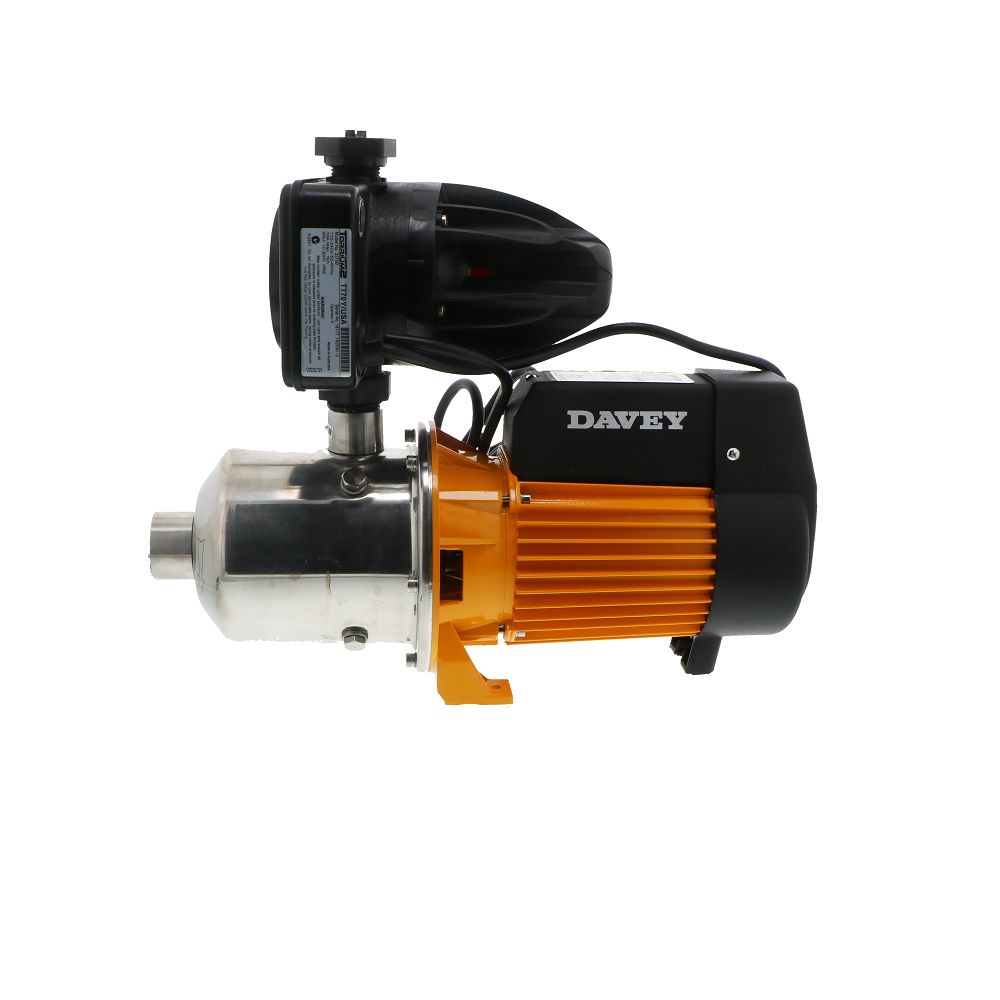

Davey BT20-30 Booster System with Torrium2 - +30 psi 20 gpm

Part Number: BT20-30

Alt. Part Number: BT20-30, BT20-30-D

In Stock

out of stock

In Stock

$740.00



The Davey BT20-30 Mulitistage Centrifugal Booster Pump System is an economical, compact booster system driven by quiet, efficient stainless steel pumps. All B-Series Pumps do flows of 20gpm and as high sd 45 gpm, and can be installed in parallel for higher flows. These pumps operate extremely quiety, featuring low noise between 54 and 56 dBa. The BT20-30 is ideal size for a small residences, mobile homes, cottages and yachts.

Features:
  • 3 Year Warranty
  • Please see the installation manual below to get all the details of the repair or replacement Gaurantee.
  • NSF / CSA Certified
  • This pump has been third party tested and certified to NSF / ANSI Standard 61 & CSA Approved.
  • Quick and Easy Installation
  • These high quality booster pumps are compact, quiet, low maintenance, and easy to install.

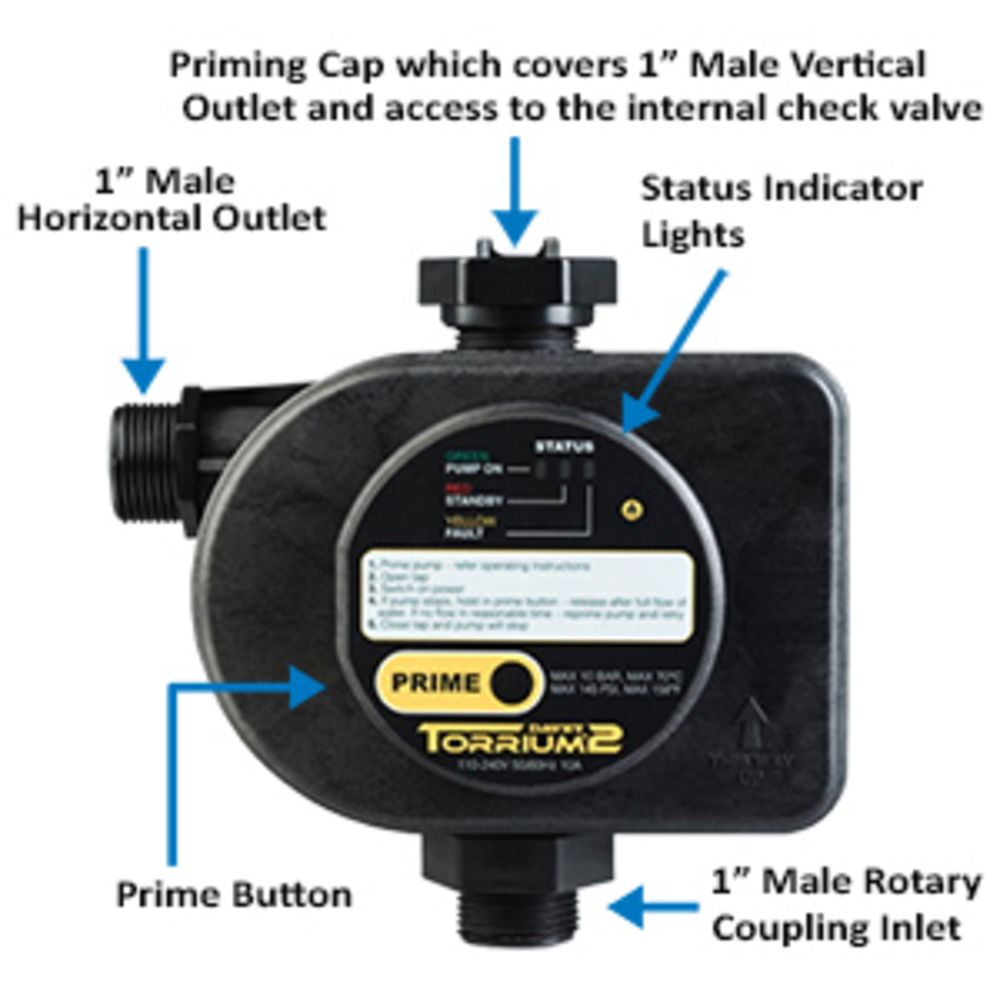

  • Torrium 2 Features Smart controller with adaptive cut-in knows to come on for even constant pressure Needs no adjustment - comes on with half gallon flow or a 20% pressure loss Swivels 360 degrees with top and side discharge Built-in spring loaded check valve and accumulator - no tank required
 Additional Features:
  • Dry run protection & automatic restart below 60°C
  • Water leakage detection which minimises pump cycling
  • High current shutdown & low voltage indication
  • High water temp protection
  • Built-in check valve
  • No tank necessary
Applications:
  • From underground or surface water supplies
  • Domestic, light industrial, & garden irrigation
  • Applications where pressure "cycling" must be avoided or where the pump may have interrupted water supply
  • Homes with low incoming municipal water supply pressure
Economical Choice. The Davey BT20-30 Booster Pump System features a cut-out at low flow and cut-in at 80% of the cut-out pressure providing a constant, even pressure flow of water. The system also has automatic recognition of small pressure loss (RO, ice makers, etc.) to reduce needless cycling. Providing you with smooth, even pressure for showers, sprinklers and all your household water needs.
Dependable & Safe. This pump has a built in sacrificial varistor for electrical power surges, high current shutdown, low voltage indication, and dry run protection with sequential automatic re-start. The system also features a water leakage detection system, which will minimize you pump's cycling. Additionally, high water temperature protection and automatic restart below 60℃ is built-in.
Variety of Applications. Homes with low incoming municipal water supply pressure, automatic water transfer, domestic, light industrial, and garden irrigation, and applications where pressure "cycling" must be avoided or where the pump may have interrupted water supply.
Quality Construction. This product is made from 304 stainless steel and corrosion-resistant materials, and has selectable vertical and horizontal delivery outlets. It also features an LED operation and fault indicator, which displays system operating status.


Weight & Dimensions

Approx Height (Inches)

14.45 Inches

Approx Length (Inches)

17.4 Inches

Approx Width (Inches)

7.85 Inches

Details

Ambient Temperature Range

120 max Degrees Fahrenheit

Flow Rate

20

Housing Material

Baked polyester

Inlet Size

1-1/4" FPT

Liquid Temperature

150 max Degrees Fahrenheit

Max Operating Pressure

50 - 60 PSI; 116 PSI

Outlet Size

1" MPT

Power

1 hp

Type

Booster

Voltage

120VAC

Watts

1.1 kW

Suction Lift

25 ft Max; 5ft

Max Head Pressure

76

Cut In Flow Rate

1.2 Gallons Per Minute

Cut Out Flow Rate

0.7 Gallons Per Minute

Maximum Pump Boost

50

Warranty & Certifications

Warranty

Three year warranty starts the day of installation - customer receipt is the warranty ticket.
