Davey

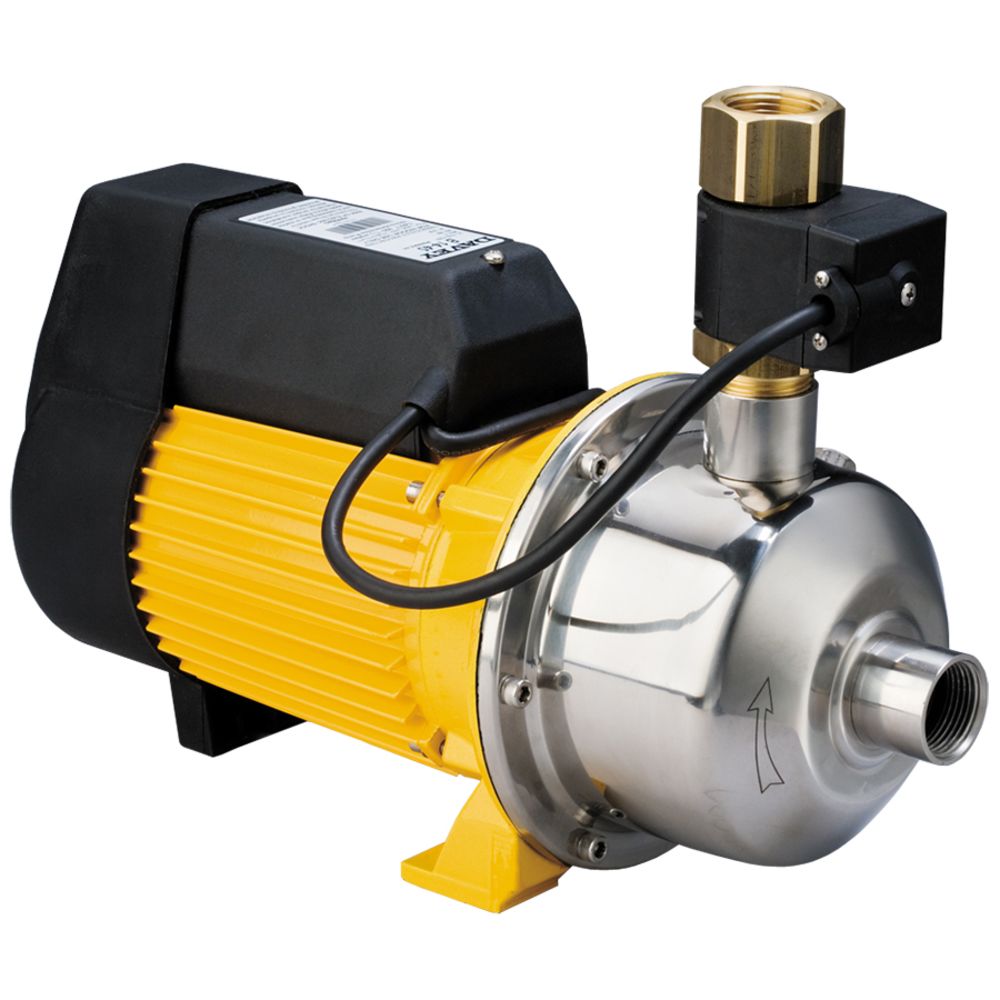

Davey BF20-30 Booster System with Flow Switch- +30 psi 20 gpm

Part Number: BF20-30

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Davey BT20-30 Booster System with Torrium2 - +30 psi 20 gpm as a substitute....

The BF20-30 Stainless Steel Booster System is an economical, compact, booster sysytem driven by quiet, efficient, stainless steel pumps. The Flow Switch replaces the conventional pressure switch and provides constant pressure without cycling. This feature also provides loss of prime protection and over-temperature cut out.

Features:

  • Flow Switch offers even flow without cycling
  • TEFC motor is corrosion resistant and excludes dist and dirt
  • Constructed from corrosion resistant materials
  • High quality, purpose designed electric motor
  • Motor and Pump designed for frequent starts
  • Pump protected from damage caused by dry running - shuts off when water supply is inadequate
  • Quick and Easy Installation
  • Low Maintenance

The BF20-30 Stainless Steel Booster Pump System is ideal for boosting water pressure in:

  • Homes (Shower only boosting) where the incoming municipal water supply pressure is inadequate
  • Domestic & light industrial irrigation

NOTE: For whole house applications, we highly recommend the BT model Boosta pumps equipped with the intelligent Torrium ® controller that features:

  • CONSTANT FLOW
  • LOSS OF PRIME PROTECTION
  • ADAPTIVE PRESSURE SWITCH
  • SIMPLIFIED FAULT FINDING
  • AUTO RETRY
DAVEY WATER PRODUCTS LIMITED WARRANTY: Davey products are warranted to the original user only to be free of defects in material and workmanship for a period of 12 months from date of installation, but no more than 24 months from date of manufacture.





Weight & Dimensions

Weight (lbs)

26.5

Approx Height (Inches)

10.90"

Approx Length (Inches)

13.8"

Approx Width (Inches)

8.66"

Details

Series

BF

Max Pressure (Psi)

116

Min Pressure (Psi)

100

Ambient Temperature Range

Max 120 °F

Flow Rate

20 GPM

Housing Material

Polyester

Size

1-1/4", 1"

Voltage

110VAC

Cut In Flow Rate

1.2 GPM

Cut Out Flow Rate

0.7 GPM

Inlet/Outlet Connection

1-1/4" FPT, 1" MPT

Warranty & Certifications

Certifications

NSF 61

Warranty

Davey products are warranted to the original user only to be free of defects in material and workmanship for a period of 12 months from date of installation, but no more than 24 months from date of manufacture.


Davey

Davey




The BF20-30 Stainless Steel Booster System is an economical, compact, booster sysytem driven by quiet, efficient, stainless steel pumps. The Flow Switch replaces the conventional pressure switch and provides constant pressure without cycling. This feature also provides loss of prime protection and over-temperature cut out.

Features:

  • Flow Switch offers even flow without cycling
  • TEFC motor is corrosion resistant and excludes dist and dirt
  • Constructed from corrosion resistant materials
  • High quality, purpose designed electric motor
  • Motor and Pump designed for frequent starts
  • Pump protected from damage caused by dry running - shuts off when water supply is inadequate
  • Quick and Easy Installation
  • Low Maintenance

The BF20-30 Stainless Steel Booster Pump System is ideal for boosting water pressure in:

  • Homes (Shower only boosting) where the incoming municipal water supply pressure is inadequate
  • Domestic & light industrial irrigation

NOTE: For whole house applications, we highly recommend the BT model Boosta pumps equipped with the intelligent Torrium ® controller that features:

  • CONSTANT FLOW
  • LOSS OF PRIME PROTECTION
  • ADAPTIVE PRESSURE SWITCH
  • SIMPLIFIED FAULT FINDING
  • AUTO RETRY
DAVEY WATER PRODUCTS LIMITED WARRANTY: Davey products are warranted to the original user only to be free of defects in material and workmanship for a period of 12 months from date of installation, but no more than 24 months from date of manufacture.




NOTE: This item is discontinued. We recommend the Davey BT20-30 Booster System with Torrium2 - +30 psi 20 gpm as a substitute.

Weight & Dimensions

Weight (lbs)

26.5

Approx Height (Inches)

10.90"

Approx Length (Inches)

13.8"

Approx Width (Inches)

8.66"

Details

Series

BF

Max Pressure (Psi)

116

Min Pressure (Psi)

100

Ambient Temperature Range

Max 120 °F

Flow Rate

20 GPM

Housing Material

Polyester

Size

1-1/4", 1"

Voltage

110VAC

Cut In Flow Rate

1.2 GPM

Cut Out Flow Rate

0.7 GPM

Inlet/Outlet Connection

1-1/4" FPT, 1" MPT

Warranty & Certifications

Certifications

NSF 61

Warranty

Davey products are warranted to the original user only to be free of defects in material and workmanship for a period of 12 months from date of installation, but no more than 24 months from date of manufacture.
