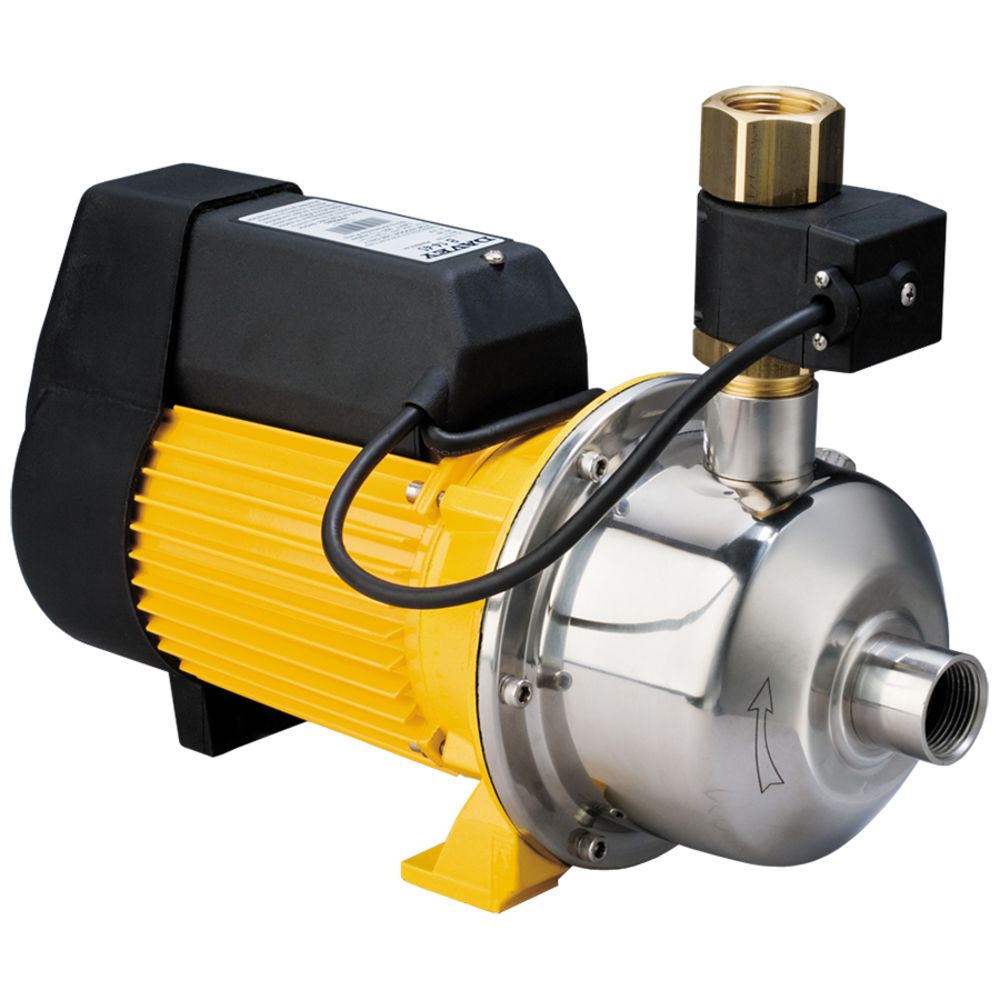

Davey BF14-30 Booster System with Flow Switch- +30 psi 14 gpm
This item is discontinued. We recommend the Davey BT14-30 Booster System with Torrium2 - +30 psi 14 gpm as a substitute....
The BF14-30 Stainless Steel Booster System is an economical, compact, booster sysytem driven by quiet, efficient, stainless steel pumps. The Flow Switch replaces the conventional pressure switch and provides constant pressure without cycling. This feature also provides loss of prime protection and over-temperature cut out.
Features:
- Flow Switch offers even flow without cycling
- TEFC motor is corrosion resistant and excludes dist and dirt
- Constructed from corrosion resistant materials
- High quality, purpose designed electric motor
- Motor and Pump designed for frequent starts
-
Pump protected from damage caused by dry running - shuts off when water supply is inadequate
- Quick and Easy Installation
- Low Maintenance
The BF14-30 Stainless Steel Booster Pump System is ideal for boosting water pressure in:
- Homes (Shower only boosting) where the incoming municipal water supply pressure is inadequate
- Domestic & light industrial irrigation
- CONSTANT FLOW
- LOSS OF PRIME PROTECTION
- ADAPTIVE PRESSURE SWITCH
- SIMPLIFIED FAULT FINDING
- AUTO RETRY
Weight & Dimensions
Approx Height (Inches) | 13.18" |
Approx Length (Inches) | 13.8" |
Approx Width (Inches) | 8.66" |
Weight (lbs) | 34 |
Details
Ambient Temperature Range | Max 120 °F |
Cut In Flow Rate | 1.2 GPM |
Cut Out Flow Rate | 0.7 GPM |
Housing Material | Polyester |
Inlet/Outlet Connection | 1-1/4" FPT, 1" MPT |
Liquid Temperature | Max 150 °F |
Max Pressure (Psi) | 116 |
Min Pressure (Psi) | 100 |
Power | 1 kW |
Series | BF |
Size | 1-1/4", 1" |
Connection Type | Female (FPT), Male (MPT) |
Flow Rate | 14 GPM |
Voltage | 110VAC |
Warranty & Certifications
Certifications | NSF 61 |
Warranty | Davey products are warranted to the original user only to be free of defects in material and workmanship for a period of 12 months from date of installation, but no more than 24 months from date of manufacture. |
The BF14-30 Stainless Steel Booster System is an economical, compact, booster sysytem driven by quiet, efficient, stainless steel pumps. The Flow Switch replaces the conventional pressure switch and provides constant pressure without cycling. This feature also provides loss of prime protection and over-temperature cut out.
Features:
- Flow Switch offers even flow without cycling
- TEFC motor is corrosion resistant and excludes dist and dirt
- Constructed from corrosion resistant materials
- High quality, purpose designed electric motor
- Motor and Pump designed for frequent starts
-
Pump protected from damage caused by dry running - shuts off when water supply is inadequate
- Quick and Easy Installation
- Low Maintenance
The BF14-30 Stainless Steel Booster Pump System is ideal for boosting water pressure in:
- Homes (Shower only boosting) where the incoming municipal water supply pressure is inadequate
- Domestic & light industrial irrigation
- CONSTANT FLOW
- LOSS OF PRIME PROTECTION
- ADAPTIVE PRESSURE SWITCH
- SIMPLIFIED FAULT FINDING
- AUTO RETRY
NOTE: This item is discontinued. We recommend the Davey BT14-30 Booster System with Torrium2 - +30 psi 14 gpm as a substitute.
Weight & Dimensions
Approx Height (Inches) | 13.18" |
Approx Length (Inches) | 13.8" |
Approx Width (Inches) | 8.66" |
Weight (lbs) | 34 |
Details
Ambient Temperature Range | Max 120 °F |
Cut In Flow Rate | 1.2 GPM |
Cut Out Flow Rate | 0.7 GPM |
Housing Material | Polyester |
Inlet/Outlet Connection | 1-1/4" FPT, 1" MPT |
Liquid Temperature | Max 150 °F |
Max Pressure (Psi) | 116 |
Min Pressure (Psi) | 100 |
Power | 1 kW |
Series | BF |
Size | 1-1/4", 1" |
Connection Type | Female (FPT), Male (MPT) |
Flow Rate | 14 GPM |
Voltage | 110VAC |
Warranty & Certifications
Certifications | NSF 61 |
Warranty | Davey products are warranted to the original user only to be free of defects in material and workmanship for a period of 12 months from date of installation, but no more than 24 months from date of manufacture. |
