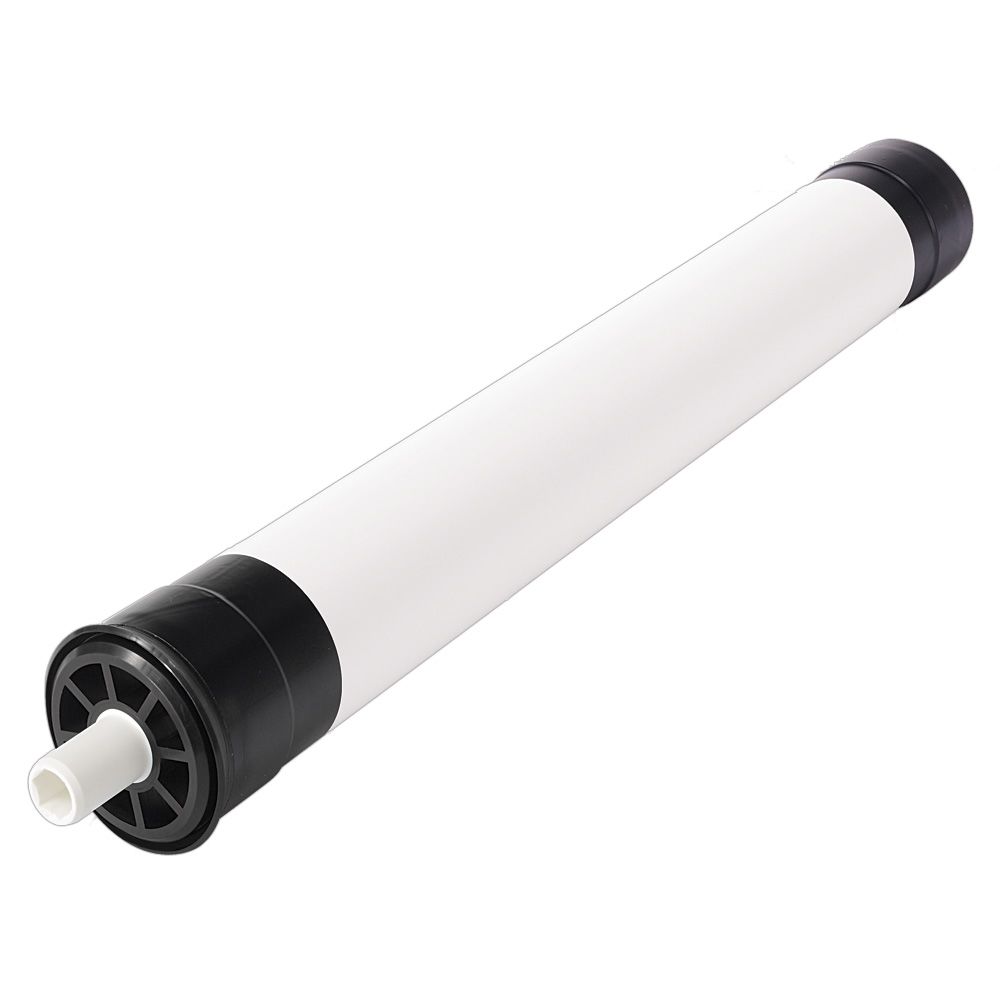

AXEON HR3-2514 150 GPD RO Membrane Element

The AXEON HR3-2514 Reverse Osmosis Membranes are one of the industries most reliable and highest performing reverse osmosis elements. The HR3-2514 RO membrane elements are available in all standard commercial sizes, feature a protective ABS shell, and are 100% vacuum integrity tested.The polyamide thin-film used in the AXEON HR3 Series membranes is manufactured by a major US membrane film manufacturer.

Specifications:

Permeate Flow Rate: 150 gallons per day
Membrane Type: Polyamide Thin-Film
Applied Pressure: 225 psi
Dimensions: 2.5" x 14"
Minimum Concentrate Flow Rate: 5:1
Chlorine Tolerance: 0 ppm
Maximum Operating Temperature: 113° F
Applications: Tap Water, Brackish Water
Formerly known as RO UltraTec HR3-2514

AXEON RO membranes are dry packed

Compatible with:

Desal Membranes	AG2514TF, 1206718, AG2514FF
Filmtec Membranes	TW30-2514, BW30-2514
Watts	W-2514-TW, R9612-OSM

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Brackish Water
Average Nacl Rejection	0.99
Chlorine Tolerance	0 ppm
Cleaning Ph Range	1-13
Direction	Outside - In
Feed Water Temperature	77°F
Inlet Pressure	225 PSI
Inner/Outer Wraps	ABS
Material Of Construction	Polyamide Thin-Film
Max Concentrate Flow Rate	5:1
Max Feed Silt Density Index	5 Silt Density Index
Max Feed Water Turbidity	1 Nephelometric Turbidity Units
Max Pressure Drop	10 PSI Differential
Max Pressure (Psi)	600psi
Max Temp (°F)	113°F
Membrane Type	Spiral Wound
Minimum Salt Rejection Cl- (%)	0.96
Permeate Flow Rate	150 gpd / (0.57 m³/d)
Permeate Tube Diameter	3/4"
Ph Range	2-11
Recovery Rate	0.15
Diameter	2.4"
Shipping Dimensions
Shipping Length	2.25 in.
Shipping Width	2.25 in.
Shipping Height	13.5 in.
Product Weight & Dimensions
Product Length	14 in.
Product Weight (lbs)	4

AXEON HR3-2514 150 GPD RO Membrane Element Manual
