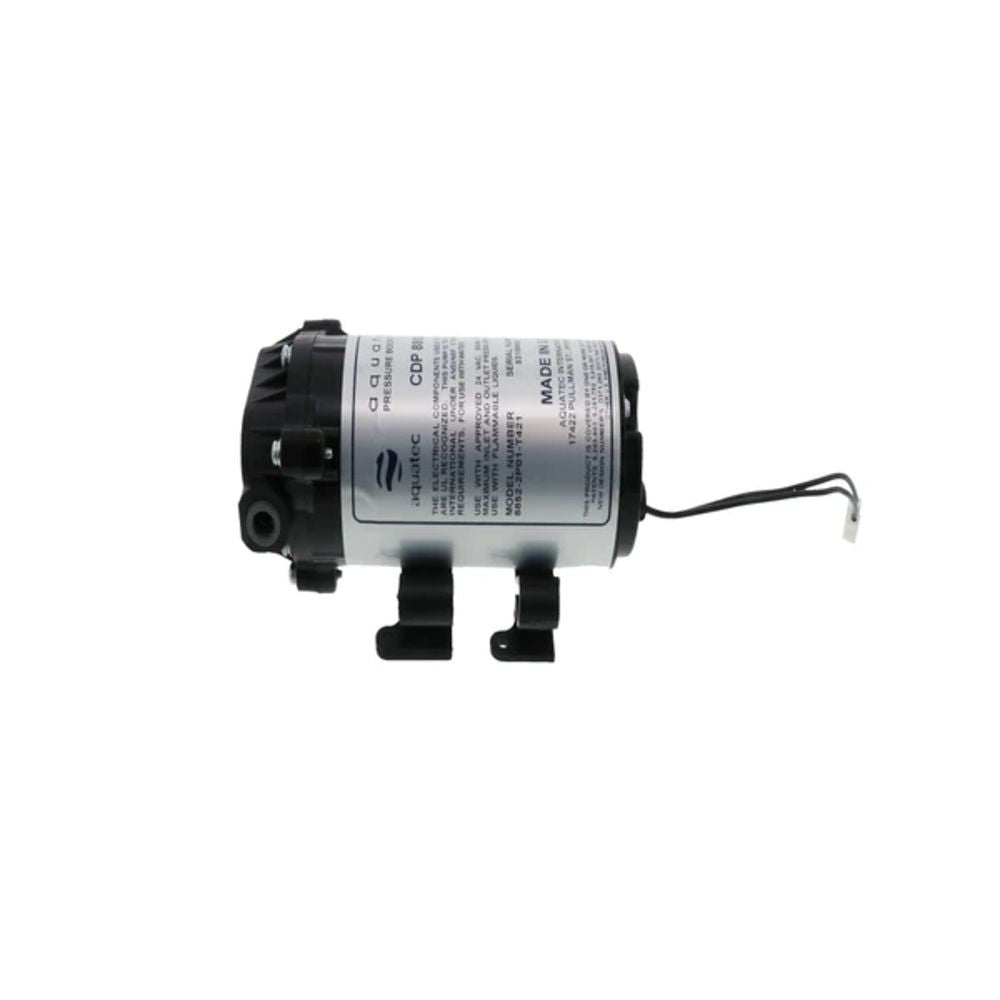

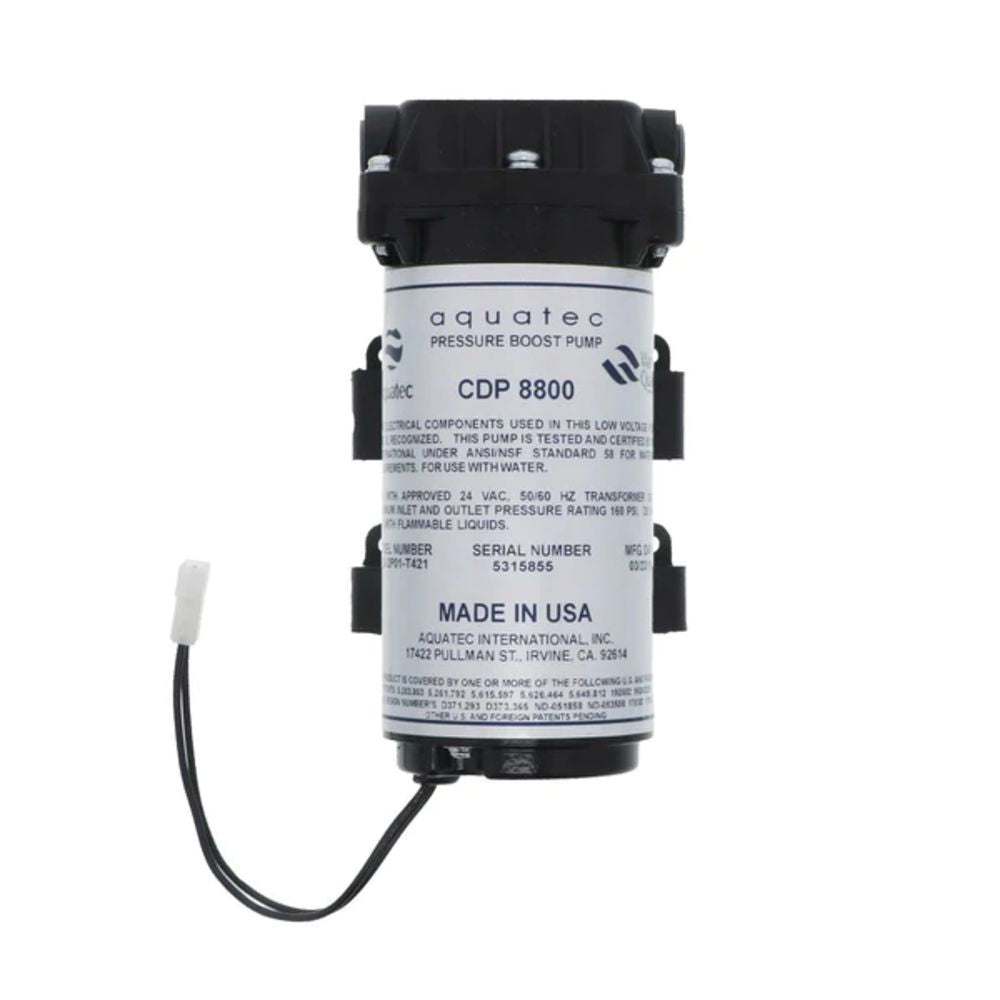

Aquatec CDP 8800 Pressure Boost Pump 8852-2P01-V421 160 PSI Bypass, 3/8 JG, 24 VAC

Part Number: 8852-2P01-V421

1 3

Aquatec

Aquatec CDP 8800 Pressure Boost Pump 8852-2P01-V421 160 PSI Bypass, 3/8 JG, 24 VAC

Part Number: 8852-2P01-V421

MSRP: $131.48

$104.02

Quantity

Unit Price

Price

Savings

$104.02

—

$102.28

$204.57

$100.55

$603.32

$98.81

$1,185.83

Product variants

You May Also Need

Optional Accessory

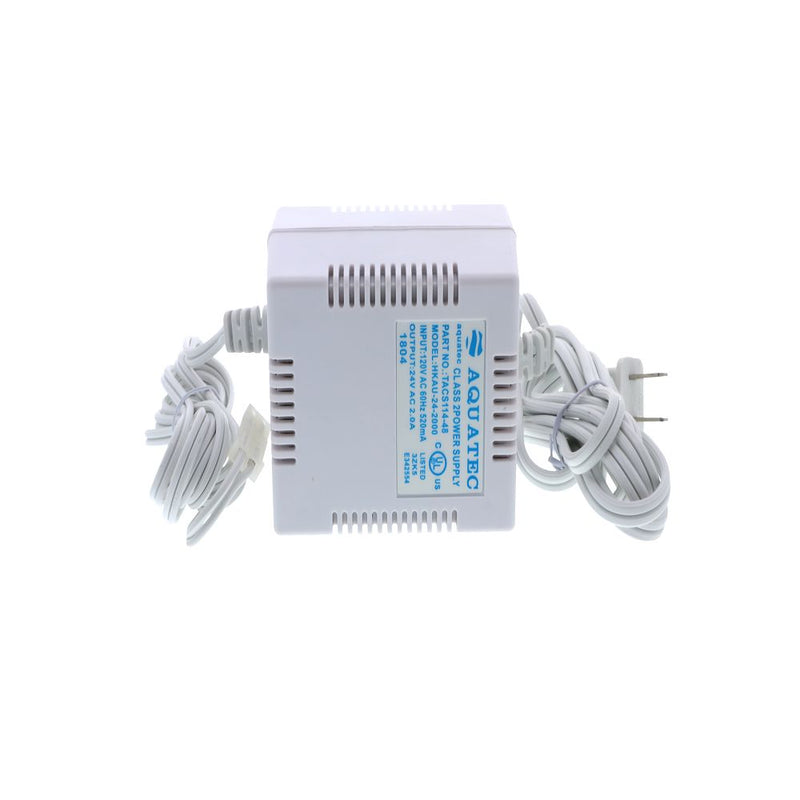

Aquatec 8800 Series Transformer 120V/24VAC 2 Amp (USA)

Regular price From $27.89
Optional Accessory

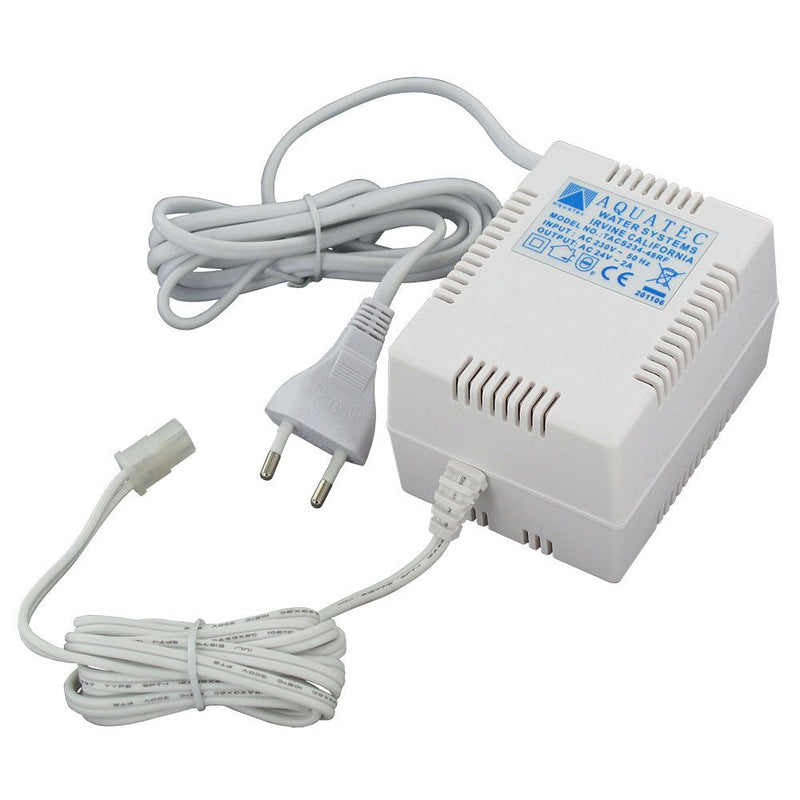

Transformer for Aquatec 8800 Series Booster Pumps 230V

Regular price From $23.24

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Aquatec 8800 Series Pumps are used in RO systems with flow rates greater than 50 GPD. Reverse osmosis systems require pressure to work properly. A booster pump is suggested for applications where the feed water pressure is low, and where there are high levels of Total Dissolved Solids (TDS) in the water. The 8852-2P01-V421 is designed for operation with a tank shut-off switch (PSW), which shuts off the RO booster pump when the storage tank becomes full. In under-counter RO systems the PSW can be coupled with an Electronic Shut-Off valve (ESO) in order to shut off the feed supply so the system does not waste water.

Features:

Outstanding toughness, durability
EMI/RFI electronic noise suppression
Expels trapped air and eliminates "air locks"
Pumphead can be mounted up or down
Improved venting system removes moisture
Corrosion resistant exterior
Connections: 3/8" QC
Designed for 15,000+ operating hours
Outlet pressures up to 125 PSI
Extremely quiet operation, less than 52 DBA
Runs dry without damage
Self-priming, 60 inch lift
Low voltage (24V) for maximum safety

Pump Certifications:

NSF Standard 58
CE Rated: Product has met EU health, safety, and environmental requirements, which ensure consumer safety.

Recommend Accessories:

8800 Series Transformer 120V/24VAC (US) - (required) connects pump to electrical outlet to provide power
Tank Pressure shut-off switch w/ wire harness - shuts off booster pump when RO tank is full
Electronic Shut-off Solenoid (ESO) Valve w/ QC fittings - connects to tank pressure shut-off switch to close off the feed water source when RO tank is full
Wire harness assembly - required when using electronic shut-off valve

Specifications

Product Details
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	170 °F
Pump Max Flow Rate (Gpm)	150
Push-In Size	3/8" OD
Series	8800
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4
Product Length	7.5
Product Width	4
Product Weight (lbs)	5.6

Product Details
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	170 °F
Pump Max Flow Rate (Gpm)	150
Push-In Size	3/8" OD
Series	8800
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Product Weight & Dimensions
Product Weight (lbs)	10.9

Product Details
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	170 °F
Pump Max Flow Rate (Gpm)	150
Push-In Size	3/8" OD
Series	8800
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Product Weight & Dimensions
Product Weight (lbs)	35.4

Product Details
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	170 °F
Pump Max Flow Rate (Gpm)	150
Push-In Size	3/8" OD
Series	8800
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Product Weight & Dimensions
Product Weight (lbs)	64

Downloads

Aquatec CDP 8800 Pressure Boost Pump 8852-2P01-V421 160 PSI Bypass, 3/8 JG, 24 VAC Manual
