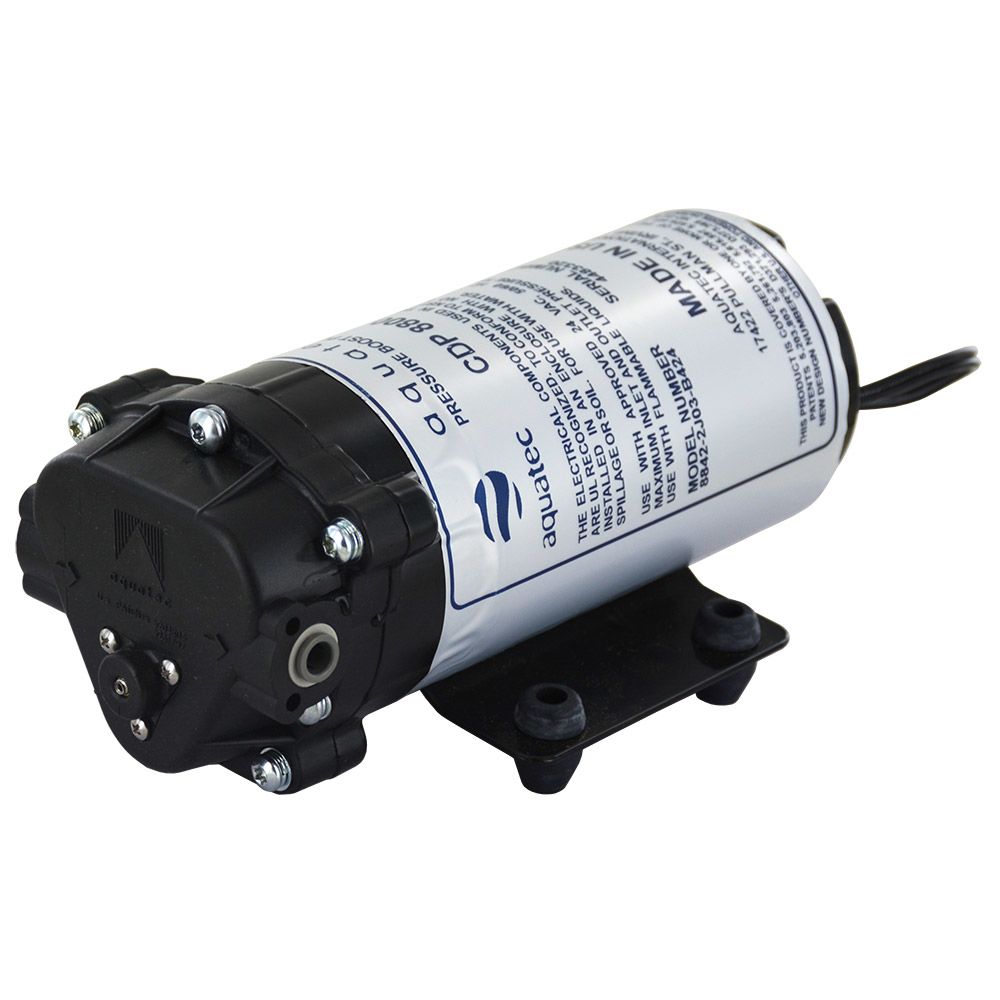

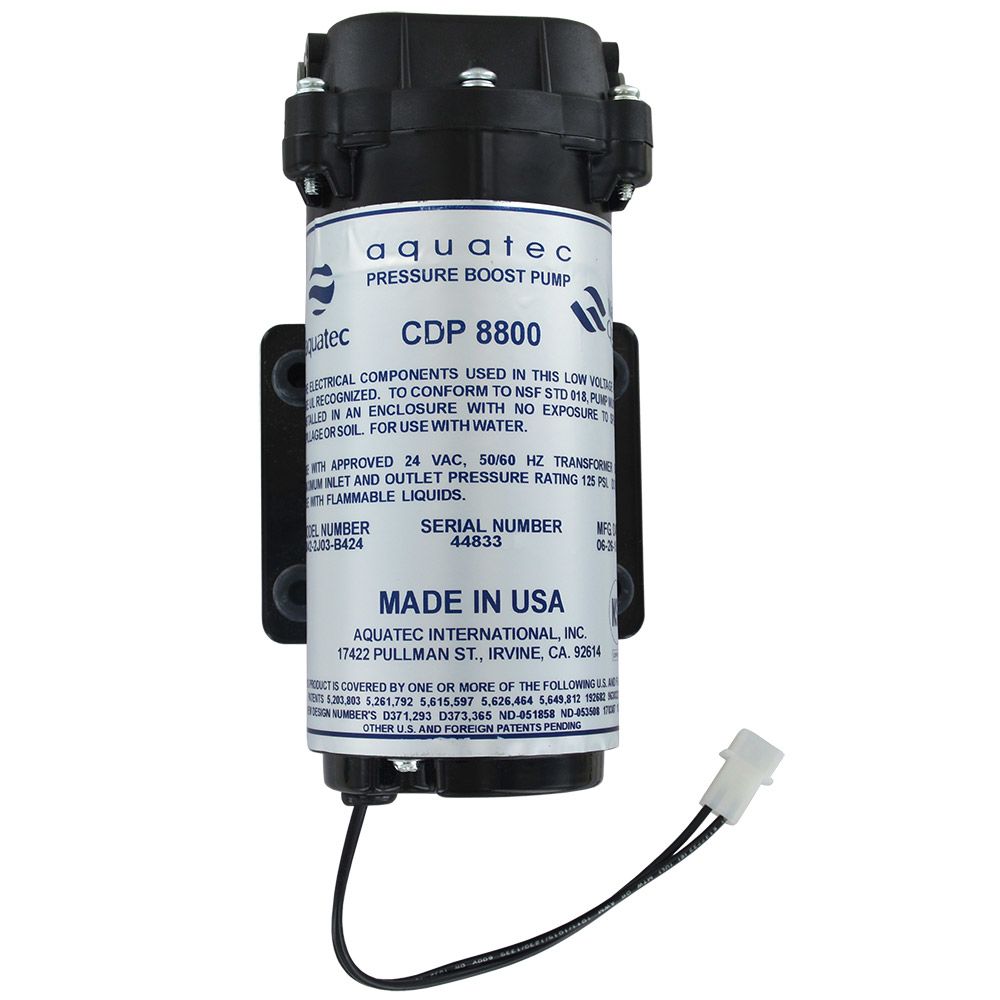

Aquatec CDP 8800 Pressure Boost Pump 110 PSI, 1/4 JG, 24 VAC

5.0

(1 reviews)

Part Number: 8842-2J03-B424

1 4

Aquatec

Aquatec CDP 8800 Pressure Boost Pump 110 PSI, 1/4 JG, 24 VAC

5.0

(1 reviews)

Part Number: 8842-2J03-B424

MSRP: $0.00

$112.13

Quantity

Unit Price

Price

Savings

$112.13

—

$90.82

$1,089.90

19%

$105.03

$210.06

$97.92

$587.56

12%

Product variants

You May Also Need

Optional Accessory
Transformer for Aquatec 8800 Series Booster Pumps 230V

Regular price From $23.24
Optional Accessory
Aquatec 8800 Series Transformer 120V/24VAC 2 Amp (USA)

Regular price From $27.89

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Aquatec 8800 Series Pumps are used in RO systems with flow rates from 100-200 GPD. Reverse osmosis systems require pressure to work properly. A booster pump is suggested for applications where the feed water pressure is low, and where there are high levels of Total Dissolved Solids (TDS) in the water. The 8842-2J03-B424 is designed for operation with a transformer and tank shut-off switch (PSW), which shuts off the RO booster pump when the storage tank becomes full. In under-counter RO systems the PSW can be coupled with an Electronic Shut-Off valve (ESO) in order to shut off the feed supply so the system does not waste water.
Features:

Reliable Performance. The Aquatec 8800 Series Pump is an extremely durable booster pump that is designed for continuous duty. This tough pump is safe to operate with low voltage for long lasting reliability.
NSF Certified.
The Aquatec 8842-2J03-B424 pump is certified to NSF standard 58.
Made in the USA.
The Aquatec 8842-2J03-B424 pump is proudly made and manufactured in the USA.

Specifications:

Voltage: 24VAC
Prime: 6 foot lift, self priming, capable of running dry
Outlet pressures up to 110 PSI
Inlet/Outlet: 1/4" quick connect John Guest ports
Max Liquid Temperature: 170°F
Manufactured of NSF 58 Certified Materials

Specifications

Product Details
Amps	0.53-1.2 Amps @ 0-80 PSI
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	Max 170 °F
Motor Rpm	870 RPM
Pump Max Flow Rate (Gpm)	0.4
Pump Max Pressure (Psi)	110
Push-In Size	1/4" OD
Series	8800
Suction Lift	6 Feet
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4
Product Length	7.5
Product Width	4
Product Weight (lbs)	6.1

Product Details
Amps	0.53-1.2 Amps @ 0-80 PSI
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	Max 170 °F
Motor Rpm	870 RPM
Pump Max Flow Rate (Gpm)	0.4
Pump Max Pressure (Psi)	110
Push-In Size	1/4" OD
Series	8800
Suction Lift	6 Feet
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	24.5 in.
Shipping Width	17.5 in.
Shipping Height	9.25 in.
Product Weight & Dimensions
Product Height	8.75
Product Length	24.5
Product Width	8.75
Product Weight (lbs)	6.1

Product Details
Amps	0.53-1.2 Amps @ 0-80 PSI
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	Max 170 °F
Motor Rpm	870 RPM
Pump Max Flow Rate (Gpm)	0.4
Pump Max Pressure (Psi)	110
Push-In Size	1/4" OD
Series	8800
Suction Lift	6 Feet
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	7 in.
Product Weight & Dimensions
Product Weight (lbs)	10.95

Product Details
Amps	0.53-1.2 Amps @ 0-80 PSI
Diaphragm Materials	Santoprene
Housing Material	Nylon
Liquid Temperature	Max 170 °F
Motor Rpm	870 RPM
Pump Max Flow Rate (Gpm)	0.4
Pump Max Pressure (Psi)	110
Push-In Size	1/4" OD
Series	8800
Suction Lift	6 Feet
Voltage Type	AC
Wire Option	Bare Wire
Type	Diaphragm Pump
Voltage	24VAC
Warranty & Certifications
Product Certification Standard	NSF/ANSI 58
Warranty	12 Months from Date of Purchase from Date of Purchase
Product Weight & Dimensions
Product Weight (lbs)	33

Downloads

Aquatec CDP 8800 Pressure Boost Pump 110 PSI, 1/4 JG, 24 VAC Manual
