Aquatec

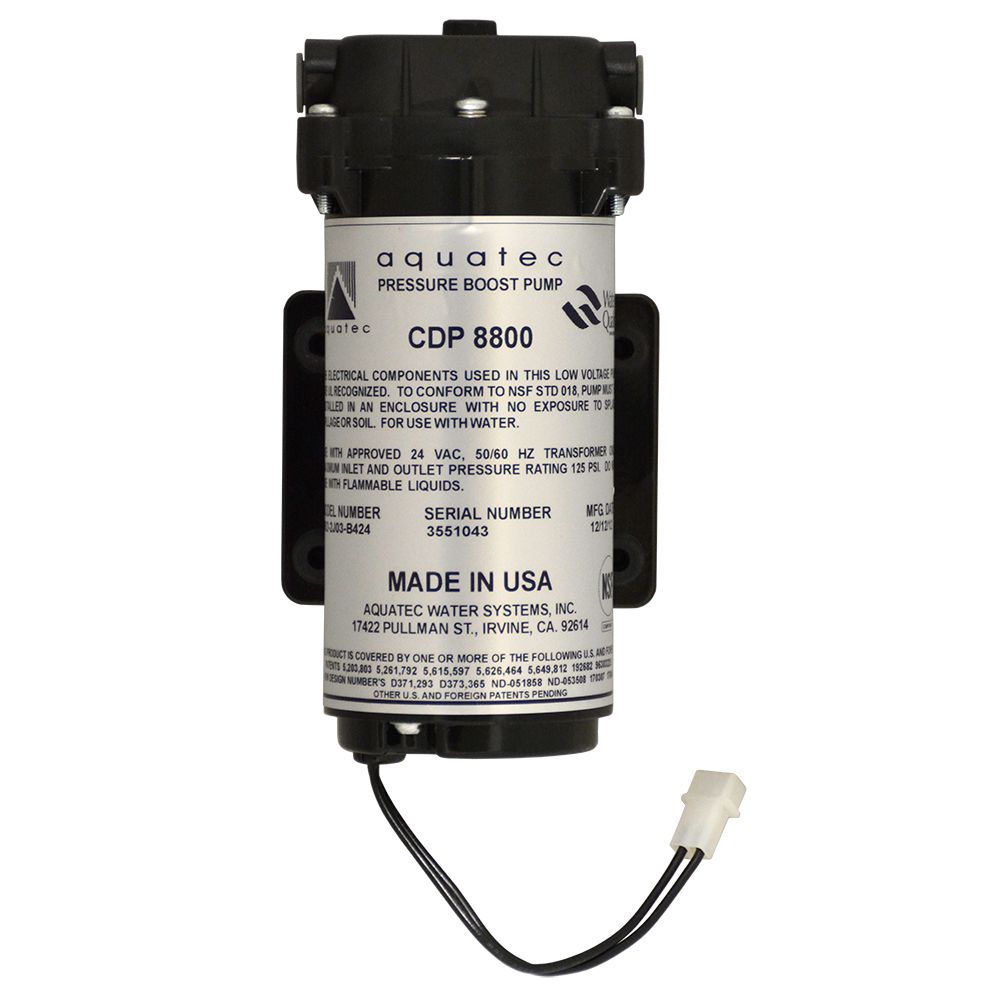

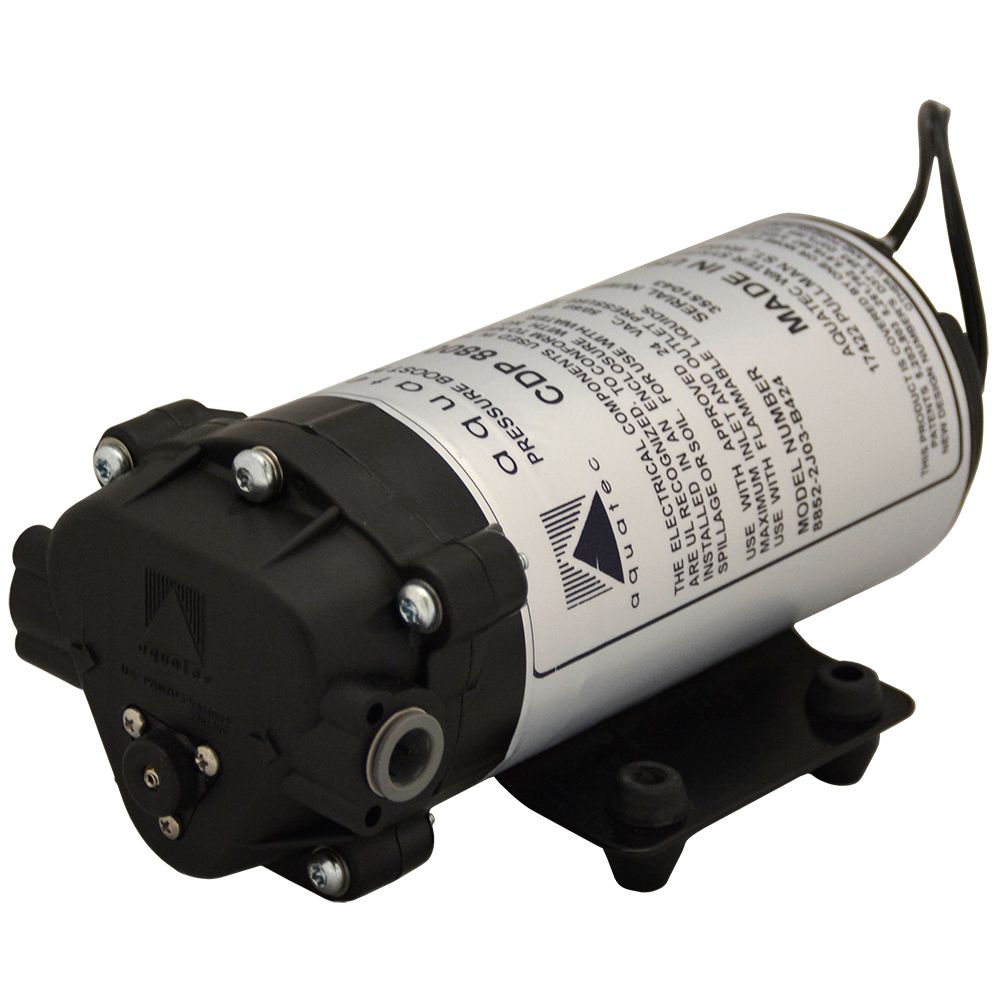

Aquatec CDP 8800 Pressure Boost Pump 125 PSI, 3/8 JG, 24 VAC

Part Number: 8852-2J03-B424

Alt. Part Number: 8852-2J03-B423, PAB8851, 8851-2J03-B423

In Stock

out of stock

In Stock

$86.72


Aquatec 8800 Series Pumps are used in RO systems with flow rates greater than 50 GPD. Reverse osmosis systems require pressure to work properly. A booster pump is suggested for applications where the feed water pressure is low, and where there are high levels of Total Dissolved Solids (TDS) in the water. The 8852-2J03-B423 is designed for operation with a tank shut-off switch (PSW), which shuts off the RO booster pump when the storage tank becomes full. In under-counter RO systems the PSW can be coupled with an Electronic Shut-Off valve (ESO) in order to shut off the feed supply so the system does not waste water.

Features:
  • Outstanding toughness, durability
  • EMI/RFI electronic noise suppression
  • Expels trapped air and eliminates "air locks"
  • Pumphead can be mounted up or down
  • Improved venting system removes moisture
  • Corrosion resistant exterior
 Specifications:
  • Connections: 3/8" QC
  • Designed for 15,000+ operating hours
  • Outlet pressures up to 125 PSI
  • Extremely quiet operation, less than 52 DBA
  • Runs dry without damage
  • Self-priming, 60 inch lift
  • Low voltage (24V) for maximum safety
Additional Specifications:
For the best experience, the following accessories are recommended for purchase with your RO booster pump: 8800 Series Transformer 120V/24VAC (US) - (required) connects pump to electrical outlet to provide power Tank Pressure shut-off switch w/ wire harness - shuts off booster pump when RO tank is full Electronic Shut-off Solenoid (ESO) Valve w/ QC fittings - connects to tank pressure shut-off switch to close off the feed water source when RO tank is full Wire harness assembly - required when using electronic shut-off valve

Compatible with: AXEON/RO Ultratec | 200768, Flexeon | 200768, RO Booster Pumps | 5542-2J03-B424, 8852-2P01-T421


Weight & Dimensions

Approx Height (Inches)

3.55 Inches

Approx Length (Inches)

8.18 Inches

Approx Width (Inches)

4 Inches

Details

Amps

0.53 (0 psi) - 1.2 (80 psi) Amps

Diaphragm Materials

Santoprene

Housing Material

Nylon

Inlet Size

3/8" QC

Liquid Temperature

170 Degrees Fahrenheit

Max Operating Pressure

125 PSI

Outlet Size

3/8" QC

Voltage

24VAC

Inlet Pressure

125 Max. PSI

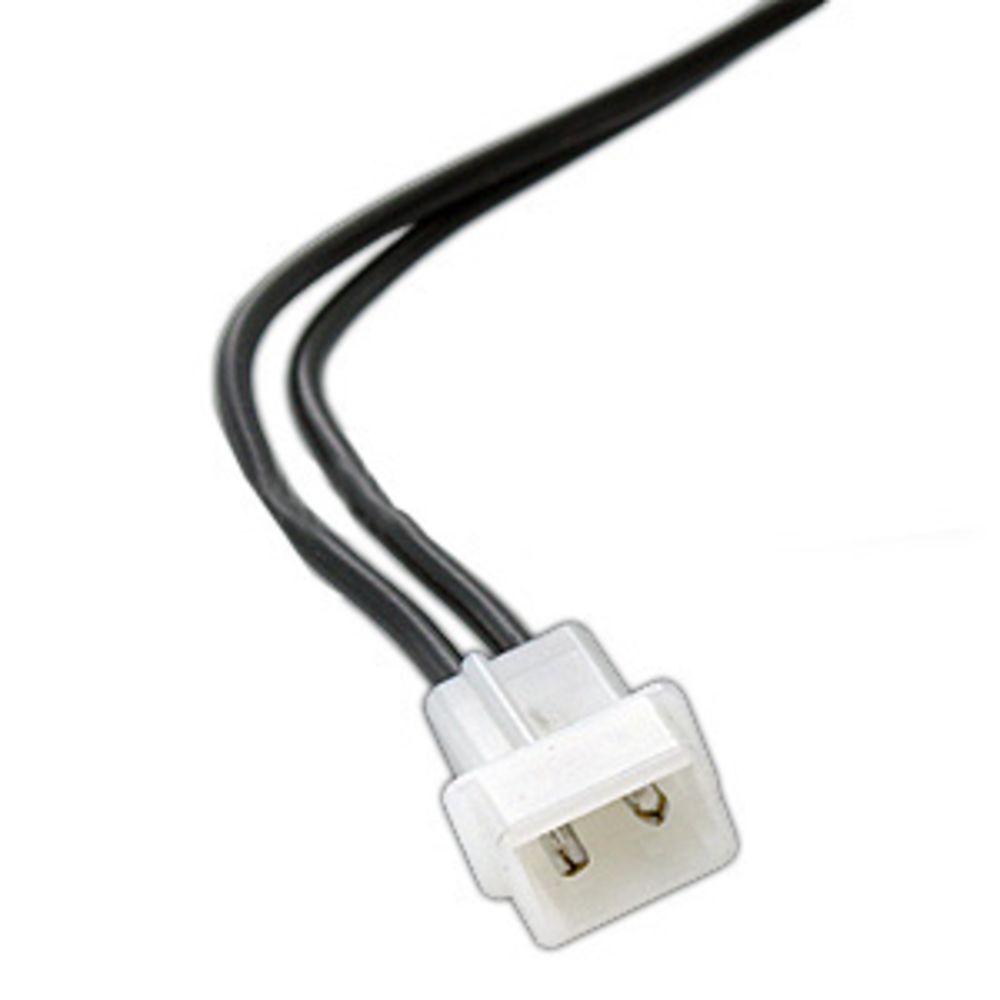

Power Source

Bell Ends w/ Lead Wires

Motor Rpm

870 Rotations Per Minute

Warranty & Certifications

Certifications

NSF Standard 58

Warranty

2 years
