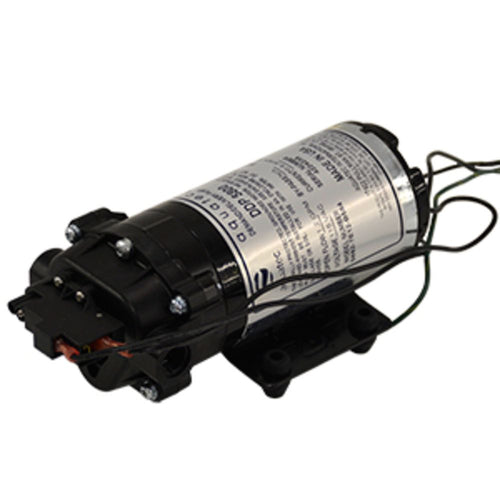

Aquatec 5883-1I01-B984 Pump 1.8 GPM, 3/8"FPT, 12VDC

Part Number: 5883-1I01-B984

In Stock

out of stock

In Stock

$118.20


The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurizing it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Specifications:
  • Open flow: 1.8 gpm
  • Switch: 100 psi
  • Connections: 3/8" FPT ports
  • Voltage: 12VDC
  • Valves: EPDM
  • O-rings: Nitrile
  • Diaphragm: Santoprene


Weight & Dimensions

Approx Height (Inches)

3.69" Inches

Approx Length (Inches)

7.3" Inches

Approx Weight

6 Lbs

Approx Width (Inches)

4" Inches

Details

Diaphragm Materials

Santoprene

Flow Rate

1 Gallons Per Minute

Inlet Size

3/8" FPT

Max Operating Pressure

231' / 100 PSI

Origin

USA

Pressure Switch

100 PSI

Type

Demand; Delivery

Valve Type

EPDM

Voltage

12VDC

Warranty & Certifications

Certifications

NSF Standard 58

Warranty

1 year




The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurizing it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.

Specifications:
  • Open flow: 1.8 gpm
  • Switch: 100 psi
  • Connections: 3/8" FPT ports
  • Voltage: 12VDC
  • Valves: EPDM
  • O-rings: Nitrile
  • Diaphragm: Santoprene

Weight & Dimensions

Approx Height (Inches)

3.69" Inches

Approx Length (Inches)

7.3" Inches

Approx Weight

6 Lbs

Approx Width (Inches)

4" Inches

Details

Diaphragm Materials

Santoprene

Flow Rate

1 Gallons Per Minute

Inlet Size

3/8" FPT

Max Operating Pressure

231' / 100 PSI

Origin

USA

Pressure Switch

100 PSI

Type

Demand; Delivery

Valve Type

EPDM

Voltage

12VDC

Warranty & Certifications

Certifications

NSF Standard 58

Warranty

1 year
