Aquatec

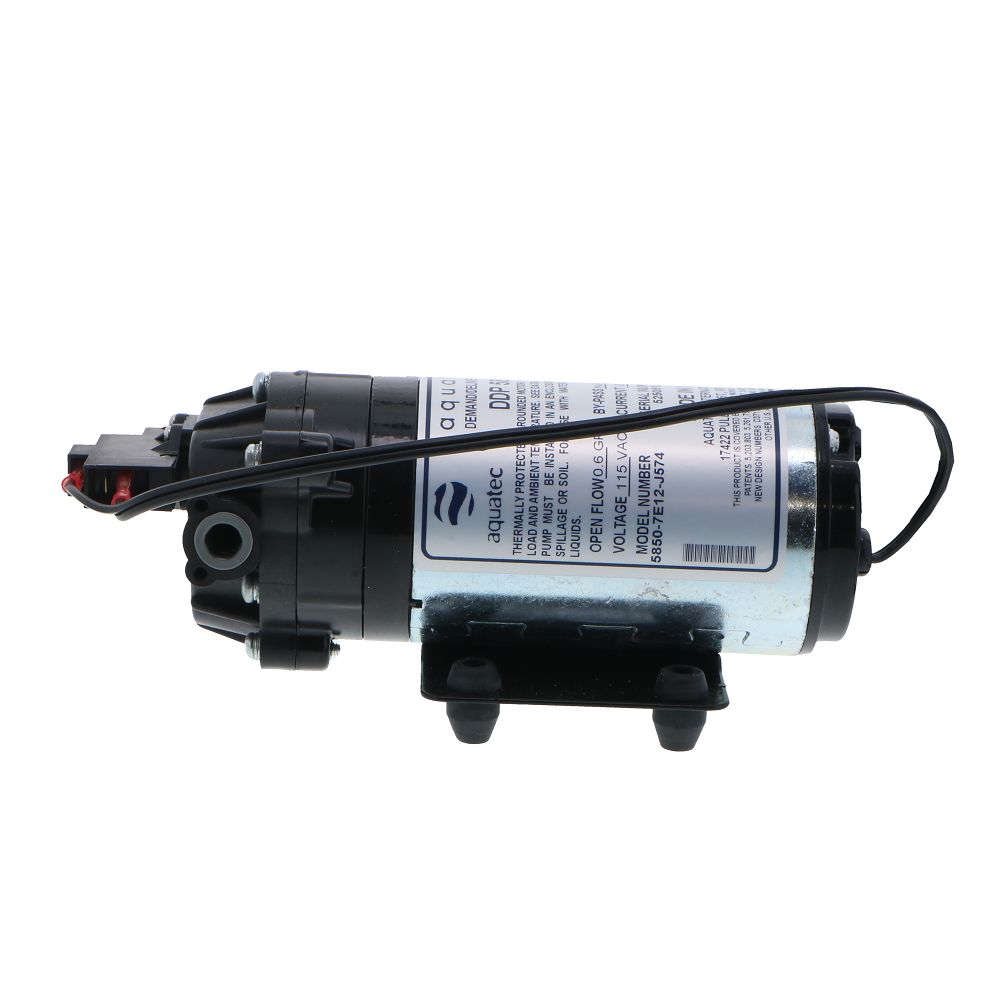

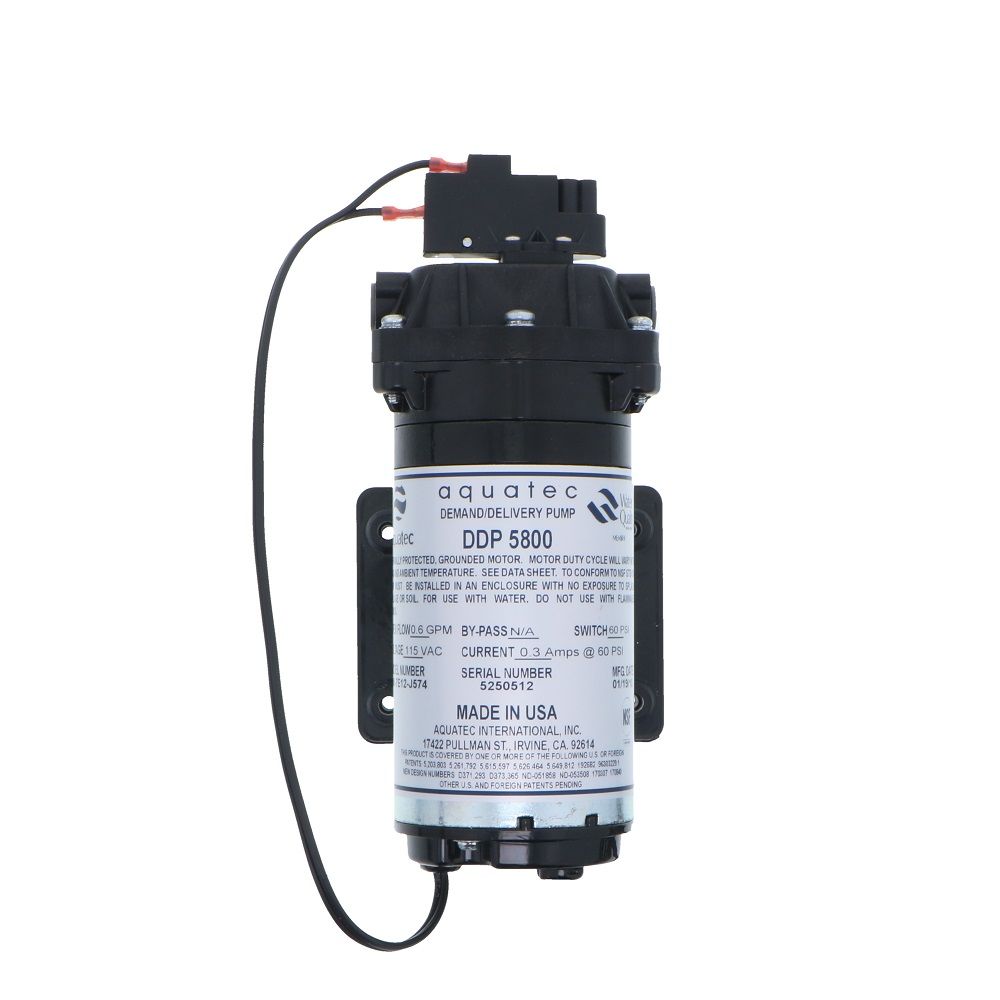

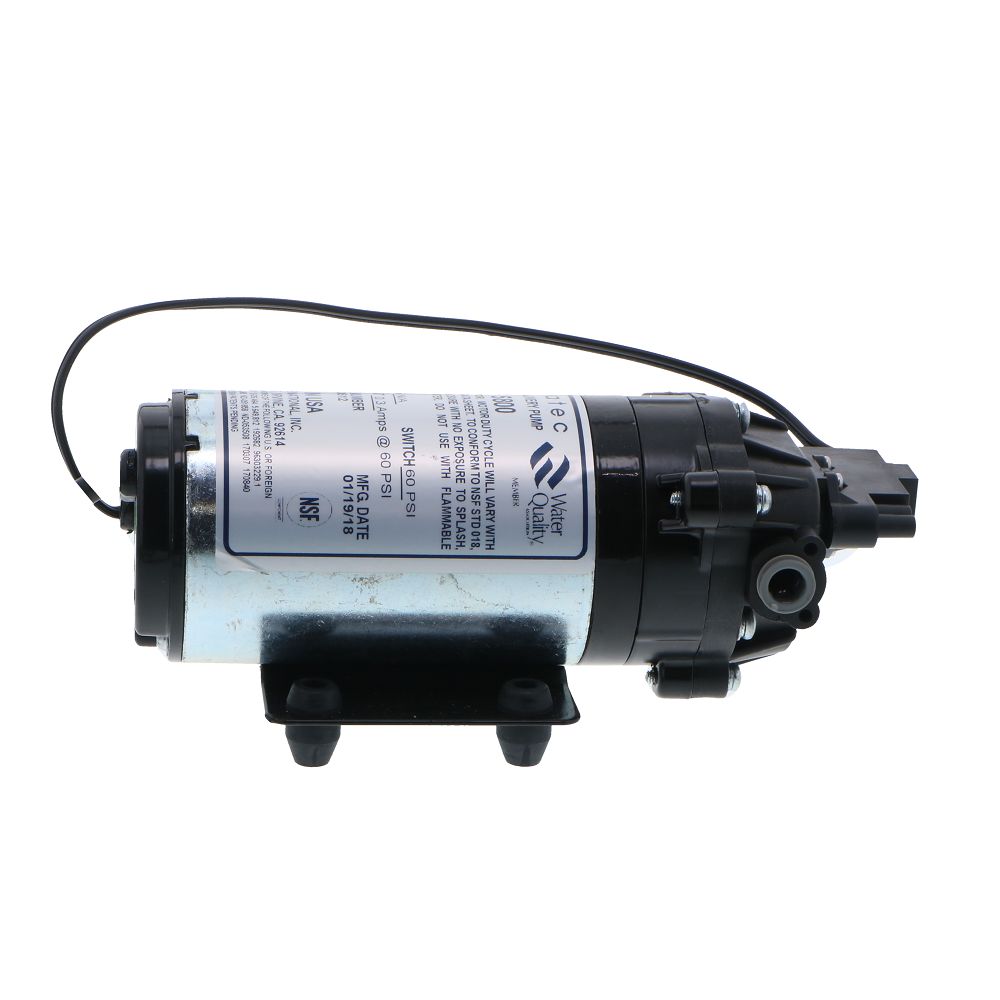

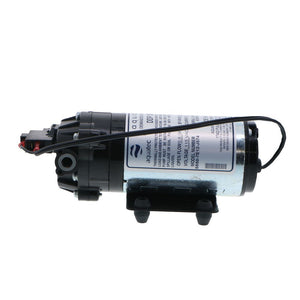

Aquatec 5850-7E12-J574 Pump .6 GPM, 3/8"JG, 115V

Part Number: 5850-7E12-J574

Alt. Part Number: 50055-00054, PDP5850-7E12-J874

In Stock

out of stock

In Stock

$118.79


The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.
Benefits:
  • Adjustable switch and bypass settings
  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage

Features:
  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold
  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal


Weight & Dimensions

Approx Height (Inches)

3.60 Inches

Approx Length (Inches)

8.46 Inches

Approx Width (Inches)

4 Inches

Details

Series

5800

Push In Size

3/8" OD

Amps

0.3 @ 60psi Amps

Diaphragm Materials

Santoprene

Flow Rate

0.6 GPM

Housing Material

Polypropylene

Liquid Temperature

140 max Degrees Fahrenheit

Origin

Made in USA

Voltage

115VAC

Power Source

Cord/Pressure Switch Wires

Motor Rpm

1200 Rotations Per Minute

Wire Option

Wall Plug

Warranty & Certifications

Certifications

NSF 58

Warranty

1 Year
