Aquatec

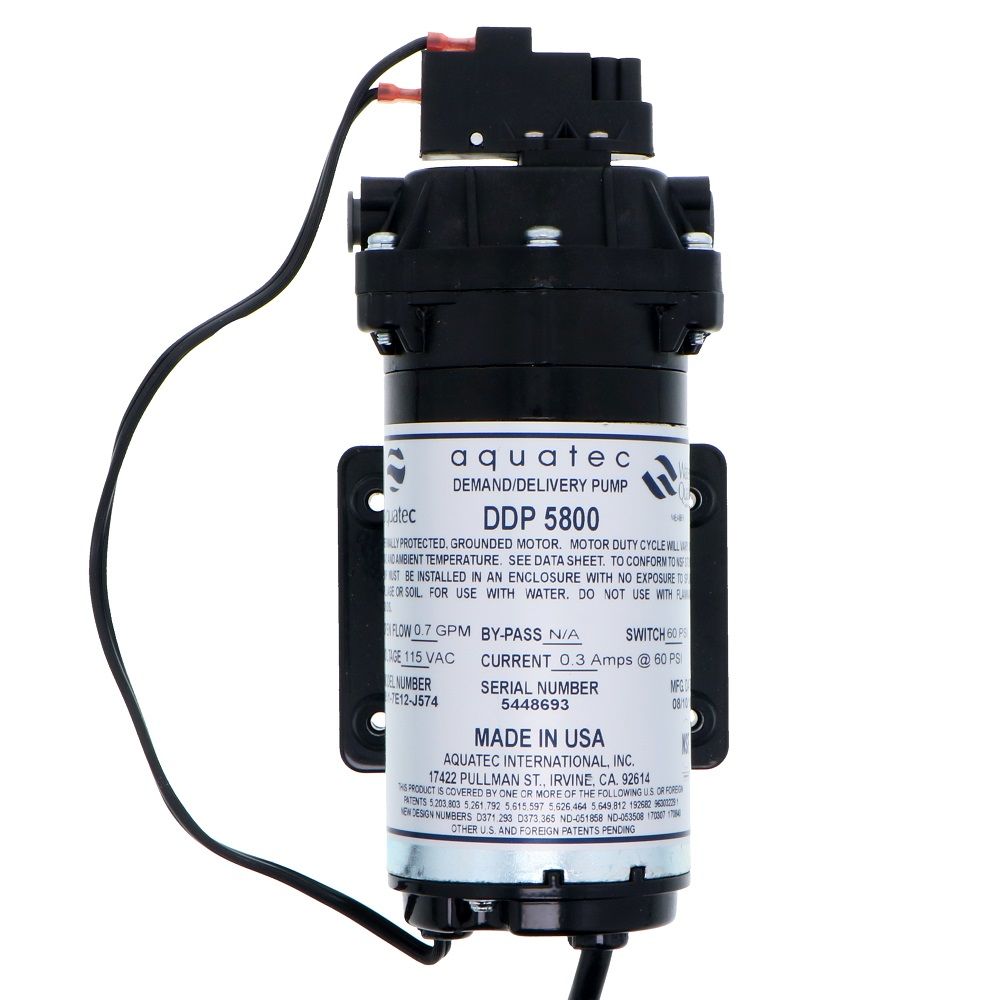

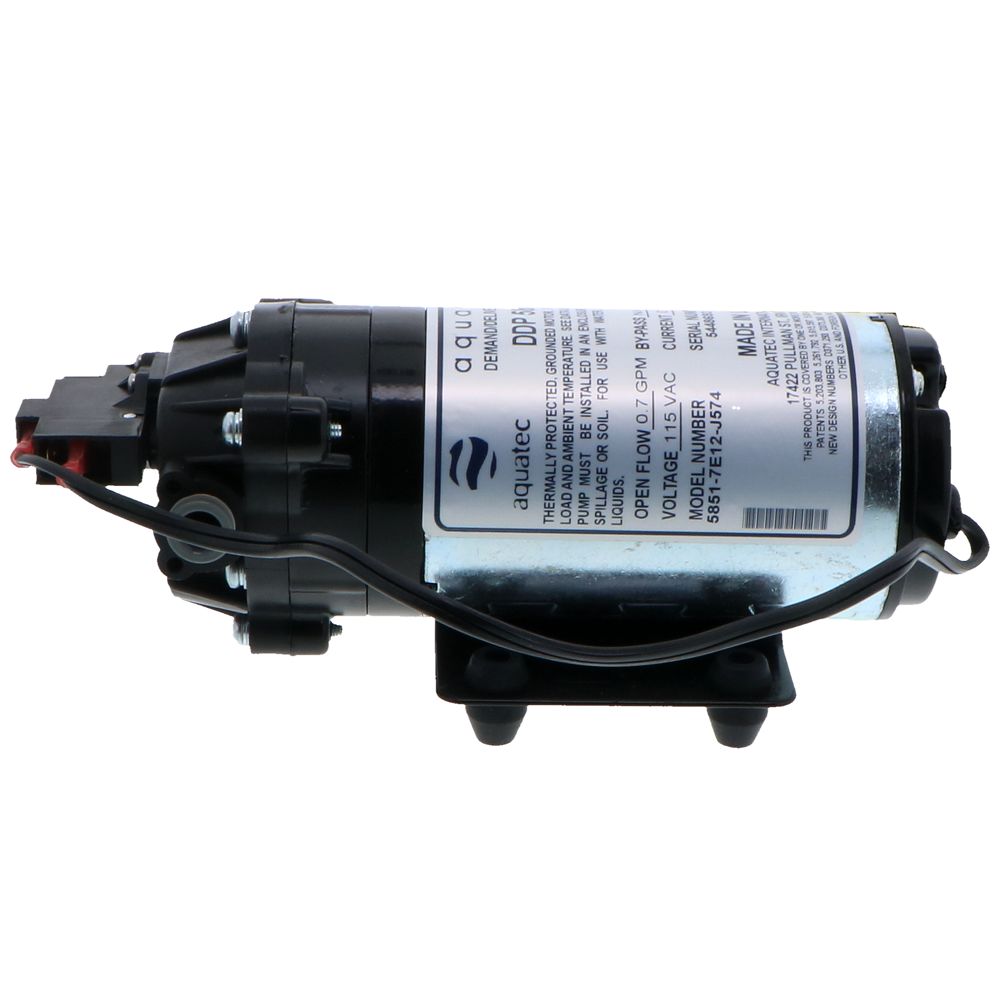

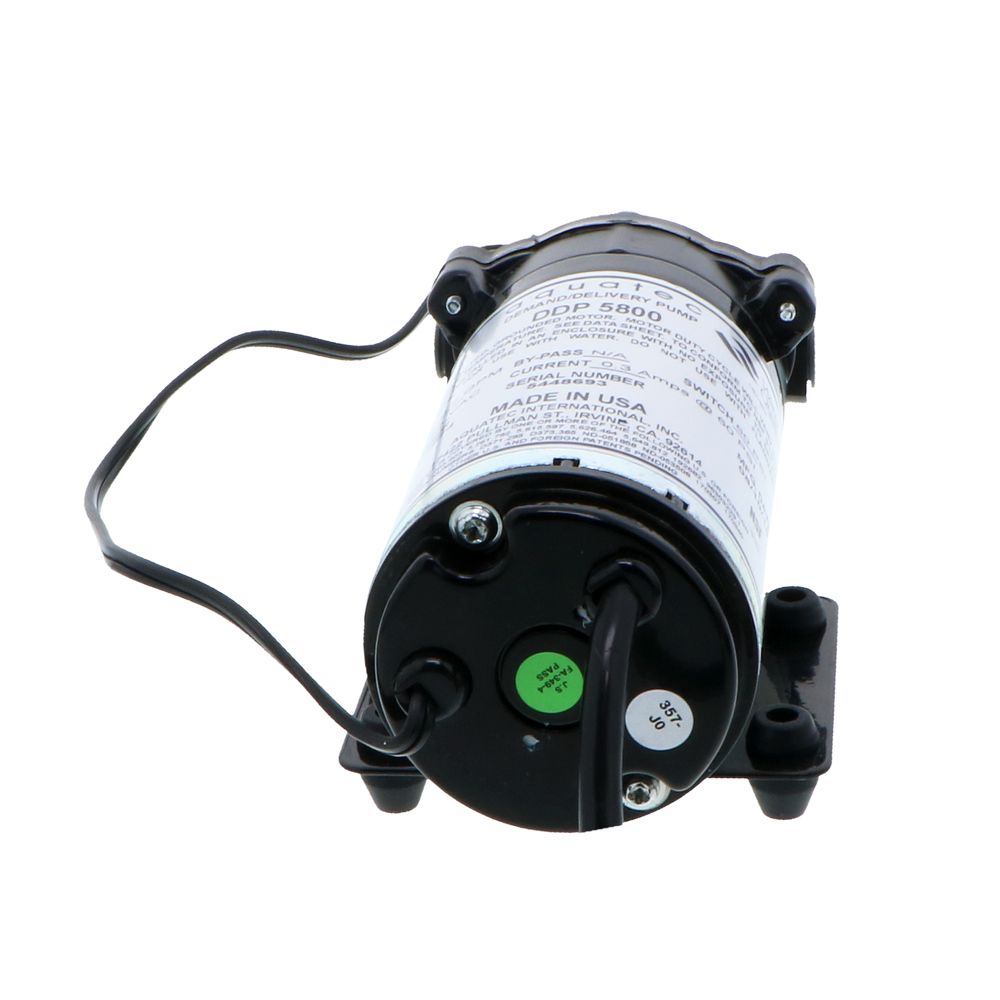

Aquatec 5851-7E12-J574 Pump .7 GPM, 3/8"JG, 115V

Part Number: 5851-7E12-J574

Alt. Part Number: DDP5800-07, PDP5851

In Stock

out of stock

In Stock

$118.98

The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.
Features:
  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold
  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Multiple porting options
  • Adjustable switch and bypass settings
  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage


Weight & Dimensions

Approx Height (Inches)

3.6 Inches

Approx Length (Inches)

8.46 Inches

Approx Width (Inches)

4 Inches

Details

Series

5800

Push In Size

3/8" OD

Amps

0.3 Amps @ 60PSI

Diaphragm Materials

Santoprene

Flow Rate

0.7 GPM

Housing Material

Polypropylene

Liquid Temperature

Max 140 °F

Pressure Switch

60 PSI

Voltage

115VAC

Power Source

Cord/Pressure Switch Wires

Motor Rpm

1200 RPM

Wire Option

Wall Plug

Warranty & Certifications

Certifications

NSF 58

Warranty

1 Year


Aquatec

Aquatec




The Aquatec 5800 Series Pump is ideal for drawing water from a holding tank and pressurize it, or boosting pressure from a low pressure source. These pumps can be operated either in demand mode (pressure switch controlled) or in delivery mode (controlled by external power switching device). If needed, an integral bypass can be used to limit pressure.
Features:
  • 3-chamber construction
  • Closed impervious diaphragm
  • Asymmetrical manifold
  • Integral switch or bypass
  • Highest structural integrity
  • Seven point clamping
  • Engineered composite plastics
  • Corrosion resistant metal
  • Multiple porting options
  • Adjustable switch and bypass settings
  • Self-priming, auto-purging
  • Near silent operation at lower flows
  • Highly efficient
  • Minimal pulsations
  • 7 year design life
  • Runs dry without damage

Weight & Dimensions

Approx Height (Inches)

3.6 Inches

Approx Length (Inches)

8.46 Inches

Approx Width (Inches)

4 Inches

Details

Series

5800

Push In Size

3/8" OD

Amps

0.3 Amps @ 60PSI

Diaphragm Materials

Santoprene

Flow Rate

0.7 GPM

Housing Material

Polypropylene

Liquid Temperature

Max 140 °F

Pressure Switch

60 PSI

Voltage

115VAC

Power Source

Cord/Pressure Switch Wires

Motor Rpm

1200 RPM

Wire Option

Wall Plug

Warranty & Certifications

Certifications

NSF 58

Warranty

1 Year
