Amtrol

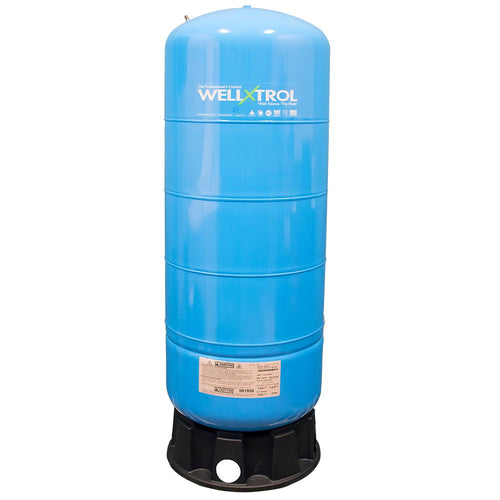

Amtrol Well-X-Trol WX-203D Well Pressure Tank With DuraBase 32 gal

Part Number: WX-203D

In Stock

out of stock

In Stock

$414.99

The Well-X-Trol WX-203D well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-203D now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service.

Specifications:
  • Heavy duty butyl diaphragm
  • Includes DuraBase Composite Stand
  • DuraBase Stand is UV resistant, rugged and will never corrode
  • Stainless steel system connection
  • Stainless steel air stem
  • Virgin polypropylene liner
  • 100% Helium tested
  • Drawdown 30/50 Setting: 10.9 gallons
  • Drawdown 30/50 Setting: 9.4 gallons
  • 7 year warranty
  • NSF Standard 61 listed




Weight & Dimensions

Height W/ Stand

46-1/2"

Height (inches)

16

Length (inches)

46.5

Weight (lbs)

47

Width (inches)

16

Details

Air Valve Stem Location

Top

Application

Pressure Pump Tank

Diaphragm Materials

Butyl Rubber

Drawdown Volume

10.9 Gallons @ 30/50 Setting, 9.4 Gallons @ 40/60 Setting

Inlet/Outlet Connection

1" FPT

Inlet/Outlet Location

Bottom

Material Of Construction

Stainless Steel

Max Pressure (Psi)

150

Max Temp (°F)

200

Size

1"

Tank Pre-Charge

38 PSI

Volume

32 Gallons

Connection Type

Female (FPT)

Diameter

15-3/8"

Origin

USA

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

7 years


Amtrol

Amtrol


Product Videos
