Specifications:
- In-Line design
- Heavy duty butyl diaphragm
- Stainless steel airstem
- Virgin polypropylene liner
- Drawdown 20/40 Setting: 0.8 gallons
- Drawdown 30/50 Setting: 0.7 gallons
- Drawdown 40/60 Setting: 0.6 gallons
- 7 Year Warranty
- NSF Standard 61 listed
Weight & Dimensions
Height W/O Stand | 12-5/8" |
Weight (lbs) | 5 |
Details
Air Valve Stem Location | Top |
Application | Pressure Pump Tank |
Diaphragm Materials | Butyl Rubber |
Drawdown Volume | 0.8 Gallons @ 20/40 Setting, 0.7 Gallons @ 30/50 Setting, 0.6 Gallons @ 40/60 Setting |
Inlet/Outlet Connection | 3/4" MPT |
Inlet/Outlet Location | Bottom |
Material Of Construction | Stainless Steel |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 200 |
Size | 3/4" |
Tank Pre-Charge | 38 PSI |
Volume | 2 Gallons |
Connection Type | Male (MPT) |
Diameter | 8" |
Origin | USA |
Warranty & Certifications
Certifications | NSF Certified to Standard 61 |
Warranty | 7 years |

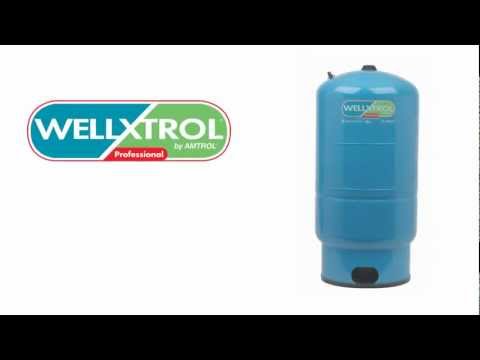

Product Videos

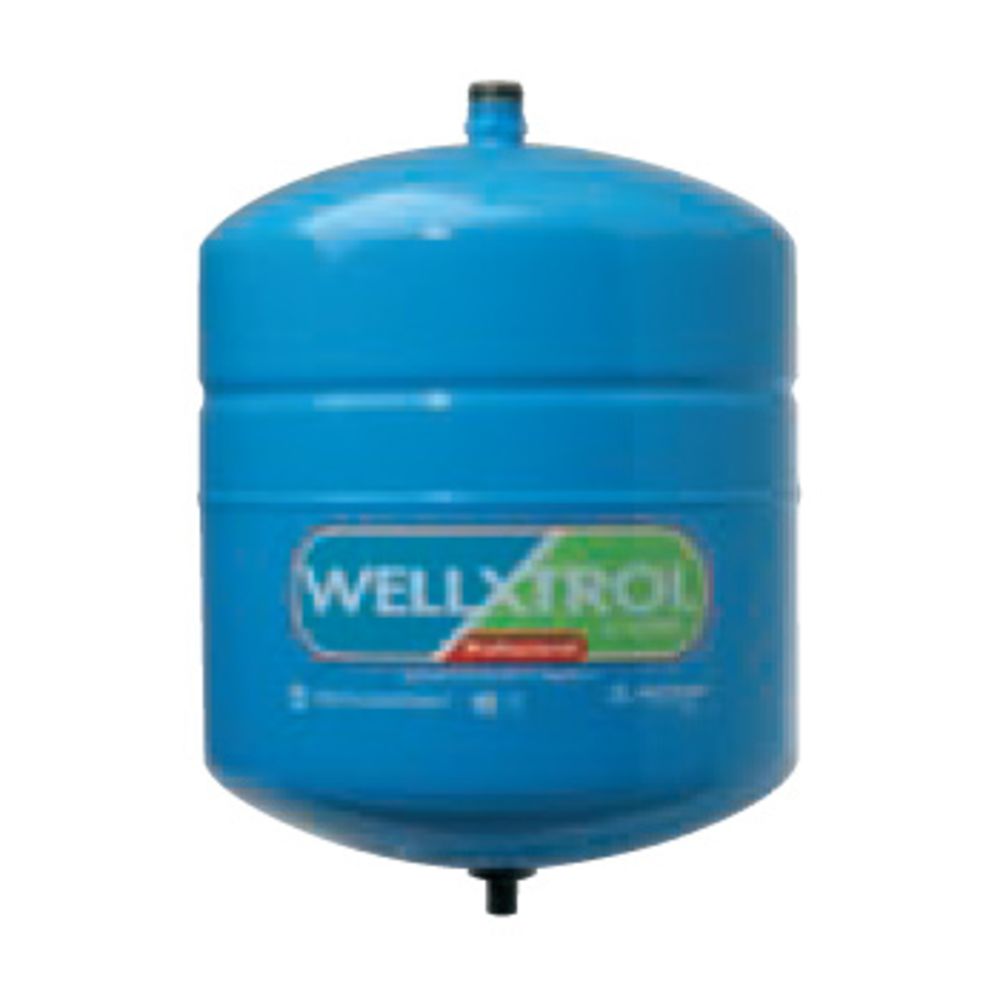

The Well-X-Trol WX-101 in-line well tank delivers unparalleled performance and longevity, making them the most recognized brand on the market. With its sealed air charge and unique water chamber design, Well-X-Trol is the choice of professionals. WX-101 now comes standard with Tuf-Kote indoor/outdoor coating technology. This coating allows the well water storage tank to withstand the harshest environments, giving you years of worry-free service.
Specifications:
- In-Line design
- Heavy duty butyl diaphragm
- Stainless steel airstem
- Virgin polypropylene liner
- Drawdown 20/40 Setting: 0.8 gallons
- Drawdown 30/50 Setting: 0.7 gallons
- Drawdown 40/60 Setting: 0.6 gallons
- 7 Year Warranty
- NSF Standard 61 listed
Weight & Dimensions
Height W/O Stand | 12-5/8" |
Weight (lbs) | 5 |
Details
Air Valve Stem Location | Top |
Application | Pressure Pump Tank |
Diaphragm Materials | Butyl Rubber |
Drawdown Volume | 0.8 Gallons @ 20/40 Setting, 0.7 Gallons @ 30/50 Setting, 0.6 Gallons @ 40/60 Setting |
Inlet/Outlet Connection | 3/4" MPT |
Inlet/Outlet Location | Bottom |
Material Of Construction | Stainless Steel |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 200 |
Size | 3/4" |
Tank Pre-Charge | 38 PSI |
Volume | 2 Gallons |
Connection Type | Male (MPT) |
Diameter | 8" |
Origin | USA |
Warranty & Certifications
Certifications | NSF Certified to Standard 61 |
Warranty | 7 years |
