Flexcon Industries

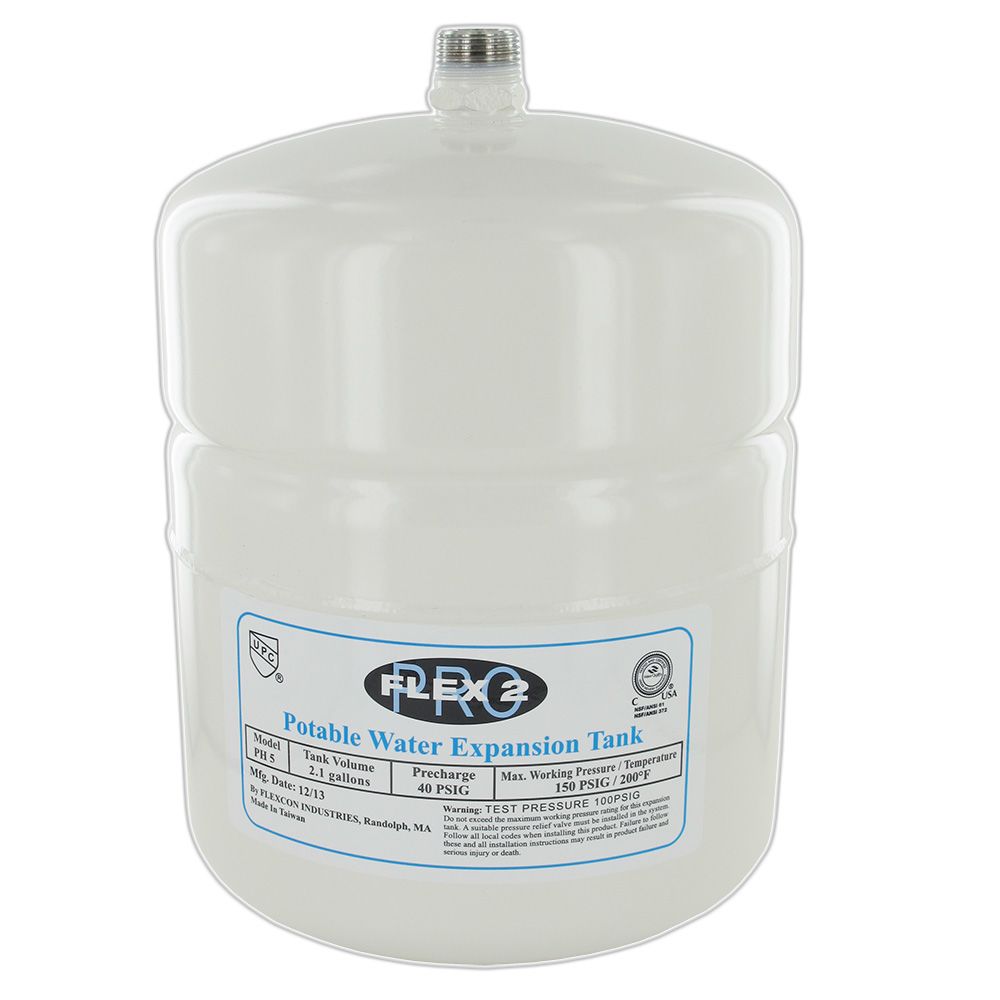

Flexcon PH5 Thermal Expansion Tank 2 Gallon

Part Number: PH5

Alt. Part Number: PFT5, ST-5, TS-5, T-5, PLT-5

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Amtrol Therm-X-Span T-5 Thermal Expansion Tank 2 Gallon as a substitute.


The Flexcon PH5 2 Gallon Thermal Expansion Tank is a portable water expansion tank that has been designed to control safe pressures in a residential heating system. The tank utilizes a backflow valve to safe guard the unit. The Flexcon PH5 tank features a plastic liner and butyl rubber diaphragm to separate the system water from the tanks air pre-charge. To prevent corrosion the Flexcon uses a stainless steel nipple for the systems connection. The external paint not only gives the tank a sharp look, but also helps to prevent external corrosion. Every PH tank is comprehensively tested.

Features:
  • Butyl rubber diaphragm
  • Pre-pressurized expansion tank
  • Designed for potable hot water systems
  • Eliminates relief valve spills
  • Controls pressure build-up
  • Protects plumbing fixtures
  • Extends water heater life
  • Eliminates hot water waste
  • Pre-charged to 40 psi
NOTE: Be sure to measure the system water pressure using a water pressure gauge, and make sure that the air pressure in the thermal expansion tank is the same as the system pressure. The thermal expansion tank is pre-charged to 40 psi. Verify the charge of the tank using a tank pressure gauge.





Weight & Dimensions

Height W/O Stand

11.6"

Weight (lbs)

8.75

Details

Diaphragm Materials

Butyl Rubber

Inlet/Outlet Connection

3/4" MPT

Material Of Construction

Stainless Steel

Max Pressure (Psi)

150

Max Temp (°F)

200

Size

3/4"

Tank Pre-Charge

40 PSI

Volume

2 Gallons

Connection Type

Male (MPT)

Diameter

8"

Origin

Taiwan

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

1 Year




The Flexcon PH5 2 Gallon Thermal Expansion Tank is a portable water expansion tank that has been designed to control safe pressures in a residential heating system. The tank utilizes a backflow valve to safe guard the unit. The Flexcon PH5 tank features a plastic liner and butyl rubber diaphragm to separate the system water from the tanks air pre-charge. To prevent corrosion the Flexcon uses a stainless steel nipple for the systems connection. The external paint not only gives the tank a sharp look, but also helps to prevent external corrosion. Every PH tank is comprehensively tested.

Features:
  • Butyl rubber diaphragm
  • Pre-pressurized expansion tank
  • Designed for potable hot water systems
  • Eliminates relief valve spills
  • Controls pressure build-up
  • Protects plumbing fixtures
  • Extends water heater life
  • Eliminates hot water waste
  • Pre-charged to 40 psi
NOTE: Be sure to measure the system water pressure using a water pressure gauge, and make sure that the air pressure in the thermal expansion tank is the same as the system pressure. The thermal expansion tank is pre-charged to 40 psi. Verify the charge of the tank using a tank pressure gauge.




NOTE: This item is discontinued. We recommend the Amtrol Therm-X-Span T-5 Thermal Expansion Tank 2 Gallon as a substitute.

Weight & Dimensions

Height W/O Stand

11.6"

Weight (lbs)

8.75

Details

Diaphragm Materials

Butyl Rubber

Inlet/Outlet Connection

3/4" MPT

Material Of Construction

Stainless Steel

Max Pressure (Psi)

150

Max Temp (°F)

200

Size

3/4"

Tank Pre-Charge

40 PSI

Volume

2 Gallons

Connection Type

Male (MPT)

Diameter

8"

Origin

Taiwan

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

1 Year
