29-1/4

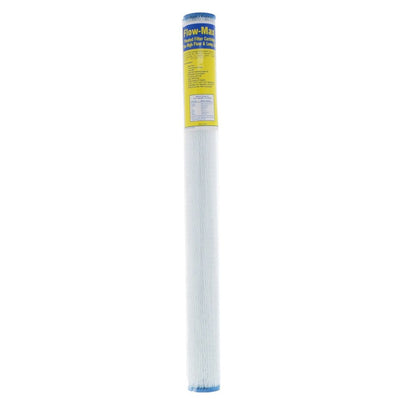

The Watts Flow-Max FM-20-2925 Filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because our cartridges are pleated to provide increased surface area and longer life. Savings is realized with extended filter life from the 100% synthetic filter media, which is cleanable on filter cartridges 5 micron and up.

Specifications:

Cleanable Filter
Sediment Filtration
20 Micron Nominal
Flow Rate: 24 gpm
Chemically resistant Pleated Polyester Filtration
100% Cellulose Free

CONSUMER NOTE: All Watts branded cartridges will have blue end-caps with the micron rating.

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Filter Application	Sediment/Dirt/Rust
Initial Pressure Drop	40 PSI Differential
Max Temp (°F)	140
Micron Rating (Nominal)	20 µm
Min Temp (°F)	40
Cap Material	PVC
Cartridge Style	Drop-in
Diameter	2-3/4"
End Cap Type	Double Open Ended (DOE)
Flow Rate	24 GPM
Media Type	Polyester
Micron Rating	20 µm
Product Weight & Dimensions
Product Length	29-1/4"
Product Weight (lbs)	1.5

Product Details
Filter Application	Sediment/Dirt/Rust
Initial Pressure Drop	40 PSI Differential
Max Temp (°F)	140
Micron Rating (Nominal)	20 µm
Min Temp (°F)	40
Cap Material	PVC
Cartridge Style	Drop-in
Diameter	2-3/4"
End Cap Type	Double Open Ended (DOE)
Flow Rate	24 GPM
Media Type	Polyester
Micron Rating	20 µm
Shipping Dimensions
Shipping Length	30 in.
Shipping Width	18 in.
Shipping Height	18 in.
Product Weight & Dimensions
Product Length	29-1/4"
Product Weight (lbs)	36

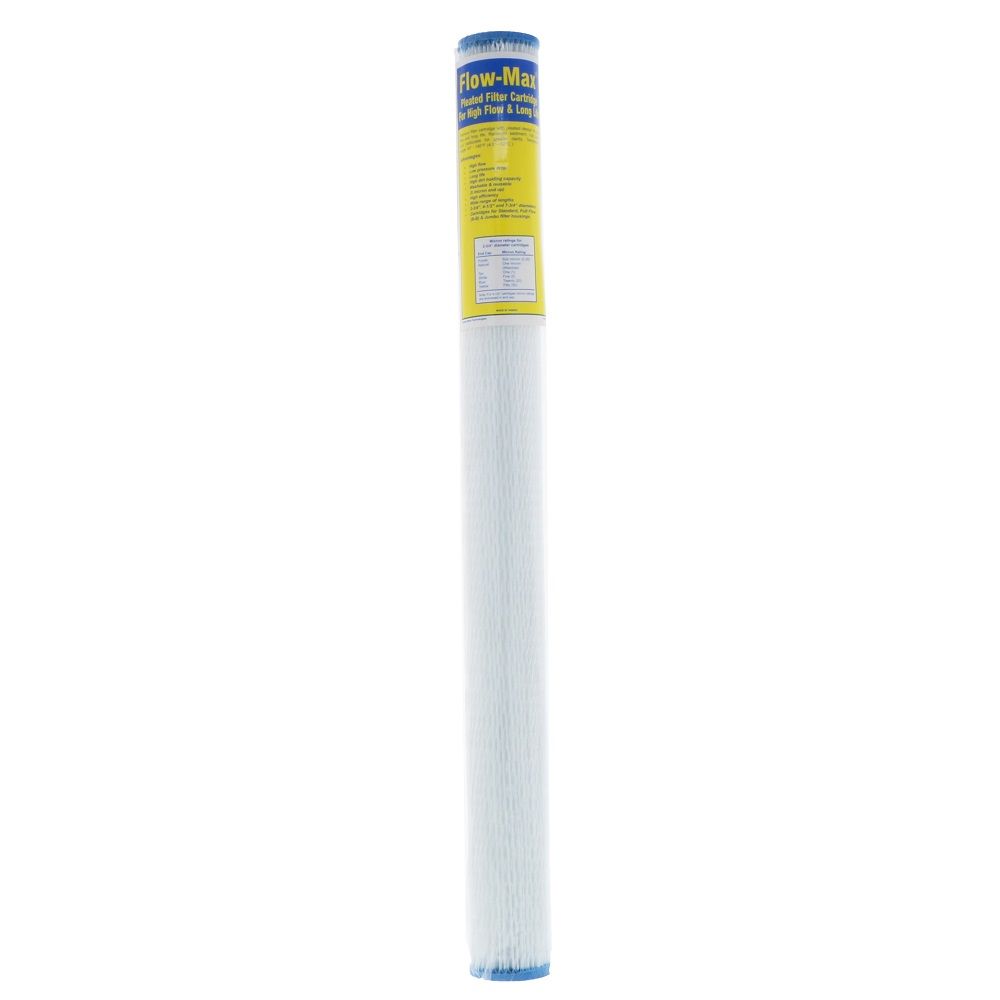

29-1/4" x 2-3/4" Flow-Max Pleated Poly - 20 mic

29-1/4" x 2-3/4" Flow-Max Pleated Poly - 20 mic
