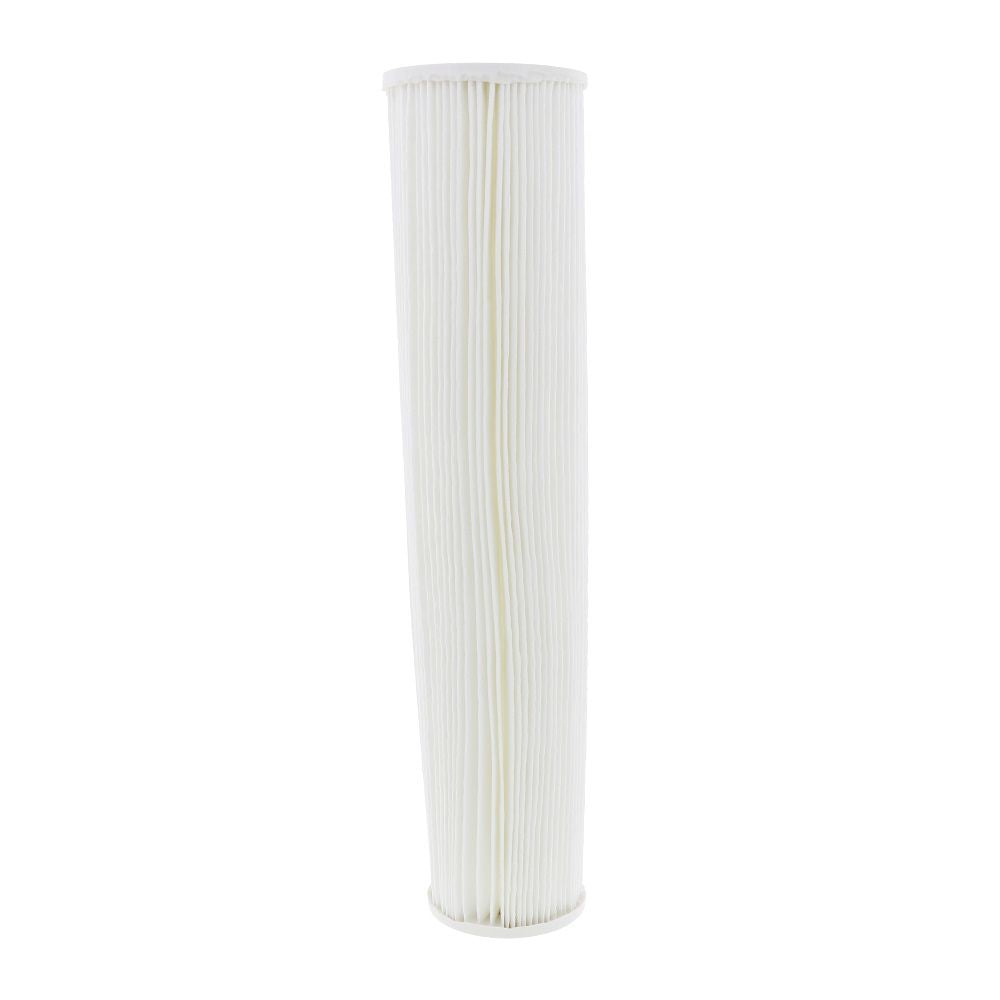

Neo-Pure PS-27292-20 29-1/4" High Efficiency Pleated Filter 20 micron
Part Number: PS-27292-20
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
The Neo-Pure PS-27292-20 High Efficiency Pleated Filter is manufactured with materials that comply with materials FDA requirements and are NSF 42, 61, and 372 certified. The filter operates at 90% filtration efficiency and is suitable for use in the filtration of liquids as well as edible oils.
Features:
- Reduces Sediment and Rust. The Neo-Pure PS-27292-20 filter is manufactured using Synthetic Polypropylene for improved reduction of sediment, dirt and rust.
- High Efficiency. The 90% filtration efficiency of the Neo-Pure PS-27292-20 is suitable for filtration of liquids and edible oils.
- Pleated Filter Design. The pleated filter design of the PS-27292-20 offers an extended surface area to provide a longer filter life, high flow rates, and increased dirt-holding capacity.
- High Value At A Competitive Price. The PS-27292-20 High Efficiency filter offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.
- Low Maintenance. Maintenance costs are reduced due to the cartridge having a longer service life and requiring fewer filter changes.
- IAPMO Certified. The Neo-Pure PS-27292-20 is tested and certified by IAPMO against NSF/ANSI 42, 61, and 372 Standard. The filter media meets FDA/CFR Title 21 regulations for food and water contact.
Specifications:
- Length: 29-1/4"
- Diameter: 2-34"
- Micron Rating: 20.0 micron
- Surface Area: 12 sq. ft.
Applications:
- Edible oils
- Cosmetics
- Electronics
- Chemicals
- Plating solutions
- Prefiltration for reverse osmosis
- Magnetic tape coatings
- Food and beverage
- Water and wastewater
- Aqueous Solutions
Product Details | |
---|---|
Core Material | Polypropylene |
Efficiency | 0.9 |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 20 µm |
Psid@Flow Rate | Change out pressure: 25-30 psid (1.72-2.07 bar) |
Surface Area | 18 Square Feet |
Cap Material | Vinyl-Plastisol |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-3/4" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Inner Diameter | 1-1/16" |
Media Type | Synthetic Polypropylene |
Micron Rating | 20 µm |
Warranty & Certifications | |
Certifications | FDA CFR-21, NSF/ANSI 61, NSF/ANSI 42, NSF/ANSI 372, CSA B483.1 |
Shipping Dimensions | |
Shipping Length | 29.25 in. |
Shipping Width | 2.75 in. |
Shipping Height | 2.75 in. |
Product Weight & Dimensions | |
Product Height | 2.75 in. |
Product Length | 29.25 in. |
Product Width | 2.75 in. |
Product Weight (lbs) | 0.447 |
Product Details | |
---|---|
Core Material | Polypropylene |
Efficiency | 0.9 |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 20 µm |
Psid@Flow Rate | Change out pressure: 25-30 psid (1.72-2.07 bar) |
Surface Area | 18 Square Feet |
Cap Material | Vinyl-Plastisol |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-3/4" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Inner Diameter | 1-1/16" |
Media Type | Synthetic Polypropylene |
Micron Rating | 20 µm |
Warranty & Certifications | |
Certifications | FDA CFR-21, NSF/ANSI 61, NSF/ANSI 42, NSF/ANSI 372, CSA B483.1 |
Shipping Dimensions | |
Shipping Length | 31 in. |
Shipping Width | 12.25 in. |
Shipping Height | 16.75 in. |
Product Weight & Dimensions | |
Product Height | 16.75 in. |
Product Length | 31 in. |
Product Width | 12.25 in. |
Product Weight (lbs) | 20.52 |
The Neo-Pure PS-27292-20 High Efficiency Pleated Filter is manufactured with materials that comply with materials FDA requirements and are NSF 42, 61, and 372 certified. The filter operates at 90% filtration efficiency and is suitable for use in the filtration of liquids as well as edible oils.
Features:
- Reduces Sediment and Rust. The Neo-Pure PS-27292-20 filter is manufactured using Synthetic Polypropylene for improved reduction of sediment, dirt and rust.
- High Efficiency. The 90% filtration efficiency of the Neo-Pure PS-27292-20 is suitable for filtration of liquids and edible oils.
- Pleated Filter Design. The pleated filter design of the PS-27292-20 offers an extended surface area to provide a longer filter life, high flow rates, and increased dirt-holding capacity.
- High Value At A Competitive Price. The PS-27292-20 High Efficiency filter offers an economical and competitive price while providing exceptional performance and high adsorptive capacity.
- Low Maintenance. Maintenance costs are reduced due to the cartridge having a longer service life and requiring fewer filter changes.
- IAPMO Certified. The Neo-Pure PS-27292-20 is tested and certified by IAPMO against NSF/ANSI 42, 61, and 372 Standard. The filter media meets FDA/CFR Title 21 regulations for food and water contact.
Specifications:
- Length: 29-1/4"
- Diameter: 2-34"
- Micron Rating: 20.0 micron
- Surface Area: 12 sq. ft.
Applications:
- Edible oils
- Cosmetics
- Electronics
- Chemicals
- Plating solutions
- Prefiltration for reverse osmosis
- Magnetic tape coatings
- Food and beverage
- Water and wastewater
- Aqueous Solutions
Product Details | |
---|---|
Core Material | Polypropylene |
Efficiency | 0.9 |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 20 µm |
Psid@Flow Rate | Change out pressure: 25-30 psid (1.72-2.07 bar) |
Surface Area | 18 Square Feet |
Cap Material | Vinyl-Plastisol |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-3/4" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Inner Diameter | 1-1/16" |
Media Type | Synthetic Polypropylene |
Micron Rating | 20 µm |
Warranty & Certifications | |
Certifications | FDA CFR-21, NSF/ANSI 61, NSF/ANSI 42, NSF/ANSI 372, CSA B483.1 |
Shipping Dimensions | |
Shipping Length | 29.25 in. |
Shipping Width | 2.75 in. |
Shipping Height | 2.75 in. |
Product Weight & Dimensions | |
Product Height | 2.75 in. |
Product Length | 29.25 in. |
Product Width | 2.75 in. |
Product Weight (lbs) | 0.447 |
Product Details | |
---|---|
Core Material | Polypropylene |
Efficiency | 0.9 |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 20 µm |
Psid@Flow Rate | Change out pressure: 25-30 psid (1.72-2.07 bar) |
Surface Area | 18 Square Feet |
Cap Material | Vinyl-Plastisol |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-3/4" |
End Cap Type | Double Open Ended (DOE) |
Filter Construction | Pleated |
Filter Type | Pleated |
Inner Diameter | 1-1/16" |
Media Type | Synthetic Polypropylene |
Micron Rating | 20 µm |
Warranty & Certifications | |
Certifications | FDA CFR-21, NSF/ANSI 61, NSF/ANSI 42, NSF/ANSI 372, CSA B483.1 |
Shipping Dimensions | |
Shipping Length | 31 in. |
Shipping Width | 12.25 in. |
Shipping Height | 16.75 in. |
Product Weight & Dimensions | |
Product Height | 16.75 in. |
Product Length | 31 in. |
Product Width | 12.25 in. |
Product Weight (lbs) | 20.52 |
