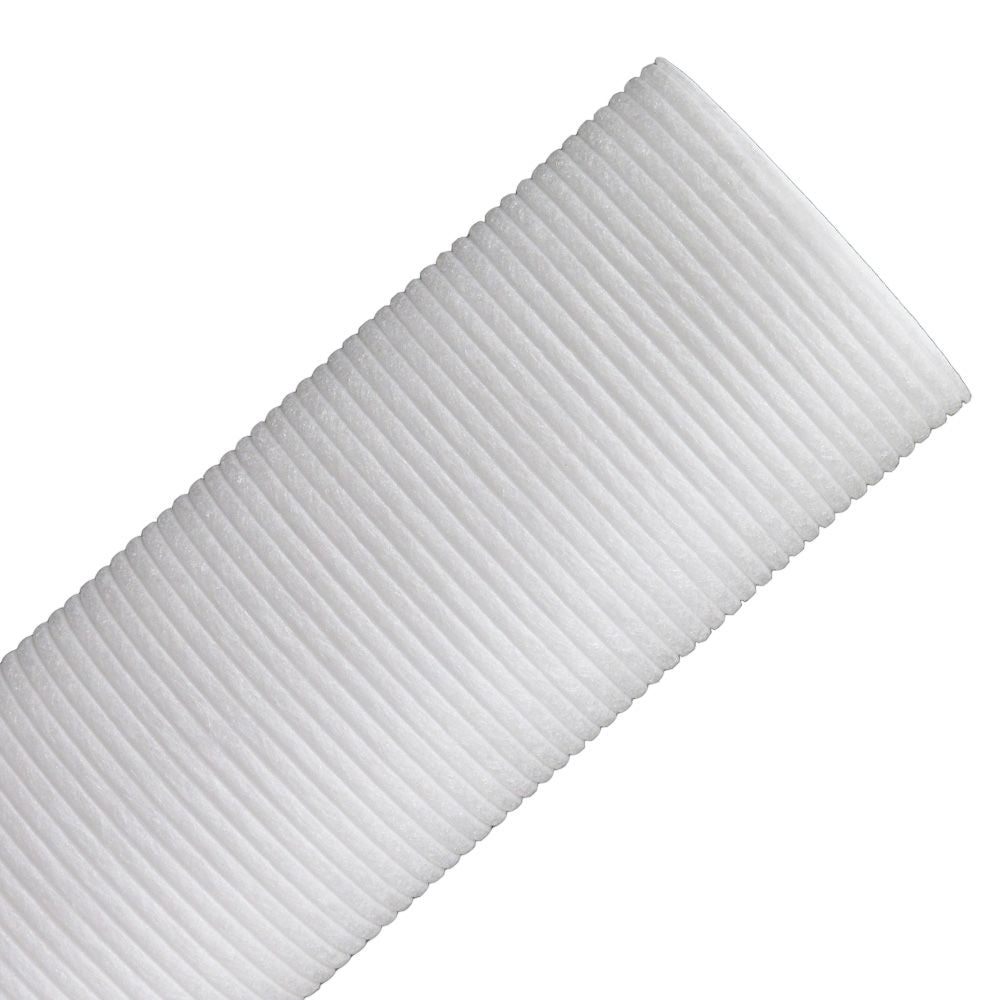

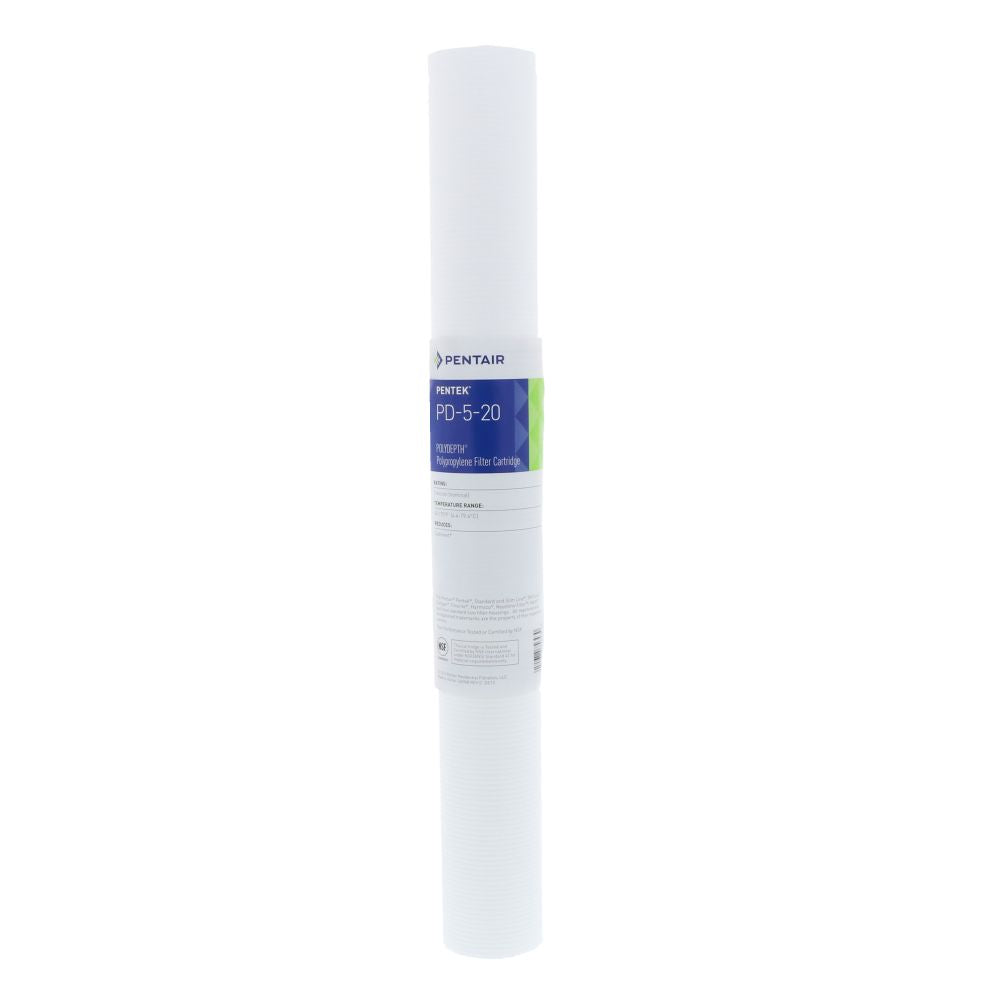

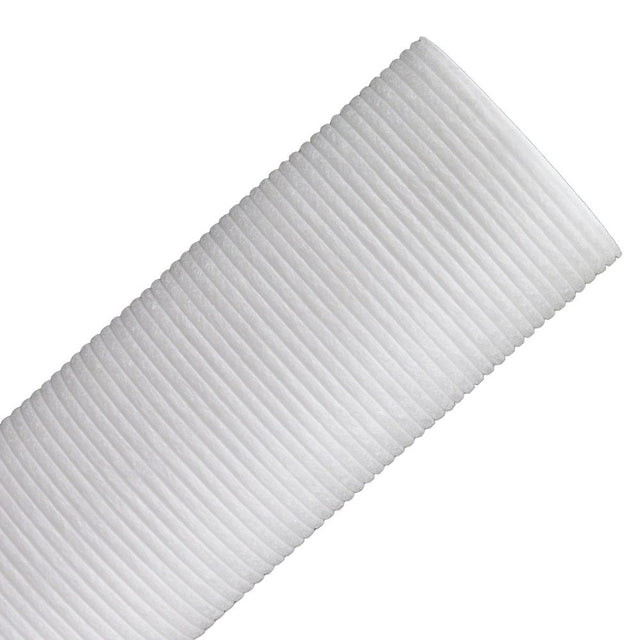

20" Pentek PD-5-20 Polydepth 5 mic Polypropylene Filter
Part Number: 155756-43
Alt. Part Number: 155756-88
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
The polypropylene construction provides superior chemical resistance and is not prone to bacterial attack.
Features:
- Thermally bonded polypropylene micro-fiber construction for higher filtration efficiency
- Provides superior chemical resistance and is not prone to bacterial attack
- Rigid polypropylene center core for increased collapse strength and durability
- Consistent flow rate and superior filtration performance
- Not brittle or prone to breakage problems like resin-bonded cartridges
- Will not impart taste, odor or color to the liquid being filtered, which makes it ideal for food and beverage applications
- Unique micro-grooves provide added surface area
- Ideal for a wide variety of industrial filtration
- Also know as the Pentair Industrial Versaflex Series VF-250PD Filter Cartridges
Compatible with:
High Efficiency Meltblown Sediment Depth Filters | HMB-25200-05W |
Product Details | |
---|---|
Features | Micro Grooves |
Initial Pressure Drop | 2psi @ 5gpm PSI Differential |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 5 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | <2 psid @ 5 GPM |
Cap Material | Thermally Bonded Polypropylene |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown - Grooved |
Filter Type | Sediment Depth |
Media Type | Thermally Bonded Polypropylene |
Micron Rating | 5 µm |
Warranty & Certifications | |
Certifications | NSF/ANSI 42 |
Shipping Dimensions | |
Shipping Length | 26 in. |
Shipping Width | 6 in. |
Shipping Height | 6 in. |
Product Weight & Dimensions | |
Product Height | 2.375 |
Product Length | 20.25 |
Product Width | 2.375 |
Product Weight (lbs) | 1.25 |
Product Details | |
---|---|
Features | Micro Grooves |
Initial Pressure Drop | 2psi @ 5gpm PSI Differential |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 5 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | <2 psid @ 5 GPM |
Cap Material | Thermally Bonded Polypropylene |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown - Grooved |
Filter Type | Sediment Depth |
Media Type | Thermally Bonded Polypropylene |
Micron Rating | 5 µm |
Warranty & Certifications | |
Certifications | NSF/ANSI 42 |
Shipping Dimensions | |
Shipping Length | 20.75 in. |
Shipping Width | 10.75 in. |
Shipping Height | 13 in. |
Product Weight & Dimensions | |
Product Height | 13 |
Product Length | 20.75 |
Product Width | 10.75 |
Product Weight (lbs) | 16.751 |
The polypropylene construction provides superior chemical resistance and is not prone to bacterial attack.
Features:
- Thermally bonded polypropylene micro-fiber construction for higher filtration efficiency
- Provides superior chemical resistance and is not prone to bacterial attack
- Rigid polypropylene center core for increased collapse strength and durability
- Consistent flow rate and superior filtration performance
- Not brittle or prone to breakage problems like resin-bonded cartridges
- Will not impart taste, odor or color to the liquid being filtered, which makes it ideal for food and beverage applications
- Unique micro-grooves provide added surface area
- Ideal for a wide variety of industrial filtration
- Also know as the Pentair Industrial Versaflex Series VF-250PD Filter Cartridges
Compatible with:
High Efficiency Meltblown Sediment Depth Filters | HMB-25200-05W |
Product Details | |
---|---|
Features | Micro Grooves |
Initial Pressure Drop | 2psi @ 5gpm PSI Differential |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 5 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | <2 psid @ 5 GPM |
Cap Material | Thermally Bonded Polypropylene |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown - Grooved |
Filter Type | Sediment Depth |
Media Type | Thermally Bonded Polypropylene |
Micron Rating | 5 µm |
Warranty & Certifications | |
Certifications | NSF/ANSI 42 |
Shipping Dimensions | |
Shipping Length | 26 in. |
Shipping Width | 6 in. |
Shipping Height | 6 in. |
Product Weight & Dimensions | |
Product Height | 2.375 |
Product Length | 20.25 |
Product Width | 2.375 |
Product Weight (lbs) | 1.25 |
Product Details | |
---|---|
Features | Micro Grooves |
Initial Pressure Drop | 2psi @ 5gpm PSI Differential |
Max Temp (°F) | 175 |
Micron Rating (Nominal) | 5 µm |
Min Temp (°F) | 40 |
Psid@Flow Rate | <2 psid @ 5 GPM |
Cap Material | Thermally Bonded Polypropylene |
Cartridge Style | Drop-in |
Contaminants Reduced | Sediment/Dirt/Rust |
Diameter | 2-1/2" |
End Cap Type | Double Open Ended (DOE) - No Cap |
Filter Construction | Melt Blown - Grooved |
Filter Type | Sediment Depth |
Media Type | Thermally Bonded Polypropylene |
Micron Rating | 5 µm |
Warranty & Certifications | |
Certifications | NSF/ANSI 42 |
Shipping Dimensions | |
Shipping Length | 20.75 in. |
Shipping Width | 10.75 in. |
Shipping Height | 13 in. |
Product Weight & Dimensions | |
Product Height | 13 |
Product Length | 20.75 |
Product Width | 10.75 |
Product Weight (lbs) | 16.751 |
