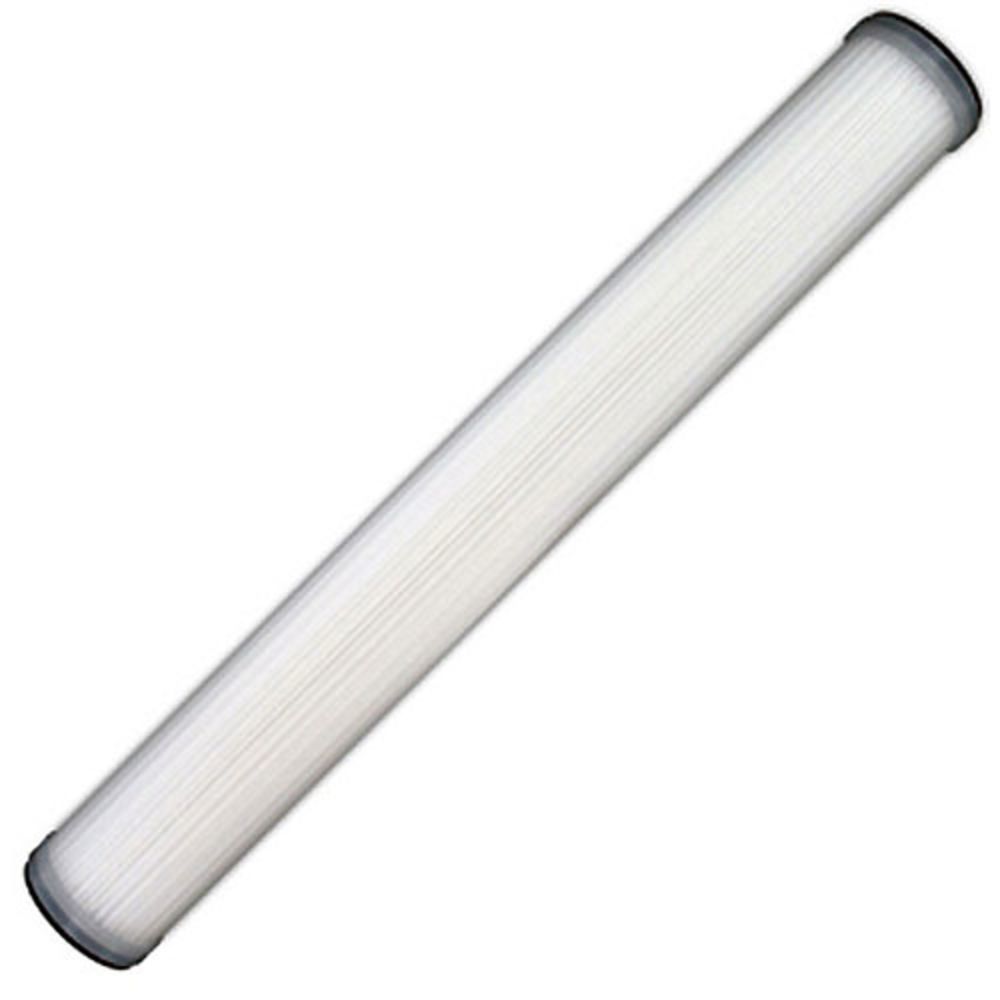

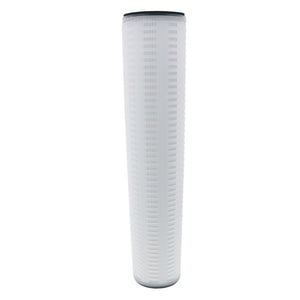

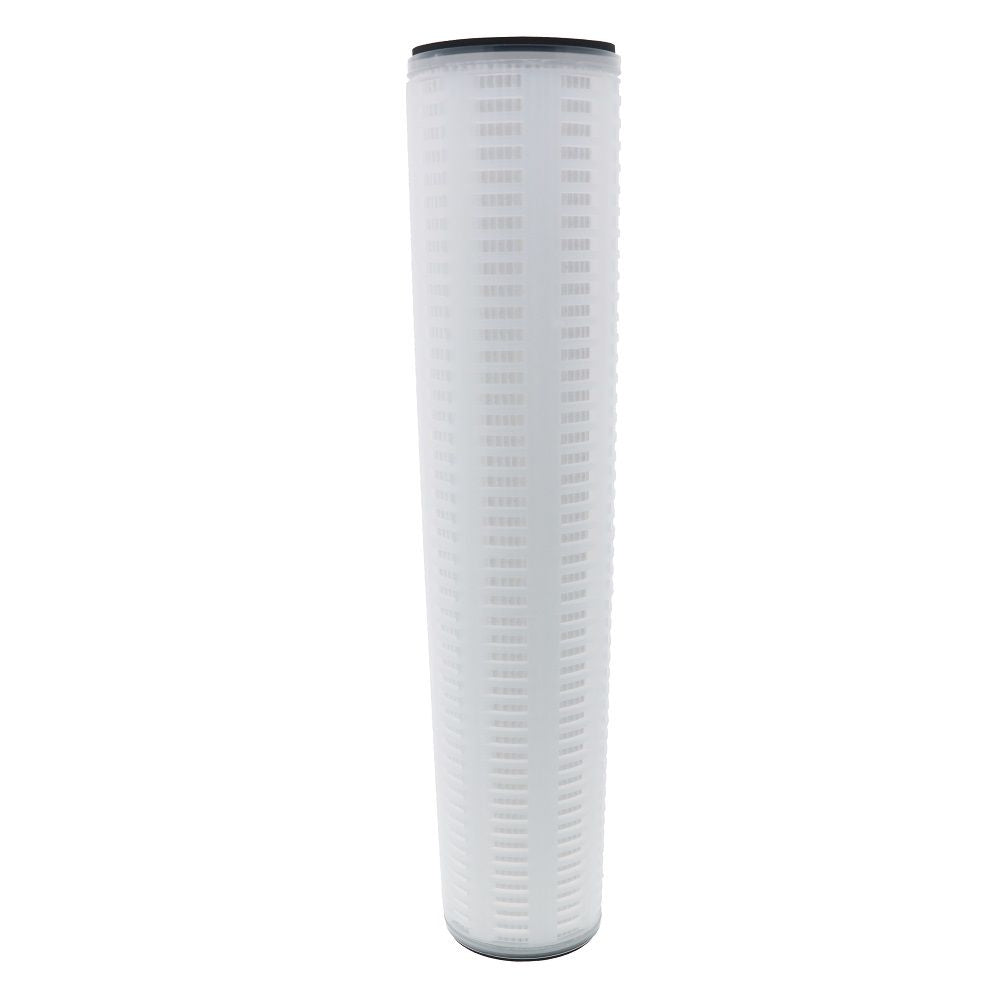

2.5" x 20" FlowMax HP with DOE End Cap - 0.45 Micron

The Flow-Max HP Series Filter cartridges are cost effective, disposable, filter elements for a wide range of applications. Flow-Max HP cartridges are constructed of highly efficient pleated polypropylene filter media with extended filter area to provide high flow rates, low pressure drop and increased dirt holding capacity.

Features:

100% polypropylene
Ratings from 0.2 to 50 micron
FDA listed polypropylene components
Removal efficiencies to 99.98%
High surface area
Long service life & reduced maintenance costs
Fixed pore construction for reliability
Change Out at 35 PSI Differential

Applications:

High purity water, Chemicals, Traps for DI resin, Cosmetics, Electronics, Inks, Pre filtration for RO, Food & beverage, Magnetic tape coatings, Bottled water, Aqueous solutions, Edible oils, Plating solutions, Waste water.

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Gaskets	Buna-N EPDM
Initial Pressure Drop	3.8 PSI Differential
Inner/Outer Wraps	Polypropylene
Max Pressure (Psi)	130
Max Temp (°F)	175
Micron Rating (Absolute)	0.45 µm
Netting	Polypropylene
O-Rings	EPDM
Cap Material	Polypropylene
Cartridge Style	Drop-in
Change Frequency	6-12 Months
Diameter	2-1/2"
End Cap Type	Double Open Ended (DOE)
Inner Diameter	1"
Media Type	Polypropylene
Micron Rating	0.45 µm ABS
Warranty & Certifications
Product Certification Standard	FDA CFR-21
Product Weight & Dimensions
Product Length	20"
Product Weight (lbs)	1.5
