Flowmatic

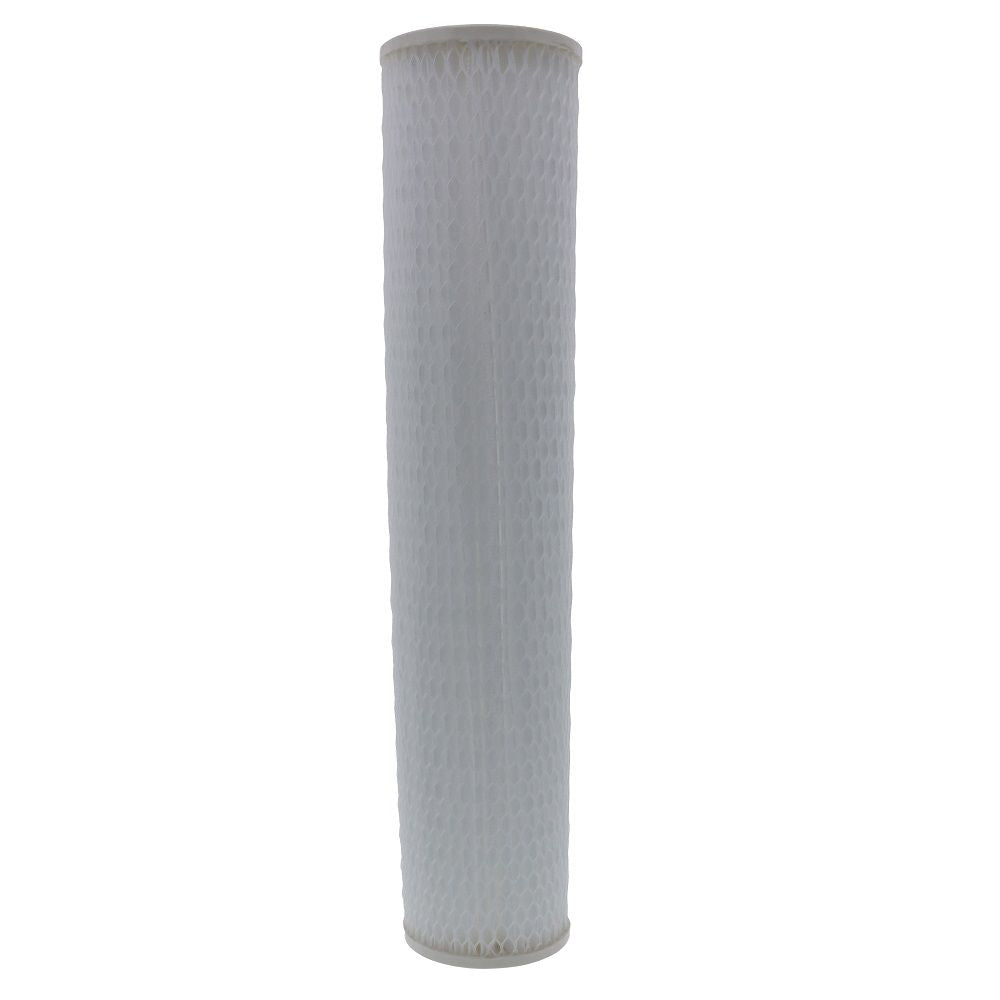

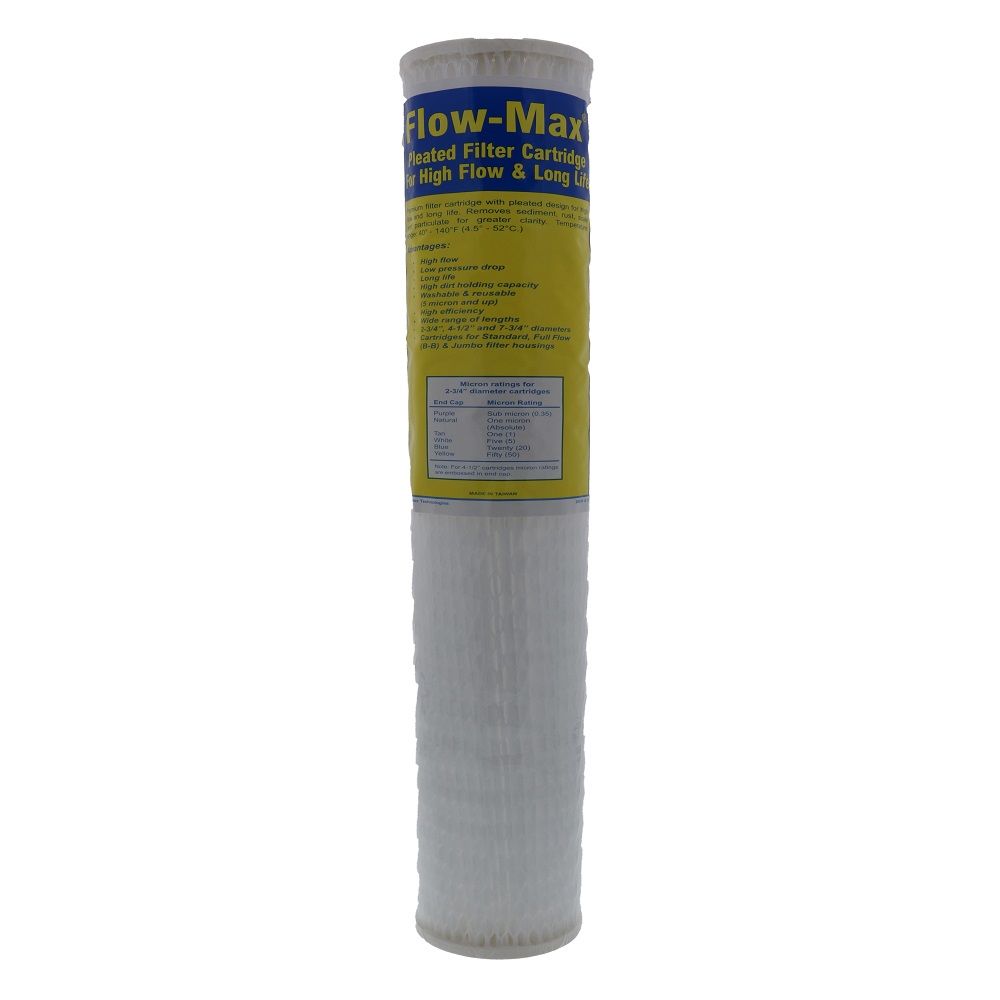

19-1/2" x 2-3/4" Flow-Max Pleated Poly - 5 mic

Part Number: FM-5-195

In Stock

out of stock

In Stock

$11.28

The Watts Flow-Max FM-5-195 Filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because our cartridges are pleated to provide increased surface area and longer life. Savings is realized with extended filter life from the 100% synthetic filter media, which is cleanable on filter cartridges 5 micron and up.

Specifications:
  • Cleanable Filter
  • Sediment Filtration
  • 5 Micron
  • Flow Rate: 14 gpm
  • Pleated Polyester Filtration
  • 100% Cellulose Free



Compatible with:
WattsPWPL195M5

Weight & Dimensions

Length (inches)

19.5

Height (inches)

19.5

Width (inches)

2.75

Weight (lbs)

0.2575

Details

Max Temp (°F)

140

Min Temp (°F)

40

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

24

Filter Application

Sediment/Dirt/Rust

Flow Rate

14 GPM

Initial Pressure Drop

40 PSI Differential

Media Type

Polyester

Micron Rating (Nominal)

5 µm

Outer Diameter

2-3/4"


19-1/2"




The Watts Flow-Max FM-5-195 Filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because our cartridges are pleated to provide increased surface area and longer life. Savings is realized with extended filter life from the 100% synthetic filter media, which is cleanable on filter cartridges 5 micron and up.

Specifications:
  • Cleanable Filter
  • Sediment Filtration
  • 5 Micron
  • Flow Rate: 14 gpm
  • Pleated Polyester Filtration
  • 100% Cellulose Free



Compatible with:
WattsPWPL195M5

Weight & Dimensions

Length (inches)

19.5

Height (inches)

19.5

Width (inches)

2.75

Weight (lbs)

0.2575

Details

Max Temp (°F)

140

Min Temp (°F)

40

Cap Material

Vinyl-Plastisol

Capacity

As Needed

Cartridge Style

Drop-In

Case Quantity

24

Filter Application

Sediment/Dirt/Rust

Flow Rate

14 GPM

Initial Pressure Drop

40 PSI Differential

Media Type

Polyester

Micron Rating (Nominal)

5 µm

Outer Diameter

2-3/4"
