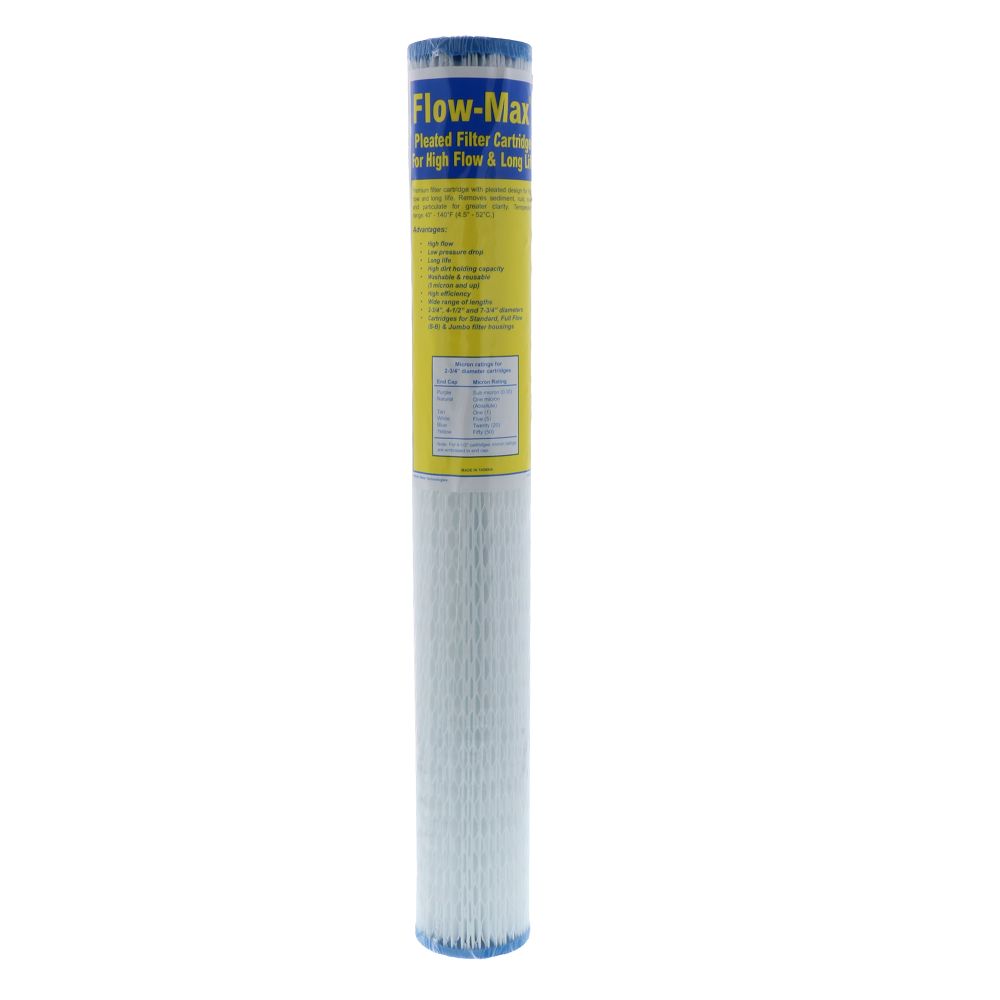

19-1/2" x 2-3/4" Flow-Max Pleated Poly - 20 mic

Part Number: FM-20-195

Alt. Part Number: WPC20-195

In Stock

out of stock

In Stock

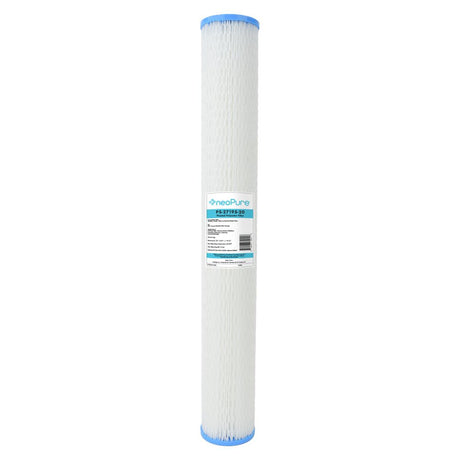

This item is discontinued. We recommend the Neo-Pure PH-27195-20 19-1/2" High Efficiency Pleated Filter 20 micron as a substitute.

The Watts Flow-Max FM-20-195 Filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because our cartridges are pleated to provide increased surface area and longer life. Savings is realized with extended filter life from the 100% synthetic filter media, which is cleanable on filter cartridges 5 micron and up.

Features:
  • Cleanable Filter
  • Sediment Filtration
  • 20 Micron
  • Flow Rate: 16 gpm
  • Pleated Polyester Filtration
  • 100% Cellulose Free
CONSUMER NOTE: All Watts branded cartridges will have blue end-caps with the micron rating.


Compatible with:
WattsPWPL1950M20

Weight & Dimensions

Approx Length (Inches)

19-1/2"

Box Dimensions

14.5x14.5x21.125

Case Quantity

24

Weight (lbs)

1.25

Details

Filter Application

Sediment/Dirt/Rust

Initial Pressure Drop

40 PSI Differential

Max Temp (°F)

140

Micron Rating (Nominal)

20 µm

Min Temp (°F)

40

Outer Diameter

2-3/4"

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Diameter

2-3/4"

End Cap Type

Double Open Ended (DOE)

Flow Rate

16 GPM

Media Type

Polypropylene

Micron Rating

20 µm

Product Length

19-1/2"


19-1/2"

19-1/2"




The Watts Flow-Max FM-20-195 Filter cartridges outperform wound, spun, melt blown, resin bonded and other "depth" type filter elements because our cartridges are pleated to provide increased surface area and longer life. Savings is realized with extended filter life from the 100% synthetic filter media, which is cleanable on filter cartridges 5 micron and up.

Features:
  • Cleanable Filter
  • Sediment Filtration
  • 20 Micron
  • Flow Rate: 16 gpm
  • Pleated Polyester Filtration
  • 100% Cellulose Free
CONSUMER NOTE: All Watts branded cartridges will have blue end-caps with the micron rating.


Compatible with:
WattsPWPL1950M20

NOTE: This item is discontinued. We recommend the Neo-Pure PH-27195-20 19-1/2" High Efficiency Pleated Filter 20 micron as a substitute.

Weight & Dimensions

Approx Length (Inches)

19-1/2"

Box Dimensions

14.5x14.5x21.125

Case Quantity

24

Weight (lbs)

1.25

Details

Filter Application

Sediment/Dirt/Rust

Initial Pressure Drop

40 PSI Differential

Max Temp (°F)

140

Micron Rating (Nominal)

20 µm

Min Temp (°F)

40

Outer Diameter

2-3/4"

Cap Material

Vinyl-Plastisol

Cartridge Style

Drop-in

Change Frequency

As Needed

Diameter

2-3/4"

End Cap Type

Double Open Ended (DOE)

Flow Rate

16 GPM

Media Type

Polypropylene

Micron Rating

20 µm

Product Length

19-1/2"

Documentation
19-1/2"
19-1/2"
