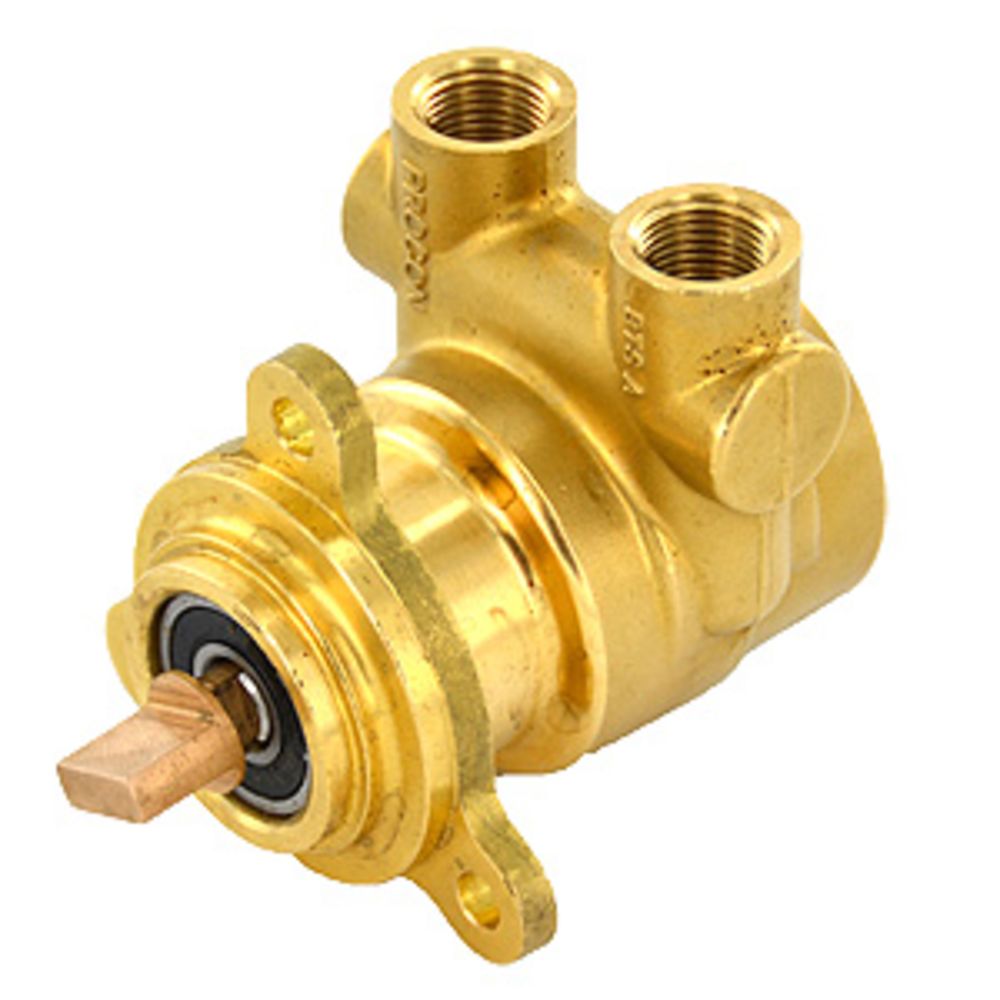

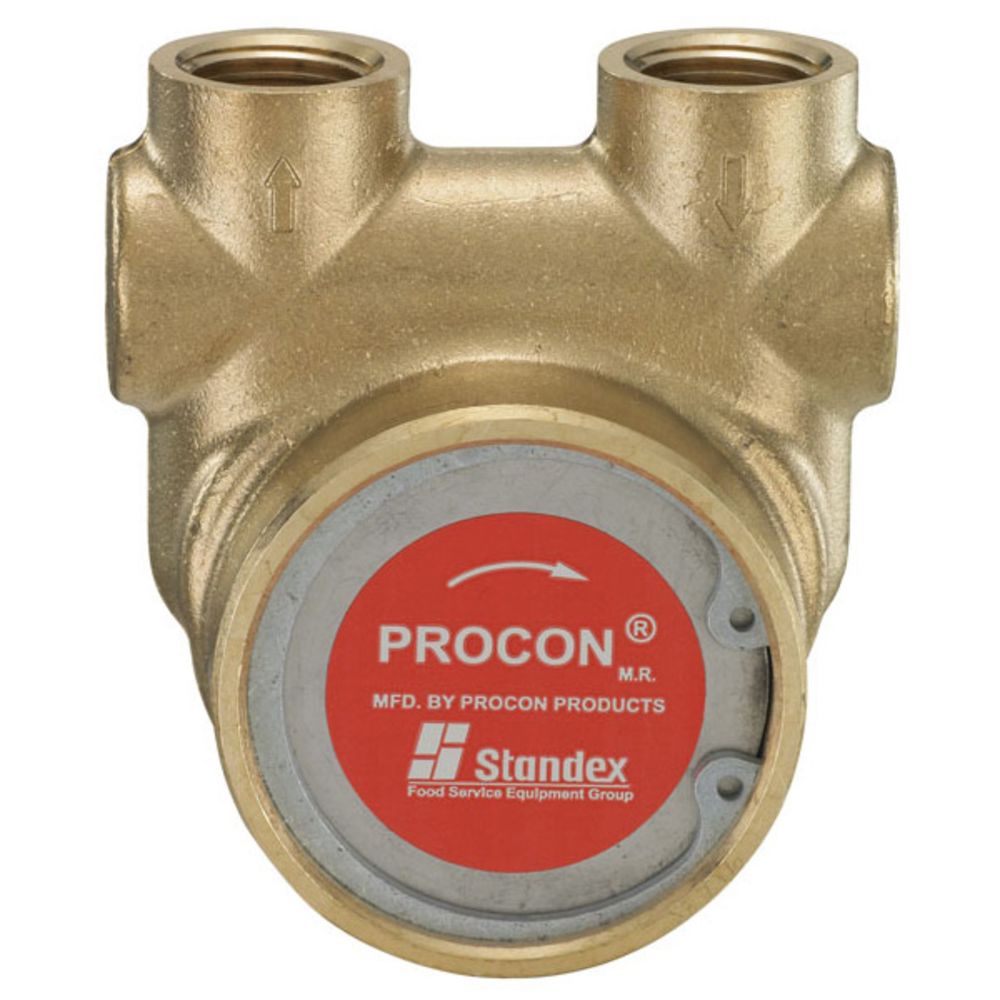

Procon Pump Brass w/ Oversize Coupling 100 GPH 3/8" NPT

Procon Pump Brass w/ Oversize Coupling 100 GPH 3/8-inch NPTShow Picture 1Show Picture 2
Mouse over to view larger image.

Series 2 Rotary Vane Pump - Bolt on

Part Number: 102L100F11XX
This item is no longer available. We have replaced it with:
NSF Procon Pump Brass w/ Oversize Coupling 100 GPH 3/8" NPT
Replacement pump for Haskris Chillers.

Procon Series 2 Pump Applications:


Procon 102L100F11XX rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a single flat drive with an oversized coupler. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 102L100F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 102L100F11XX pump is designed to be bolted directly to the motor.

  • Capacity: 100 GPH
  • Nominal Speed: 1725 RPM
  • Maximum Discharge Pressure: 250 PSI
  • Rotation: Clockwise
  • Weight: 2.5 lbs
  • Port Size: 3/8" NPT Inlet and Outlet
  • Oversize Coupler

Procon Pump Owner's Manual
Procon Model Number Ordering Guide
Procon Series 2 Pump Specifications
Procon Series 2 Pump Line Drawings
Certifications
N/A
Dimensions
Brass - 3/8" NPT
Materials
Brass
Nitrile (Buna-N)/ Type 21
Operating Conditions
1,725
250 psi
Clockwise
6 Ft. Max. Lift
100 - Gallons Per Hour
Specifications
