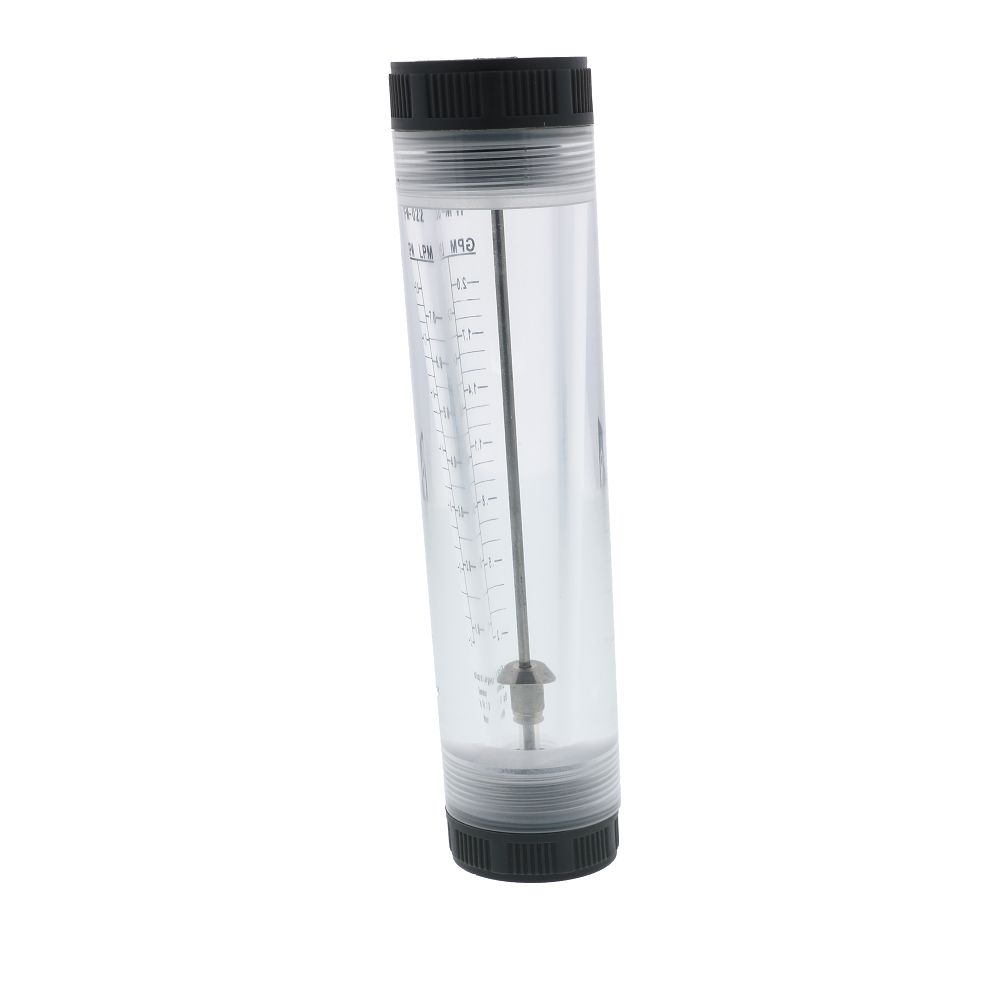

Hydronix Inline Flowmeter

Hydronix Inline FlowmeterHydronix
Mouse over to view larger image.

Consistent Quality with Unparalleled Endurance


See Product Options Below

Hydronix Inline Flow Meters

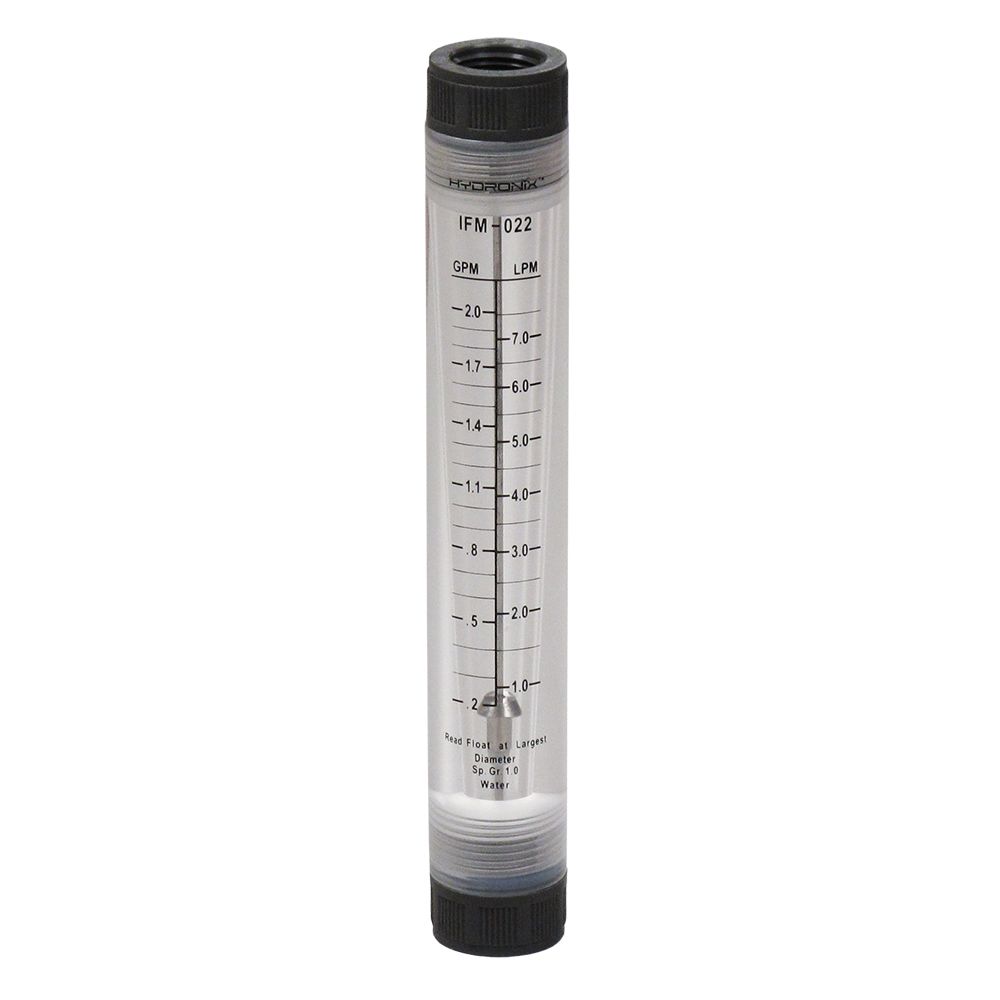

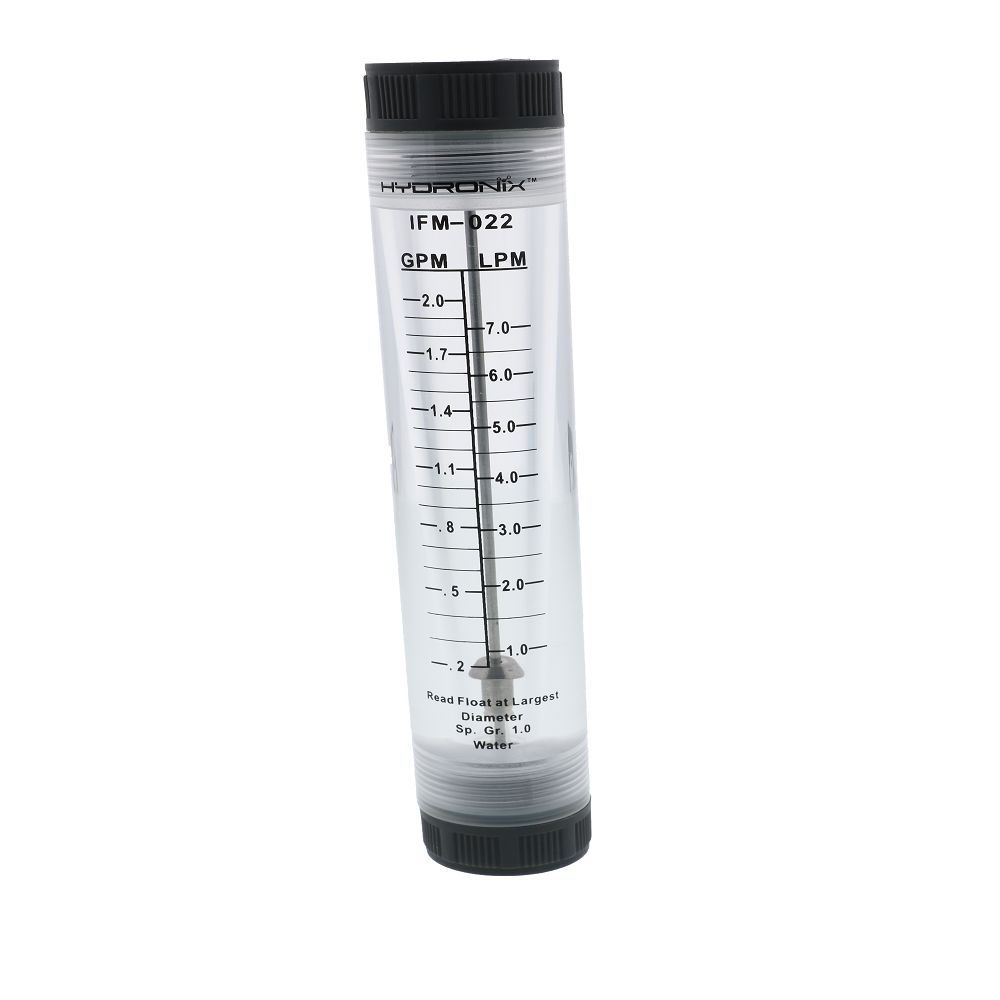

0.2-2; 1/2” FNPT
0.2-2; 1/2” FNPT

IFM-022
$85.21
Qty:

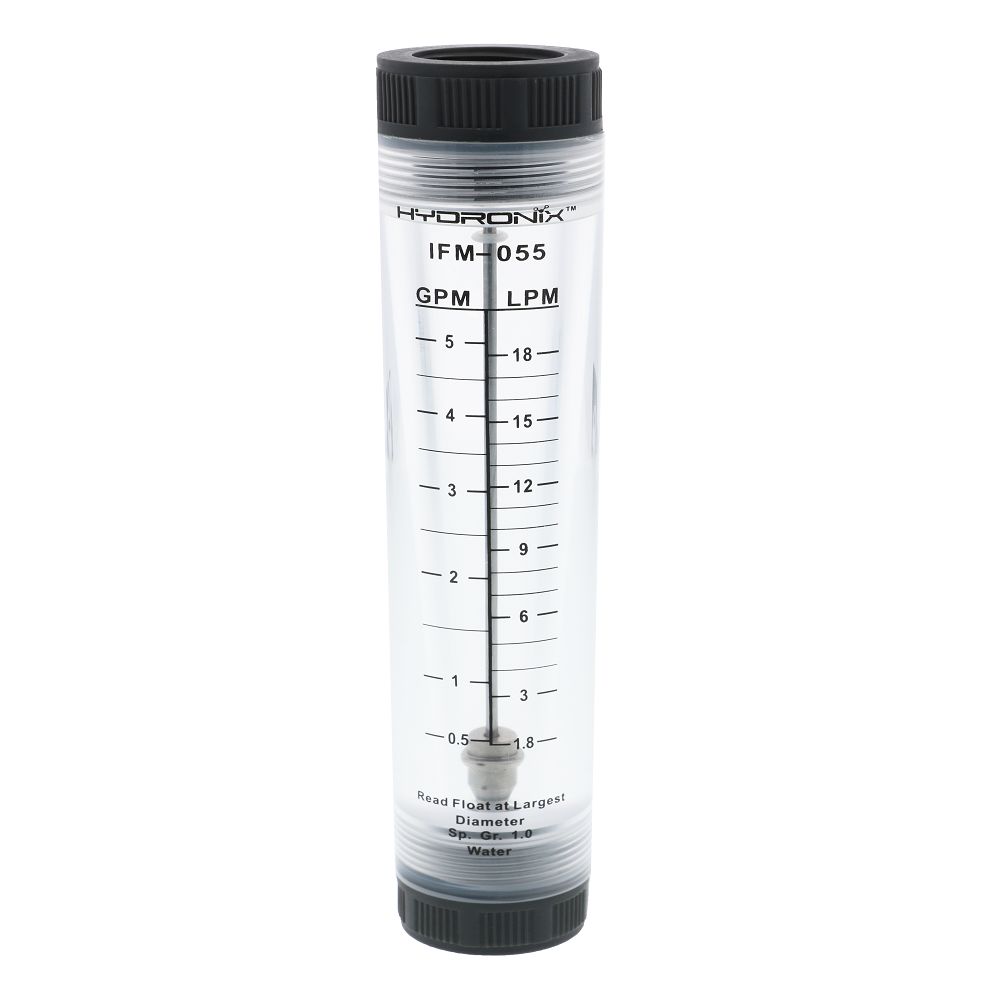

0.5-5; 1/2” FNPT
0.5-5; 1/2” FNPT

IFM-055
$33.64
Qty:

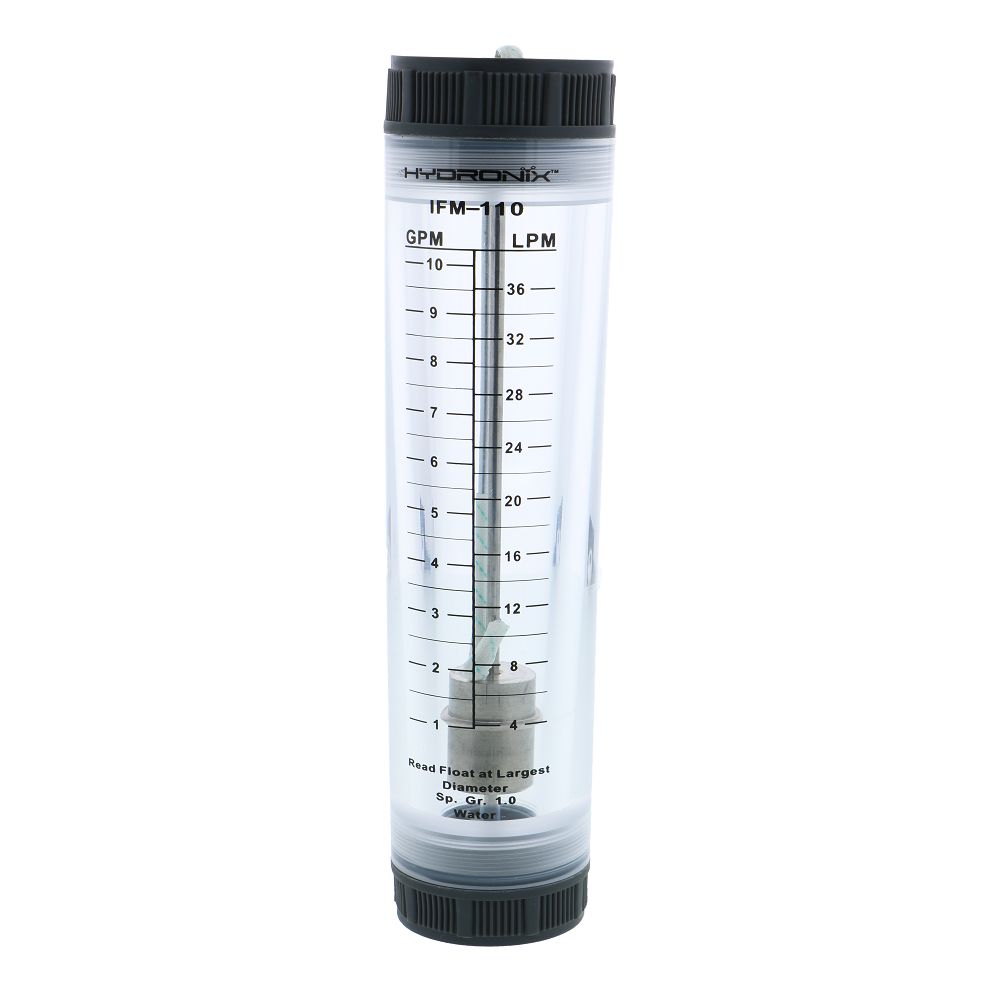

1-10; 3/4” FNPT
1-10; 3/4” FNPT

IFM-110
$67.83
Qty:

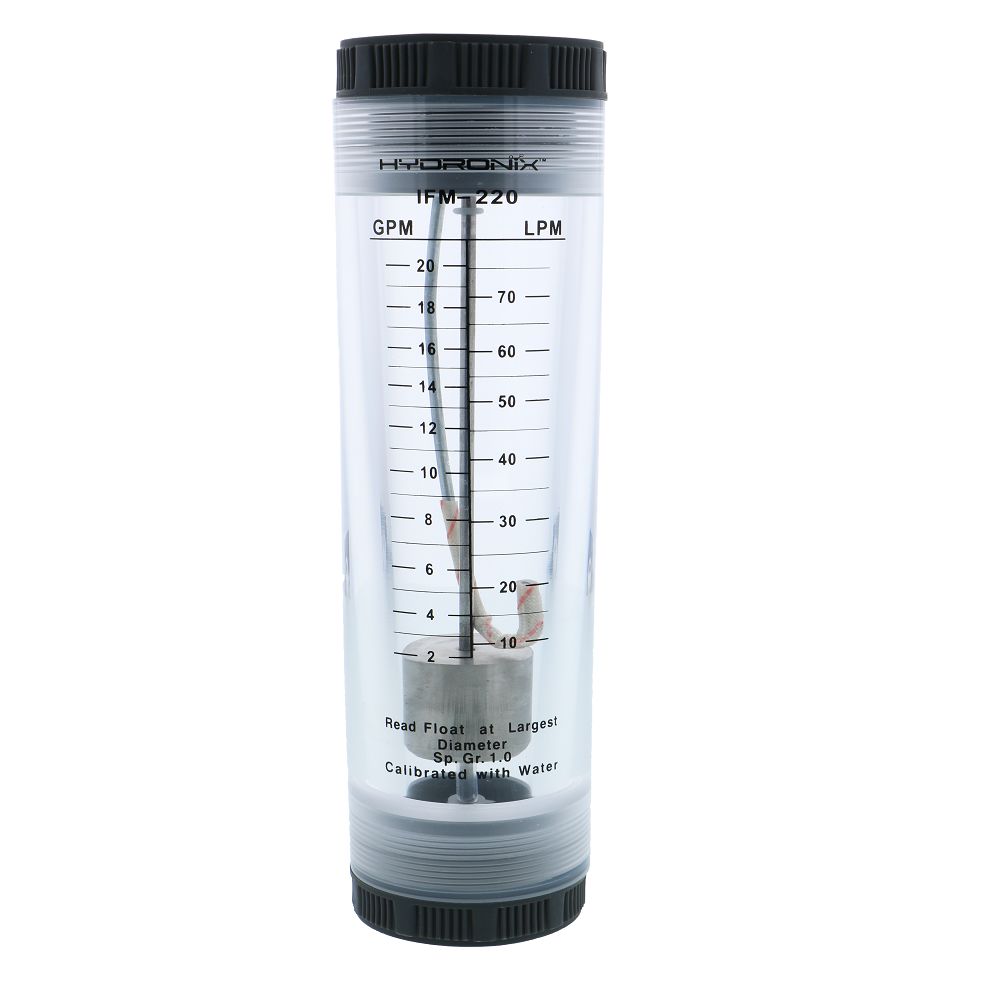

2-20; 1” FNPT
2-20; 1” FNPT

IFM-220
$69.99
Qty:
5-30; 1” FNPT
5-30; 1” FNPT

IFM-530
$78.99
Qty:

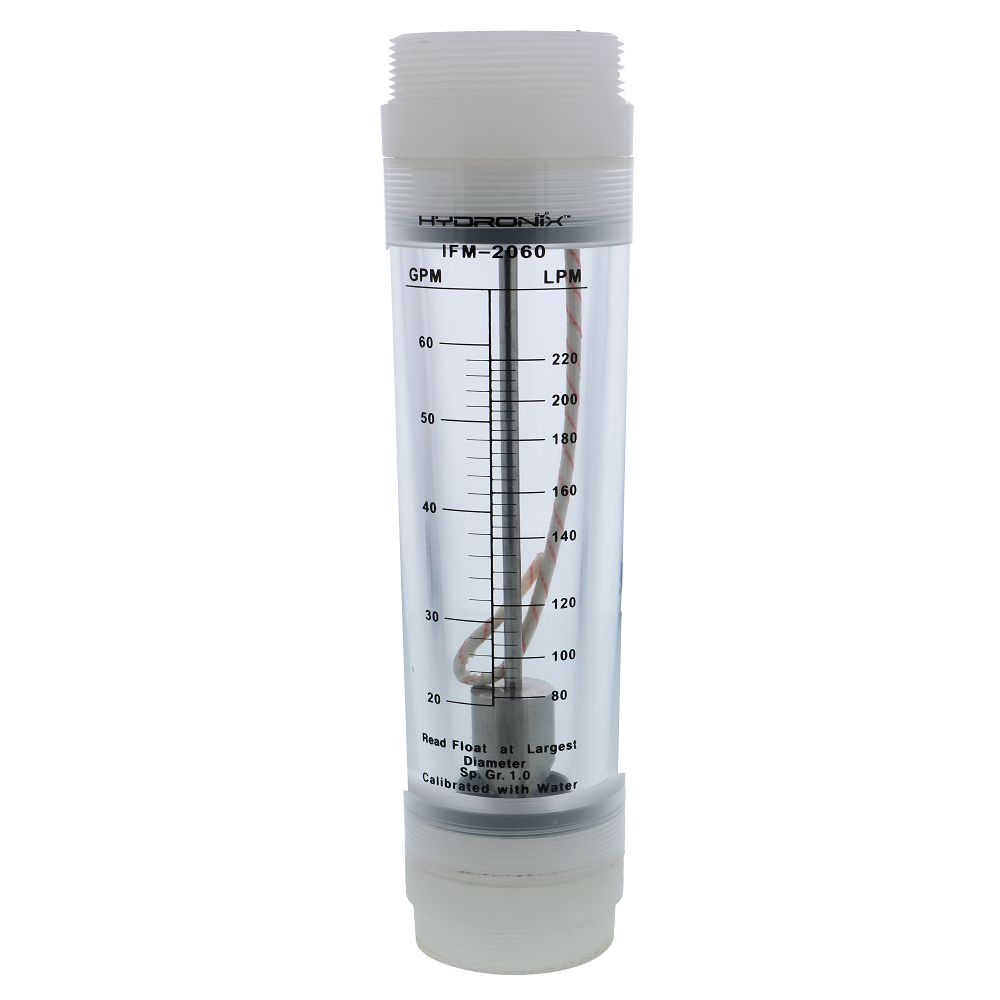

20-60; 1-1/2” MNPT
20-60; 1-1/2” MNPT

IFM-2060
$284.88
Qty:

Liquatec Inline Flow Meters

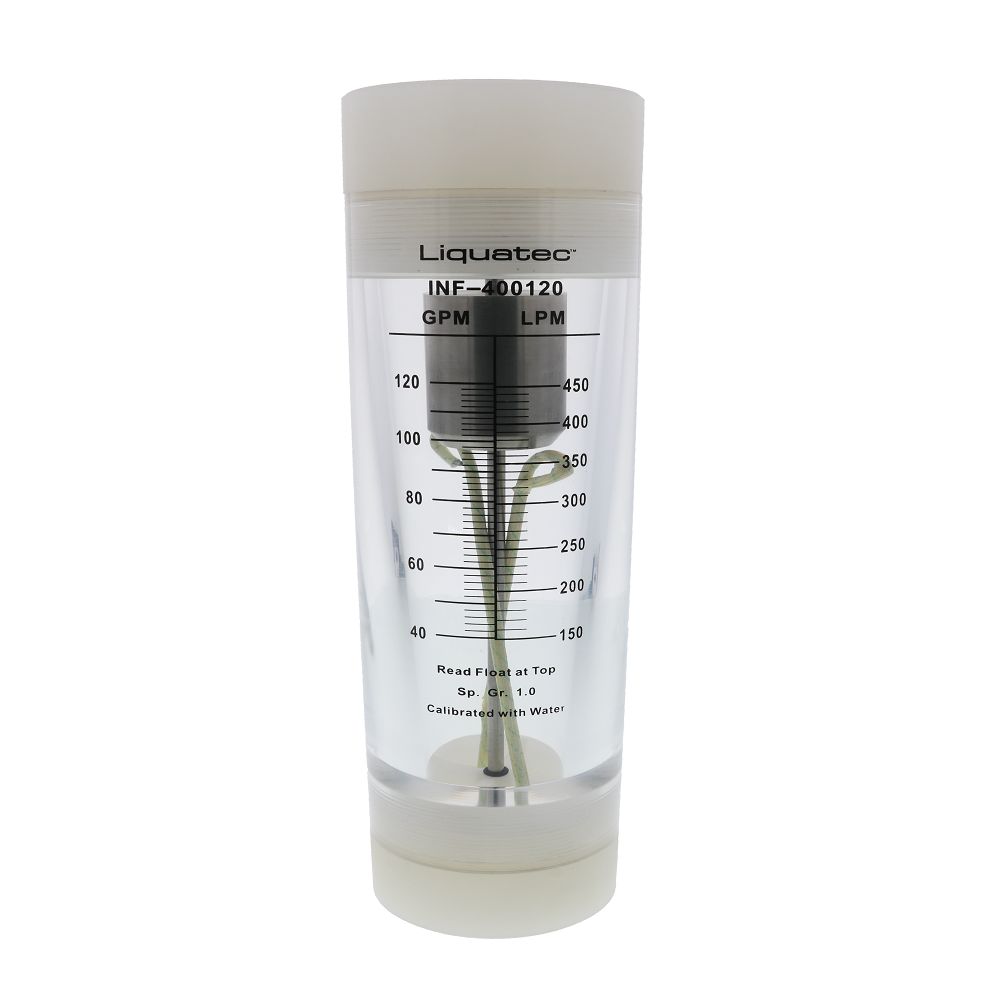

40-120; 2” FNPT
40-120; 2” FNPT

INF-400120
$593.64
Qty:
60-200; 2” FNPT
60-200; 2” FNPT

INF-600200
$593.64
Qty:

Hydronix IFM Series Inline Flowmeter Features:


  • Solid One piece Injection Molded Acrylic Body
  • Stainless Steel Float and Internals
  • Easy-to-read scales
  • Extremely accurate
  • Practically unbreakable

Flow Rates and Connections
Model # GPM LPM Adapter Size
IFM-022 0.2-2 1-7 1/2" FNPT
IFM-055 0.5-5 1.8-18 1/2" FNPT
IFM-110 1-10 4-36 3/4" FNPT
IFM-220 2-20 10-70
1" FNPT
IFM-530 5-30
20-110
1" FNPT
IFM-206020-60
80-220
1-1/2" MNPT
IFM-20100
20-100
80-360
2" FNPT
IFM-40120
40-120
150-450
2" FNPT
IFM-50150
50-150
190-550
2" FNPT
IFM-60200
60-200
220-750
2" FNPT

Note: Hydronix and Liquatec flow meters are indentical. Once Liquatec inventory is depleted, please purchase Hydronix Flow Meters.

Hydronix IFM Series Inline Flow Meters - PDF

Housing Type
Inline
Port Sizes
1/2" FNPT, 3/4" FNPT, 1" FNPT, 1-1/2" MNPT, 2" FNPT
Air Ranges
Housings Materials
Acrylic
304 Stainless Steel
Polypropylene
EPDM
Operating Conditions
120 °F
+/- 6 %
120 psi
.02 to 200 gpm
