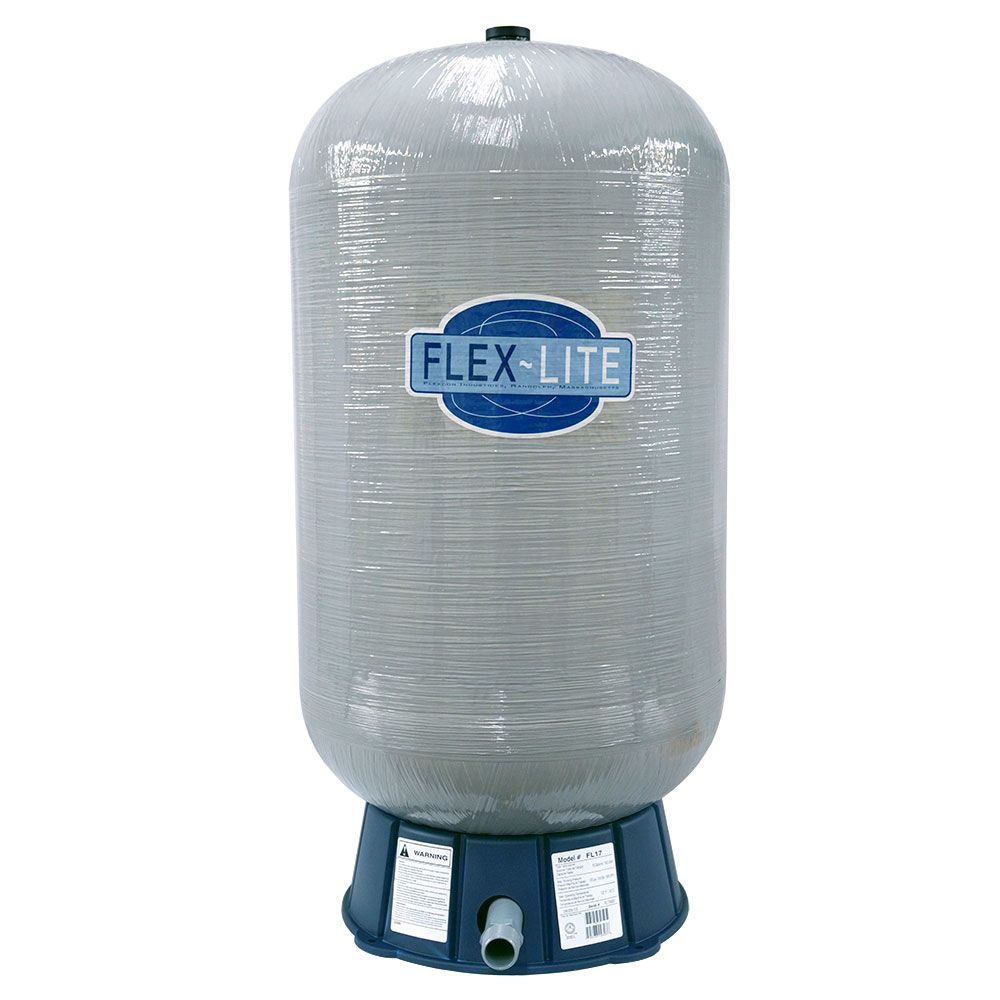

Flex-Lite FL40 Composite Well Pressure Tank 119 gallon

Part Number: FL40
Sold Out

Flex-Lite FL40 Composite Well Pressure Tank 119 gallon

Part Number: FL40
Regular price $4,620.00

This item is discontinued. We recommend the WellMate WM-35WB Well Pressure Tank 120 gal as a substitute.

Product not eligible for free shipping

Request A Quote

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

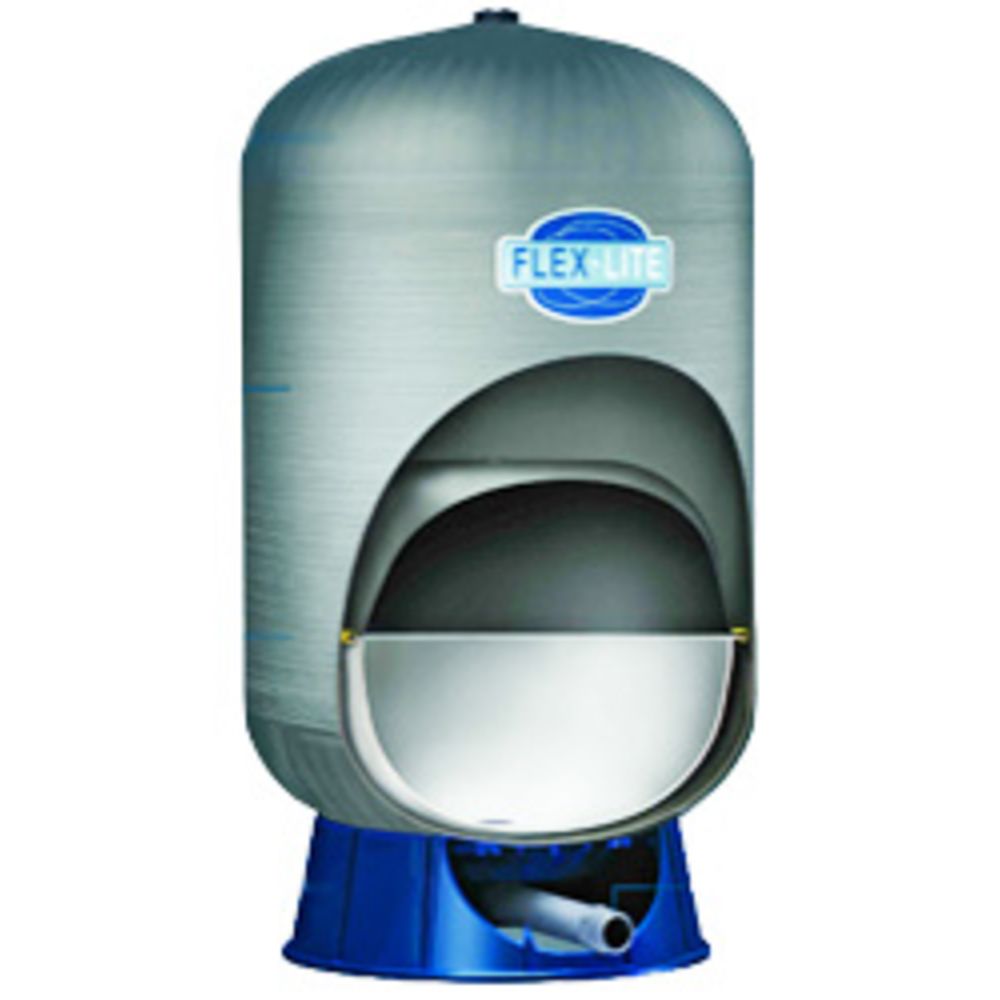

The Flex-Lite FL40 is a corrosion-proof well pressure tank that is made with a composite of continuous strand fiberglass filament that is coated with epoxy. The Flex-Lite FL series features the improved CAD-2 (Controlled Action Diaphragm) design which is stronger and doesn't crease and wear out like older bag designs. The 100% butyl diaphragm is chlorine resistant and combined with the precision molded copolymer polypropylene lower water chamber provides superior air and water separation.

Compatible with the following tanks:
  • WellMate WM35
  • Sta-Rite SR119, PSP-FW119-35
  • Flex2Pro H2PL120

Features;
  • CAD-2 diaphragm technology allows the water chamber to be sized for optimum drawdown
  • Corrosion-proof composite construction
  • Won’t rust in corrosive environments, particularly important in coastal regions
  • Little or no maintenance
  • Longer life, greater flexibility
  • Light weight
  • Drawdown at 30/50 Setting: 40.5 gallons
  • 5 year warranty
  • NSF Standard 61 listed
  • Made in the USA


Specifications

    Product Details

    Application

    Pressure Pump Tank

    Body Material

    Composite

    Diaphragm Materials

    Butyl Rubber

    Inlet Connection

    1-1/4" MPT

    Material Of Construction

    Polypropylene

    Max Pressure (Psi)

    125

    Max Temp (°F)

    140°F

    Outlet Connection

    1-1/4" MPT

    Size

    1-1/4"

    Volume

    119 Gallons

    Connection Type

    Male (MPT)

    Diameter

    24.2"

    Origin

    U.S.A.

    Warranty & Certifications

    Product Certification Standard

    NSF/ANSI 61

    Warranty

    5 years

    Product Weight & Dimensions

    Height W/ Stand

    72.1"

    Product Weight (lbs)

    235
