Flexcon Industries

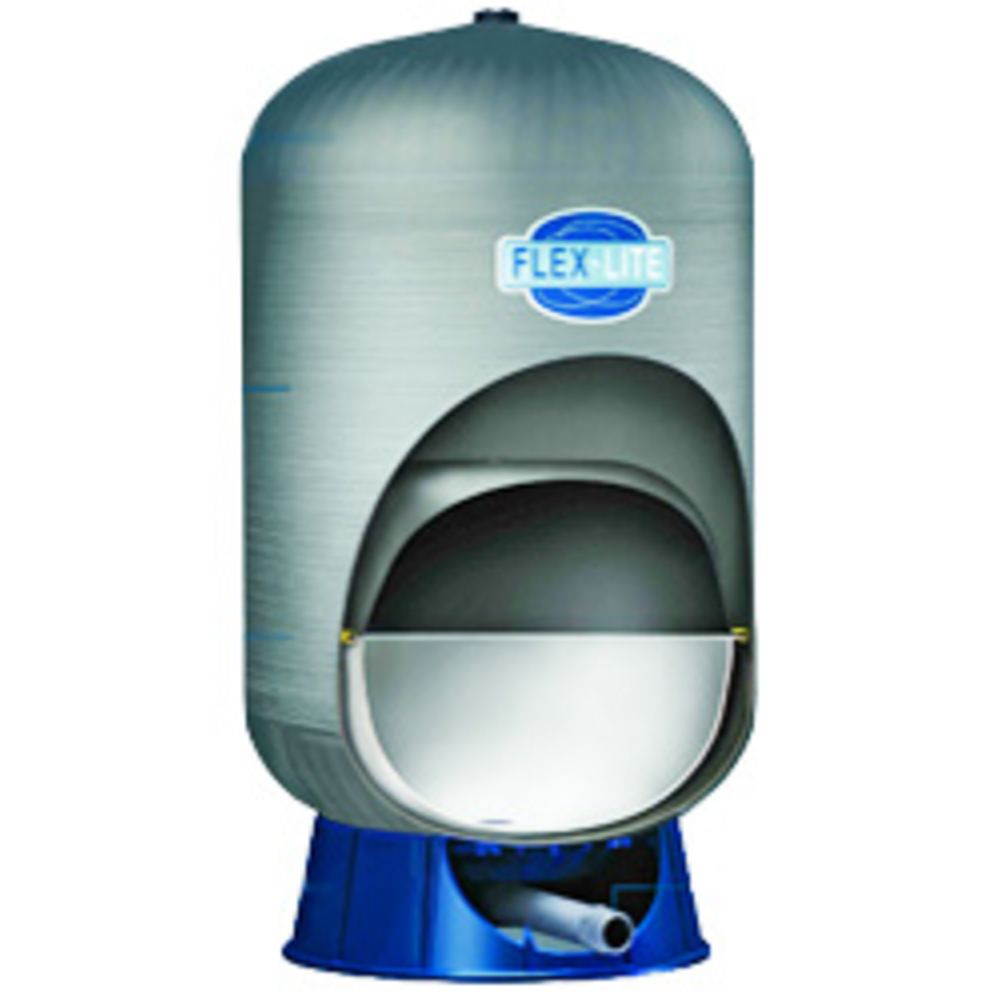

Flex-Lite FL40 Composite Well Pressure Tank 119 gallon

Part Number: FL40

In Stock

out of stock

In Stock

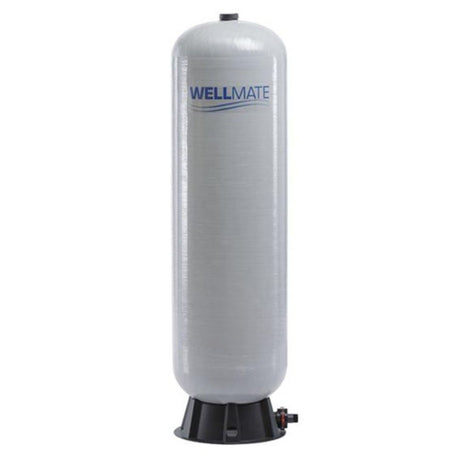

This item is discontinued. We recommend the WellMate WM-35WB Well Pressure Tank 120 gal as a substitute.

The Flex-Lite FL40 is a corrosion-proof well pressure tank that is made with a composite of continuous strand fiberglass filament that is coated with epoxy. The Flex-Lite FL series features the improved CAD-2 (Controlled Action Diaphragm) design which is stronger and doesn't crease and wear out like older bag designs. The 100% butyl diaphragm is chlorine resistant and combined with the precision molded copolymer polypropylene lower water chamber provides superior air and water separation.

Compatible with the following tanks:
  • WellMate WM35
  • Sta-Rite SR119, PSP-FW119-35
  • Flex2Pro H2PL120

Features;
  • CAD-2 diaphragm technology allows the water chamber to be sized for optimum drawdown
  • Corrosion-proof composite construction
  • Won’t rust in corrosive environments, particularly important in coastal regions
  • Little or no maintenance
  • Longer life, greater flexibility
  • Light weight
  • Drawdown at 30/50 Setting: 40.5 gallons
  • 5 year warranty
  • NSF Standard 61 listed
  • Made in the USA




Weight & Dimensions

Weight (lbs)

235

Height W/ Stand

72.1"

Details

Max Temp (°F)

140

Max Pressure (Psi)

125

Drawdown Volume

47.9 Gallons @ 20/40 Setting, 40.5 Gallons @ 30/50 Setting, 35 Gallons @ 40/60 Setting

Application

Pressure Pump Tank

Diameter

24.2"

Diaphragm Materials

Butyl Rubber

Material Of Construction

Polypropylene tank reinforced with fiberglass, sealed with epoxy resin

Origin

USA

Size

1-1/4"

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre-Charge

38 PSI

Volume

119 Gallons

Inlet/Outlet Connection

1-1/4" MPT

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

5 years

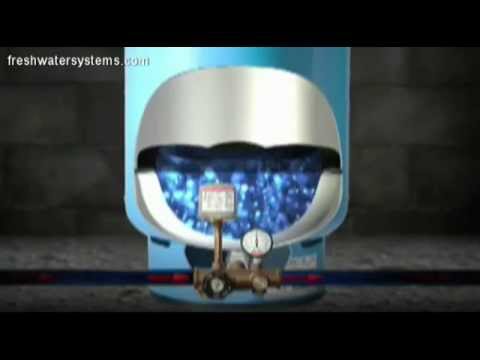

Product Videos


The Flex-Lite FL40 is a corrosion-proof well pressure tank that is made with a composite of continuous strand fiberglass filament that is coated with epoxy. The Flex-Lite FL series features the improved CAD-2 (Controlled Action Diaphragm) design which is stronger and doesn't crease and wear out like older bag designs. The 100% butyl diaphragm is chlorine resistant and combined with the precision molded copolymer polypropylene lower water chamber provides superior air and water separation.

Compatible with the following tanks:
  • WellMate WM35
  • Sta-Rite SR119, PSP-FW119-35
  • Flex2Pro H2PL120

Features;
  • CAD-2 diaphragm technology allows the water chamber to be sized for optimum drawdown
  • Corrosion-proof composite construction
  • Won’t rust in corrosive environments, particularly important in coastal regions
  • Little or no maintenance
  • Longer life, greater flexibility
  • Light weight
  • Drawdown at 30/50 Setting: 40.5 gallons
  • 5 year warranty
  • NSF Standard 61 listed
  • Made in the USA



NOTE: This item is discontinued. We recommend the WellMate WM-35WB Well Pressure Tank 120 gal as a substitute.

Weight & Dimensions

Weight (lbs)

235

Height W/ Stand

72.1"

Details

Max Temp (°F)

140

Max Pressure (Psi)

125

Drawdown Volume

47.9 Gallons @ 20/40 Setting, 40.5 Gallons @ 30/50 Setting, 35 Gallons @ 40/60 Setting

Application

Pressure Pump Tank

Diameter

24.2"

Diaphragm Materials

Butyl Rubber

Material Of Construction

Polypropylene tank reinforced with fiberglass, sealed with epoxy resin

Origin

USA

Size

1-1/4"

Air Valve Stem Location

Top

Inlet/Outlet Location

Bottom

Tank Pre-Charge

38 PSI

Volume

119 Gallons

Inlet/Outlet Connection

1-1/4" MPT

Warranty & Certifications

Certifications

NSF Certified to Standard 61

Warranty

5 years
