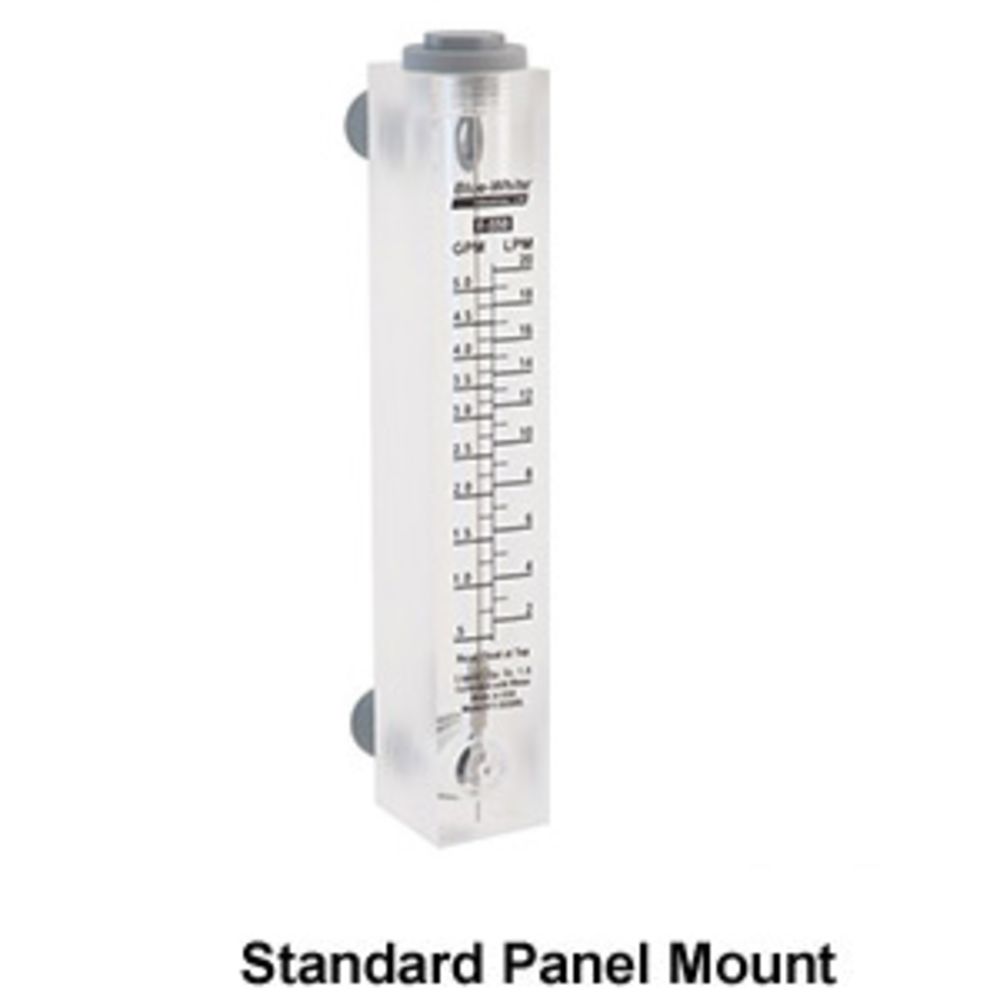

Blue White F-550 Panel Mount Rotameter

3.0

(1 reviews)

Part Number: F-55250L Alt. Part Number: F-550

1 2

Blue-White

Blue White F-550 Panel Mount Rotameter

3.0

(1 reviews)

Part Number: F-55250L Alt. Part Number: F-550

$161.14

Choose:

0.025 - 0.25 GPM - 1/4" MPT 0.1 - 1 GPM - 3/8" MPT 0.2 - 2 GPM - 3/8" MPT 0.5 - 5 GPM - 1/2" MPT 1 - 10 GPM - 3/4" MPT 2 - 20 GPM - 1" MPT

Product variants

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Features:

One piece machined and polished acrylic meter body.
Corrosion and wear resistant internal parts
Acceptable for outdoor installations (direct sunlight okay)
Bulkhead nuts attach directly to inside panel.
Available adjustable valve (flow control) easy to assemble.
Dual Scale (GPM and LPM)

Neo-Pure Compatibles For Blue White

Inline Flow Meters

Flow Rate	Connection	Blue White	Neo-Pure
0.1-1.0 GPM	1/2" FPT	F-40375LN-8	FMS1-011-08
0.2-2.0 GPM	1/2" FPT	F-40376LN-8	FMS1-022-08
0.5-5.0 GPM	1/2" FPT	F-40500LN-8	FMS1-055-08
2.0-20 GPM	3/4" FPT	F-41000LN-12	FMS1-220-16
2.0-20 GPM	1" FPT	F-41000LN-16	FMS1-220-16
2.0-20 GPM	1" FPT	F-451002LHN	FMS1-220-16
3.0-30 GPM	1" FPT	F-451003LHN	FMS1-530-16

Panel Mounted Flow Meters

Flow Rate	Connection	Blue White	Neo-Pure
0.2-20 GPM	1" MPT	F-55200L*	FMP0-216-16*
0.2-2.0 GPM	3/8" MPT	F-55376L	FMP0-022-06
0.5-5.0 GPM	1/2" MPT	F-55500L	FMP0-055-08
0.1-10 GPM	3/4" MPT	F-55750L	FMP0-210-12

Adjustable Panel Mounted Flow Meters

Flow Rate	Connection	Blue White	Neo-Pure
0.2-20 GPM	1" MPT	F-55200LA**	FMP1-216-16**
0.1-1.0 GPM	3/8" MPT	F-55375LA***	FMP1-011-04***
0.2-2.0 GPM	3/8" MPT	F-55376LA	FMP1-022-06
0.5-5.0 GPM	1/2" MPT	F-55500LA	FMP1-055-08
0.1-10 GPM	3/4" MPT	F-55750LA	FMP1-210-12

Please note: While all Neo-Pure listed are direct replacements for Blue White, the following panel mounted flowmeters differ in mounting spread.

Blue White:
F-55200L* - 8 inch
F-55200LA** - 8 inch
F-55375LA*** - 6.5 inch

Neo-Pure:
FMP0-216-16* - 6.5 inch
FMP1-216-16** - 6.5 inch
FMP1-011-04*** - 5 inch

Specifications

Product Details
Accuracy	±5 %
Body Material	Acrylic
Max Pressure (Psi)	250
Max Temp (°F)	200°F
O-Rings	Viton
Flow Rate	0.025-20 GPM
Port Size	3/4" MNPT 1-1/2" MNPT 1/4" MNPT 1" MNPT
Type	Panel Mount Rotameter
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	4 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1.2

Product Details
Accuracy	±5 %
Body Material	Acrylic
Float	316 Stainless Steel
Guide	316 Stainless Steel
Max Pressure (Psi)	250
Max Temp (°F)	200
Measurement Range	0.1-48 SCFM
O-Rings	Viton
Flow Rate	0.025-20 GPM
Port Size	3/4" MNPT 1-1/2" MNPT 1/4" MNPT 1" MNPT
Type	Panel Mount Rotameter
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	4 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1.2

Product Details
Accuracy	±5 %
Body Material	Acrylic
Max Pressure (Psi)	250
Max Temp (°F)	200°F
O-Rings	Viton
Flow Rate	0.025-20 GPM
Port Size	3/4" MNPT 1-1/2" MNPT 1/4" MNPT 1" MNPT
Type	Panel Mount Rotameter
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	4 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1.2

Product Details
Accuracy	±5 %
Body Material	Acrylic
Max Pressure (Psi)	250
Max Temp (°F)	200°F
O-Rings	Viton
Flow Rate	0.025-20 GPM
Port Size	3/4" MNPT 1-1/2" MNPT 1/4" MNPT 1" MNPT
Type	Panel Mount Rotameter
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	4 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1.2

Product Details
Accuracy	±5 %
Body Material	Acrylic
Max Pressure (Psi)	250
Max Temp (°F)	200°F
O-Rings	Viton
Flow Rate	0.025-20 GPM
Port Size	3/4" MNPT 1-1/2" MNPT 1/4" MNPT 1" MNPT
Type	Panel Mount Rotameter
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	4 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1.2

Product Details
Accuracy	±5 %
Body Material	Acrylic
Max Pressure (Psi)	250
Max Temp (°F)	200°F
O-Rings	Viton
Flow Rate	0.025-20 GPM
Port Size	3/4" MNPT 1-1/2" MNPT 1/4" MNPT 1" MNPT
Type	Panel Mount Rotameter
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	4 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1.2

Downloads

Blue White F-550 Panel Mount Rotameter Manual
