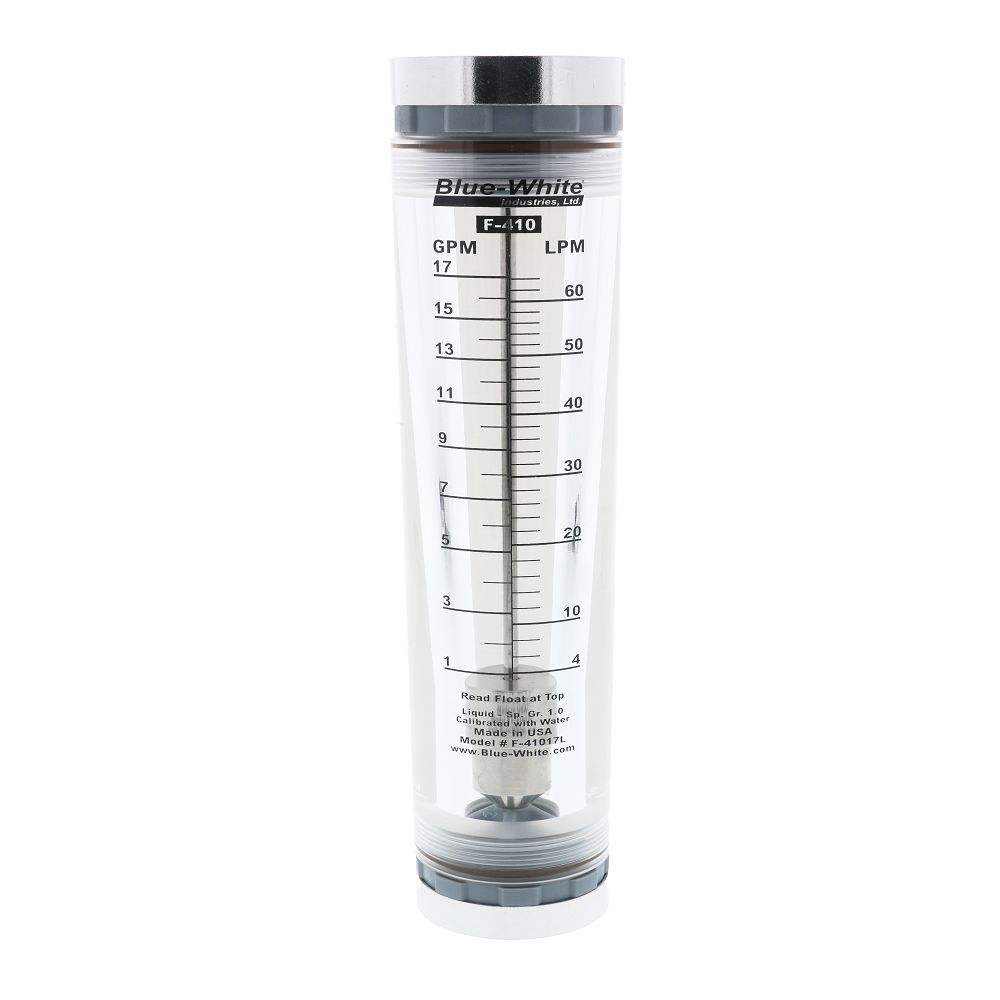

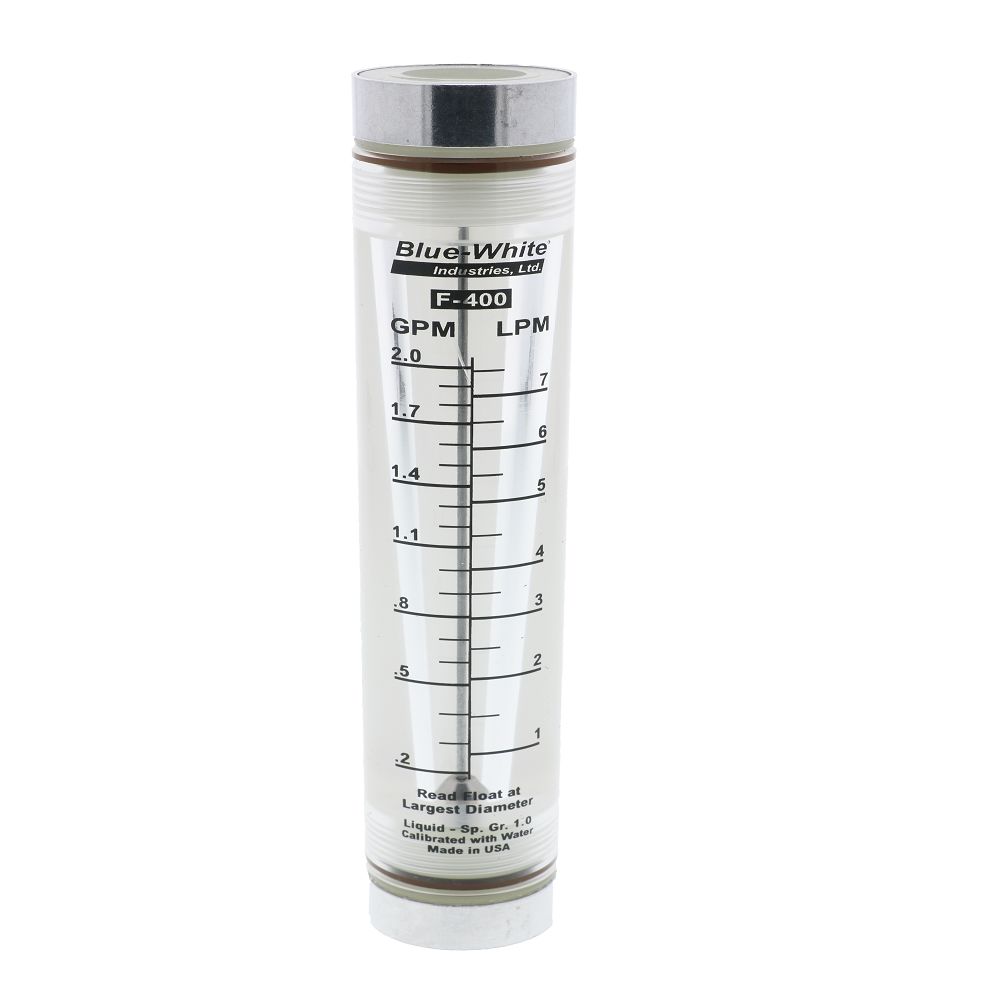

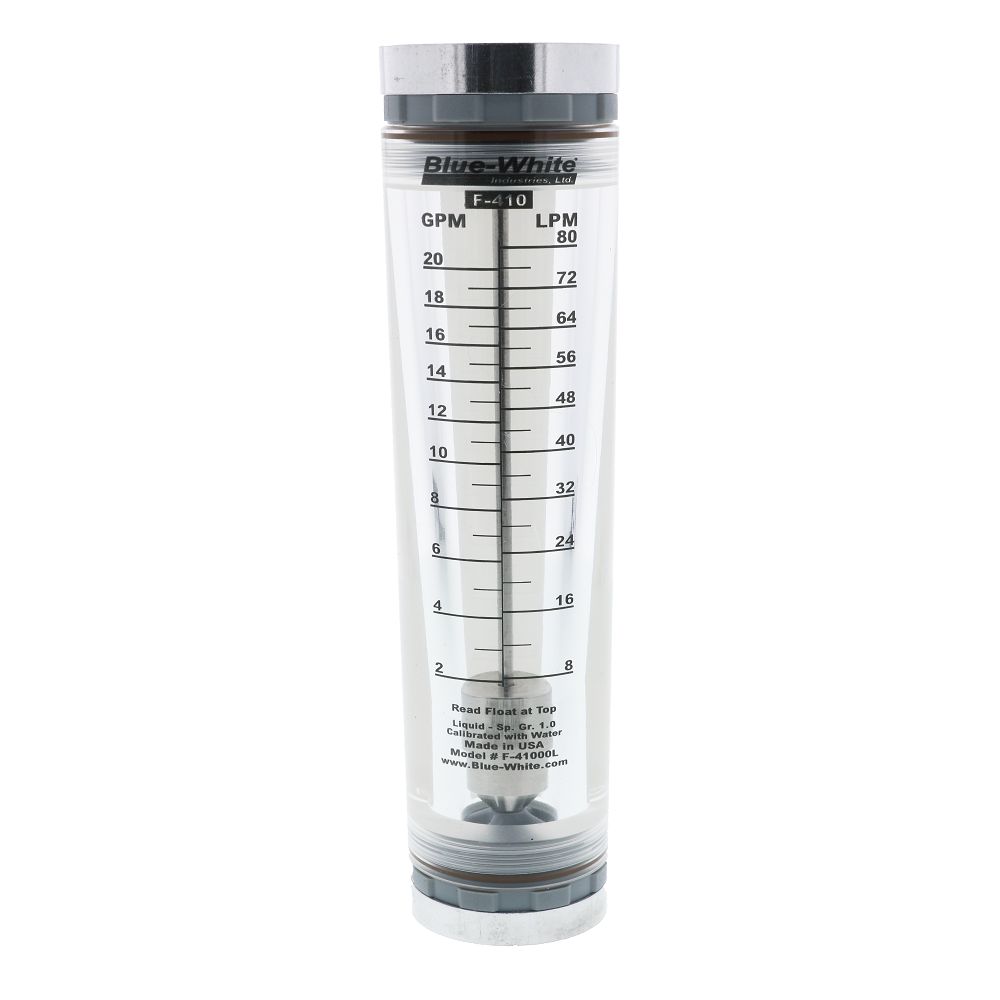

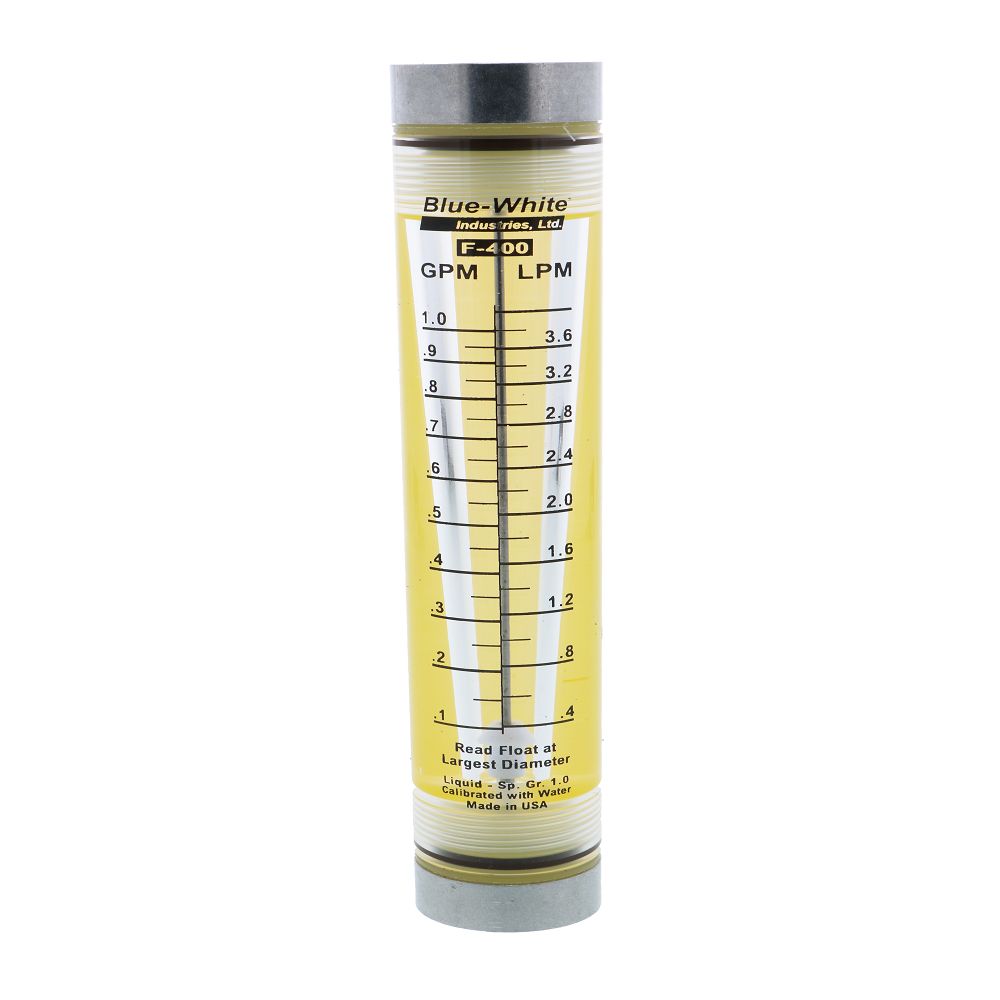

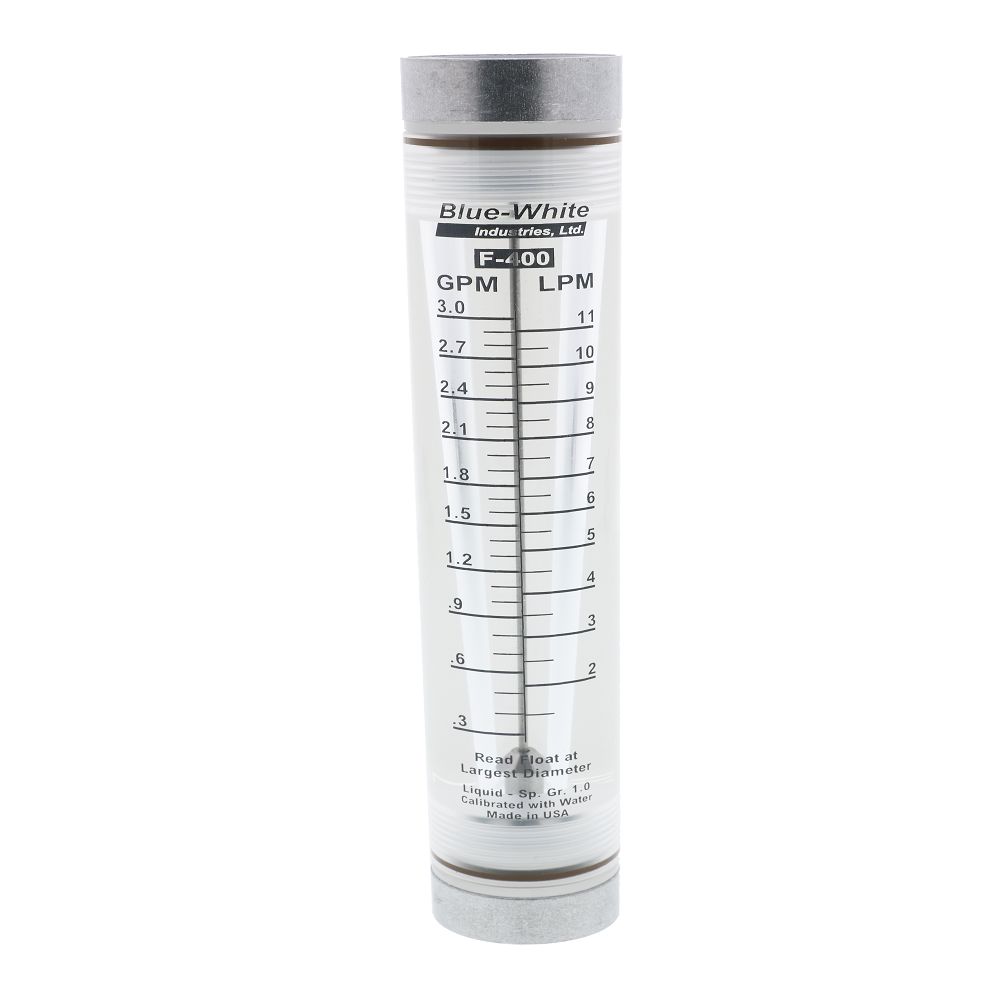

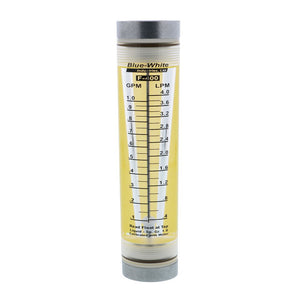

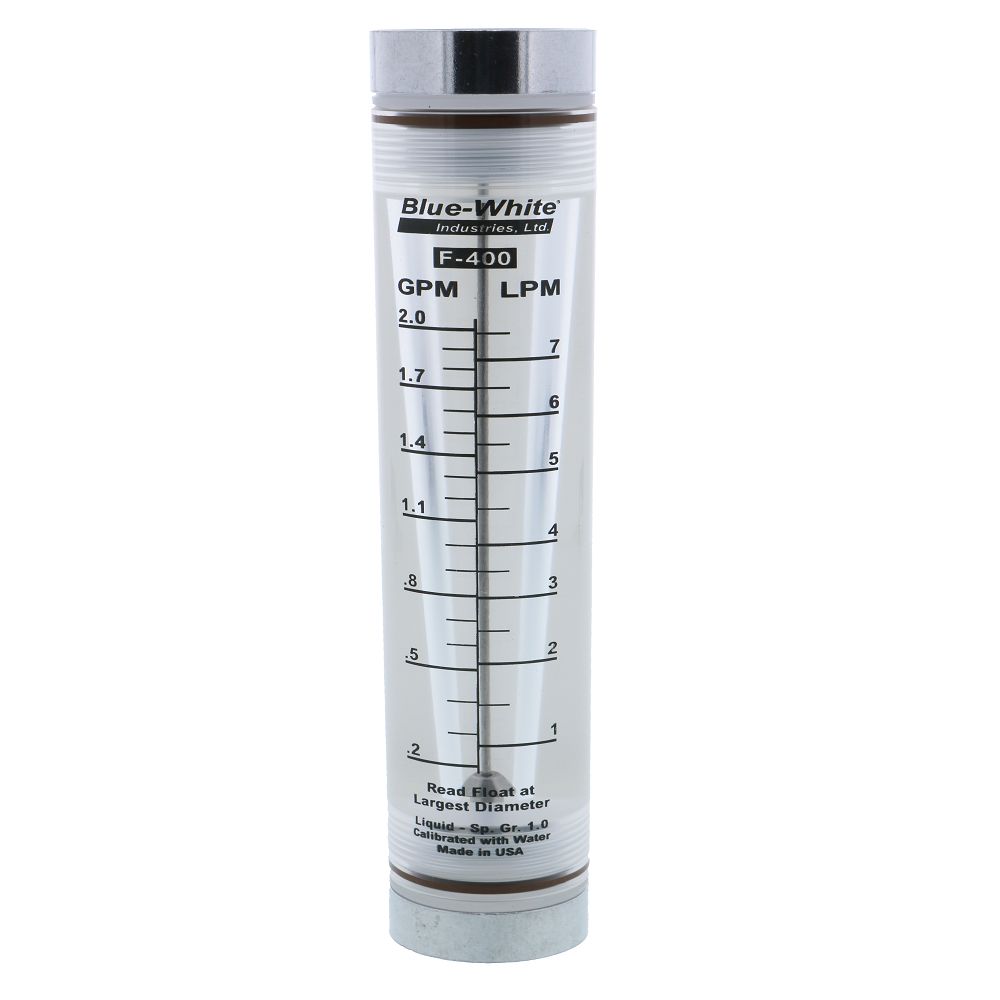

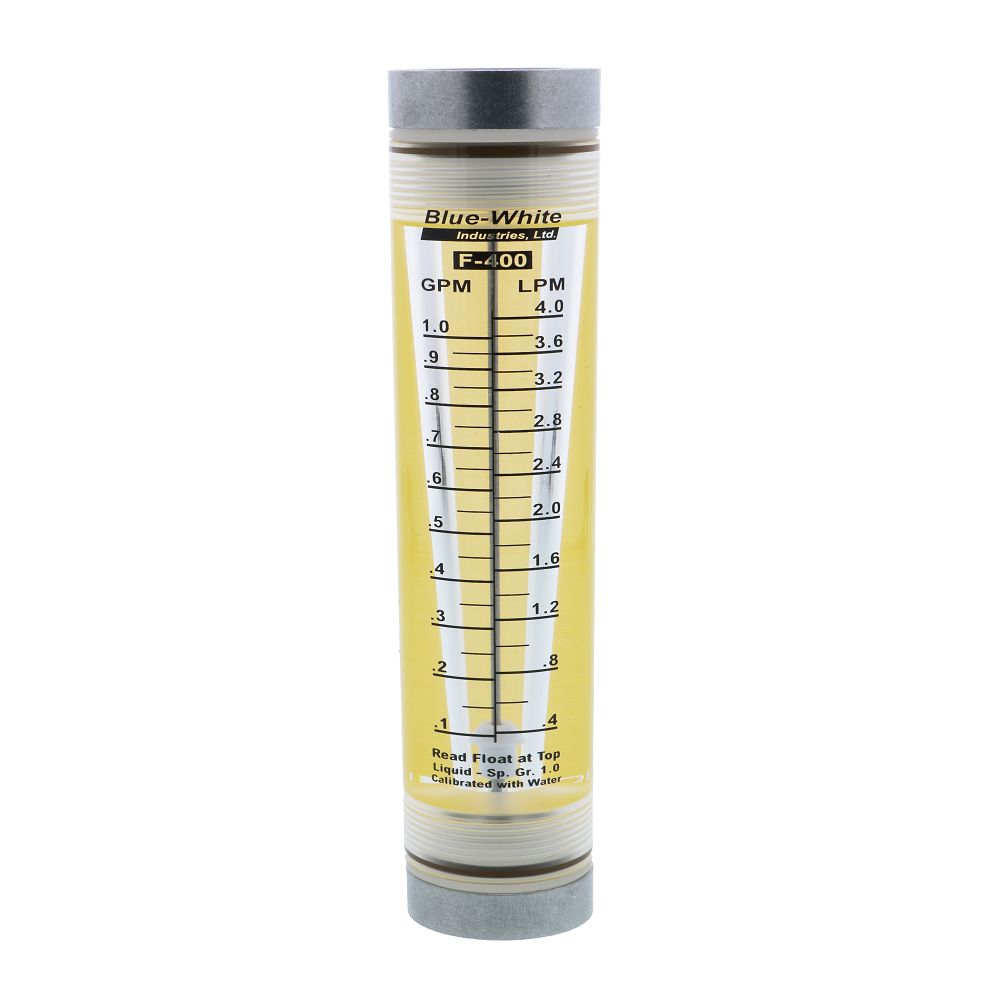

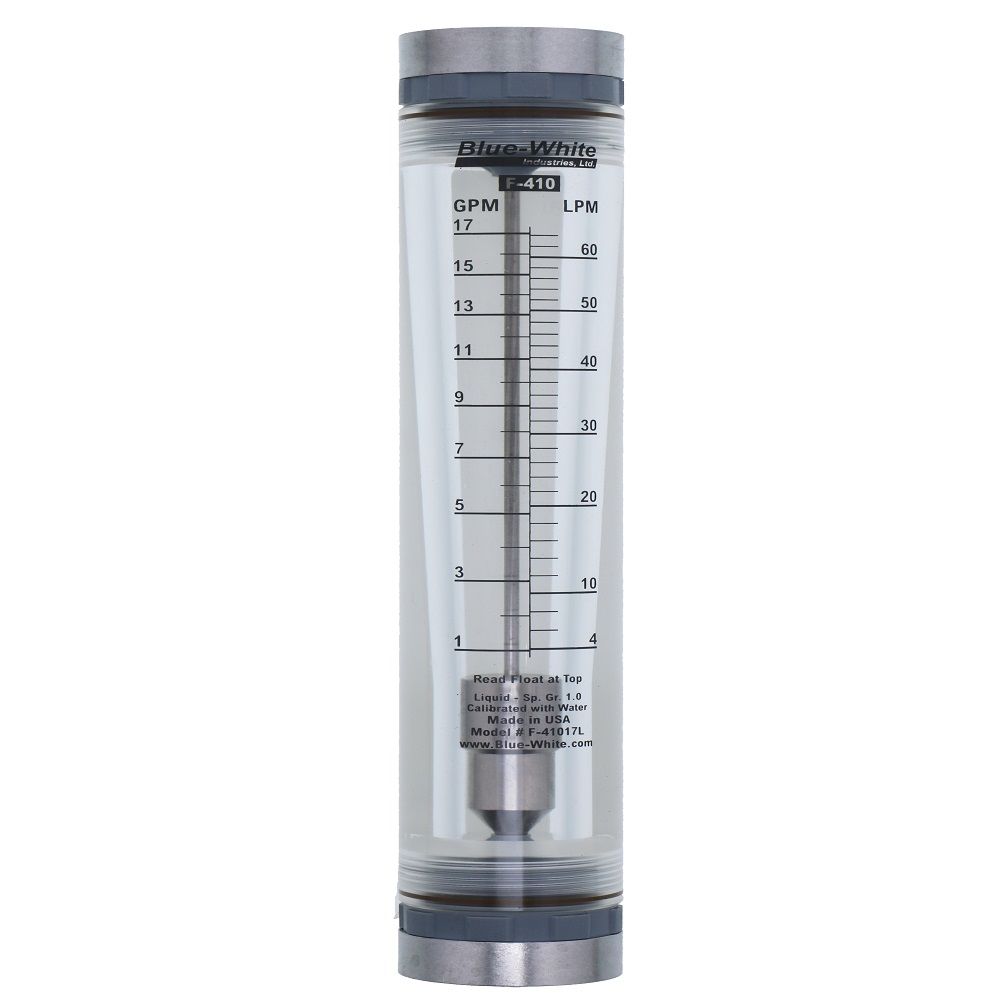

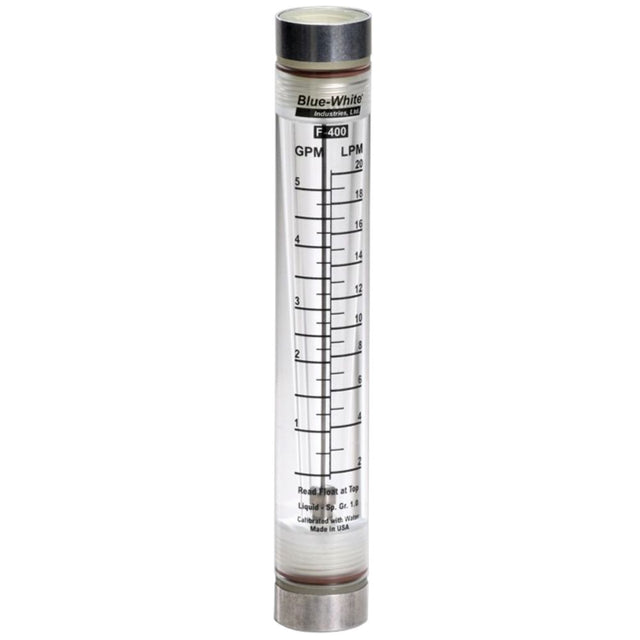

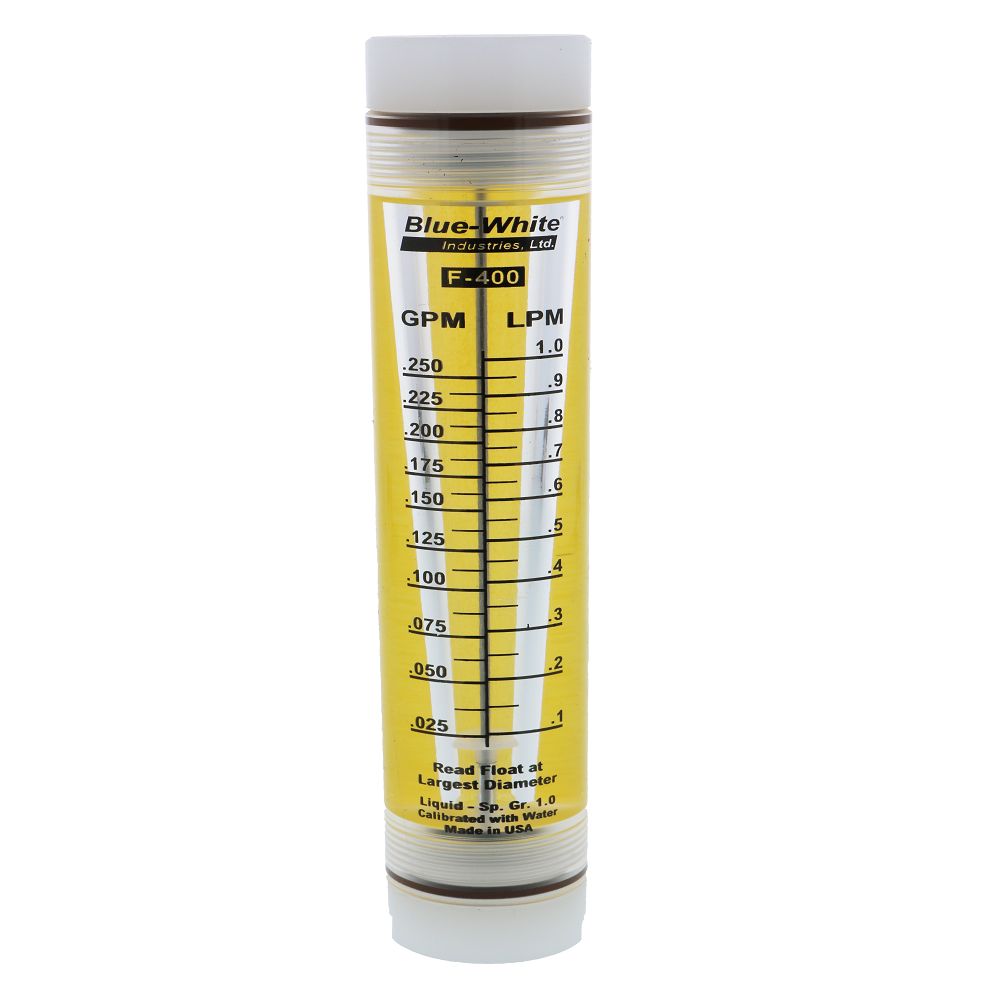

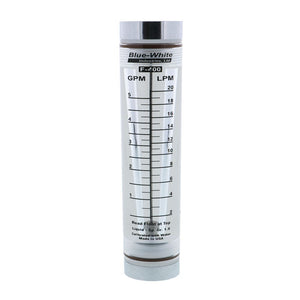

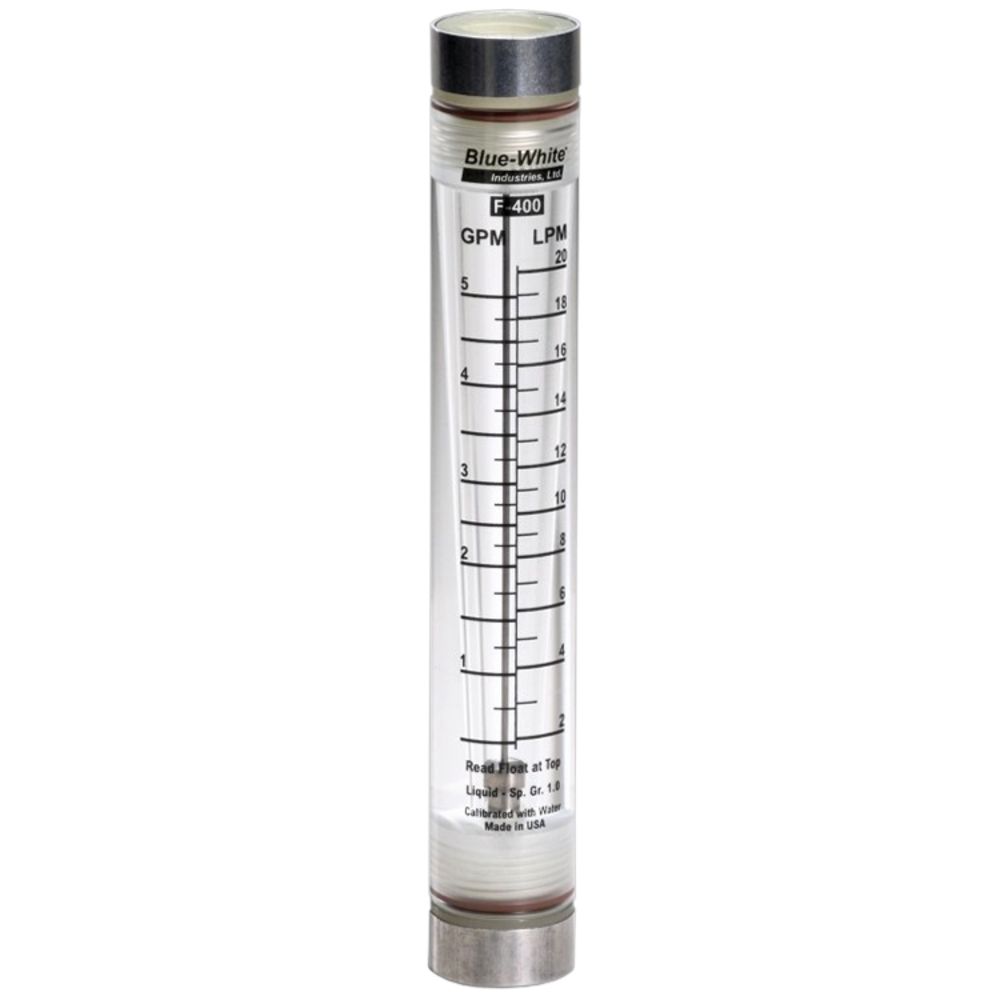

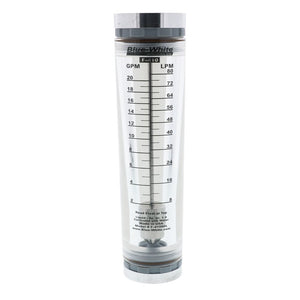

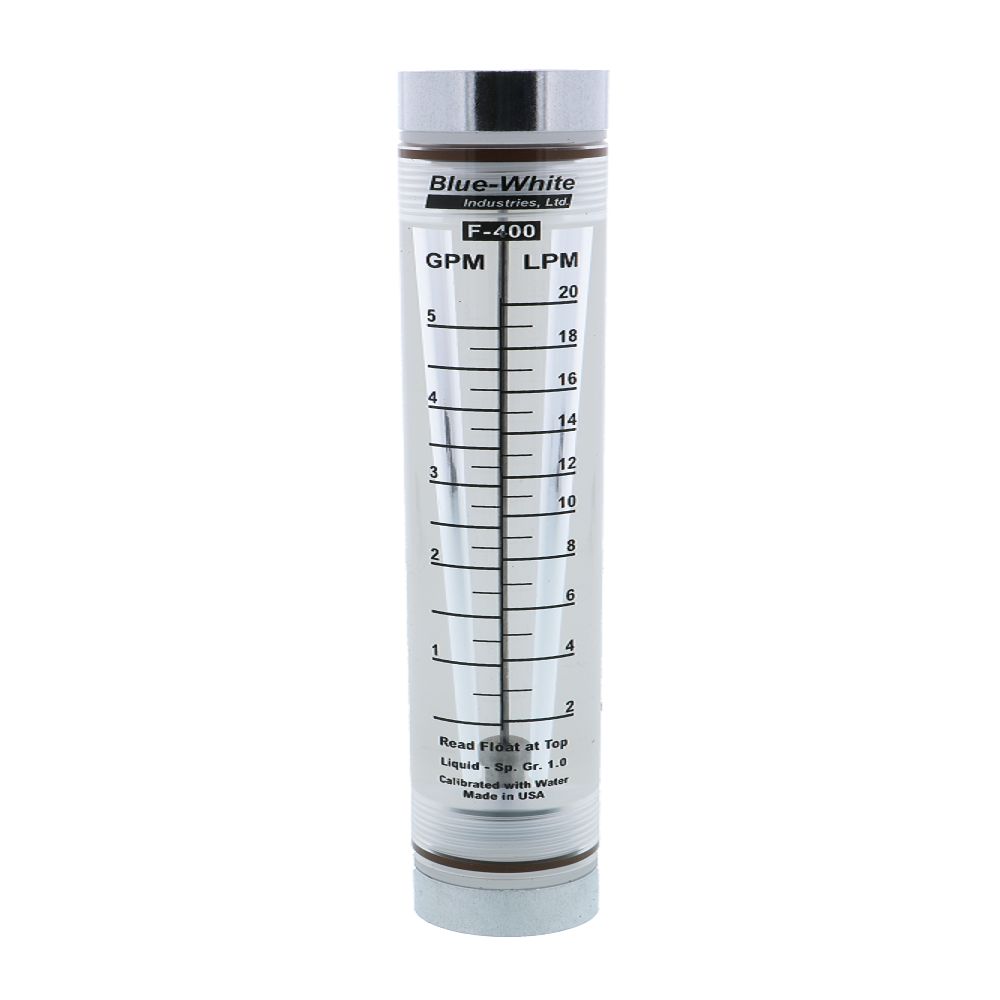

Blue White F-400N INLINE Rotameter

Part Number: F-40375LN-8

Description

Features:

Machined from high quality acrylic, polished to a clear finish
Annealed for added strength and chemical resistance
Acceptable for outdoor installations (direct sunlight okay)
Designed for in-line installation
Easy to read scale

Neo-Pure Compatibles For Blue White

Inline Flow Meters

Flow Rate	Connection	Blue White	Neo-Pure
0.1-1.0 GPM	1/2" FPT	F-40375LN-8	FMS1-011-08
0.2-2.0 GPM	1/2" FPT	F-40376LN-8	FMS1-022-08
0.5-5.0 GPM	1/2" FPT	F-40500LN-8	FMS1-055-08
2.0-20 GPM	3/4" FPT	F-41000LN-12	FMS1-220-16
2.0-20 GPM	1" FPT	F-41000LN-16	FMS1-220-16
2.0-20 GPM	1" FPT	F-451002LHN	FMS1-220-16
3.0-30 GPM	1" FPT	F-451003LHN	FMS1-530-16

Panel Mounted Flow Meters

Flow Rate	Connection	Blue White	Neo-Pure
0.2-20 GPM	1" MPT	F-55200L*	FMP0-216-16*
0.2-2.0 GPM	3/8" MPT	F-55376L	FMP0-022-06
0.5-5.0 GPM	1/2" MPT	F-55500L	FMP0-055-08
0.1-10 GPM	3/4" MPT	F-55750L	FMP0-210-12

Adjustable Panel Mounted Flow Meters

Flow Rate	Connection	Blue White	Neo-Pure
0.2-20 GPM	1" MPT	F-55200LA**	FMP1-216-16**
0.1-1.0 GPM	3/8" MPT	F-55375LA***	FMP1-011-04***
0.2-2.0 GPM	3/8" MPT	F-55376LA	FMP1-022-06
0.5-5.0 GPM	1/2" MPT	F-55500LA	FMP1-055-08
0.1-10 GPM	3/4" MPT	F-55750LA	FMP1-210-12

Please note: While all Neo-Pure listed are direct replacements for Blue White, the following panel mounted flowmeters differ in mounting spread.

Blue White:
F-55200L* - 8 inch
F-55200LA** - 8 inch
F-55375LA*** - 6.5 inch

Neo-Pure:
FMP0-216-16* - 6.5 inch
FMP1-216-16** - 6.5 inch
FMP1-011-04*** - 5 inch

Specifications

Product Details
Accuracy	±5 %
Body Material	Acrylic
Max Pressure (Psi)	150
Max Temp (°F)	150°F
O-Rings	Viton
Flow Rate	0.025-5 GPM
Port Size	1/2" FNPT 1" FNPT 3/8" FNPT 1/4" FNPT
Type	Inline Rotameter
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.2

Product Details
Accuracy	±5 %
Body Material	Acrylic
Max Pressure (Psi)	150
Max Temp (°F)	150°F
O-Rings	Viton
Flow Rate	0.025-5 GPM
Port Size	1/2" FNPT 1" FNPT 3/8" FNPT 1/4" FNPT
Type	Inline Rotameter
Product Weight & Dimensions
Product Weight (lbs)	1

Product Details
Accuracy	±5 %
Body Material	Acrylic
Float	316 Stainless Steel
Guide	316 Stainless Steel
Max Pressure (Psi)	150
Max Temp (°F)	150
Measurement Range	0.2-20 SCFM
O-Rings	Viton
Flow Rate	0.025-5 GPM
Port Size	1/2" FNPT 1" FNPT 3/8" FNPT 1/4" FNPT
Type	Inline Rotameter
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.1

Product Details
Accuracy	±5 %
Body Material	Acrylic
Max Pressure (Psi)	150
Max Temp (°F)	150°F
O-Rings	Viton
Flow Rate	0.025-5 GPM
Port Size	1/2" FNPT 1" FNPT 3/8" FNPT 1/4" FNPT
Type	Inline Rotameter
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.25

Product Details
Accuracy	±5 %
Body Material	Acrylic
Float	316 Stainless Steel
Guide	316 Stainless Steel
Max Pressure (Psi)	150
Max Temp (°F)	150
Measurement Range	0.2-20 SCFM
O-Rings	Viton
Flow Rate	0.025-5 GPM
Port Size	1/2" FNPT 1" FNPT 3/8" FNPT 1/4" FNPT
Type	Inline Rotameter
Shipping Dimensions
Shipping Length	12 in.
Shipping Width	4 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.4

Product Details
Accuracy	±5 %
Body Material	Acrylic
Max Pressure (Psi)	150
Max Temp (°F)	150°F
O-Rings	Viton
Flow Rate	0.025-5 GPM
Port Size	1/2" FNPT 1" FNPT 3/8" FNPT 1/4" FNPT
Type	Inline Rotameter
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	0.56

Product Details
Accuracy	±5 %
Body Material	Acrylic
Max Pressure (Psi)	150
Max Temp (°F)	150°F
O-Rings	Viton
Flow Rate	0.025-5 GPM
Port Size	1/2" FNPT 1" FNPT 3/8" FNPT 1/4" FNPT
Type	Inline Rotameter
Product Weight & Dimensions
Product Weight (lbs)	1

Product Details
Accuracy	±5 %
Body Material	Acrylic
Float	316 Stainless Steel
Guide	316 Stainless Steel
Max Pressure (Psi)	150
Max Temp (°F)	150
Measurement Range	0.2-20 SCFM
O-Rings	Viton
Flow Rate	0.025-5 GPM
Port Size	1/2" FNPT 1" FNPT 3/8" FNPT 1/4" FNPT
Type	Inline Rotameter
Shipping Dimensions
Shipping Length	11 in.
Shipping Width	3 in.
Shipping Height	3 in.
Product Weight & Dimensions
Product Height	3 in.
Product Length	11 in.
Product Width	3 in.
Product Weight (lbs)	0.625

Product Details
Accuracy	±5 %
Body Material	Acrylic
Float	316 Stainless Steel
Guide	316 Stainless Steel
Max Pressure (Psi)	150
Max Temp (°F)	150
Measurement Range	0.2-20 SCFM
O-Rings	Viton
Flow Rate	0.025-5 GPM
Port Size	1/2" FNPT 1" FNPT 3/8" FNPT 1/4" FNPT
Type	Inline Rotameter
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	2.6

Product Details
Accuracy	±5 %
Body Material	Acrylic
Max Pressure (Psi)	150
Max Temp (°F)	150°F
O-Rings	Viton
Flow Rate	0.025-5 GPM
Port Size	1/2" FNPT 1" FNPT 3/8" FNPT 1/4" FNPT
Type	Inline Rotameter
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	2

Product Details
Accuracy	±5 %
Body Material	Acrylic
Max Pressure (Psi)	150
Max Temp (°F)	150°F
O-Rings	Viton
Flow Rate	0.025-5 GPM
Port Size	1/2" FNPT 1" FNPT 3/8" FNPT 1/4" FNPT
Type	Inline Rotameter
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1.65

Downloads

Blue White F-400N INLINE Rotameter Manual
