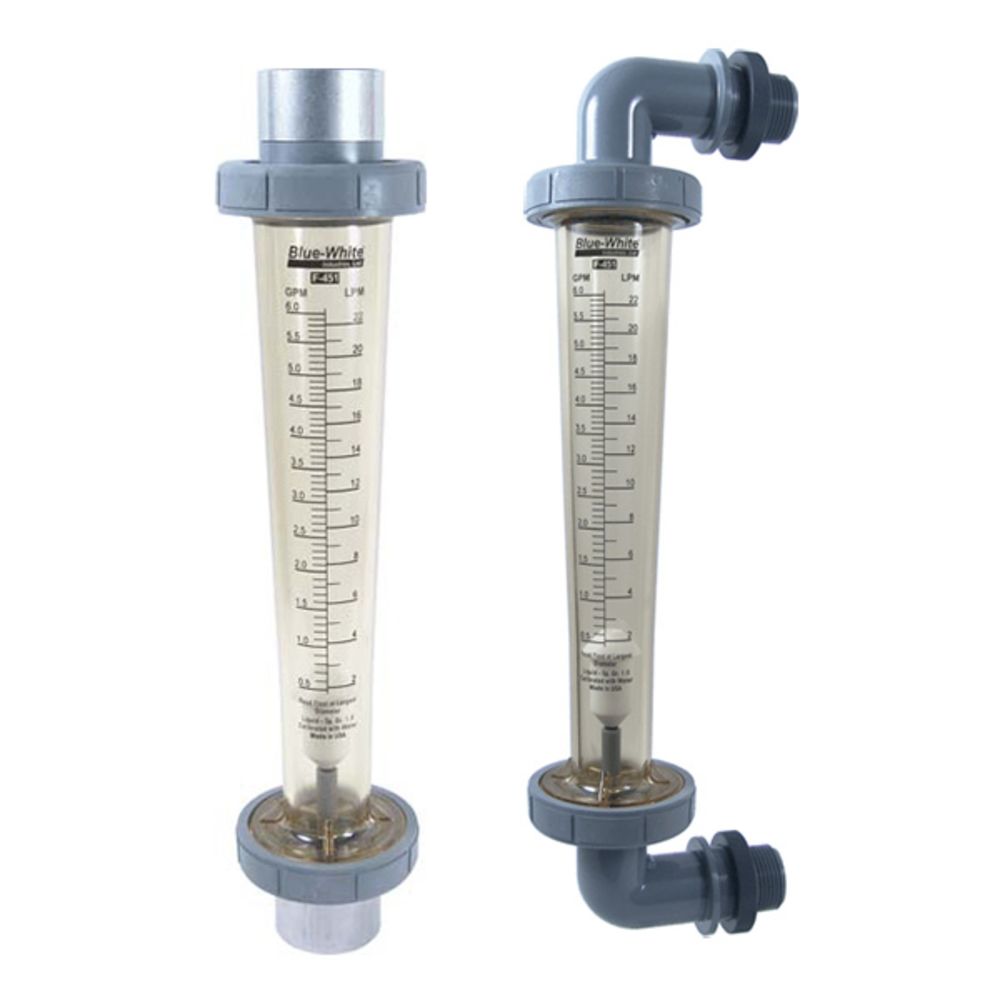

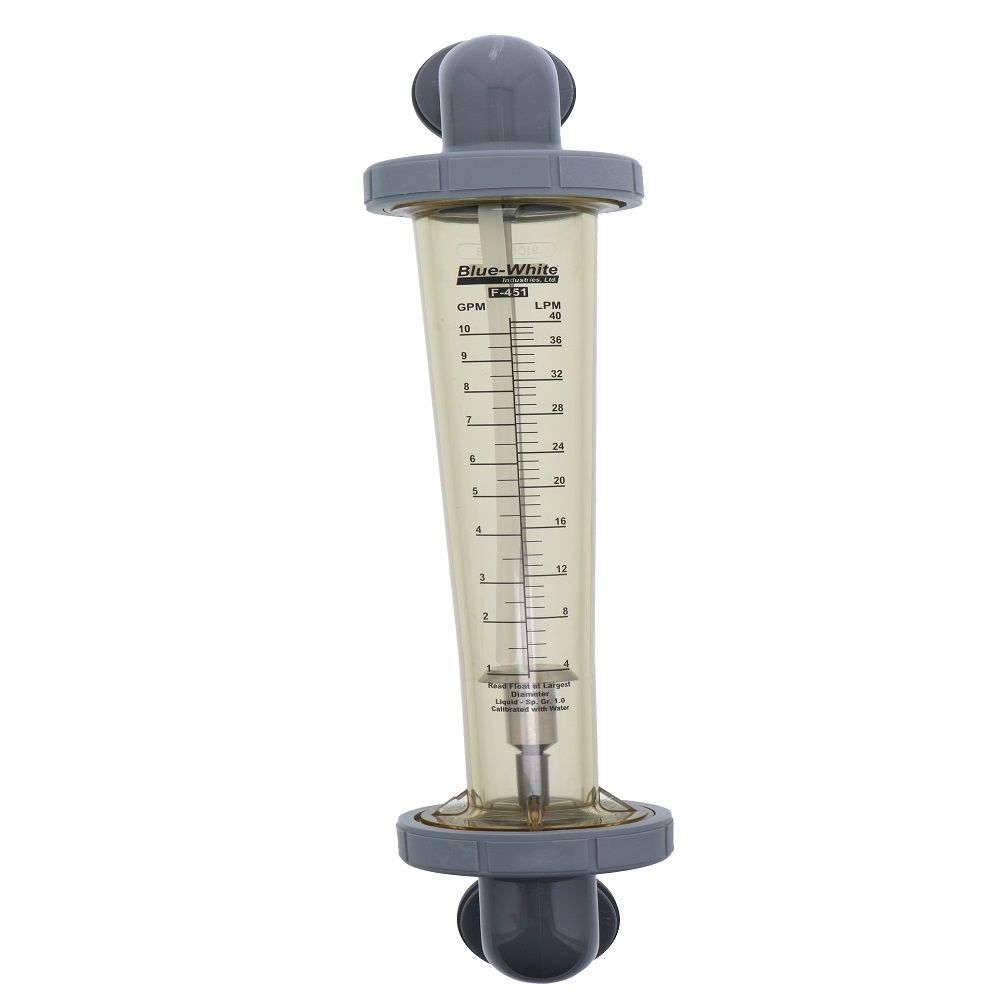

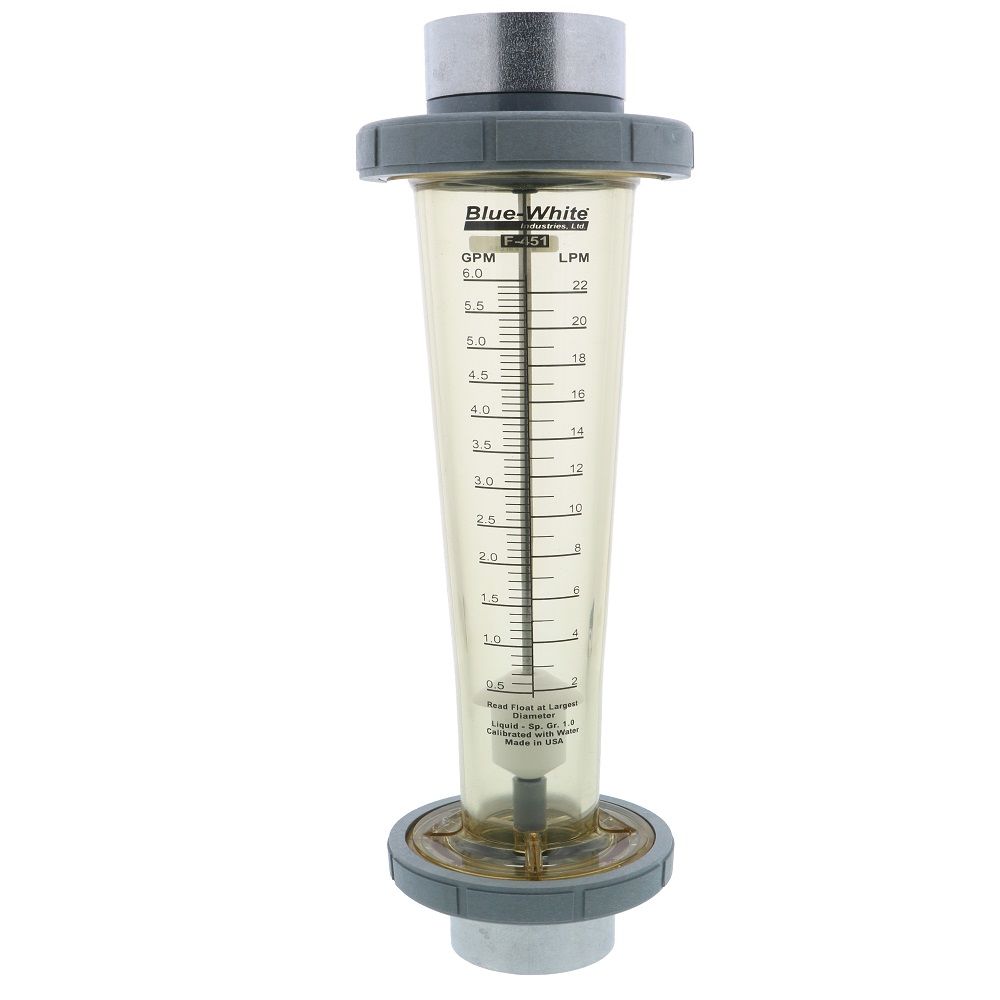

Blue White F-451 Rotameter

1.0

(0 reviews)

Part Number: F-451006LHN Alt. Part Number: F-451

1 7

Blue-White

Blue White F-451 Rotameter

1.0

(0 reviews)

Part Number: F-451006LHN Alt. Part Number: F-451

$539.67

Choose:

0.5 - 6 GPM - Inline 1" FPT 1 - 10 GPM - Inline 1" FPT 1 - 10 GPM - Panel Mount 1" MPT 2 - 20 GPM - Inline 1" FPT 3 - 30 GPM - Inline 1.5" FPT 4 - 40 GPM - Inline 1" FPT 3 - 30 GPM - Inline 1" FPT 4 - 40 GPM - Inline 1.5" FPT 4 - 40 GPM - Panel Mount 1" MPT

Product variants

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Features:

Injection molded, chemical resistant Polysulfone
Quick Loc (1/2 union) adapters

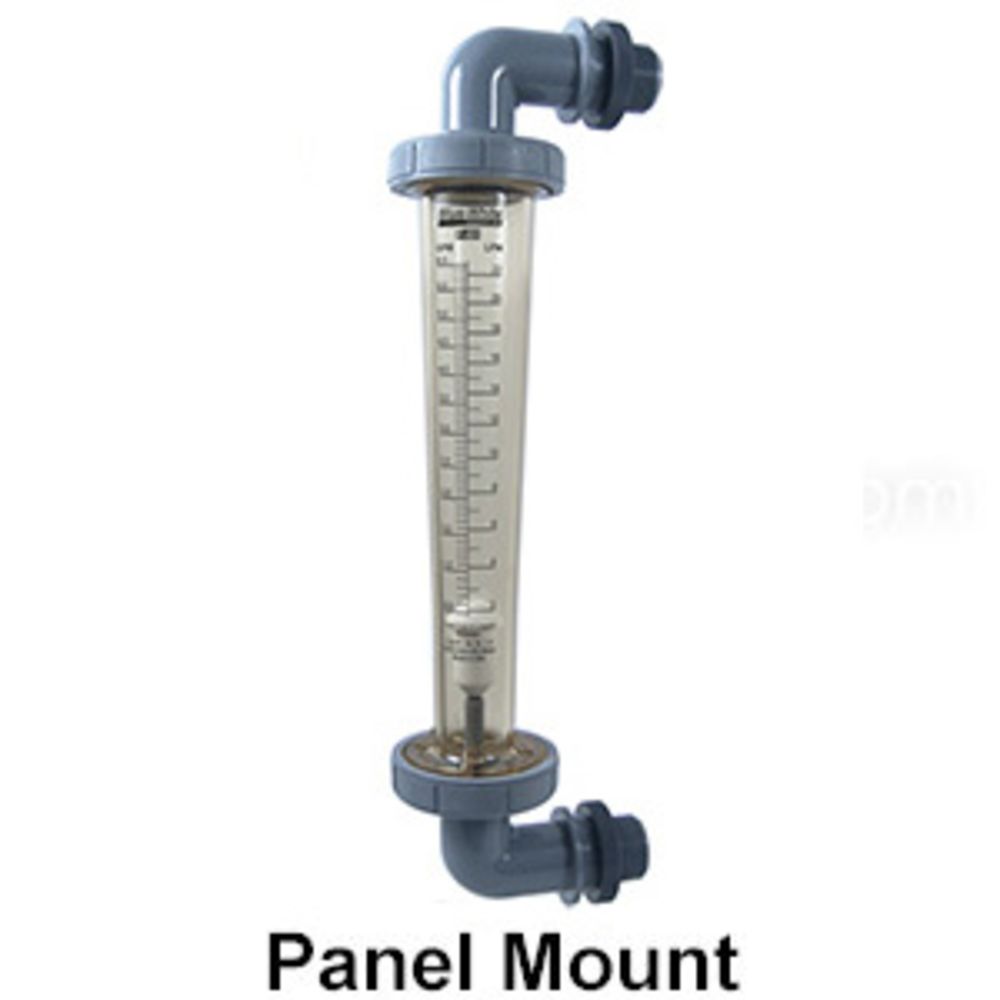

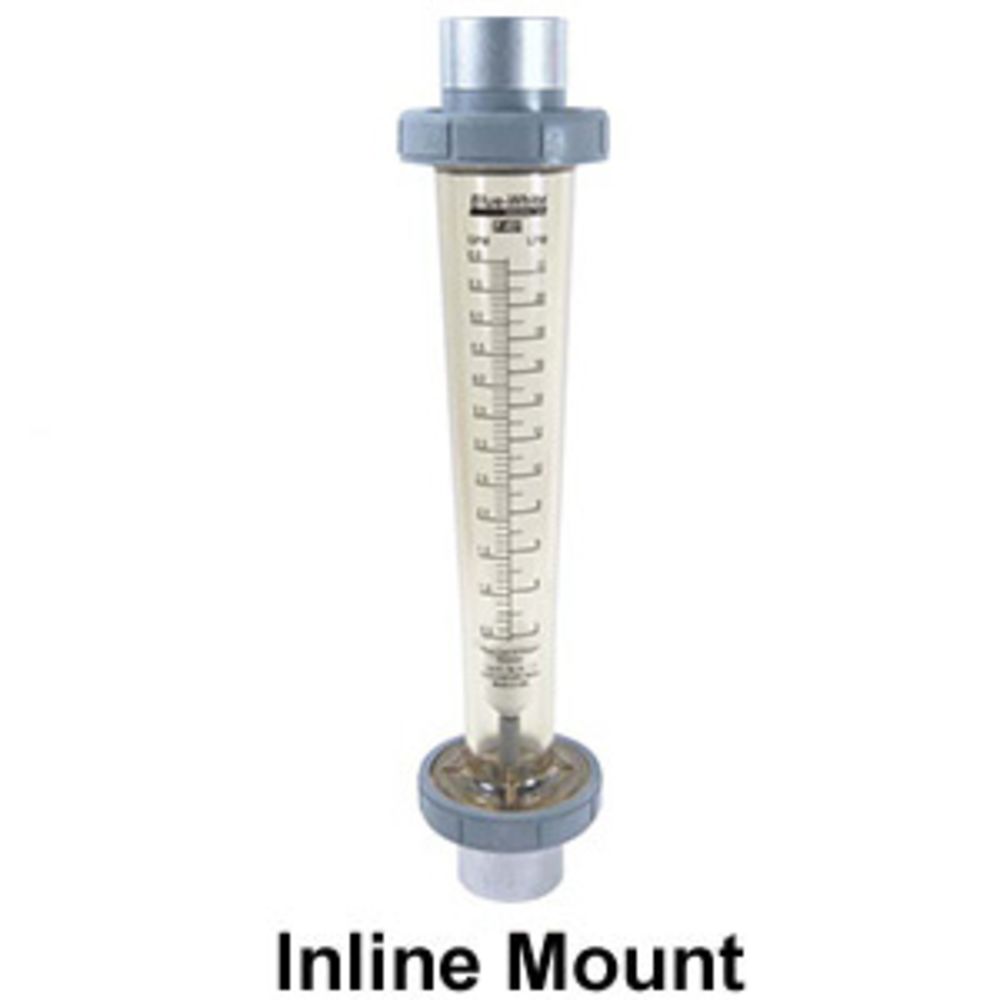

Available in configuration for in-line & panel mount installation
Dual scale and single scale available
Polycarbonate shield available

Neo-Pure Compatibles For Blue White

Inline Flow Meters

Flow Rate	Connection	Blue White	Neo-Pure
0.1-1.0 GPM	1/2" FPT	F-40375LN-8	FMS1-011-08
0.2-2.0 GPM	1/2" FPT	F-40376LN-8	FMS1-022-08
0.5-5.0 GPM	1/2" FPT	F-40500LN-8	FMS1-055-08
2.0-20 GPM	3/4" FPT	F-41000LN-12	FMS1-220-16
2.0-20 GPM	1" FPT	F-41000LN-16	FMS1-220-16
2.0-20 GPM	1" FPT	F-451002LHN	FMS1-220-16
3.0-30 GPM	1" FPT	F-451003LHN	FMS1-530-16

Panel Mounted Flow Meters

Flow Rate	Connection	Blue White	Neo-Pure
0.2-20 GPM	1" MPT	F-55200L*	FMP0-216-16*
0.2-2.0 GPM	3/8" MPT	F-55376L	FMP0-022-06
0.5-5.0 GPM	1/2" MPT	F-55500L	FMP0-055-08
0.1-10 GPM	3/4" MPT	F-55750L	FMP0-210-12

Adjustable Panel Mounted Flow Meters

Flow Rate	Connection	Blue White	Neo-Pure
0.2-20 GPM	1" MPT	F-55200LA**	FMP1-216-16**
0.1-1.0 GPM	3/8" MPT	F-55375LA***	FMP1-011-04***
0.2-2.0 GPM	3/8" MPT	F-55376LA	FMP1-022-06
0.5-5.0 GPM	1/2" MPT	F-55500LA	FMP1-055-08
0.1-10 GPM	3/4" MPT	F-55750LA	FMP1-210-12

Please note: While all Neo-Pure listed are direct replacements for Blue White, the following panel mounted flowmeters differ in mounting spread.

Blue White:
F-55200L* - 8 inch
F-55200LA** - 8 inch
F-55375LA*** - 6.5 inch

Neo-Pure:
FMP0-216-16* - 6.5 inch
FMP1-216-16** - 6.5 inch
FMP1-011-04*** - 5 inch

Specifications

Product Details
Accuracy	±3 %
Body Material	Polysulfone
Max Pressure (Psi)	150
Max Temp (°F)	212°F
O-Rings	Viton
Flow Rate	.5-40 GPM
Port Size	1" FNPT 1" MNPT 1-1/2" MNPT 1-1/2" FNPT
Shipping Dimensions
Shipping Length	22 in.
Shipping Width	10 in.
Shipping Height	9 in.
Product Weight & Dimensions
Product Weight (lbs)	5.65

Product Details
Accuracy	±3 %
Body Material	Polysulfone
Max Pressure (Psi)	150
Max Temp (°F)	212°F
O-Rings	Viton
Flow Rate	.5-40 GPM
Port Size	1" FNPT 1" MNPT 1-1/2" MNPT 1-1/2" FNPT
Shipping Dimensions
Shipping Length	26 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	2.75

Product Details
Accuracy	±3 %
Body Material	Polysulfone
Float	Teflon 316 Stainless Steel
Max Pressure (Psi)	150
Max Temp (°F)	212
Measurement Range	4 to 80 SCFM
O-Rings	Viton
Flow Rate	.5-40 GPM
Port Size	1" FNPT 1" MNPT 1-1/2" MNPT 1-1/2" FNPT
Product Weight & Dimensions
Product Weight (lbs)	1.2

Product Details
Accuracy	±3 %
Body Material	Polysulfone
Float	Teflon 316 Stainless Steel
Max Pressure (Psi)	150
Max Temp (°F)	212
Measurement Range	4 to 80 SCFM
O-Rings	Viton
Flow Rate	.5-40 GPM
Port Size	1" FNPT 1" MNPT 1-1/2" MNPT 1-1/2" FNPT
Shipping Dimensions
Shipping Length	26 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	2.75

Product Details
Accuracy	±3 %
Body Material	Polysulfone
Float	Teflon 316 Stainless Steel
Max Pressure (Psi)	150
Max Temp (°F)	212
Measurement Range	4 to 80 SCFM
O-Rings	Viton
Flow Rate	.5-40 GPM
Port Size	1" FNPT 1" MNPT 1-1/2" MNPT 1-1/2" FNPT
Shipping Dimensions
Shipping Length	26 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	3.1

Product Details
Accuracy	±3 %
Body Material	Polysulfone
Float	Teflon 316 Stainless Steel
Max Pressure (Psi)	150
Max Temp (°F)	212
Measurement Range	4 to 80 SCFM
O-Rings	Viton
Flow Rate	.5-40 GPM
Port Size	1" FNPT 1" MNPT 1-1/2" MNPT 1-1/2" FNPT
Shipping Dimensions
Shipping Length	26 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	3.15

Product Details
Accuracy	±3 %
Body Material	Polysulfone
Max Pressure (Psi)	150
Max Temp (°F)	212°F
O-Rings	Viton
Flow Rate	.5-40 GPM
Port Size	1" FNPT 1" MNPT 1-1/2" MNPT 1-1/2" FNPT
Shipping Dimensions
Shipping Length	26 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	2.85

Product Details
Accuracy	±3 %
Body Material	Polysulfone
Max Pressure (Psi)	150
Max Temp (°F)	212°F
O-Rings	Viton
Flow Rate	.5-40 GPM
Port Size	1" FNPT 1" MNPT 1-1/2" MNPT 1-1/2" FNPT
Shipping Dimensions
Shipping Length	26 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	3.15

Product Details
Accuracy	±3 %
Body Material	Polysulfone
Max Pressure (Psi)	150
Max Temp (°F)	212°F
O-Rings	Viton
Flow Rate	.5-40 GPM
Port Size	1" FNPT 1" MNPT 1-1/2" MNPT 1-1/2" FNPT
Shipping Dimensions
Shipping Length	20 in.
Shipping Width	8 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	2.9

Downloads

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products
Facet	Blue-White Blue White F-451 Rotameter 1.0 Regular price $539.67 Part #: F-451006LHN Current Product	Neo-Pure Neo-Pure Inline Flowmeter 2-20GPM 1" FNPT Regular price From $81.78 Part #: FMS1-220-16 Save up to 5% with bulk pricing View details
Price
Price	Regular price $539.67	Regular price From $81.78
Part #
Part #	F-451006LHN	FMS1-220-16
Description
Description	Features: Injection molded, chemical resistant Polysulfone Quick Loc (1/2 union) adapters Available in configuration for in-line & panel mount installation Dual scale and single scale...	Neo-Pure Panel Mount Flowmeters are of consistent quality with excellent endurance. Utilizing our experience in Engineering and Injection Molding, we have developed a competitive and highly...
