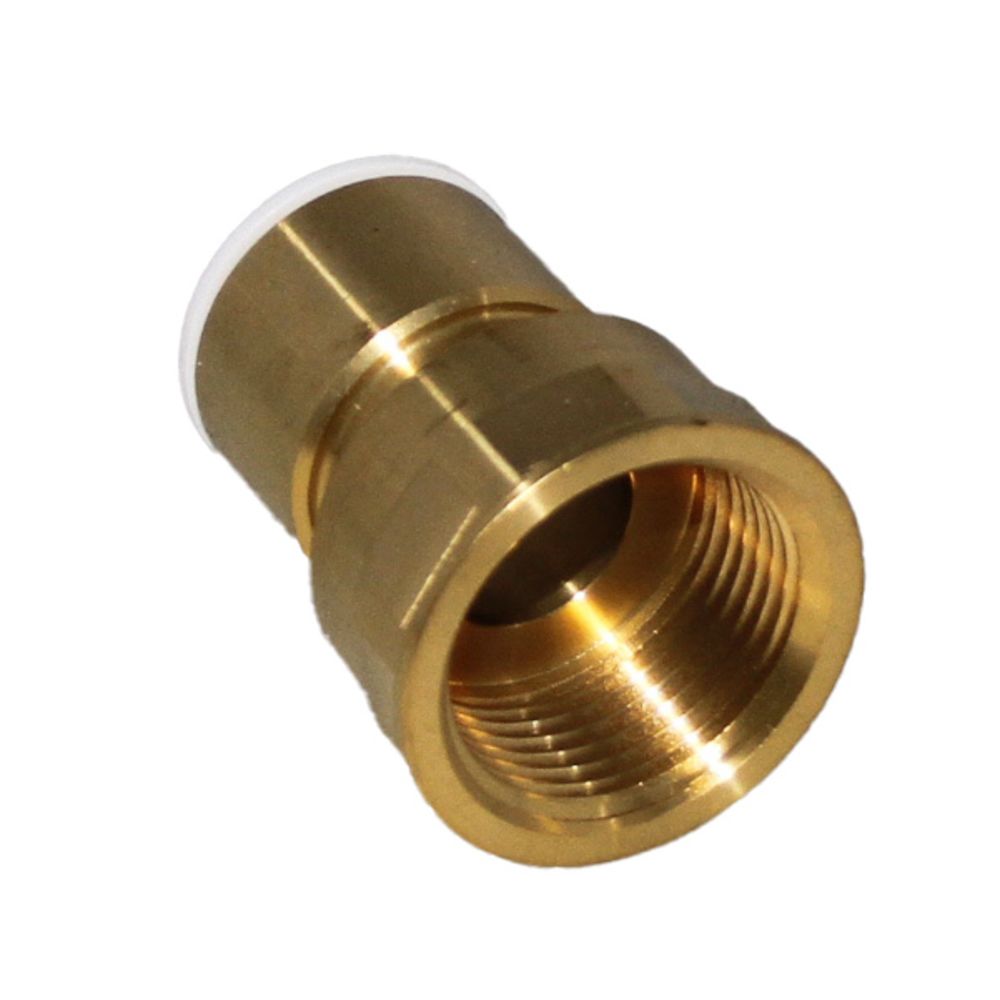

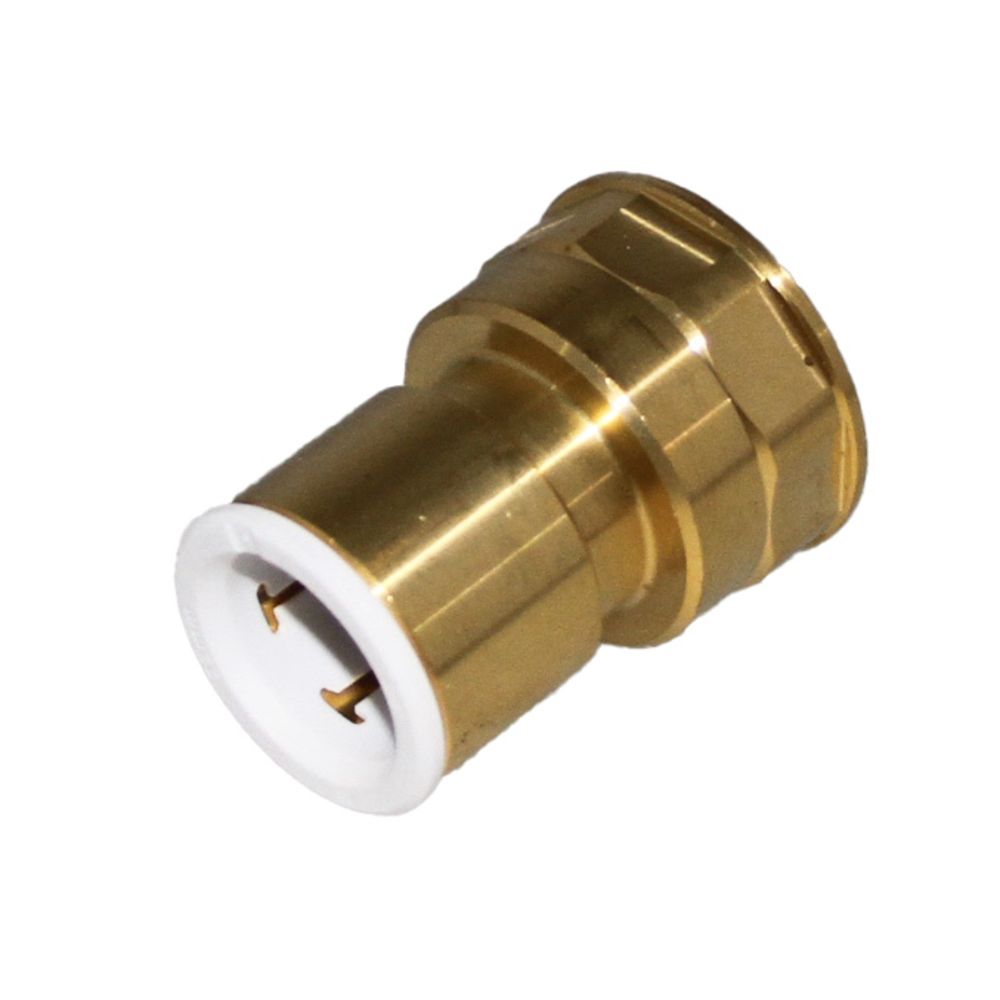

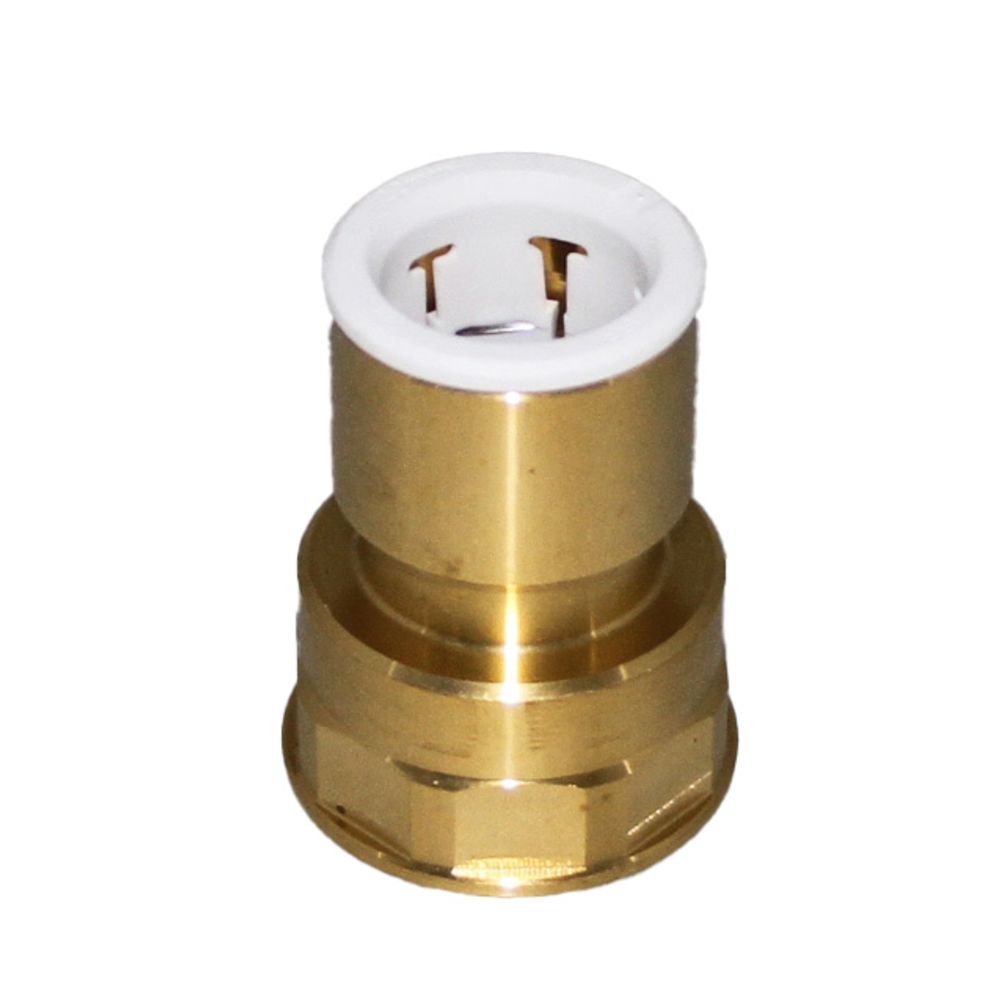

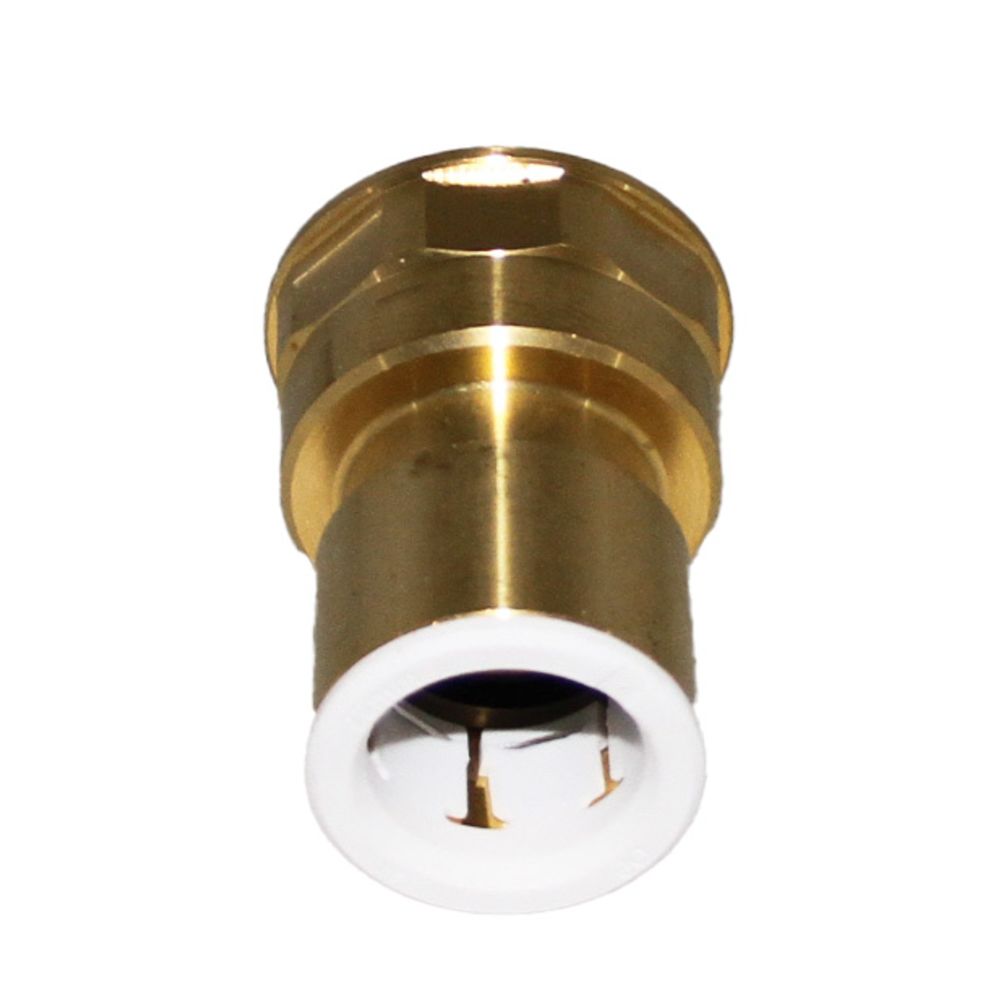

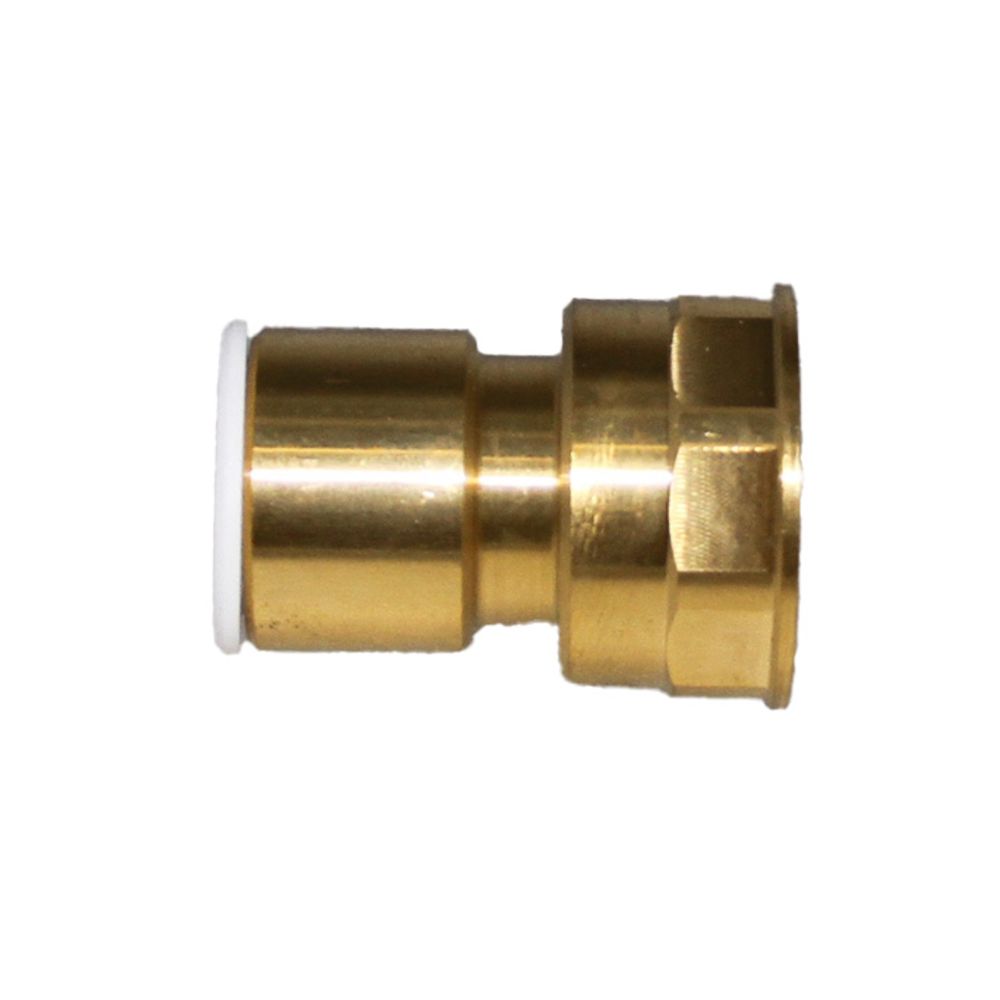

John Guest Lead Free Brass Flare Female Connector - 3/8 x 3/8 FFL

1.0

(1 reviews)

Part Number: MI4512F6SLF Alt. Part Number: PI201608S

1 5

John Guest

John Guest Lead Free Brass Flare Female Connector - 3/8 x 3/8 FFL

1.0

(1 reviews)

Part Number: MI4512F6SLF Alt. Part Number: PI201608S

MSRP: $14.77

$8.87

Quantity

Unit Price

Price

Savings

$8.87

—

$7.96

$79.61

10%

100

$7.73

$773.95

12%

Product variants

You May Also Need

Optional Accessory
Black 3/8" OD LLDPE Polyethylene Tubing

Regular price From $0.20
Optional Accessory
John Guest Collet Cover - 3/8 OD

Regular price From $0.30
Optional Accessory
NeoFit - Acetal Locking Clip 3/8"

Regular price From $0.23
Optional Accessory
John Guest Flow Bend Clip - 3/8

Regular price From $1.27
Optional Accessory
John Guest Collet Release Tool - 1/4, 3/8

Regular price From $2.06
Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest female connector is used for connecting the cold-water supply to coffee machines and equipment and is also used in beverage dispensing and vending machine applications. For connecting OD tubing sizes to male flare threads. John Guest Push-fit technology makes connecting tubing quick and easy. Constructed of Lead-Free Brass with an EPDM O-ring.

Features and benefits:

For use with plastic or copper OD sized tubing
Lead Free Brass body, EPDM O-ring
Quick and easy connection/disconnection
NSF61 listed

Working pressure and temperature:

150 psi at 70° F
60 psi at 140° F

View Prop 65 Warning

Specifications

Product Details
Inlet Connection	3/8" Flare
Max Pressure (Psi)	145
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	3/8" Flare
Push-In Size	3/8" OD
Series	Brass
Shape	Straight
Size	3/8"
Color / Finish	Brass
Connection Type	Flare
Origin	UK
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	1.299 in.
Shipping Width	0.783 in.
Shipping Height	0.783 in.
Product Weight & Dimensions
Product Height	0.783 in.
Product Length	1.299 in.
Product Width	0.783 in.
Product Weight (lbs)	0.0778

Product Details
Inlet Connection	3/8" Flare
Max Pressure (Psi)	145
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	3/8" Flare
Push-In Size	3/8" OD
Series	Brass
Shape	Straight
Size	3/8"
Color / Finish	Brass
Connection Type	Flare
Origin	UK
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10 in.
Shipping Height	10 in.
Product Weight & Dimensions
Product Weight (lbs)	1.15

Product Details
Inlet Connection	3/8" Flare
Max Pressure (Psi)	145
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	3/8" Flare
Push-In Size	3/8" OD
Series	Brass
Shape	Straight
Size	3/8"
Color / Finish	Brass
Connection Type	Flare
Origin	UK
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	4.134 in.
Product Weight & Dimensions
Product Weight (lbs)	7.78

Downloads

John Guest Lead Free Brass Flare Female Connector - 3/8 x 3/8 FFL Manual
